JBL CONTROL 227CT, 6.5" Two Way 150W Coaxial Ceiling Loudspeaker

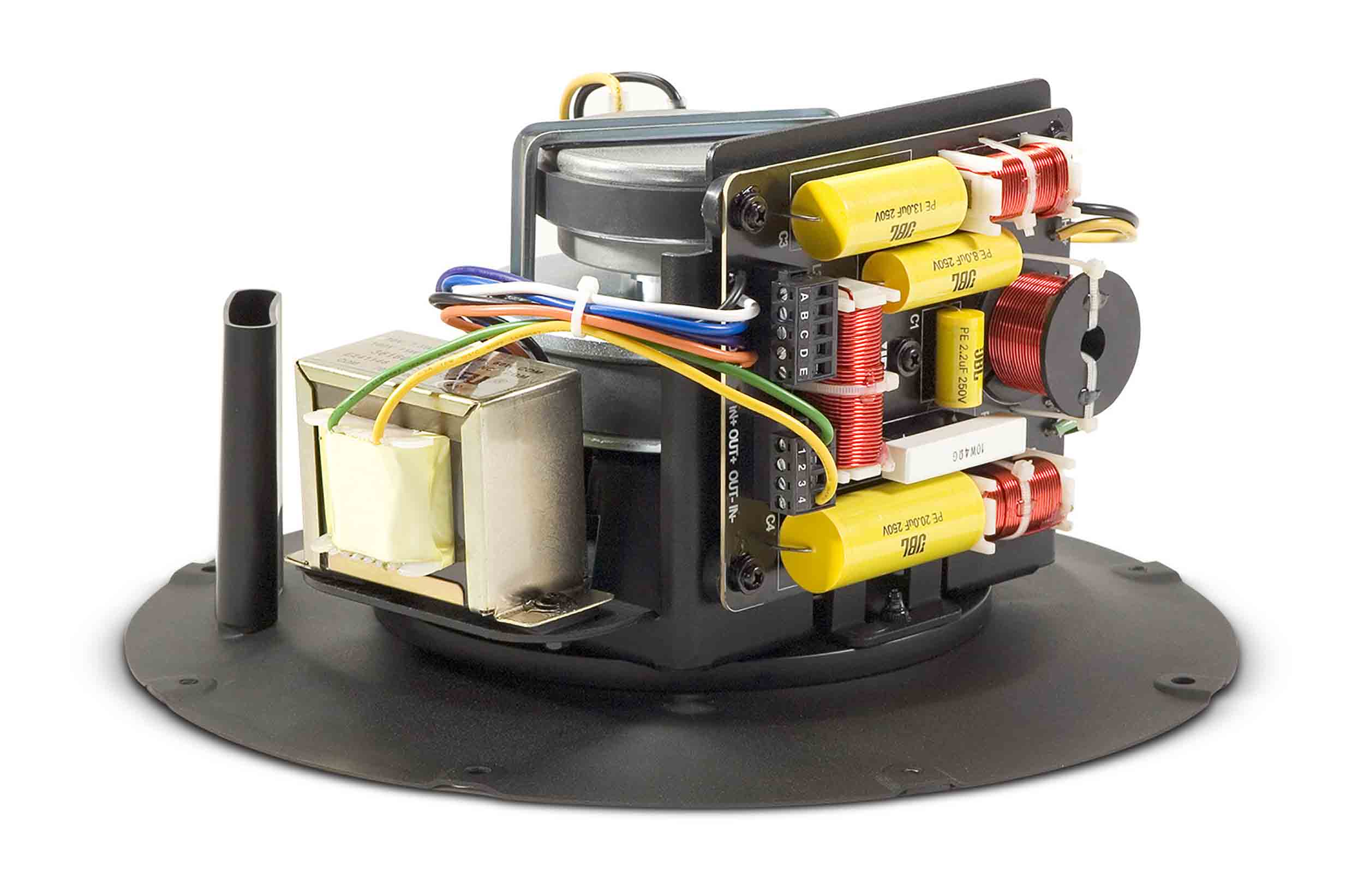

The JBL Control 227CT is a passive 6.5" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The low-saturation transformer allows the Control 227CT to be driven by 70V/100V or 8-Ohm power amplifiers (available separately). Equipped with a durable 6.5" Kevlar-reinforced woofer and a 1" exit titanium compression driver, the Control 227CT yields a frequency response of 74 Hz to 17 kHz, and a long-term power capacity of 150W.

Product Specifications:

Frequency Range (-10dB): 43 Hz - 19 kHz

Transformer Taps: 68W, 34W, 17W (& 8.5W @ 70V)

Sensitivity: 90 dB (1 kHz - 16 kHz)

Coverage Angle: 120° conical, constant directivity

Frequency Response (-3 dB): 75 Hz - 17 kHz

Drivers: LF Driver: 165 mm (6.5 inch)

HF Driver: compression driver, 25 mm (1 inch) coil

Dimensions (H x Dia): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)

Net Weight (each): 5.2 kg (11.5 lb)

Shipping Weight (pair): 6.6 kg (14.5 lb)

Power Rating: See transformer taps

Maximum SPL (1m): 108 dB (top 70V/100V tap)

Input Connectors: Screw locking barrier strip for bare wire

Color: White

Backcan: formed steel (wood-lined; accessory)

Baffle/Rim: Metal, round, driver pre-mounted to baffle, ported.

Ceiling Cutout Size: 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)

Included Accessories: Ported baffle pre-attached, transformer on 227CT

Plenum Usage: Yes, with accessory backcan
