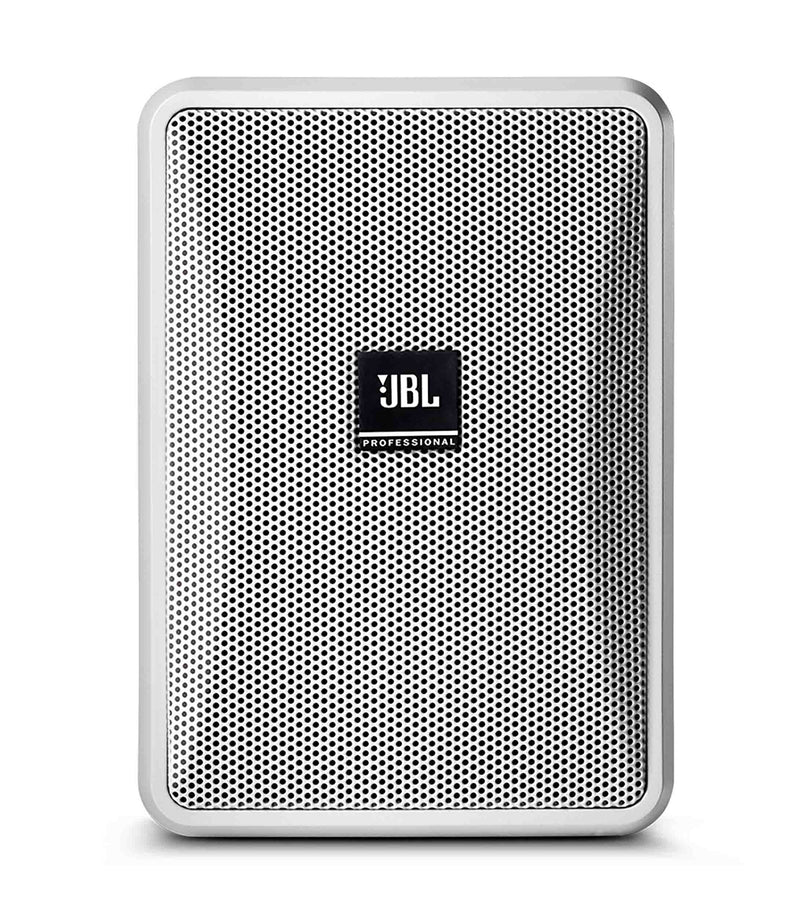

JBL CONTROL 23-1-WH, Ultra Compact Indoor/Outdoor Background/Foreground Speaker in White - Pair

The JBL Control 23-1 Pair is an ultra-compact two-way loudspeaker system designed for high-quality background and foreground music, paging, and speech applications. Each speaker features a 3-inch woven-fiberglass woofer with a pure butyl rubber surround and a 0.5-inch PEI diaphragm tweeter with fluid cooling. Its broad 70 Hz to 20 kHz frequency range and contemporary high-design appearance make the pair well suited for retail stores, restaurants, hospitality venues, health clubs, educational facilities, theme parks, music cafes, and leisure spaces.

The Control 23-1 delivers consistent 100° horizontal by 100° vertical coverage with an 86 dB sensitivity rating and 50W continuous pink-noise power handling. Direct 8-ohm operation provides 100W continuous program power, while the integrated 15W multi-tap transformer supports 70V and 100V distributed audio systems. Multiple transformer tap settings and a recommended 70 Hz protective high-pass filter provide installation flexibility while helping maintain reliable performance.

Designed for indoor and outdoor use, the Control 23-1 incorporates a high-impact polystyrene enclosure, zinc-plated grille, weather-resistant transducers, and an included InvisiBall wall-mounting system. The speaker provides IP-44 outdoor capability and can achieve IP-55 protection with the optional WeatherMax grille and protective panel covers. Its environmental resistance exceeds MilSpec 810 requirements for humidity, salt spray, temperature, and UV exposure, making the pair a versatile solution for commercial sound installations.

Product Specifications:

Product Type: Two-Way Indoor/Outdoor Background and Foreground Loudspeaker Pair

Quantity: 2 Loudspeakers

Frequency Range: 70 Hz to 20 kHz

Frequency Response: 95 Hz to 19 kHz, ±3 dB

Power Rating: 100W Continuous Program, 50W Continuous Pink Noise, 200W Peak, 40W Continuous Pink Noise, 160W Peak

Maximum Input Voltage: 17.2V RMS, 34.4V Peak

Maximum SPL: 103 dB Average Continuous Pink Noise, 109 dB Peak

Sensitivity: 86 dB, 1W/1m, Average 100 Hz to 10 kHz

Coverage Angle: 100° Horizontal x 100° Vertical

Directivity Factor: Q 5.8, Average 1 kHz to 16 kHz

Directivity Index: 7.2 dB, Average 1 kHz to 16 kHz

Impedance: 8 Ohms in THRU Setting

Crossover Type: 2nd Order Low-Pass, 2nd Order High-Pass

Transformer Taps: 15W, 7.5W, 3.7W, and 1.8W at 70V; 15W, 7.5W, and 3.7W at 100V

Transformer Insertion Loss: Less Than 0.43 dB at Any Tap Setting

THRU Setting: 8 Ohms Nominal

Recommended Protective High-Pass: 70 Hz High-Pass, 24 dB/Octave

LF Driver: 76 mm, 3.0" Woven-Fiberglass Cone with Pure Butyl Rubber Surround

HF Driver: 13 mm, 0.5" PEI Diaphragm with Low-Viscosity Ferro-Magnetic Fluid

Enclosure Material: High-Impact Polystyrene, HIPS

Grille: Zinc-Plated with Durable TGIC Polyester Powdercoating

Mounting System: InvisiBall Wall-Mounting System

Optional Mounting: MTC-23UB-1 U-Bracket

Safety Attachment: Secondary Safety Attachment Loop on Back Panel

Input Connectors: Zinc-Plated Copper-Based Screw-Down Terminal Strip

Wire Capacity: Up to 12 AWG, 2.5 mm² Bare Wire

Outdoor Capability: IP-44 per IEC529

Optional Weatherized Rating: IP-55 with MTC-23WMG-1 and MTC-PC2 or MTC-PC3

Environmental Resistance: Exceeds MilSpec 810 for Humidity, Salt Spray, Temperature, and UV

Agency Rating: RoHS Compliant; Transformer UL Recognized per UL1876

Colors: Black RAL9004 or White RAL9016

Included Accessories: InvisiBall Wall-Mounting System, 4 mm x 80 mm Hex Key

Pair Configuration: 2 Matching JBL Control 23-1 Loudspeakers

Product Weight: 4.0 lbs. per piece

Product Dimensions (L x W x H): 7.9 x 5.6 x 4.4 in. per piece
