Description

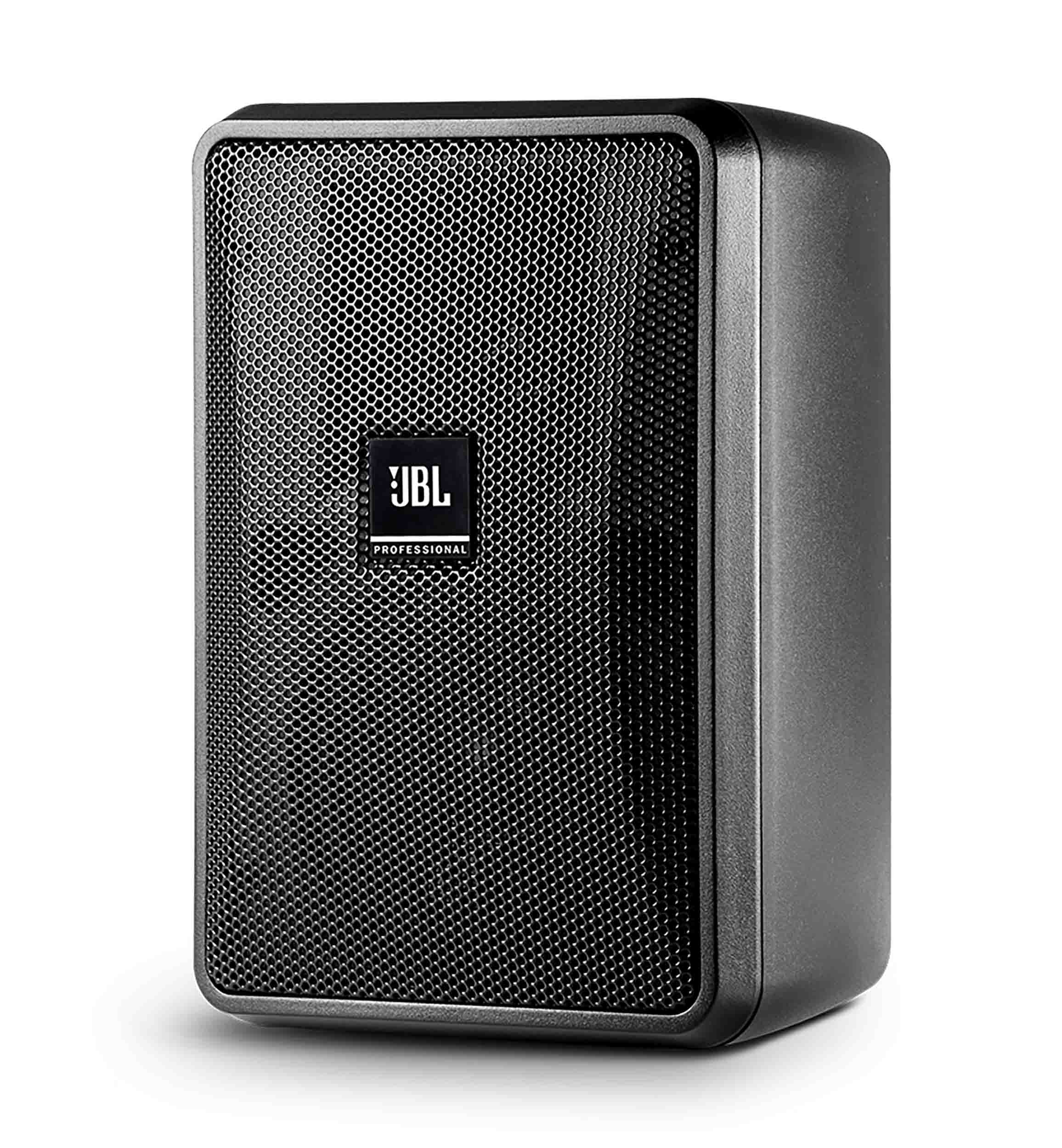

The JBL Control 23-1L Pair is an ultra-compact two-way loudspeaker system designed for high-quality background music, foreground music, paging, and speech applications. Each speaker combines a 3-inch woven-fiberglass low-frequency driver with a 0.5-inch PEI diaphragm tweeter and fluid cooling for clear, balanced reproduction across a broad 70 Hz to 20 kHz frequency range. Its compact enclosure and contemporary appearance make it suitable for retail stores, restaurants, hospitality venues, educational facilities, health clubs, theme parks, music cafes, and leisure spaces.
The Control 23-1L provides a consistent 100° horizontal by 100° vertical coverage pattern for broad sound distribution. With 86 dB sensitivity, 50W power handling, and 100W continuous program capability, the loudspeaker delivers dependable performance for both music and speech. A 70 Hz protective high-pass filter is recommended to protect the system from excessive low-frequency energy and maintain reliable operation.
Designed for flexible indoor and outdoor installations, the Control 23-1L features a high-impact polystyrene enclosure with weather-resistant construction and transducers. The included InvisiBall wall-mounting system allows versatile positioning, while optional U-brackets, WeatherMax grilles, and ceiling-mount adapters provide additional installation options. The black finish and compact design integrate easily into a wide range of commercial environments.
Product Specifications:
Product Type: Two-Way 8-Ohm Indoor/Outdoor Background and Foreground Loudspeaker Pair
Quantity: 2 Loudspeakers
Frequency Range: 70 Hz to 20 kHz
Frequency Response: 95 Hz to 19 kHz, ±3 dB
Power Rating: 100W Continuous Program
Maximum Input Voltage: 17.2V RMS, 34.4V Peak
Maximum SPL: 103 dB Average Continuous Pink Noise, 109 dB Peak
Sensitivity: 86 dB, 1W/1m, Average 100 Hz to 10 kHz
Coverage Angle: 100° Horizontal x 100° Vertical
Directivity Factor: Q 5.8, Average 1 kHz to 16 kHz
Directivity Index: 7.2 dB, Average 1 kHz to 16 kHz
Impedance: 8 Ohms
Crossover Type: 2nd Order Low-Pass, 2nd Order High-Pass
Recommended Protective High-Pass: 70 Hz High-Pass, 24 dB/Octave
LF Driver: 76 mm, 3.0" Woven-Fiberglass Cone with Butyl Rubber Surround
HF Driver: 13 mm, 0.5" PEI Diaphragm with Ferro-Magnetic Fluid
Enclosure Material: High-Impact Polystyrene, HIPS
Grille: Zinc-Plated with TGIC Polyester Powdercoating
Mounting System: InvisiBall Wall-Mounting System
Safety Attachment: Secondary Safety Attachment Loop on Back Panel
Input Connectors: Screw-Down Terminal Strip
Wire Capacity: Up to 12 AWG, 2.5 mm² Bare Wire
Outdoor Capability: IP-44 per IEC529
Environmental Resistance: MilSpec 810 Humidity, Salt Spray, Temperature, and UV Resistant
Agency Rating: RoHS Compliant

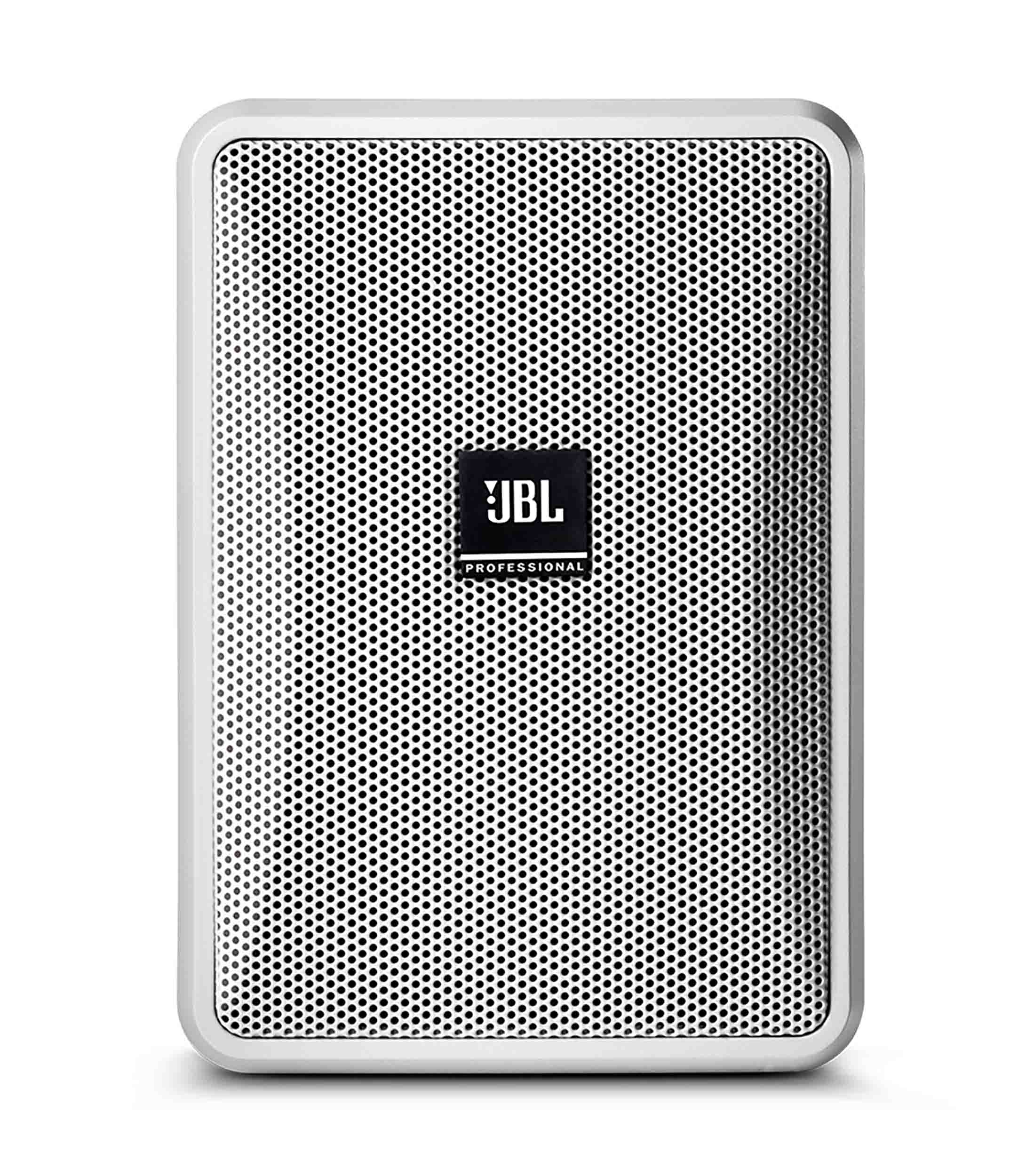

Colors: Black RAL9004 or White RAL9016
Product Weight: 3.4 lbs. per piece
Product Dimensions (L x W x H): 7.9 x 5.6 x 4.4 in. per piece
