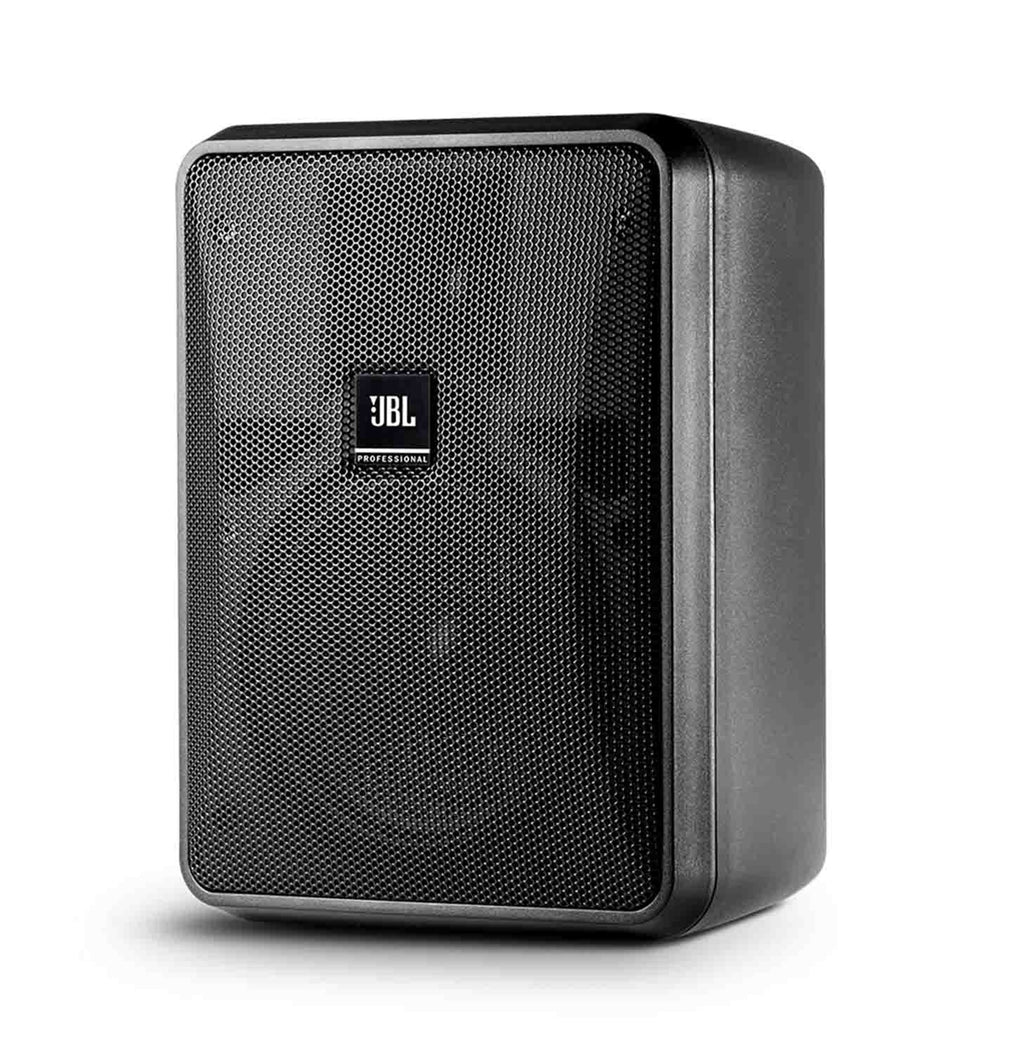

JBL CONTROL 25-1 Compact 5.25-Inch Two-Way Indoor/Outdoor Speaker

The JBL Control 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Product Specifications:

Frequency Range (-10dB): 60 Hz – 20 kHz

Frequency Response (±3dB): 85 Hz – 17 kHz

Power Rating:

200 W Continuous Program (2 hrs)

100 W (400W peak) Continuous Pink Noise (2 hrs)

75 W (300W peak) Continuous Pink Noise (100 hrs)

Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak

Maximum SPL (1m): 110 dB Continuous Pink Noise (116 dB peak)

Sensitivity: 90 dB (1W/1m, avg. 100 Hz – 10 kHz)

Coverage Angle: 100°H x 100°V

Directivity Factor (Q): 6.04 (avg. 1 kHz – 16 kHz)

Directivity Index (DI): 7.6 dB (avg. 1 kHz – 16 kHz)

Nominal Impedance: 8 ohms (THRU setting)

Crossover Type: 2nd order low-pass, 3rd order high-pass

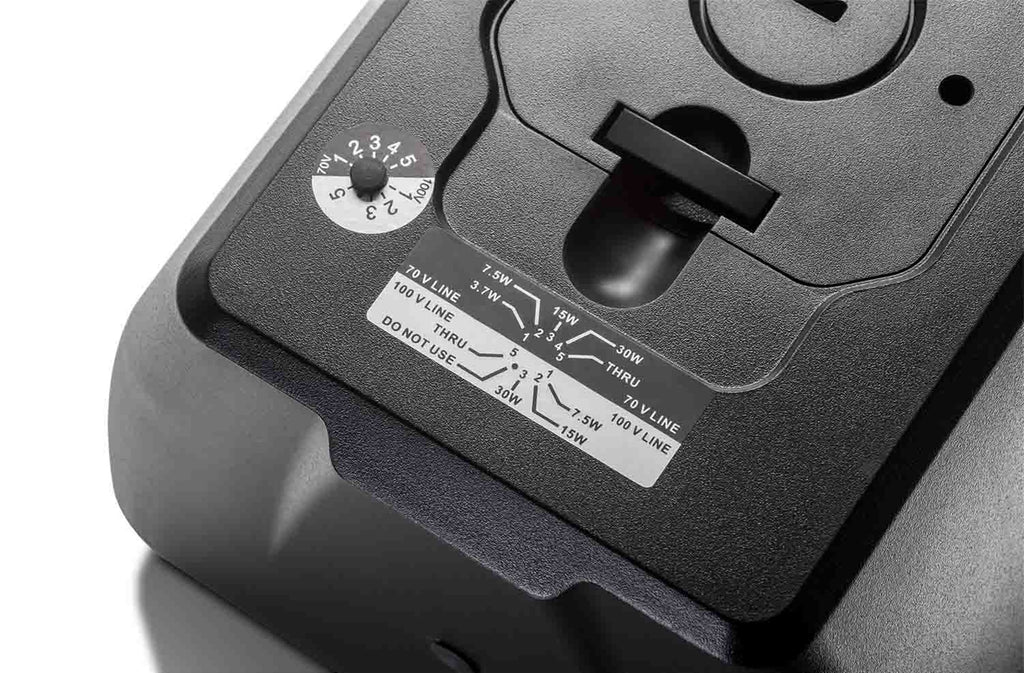

Transformer Taps:

70V: 30W, 15W, 7.5W, 3.7W

100V: 30W, 15W, 7.5W

Insertion Loss: <0.94 dB

Thru Setting: 8Ω nominal

Recommended Protective High-Pass Filter: 60 Hz (24 dB/oct)

Drivers:

LF: 5.25" woven-fiberglass cone with butyl rubber surround, Weather-Edge protection, high-temp coil and FEA optimized motor structure

HF: 0.75" PEI diaphragm with ferro-magnetic fluid and lightweight Kapton voice coil former

Enclosure: High Impact Polystyrene (HIPS) with UV-resistant paint (white version)

Grille: Zinc-plated steel, TGIC polyester powder-coated finish; optional WeatherMax foam grille available

Mounting Hardware: InvisiBall wall-mount system included; two 6 mm attachment points for optional U-bracket; safety loop provided

Outdoor Capability:

IP-44 rated (IP-55 with optional WeatherMax grille and panel cover)

Exceeds MilSpec 810 (humidity, salt-spray, temperature, UV)

Passes MilStd-202F and ASTM G85 tests

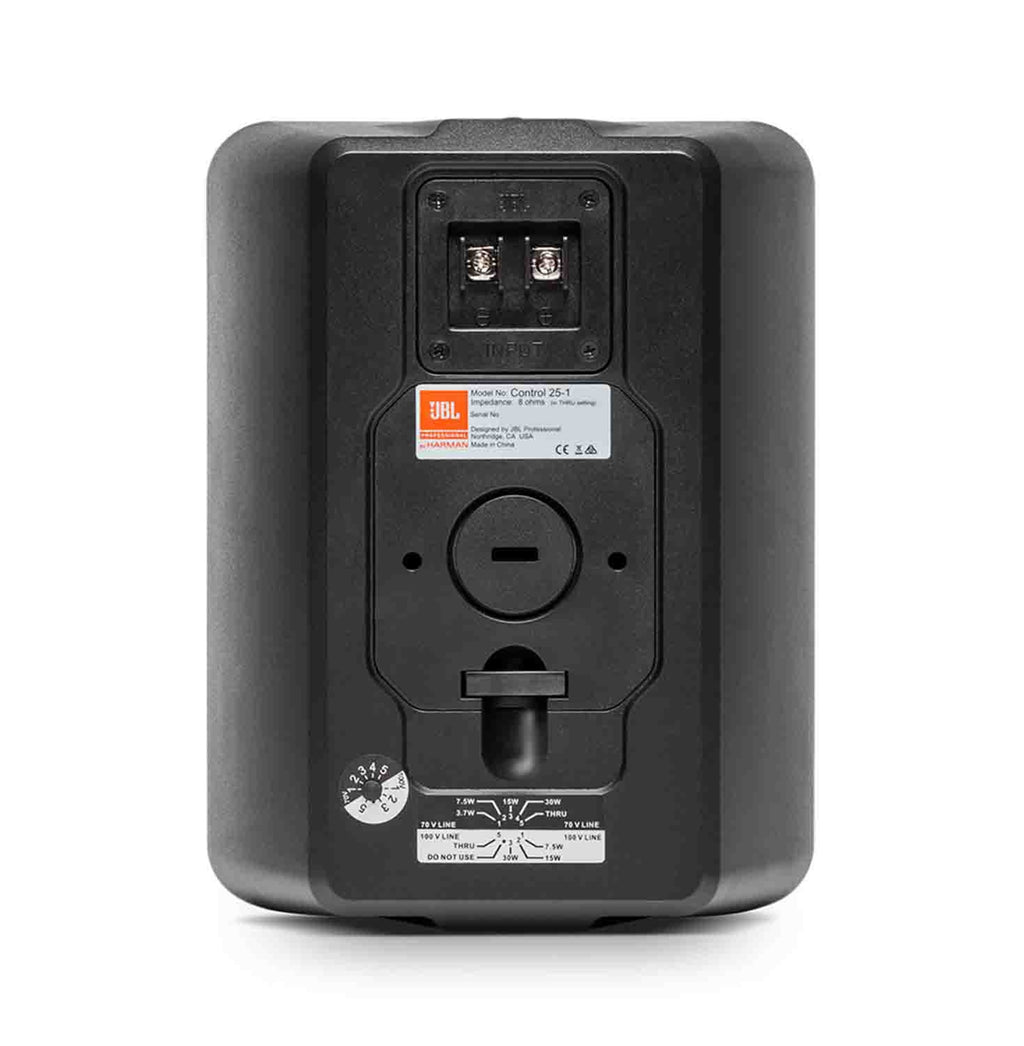

Input Connectors: Screw-down terminal strip (accepts up to 12 AWG wire or open lugs)

Safety Compliance: ROHS-compliant; Transformer UL Recognized (UL1876)

Color Options: Black (RAL9004) / White (-WH, RAL9016)

Dimensions (H x W x D): 243 × 188 × 145 mm (9.6 × 7.4 × 5.7 in); 203 mm (8.0 in) total depth with mount

Net Weight: 3.4 kg (7.5 lbs.) each

Shipping Weight: 8.16 kg (18 lbs.) per pair

Included Accessories: InvisiBall wall-mounting system, 6 mm × 100 mm hex key

Optional Accessories:

MTC-25UB-1 U-Bracket

MTC-25WMG-1 WeatherMax Grille

MTC-28/25CM Ceiling-Mount Adapter
