Description
The Control 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
Product Specifications:
Frequency & Power:
Frequency Range (-10dB): 60 Hz to 20 kHz
Frequency Response (±3 dB): 85 Hz – 17 kHz
Power Rating: 200W Continuous Program (2 hrs) / 100W (400W peak)
Pink Noise Power Rating: 75W (300W peak, 100 hrs)
Maximum Input Voltage: 25.3V RMS (2 hrs), 50.6V peak
Maximum SPL (1m): 110 dB (116 dB peak)
Sensitivity: 90 dB, 1W/1m (100 Hz – 10 kHz)
Coverage & Directivity:
Coverage Angle: 100°H x 100°V
Directivity Factor (Q): 6.04 (1kHz – 16kHz)
Directivity Index (DI): 7.6 dB (1kHz – 16kHz)
Impedance & Crossover:
Impedance: 8Ω (THRU setting)
Crossover Type: 2nd order low-pass, 3rd order high-pass

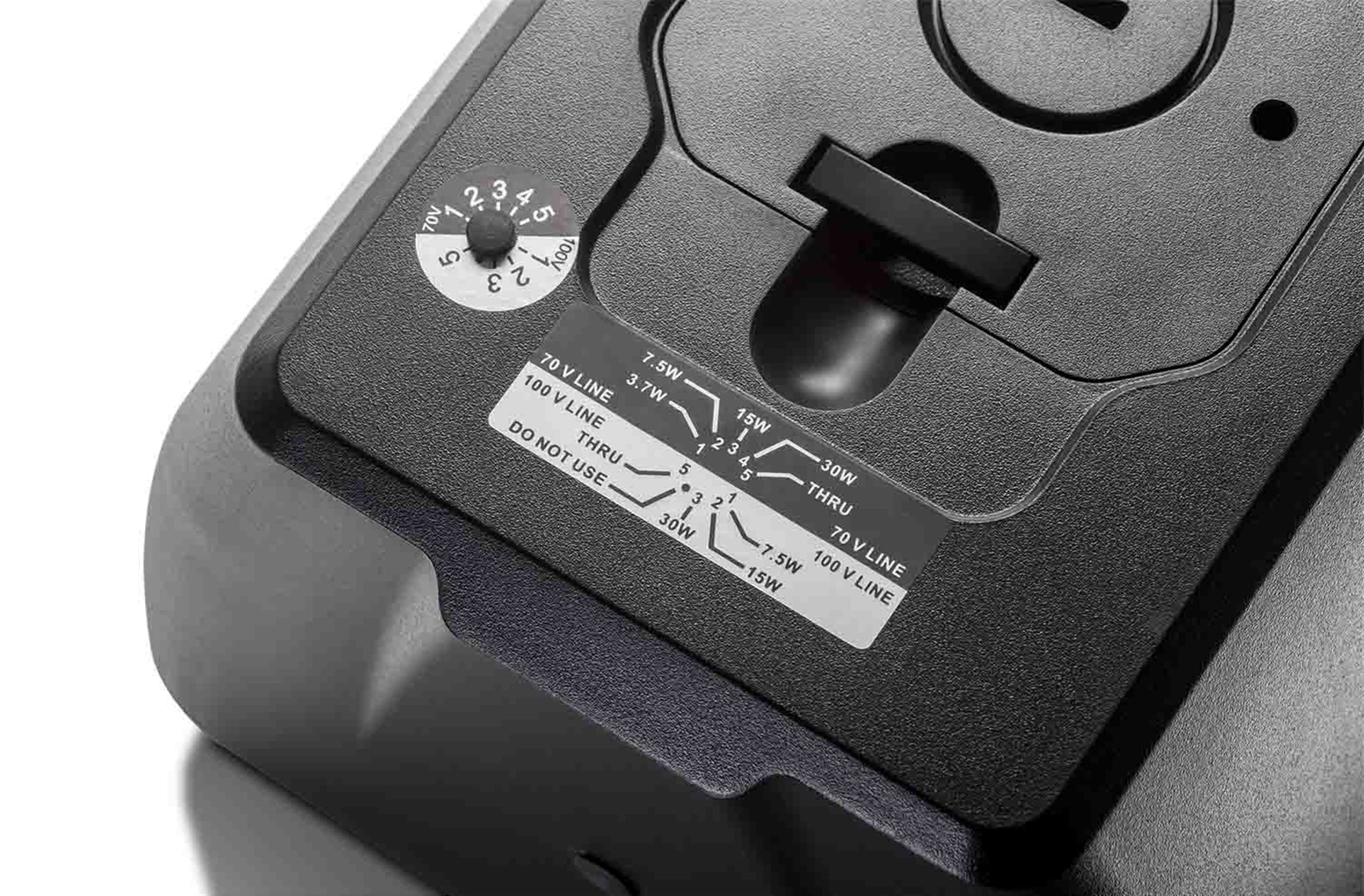

Transformer Taps:
70V: 30W, 15W, 7.5W, 3.7W
100V: 30W, 15W, 7.5W
Insertion Loss: <0.94 dB at any tap setting
Protective High-Pass Filter:
Recommended: 60 Hz high-pass (24 dB/oct)
Drivers:
LF Driver: 5.25" woven-fiberglass cone, rubber surround, high-temp voice coil
HF Driver: 0.75" PEI diaphragm, ferrofluid cooling, Kapton voice coil
Enclosure & Grille:
Material: High Impact Polystyrene (HIPS)
Finish: UV-resistant paint (white version)
Grille: Zinc-plated with TGIC polyester powder coating
Mounting & Hardware:
Included: InvisiBall wall-mount system, 6mm hex key
Optional:
MTC-25UB-1 – U-bracket
MTC-25WMG-1 – WeatherMax grille
MTC-28/25CM – Ceiling-mount adapter
Outdoor & Safety Ratings:
Weather Rating: IP-44 (IP-55 with optional WeatherMax grille)
Safety Compliance: ROHS-compliant, Transformer UL Recognized (UL1876)
Input & Connectivity:

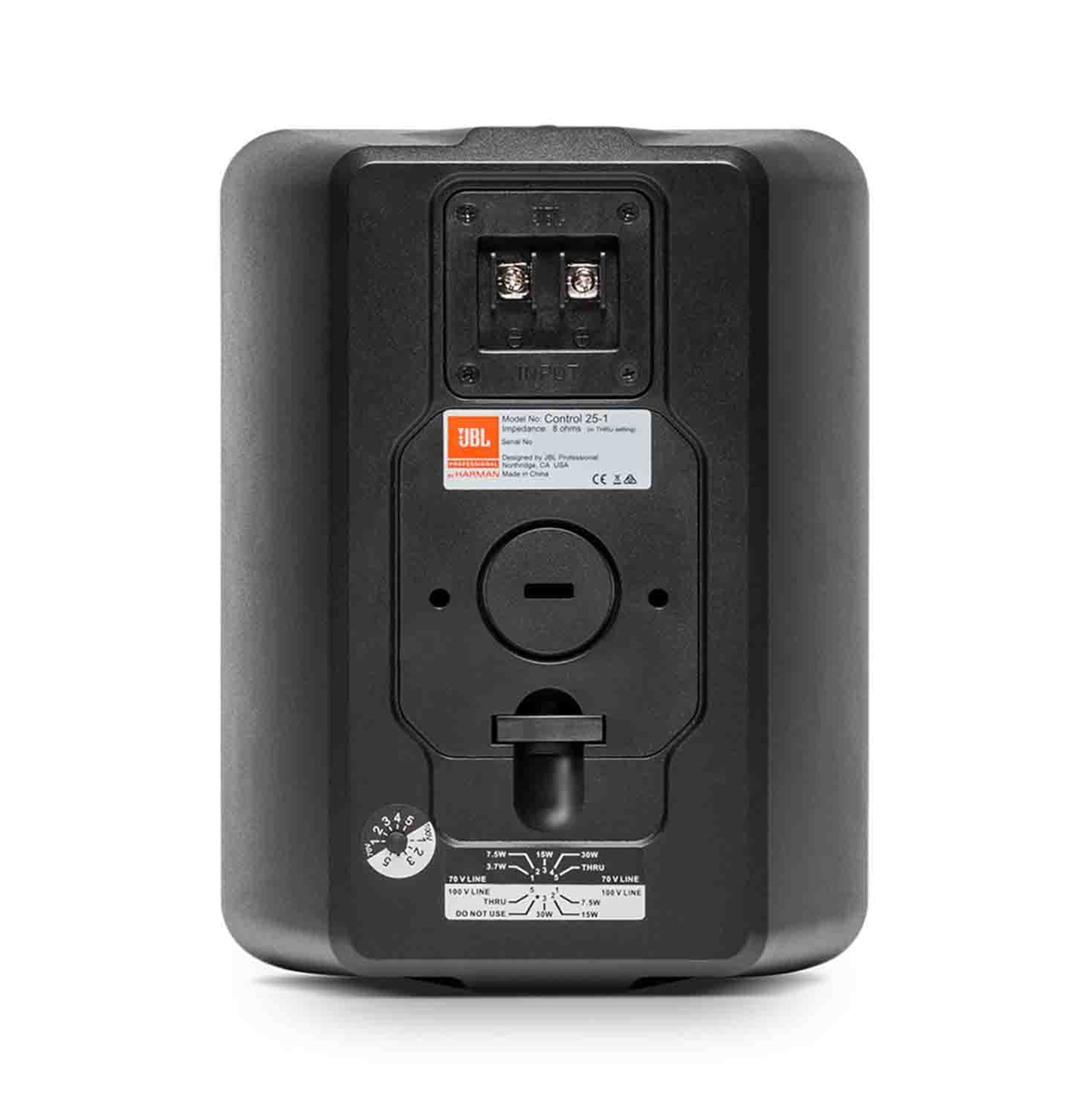

Connector Type: Screw-down terminal strip (supports up to 12 AWG wire)
Optional Protective Covers: MTC-PC2, MTC-PC3
Physical & Dimensions:
Colors: Black (RAL9004) / White (RAL9016)
Dimensions (H x W x D): 9.6 x 7.4 x 5.7 in (8.0 in deep with InvisiBall bracket)
Net Weight (each): 7.5 lbs (3.4 kg)
Shipping Weight (pair-pack): 18 lbs (8.16 kg)
