Description

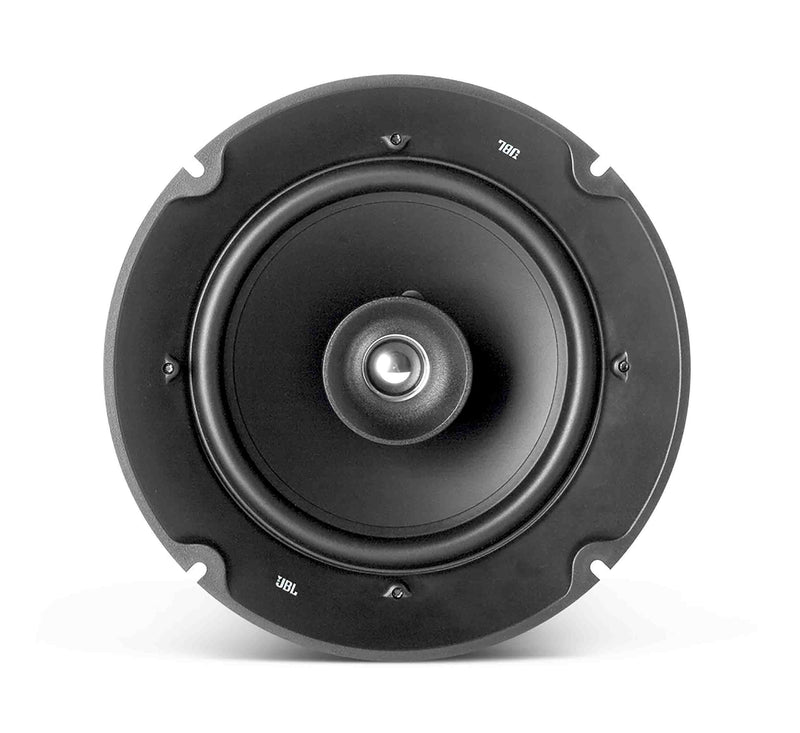

The JBL CONTROL 26-DT is a 6.5" coaxial ceiling installation speaker assembly, offering a 90° coverage angle, a built-in 70/100V transformer with a 60-watt power handling capacity, and a 1" titanium-coated tweeter for even dispersion and directionality. The Control 26DT assembly is designed as a substitute for standard 8" configurations, and provides even, wider-dispersion coverage, with particular HF clarity via the diffraction-loaded tweeter, for venues with medium-high ceilings.
Product Specifications:
Frequency Range: 80 Hz - 20 kHz
Power Rating: See transformer taps
Transformer Taps: 60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle: 90° conical
Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m): 106 dB (top 70V/100V tap)
Drivers: LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)
Input Connectors: Screw locking barrier strip for bare wire
Outside Dimensions (H x Dia): 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in)
Net Weight (each): 4.2 kg (10 lb)
Shipping Weight (pair): 9.7 kg (21 lb)
Sensitivity: 89 dB (100 Hz - 10 kHz)
Safety Agency: In accordance with IEC60849 / EN60849.
Plenum Usage: Requires third-party plenum rated backcan
