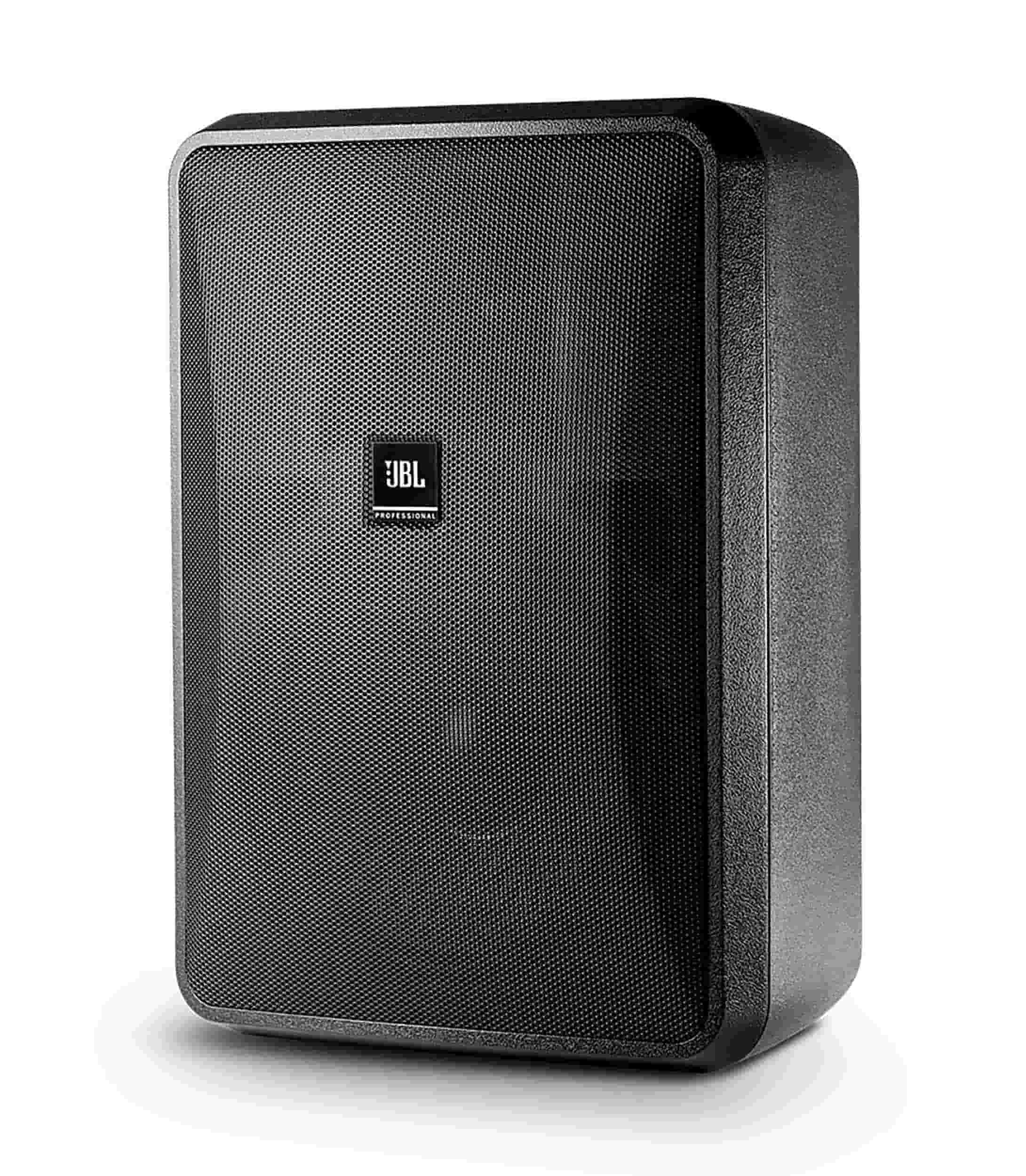

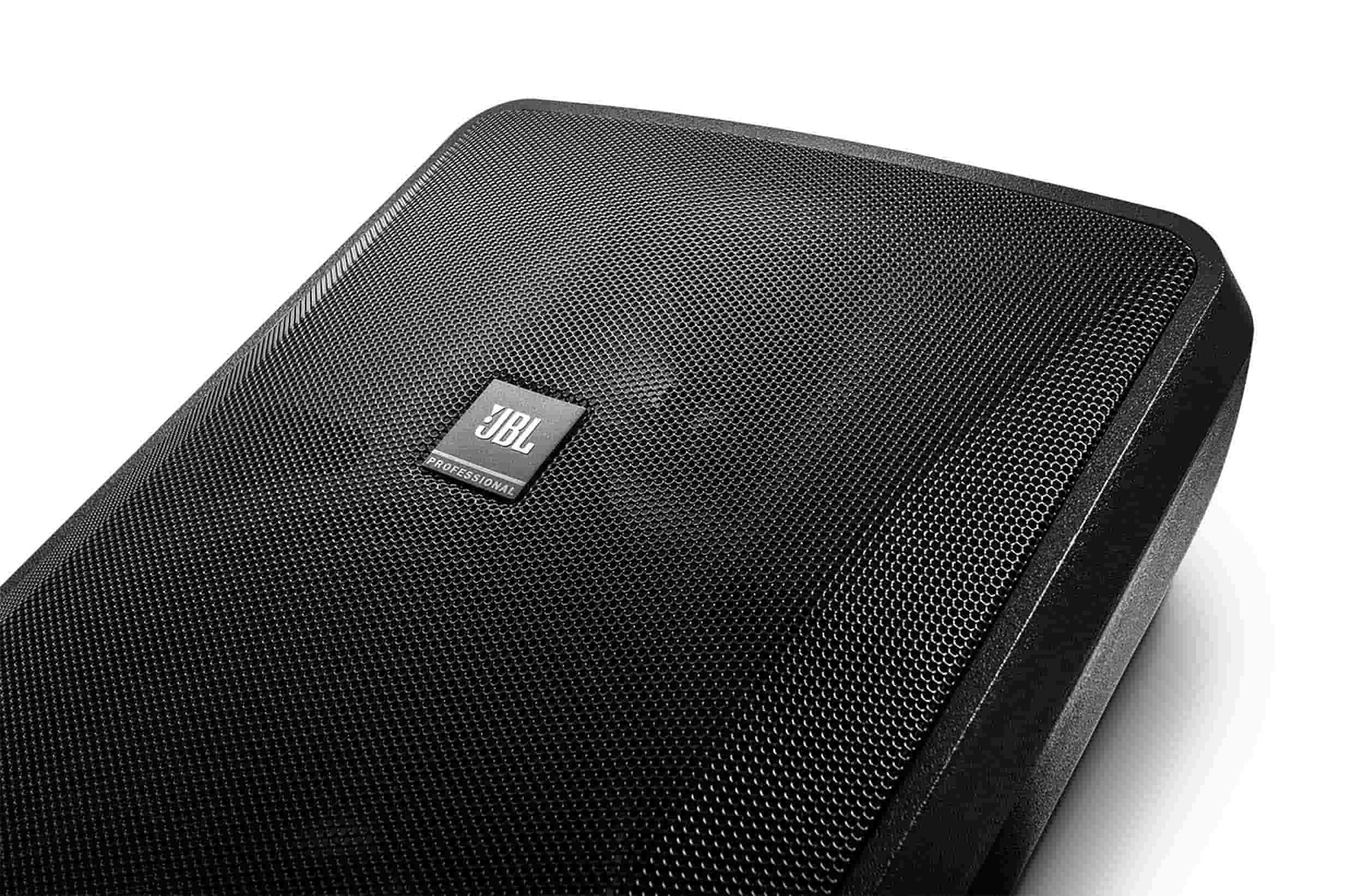

JBL CONTROL 28-1L, High Output 8-Ohm Indoor/Outdoor Background/Foreground Speaker - Pair

The JBL Control 28-1L Pair is a high-output two-way loudspeaker system designed to deliver rich sonic character, broad coverage, and consistent performance for background and foreground music, paging, and speech applications. Each speaker features an 8-inch woven-fiberglass woofer with a pure butyl rubber surround and Weather-Edge frame protection, paired with a 1-inch PEI diaphragm tweeter using low-viscosity ferro-magnetic fluid and a lightweight Kapton voice coil former. Its broad 45 Hz to 20 kHz frequency range and contemporary high-design appearance make the pair suitable for retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality venues, music cafes, leisure spaces, and other commercial environments.

The Control 28-1L provides 100° horizontal by 100° vertical coverage, 91 dB sensitivity, and 240W continuous program power with 120W continuous pink-noise power in direct 8-ohm operation. Its optimized crossover combines second-order low-pass, first-order high-pass, and conjugate shaping for smooth frequency response and high-fidelity reproduction. A recommended 45 Hz high-pass filter at 24 dB per octave helps protect the loudspeaker from operation below its resonant frequency. The direct 8-ohm configuration makes the Control 28-1L a flexible choice for high-output commercial audio systems.

Designed for demanding indoor and outdoor installations, the Control 28-1L uses a high-impact polystyrene enclosure with 10% glass fill and a zinc-plated grille finished with durable TGIC polyester powder coating. The included InvisiBall wall-mounting system provides flexible aiming and installation, while two 6 mm attachment points support the optional MTC-28UB-1 U-bracket and a secondary safety attachment loop provides additional installation security. The speaker provides IP-44 outdoor capability and can achieve IP-55 protection with the optional WeatherMax grille and protective panel covers. Environmental resistance exceeds MilSpec 810 requirements for humidity, salt spray, temperature, and UV exposure, with additional salt-spray and acid-air testing for demanding environments.

Product Specifications:

Product Type: Two-Way 8-Ohm Indoor/Outdoor Background and Foreground Loudspeaker Pair

Quantity: 2 Loudspeakers

Frequency Range: 45 Hz to 20 kHz, -10 dB

Frequency Response: 62 Hz to 16 kHz, ±3 dB

Power Rating: 240W Continuous Program, 120W Continuous Pink Noise

Maximum Input Voltage: 27.5V RMS, 55.0V Peak

Sensitivity: 91 dB, 1W/1m, Average 100 Hz to 10 kHz

Coverage Angle: 100° Horizontal x 100° Vertical

Directivity Factor: Q 7.3, Average 1 kHz to 16 kHz

Impedance: 8 Ohms

Crossover Type: 2nd Order Low-Pass, 1st Order High-Pass, Plus Conjugate Shaping

Recommended Protective High-Pass: 45 Hz High-Pass, 24 dB/Octave

LF Driver: 200 mm, 8" Woven-Fiberglass Cone with Pure Butyl Rubber Surround and Weather-Edge Frame Protection

LF Voice Coil: High-Temperature Fiberglass Former with High-Temperature Voice Coil Wire

HF Driver: 25 mm, 1" PEI Diaphragm with Low-Viscosity Ferro-Magnetic Fluid and Lightweight Kapton Voice Coil Former

Enclosure Material: High-Impact Polystyrene, HIPS, with 10% Glass Fill

Grille: Zinc-Plated with Durable TGIC Polyester Powder Coating

Mounting System: InvisiBall Wall-Mounting System

Input Connectors: Zinc-Plated Copper-Based Screw-Down Terminal Strip with Nickel-Plated Screws and Washers

Wire Capacity: Up to 12 AWG, 2.5 mm² Bare Wire

Safety Agency: RoHS Compliant

Colors: Black

Mounted Depth: 10.9 in. with InvisiBall Wall-Mount Bracket

Product Weight: 13.5 lbs. per piece

Product Dimensions (H x W x D): 15.2 x 11.1 x 8.6 in. per piece
