Description

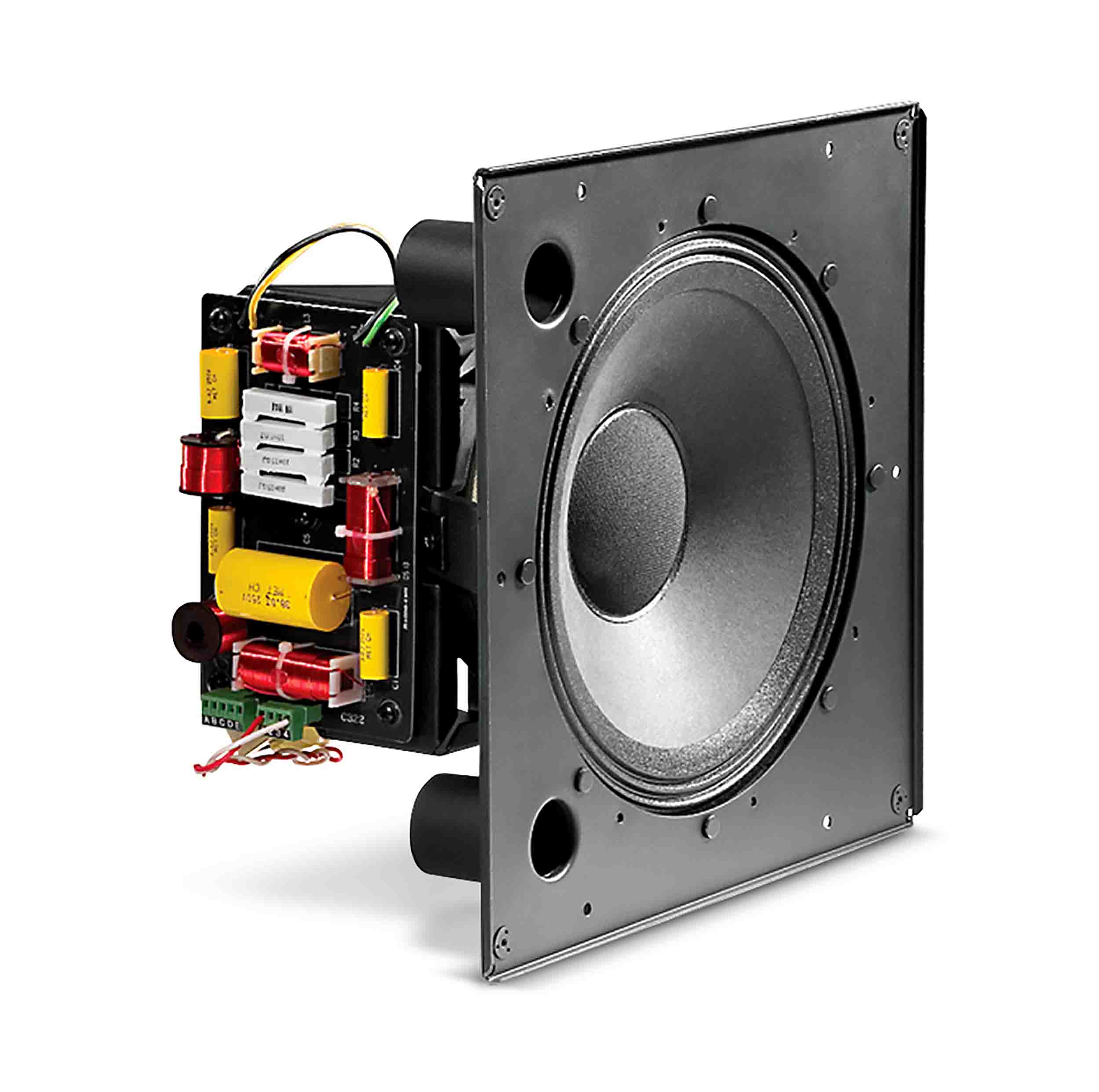

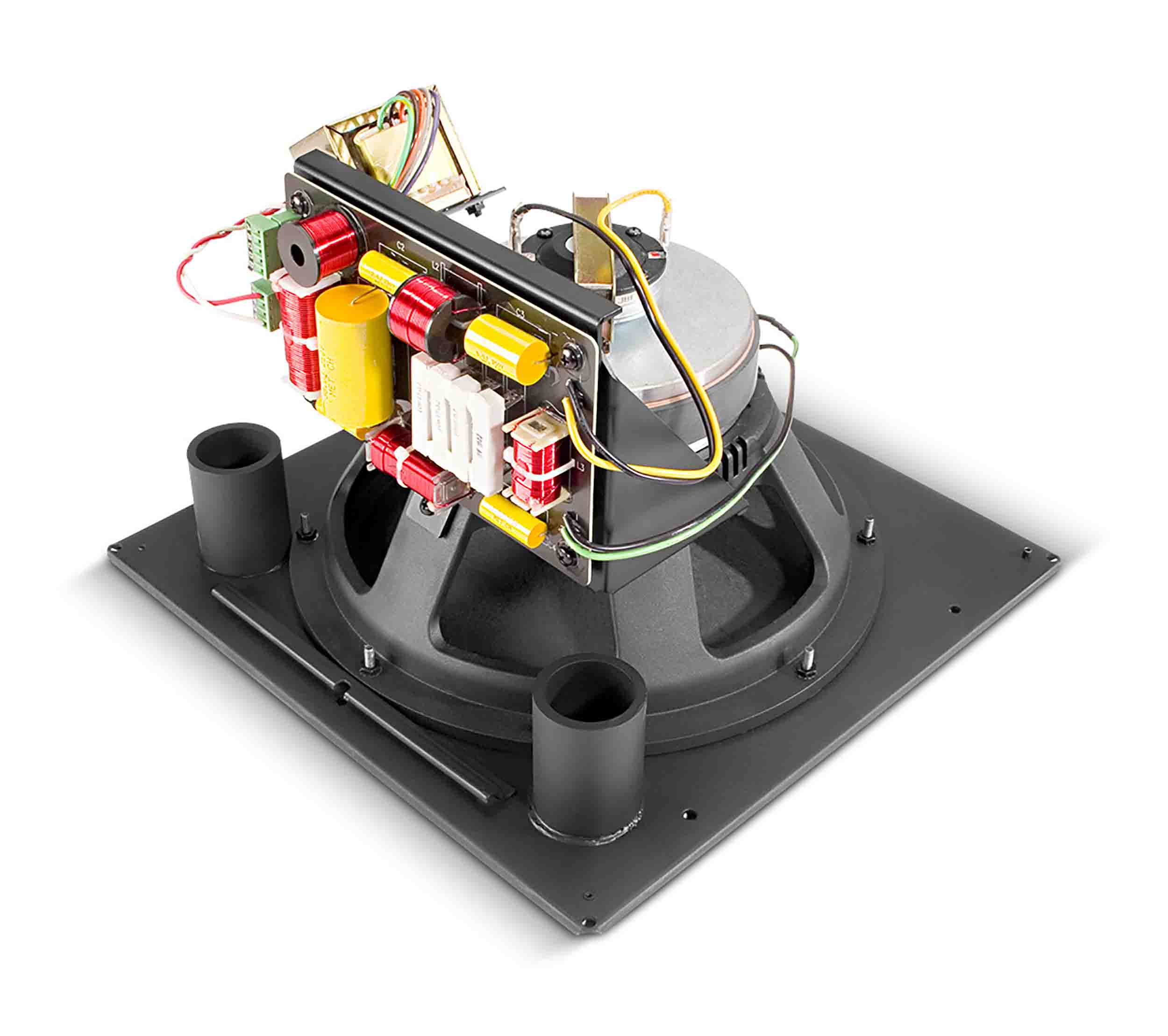

The JBL Control 322C is a passive 12" coaxial ceiling speaker designed for voice amplification and foreground music reproduction in waiting rooms, offices, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 400W (1600W peak). The Control 322C is equipped with a durable 12" Kevlar-reinforced cone and a medium-format compression driver, yielding an extended frequency response of 48 Hz to 19 kHz.
Product Specifications:
Frequency Range (-10dB): 32 Hz – 20 kHz
Sensitivity: 95 dB (1 kHz - 16 kHz)
Frequency Response (±3 dB): 48 Hz – 19 kHz
Coverage Angle: 90° conical, constant directivity
Directivity Factor (Q): 9 (1k - 16kHz)
Directivity Index (DI): 9.5dB (1k - 16kHz)
Crossover Network: 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF
Impedance: 8 ohms
Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
Maximum SPL (1m): 121 dB (127 dB peak)
Input Connectors: Screw locking barrier strip for bare wire
Drivers: LF Driver: 300 mm (12 in)
HF Driver: compression driver, 37 mm (1.5 inch) coil
Color: White
Backcan: formed steel (wood-lined; accessory)
Baffle/Rim: Metal, driver pre-mounted to baffle, ported.
Ceiling Cutout Size: 378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
Plenum Usage: Yes, with accessory backcan
