Description

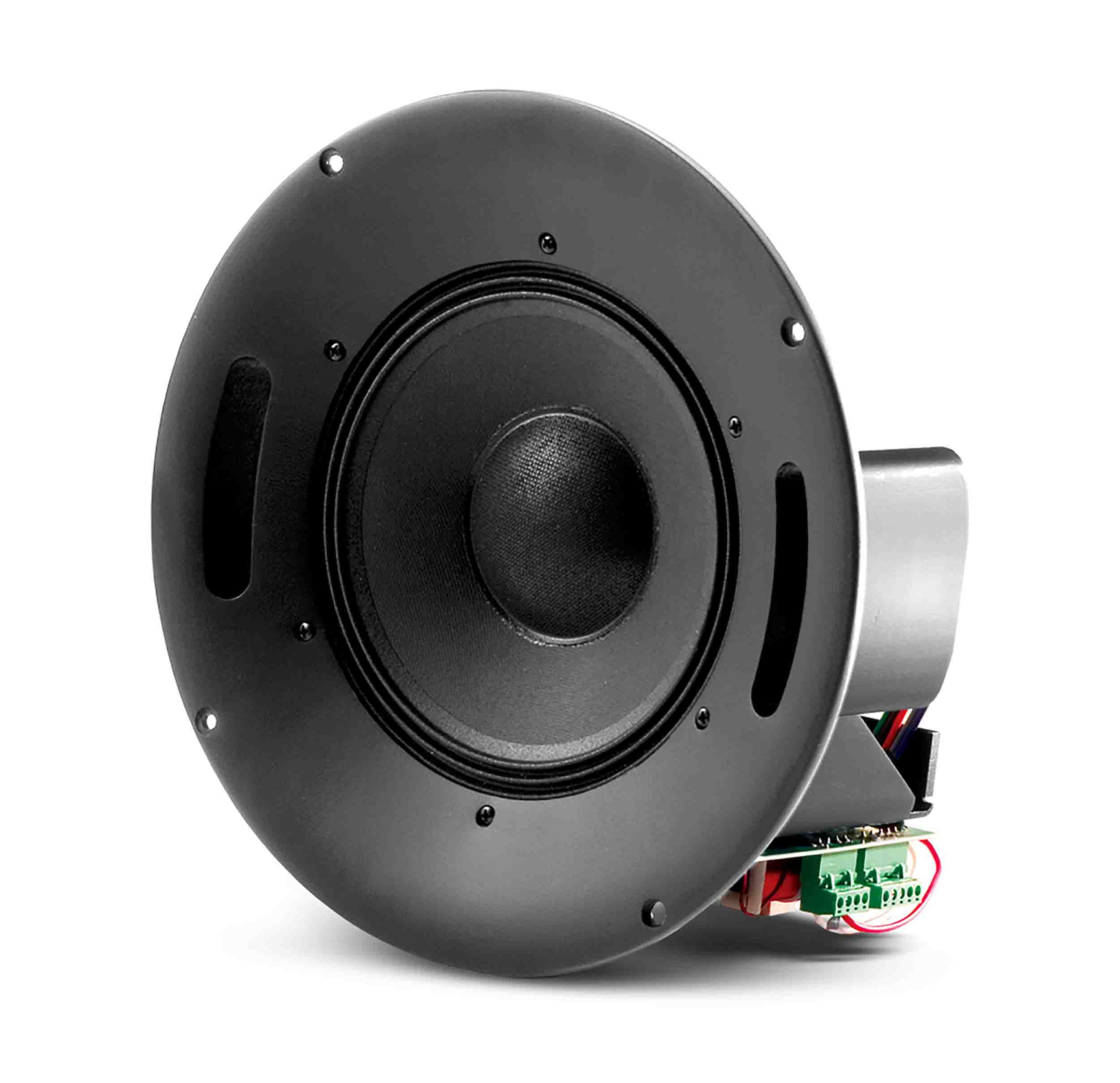

The JBL Control 328C is a passive 8" coaxial ceiling speaker designed for voice amplification and foreground music reproduction in waiting rooms, offices, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 250W (1000W peak). The Control 328C is equipped with a durable 8" Kevlar-reinforced cone and a titanium-diaphragm compression driver, yielding an extended frequency response of 60 Hz to 16 kHz.
Product Specifications:
Frequency Range (-10dB): 45 Hz – 18 kHz
Sensitivity: 93 dB (1 kHz - 16 kHz)
Frequency Response (±3 dB): 60Hz – 16 kHz
Coverage Angle: 120° conical, constant directivity
Directivity Factor (Q): 7.0 (Avg 1k - 16kHz)
Directivity Index (DI): 8.5dB (Avg 1k - 16kHz)
Maximum SPL (1m): 118 dB (124 dB peak)
Impedance: 8 ohms
Dimensions (H x W x D): 305 mm (12.0 in.)
Input Connectors: Screw locking barrier strip for bare wire
Drivers: LF Driver: 200 mm (8 in)
HF Driver: compression driver, 25 mm (1 inch) coil
Color: White
Backcan: formed steel (wood-lined; accessory)
Baffle/Rim: Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size: 310 mm (12.2 in) diameter (for MTC-300BB8 backcan)
Plenum Usage: Yes, with accessory backcan
