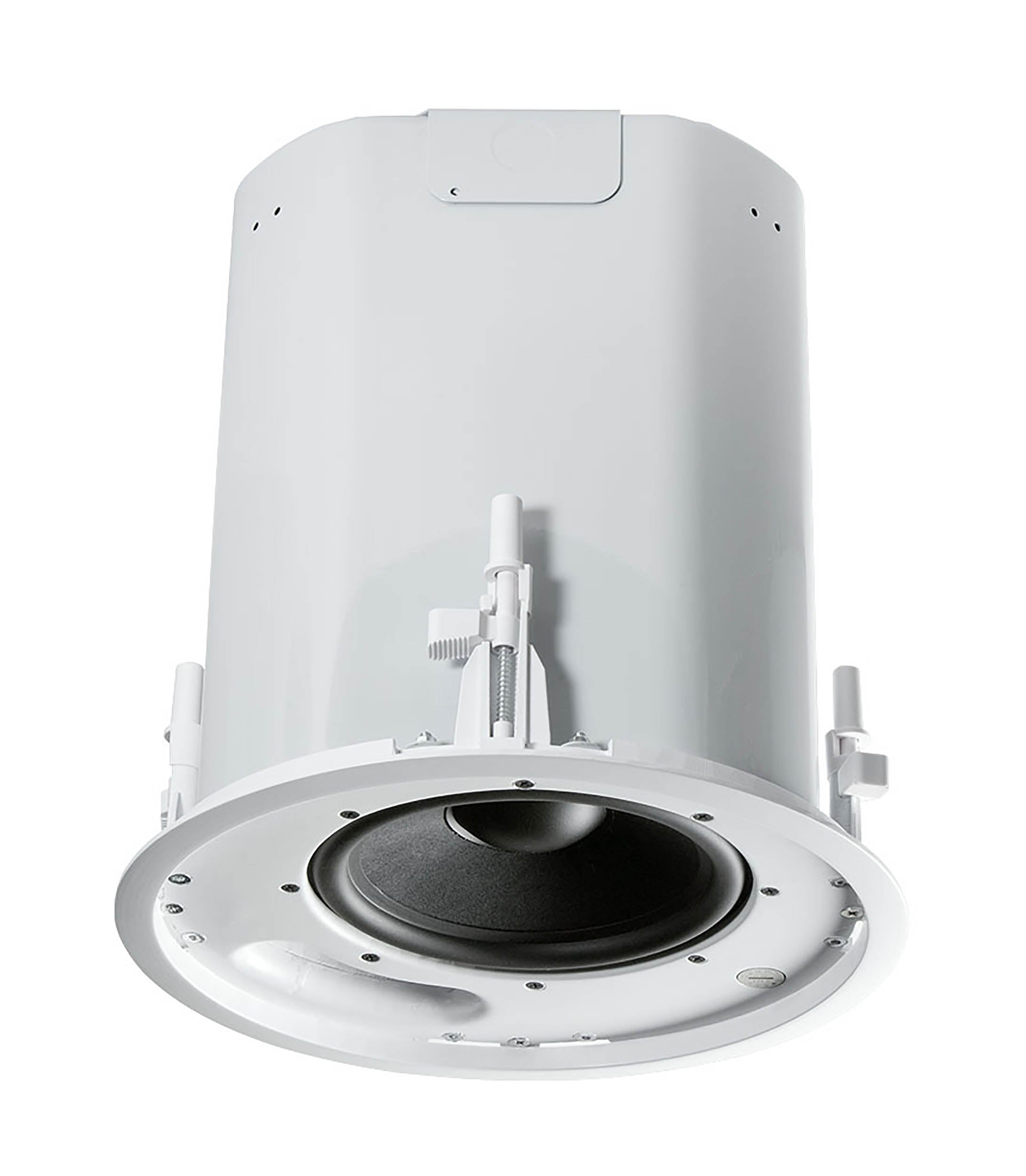

JBL CONTROL 40CS/T, High Impact In-Ceiling Subwoofer

The JBL CONTROL 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.

Product Specifications:

Frequency Range: 32 Hz - 300 Hz

Sensitivity: 95 dB (near corner), 89 dB (center of ceiling)

Transformer Taps: 80W, 40W, 20W (& 10W at 70V only)

Impedance: 8 ohms (in bypass mode)

Drivers: 200 mm (8 in) subwoofer

Termination: Screw-down removable locking clip-in connector

Satellite Outputs: Connectors for 2 or 4 Control 42C satellite speakers

Included Accessories: C-rings, tile rails, paint shield, cutout template, grille

Dimensions (Diameter x Depth): 332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)

Transformer Taps: 80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass

Input Connectors: 6 removeable locking 2-pin connectors with screwdown terminals.

Color: White

Backcan: formed steel (included "blind-mount")

Baffle/Rim: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.

Ceiling Cutout Size: 307 mm Diameter (12.1 in) (cardboard cutout template included)

Optional Accessories: MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket

Plenum Usage: Yes, backcan included

Coverage Angle: Omnidirectional
