Description

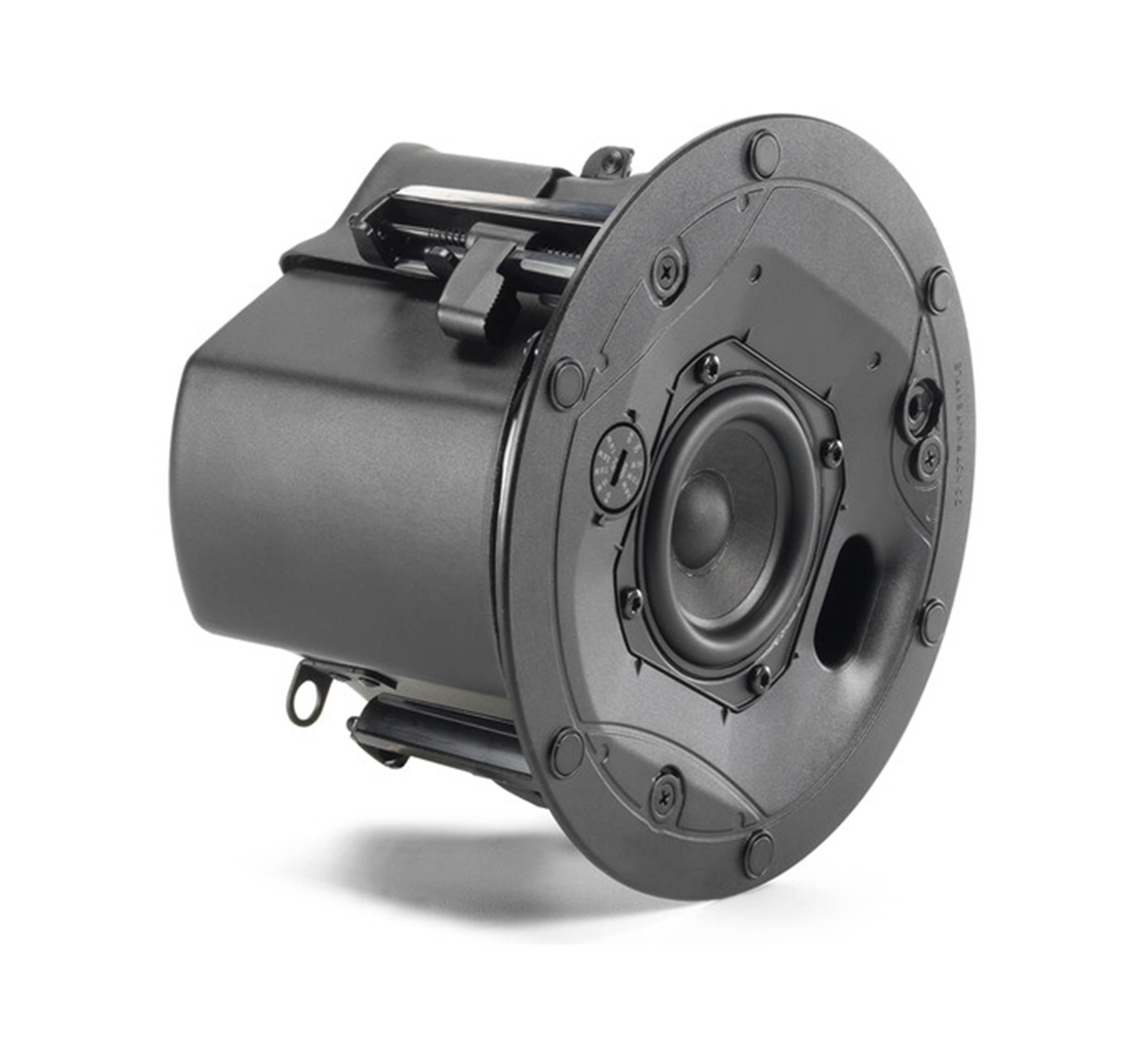

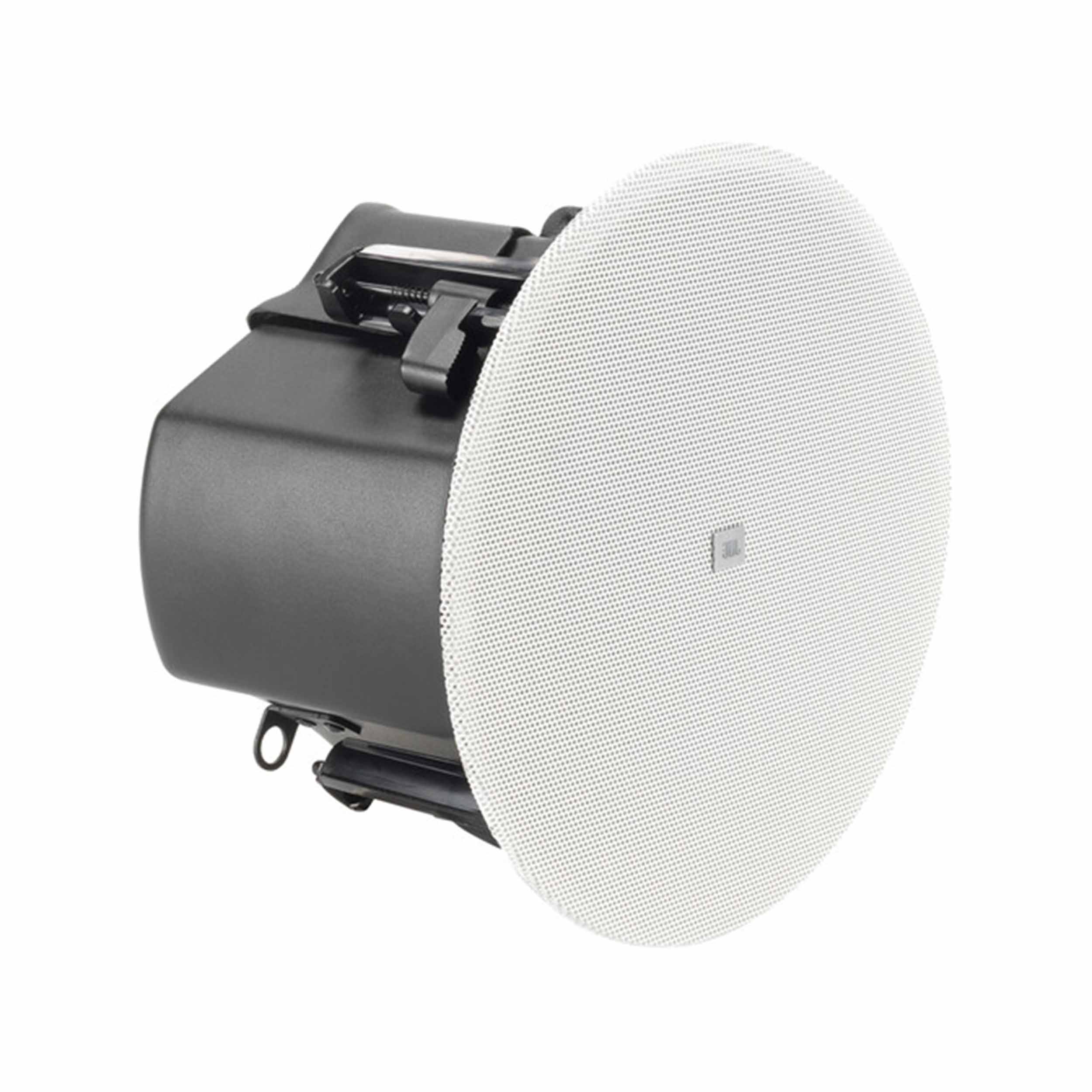

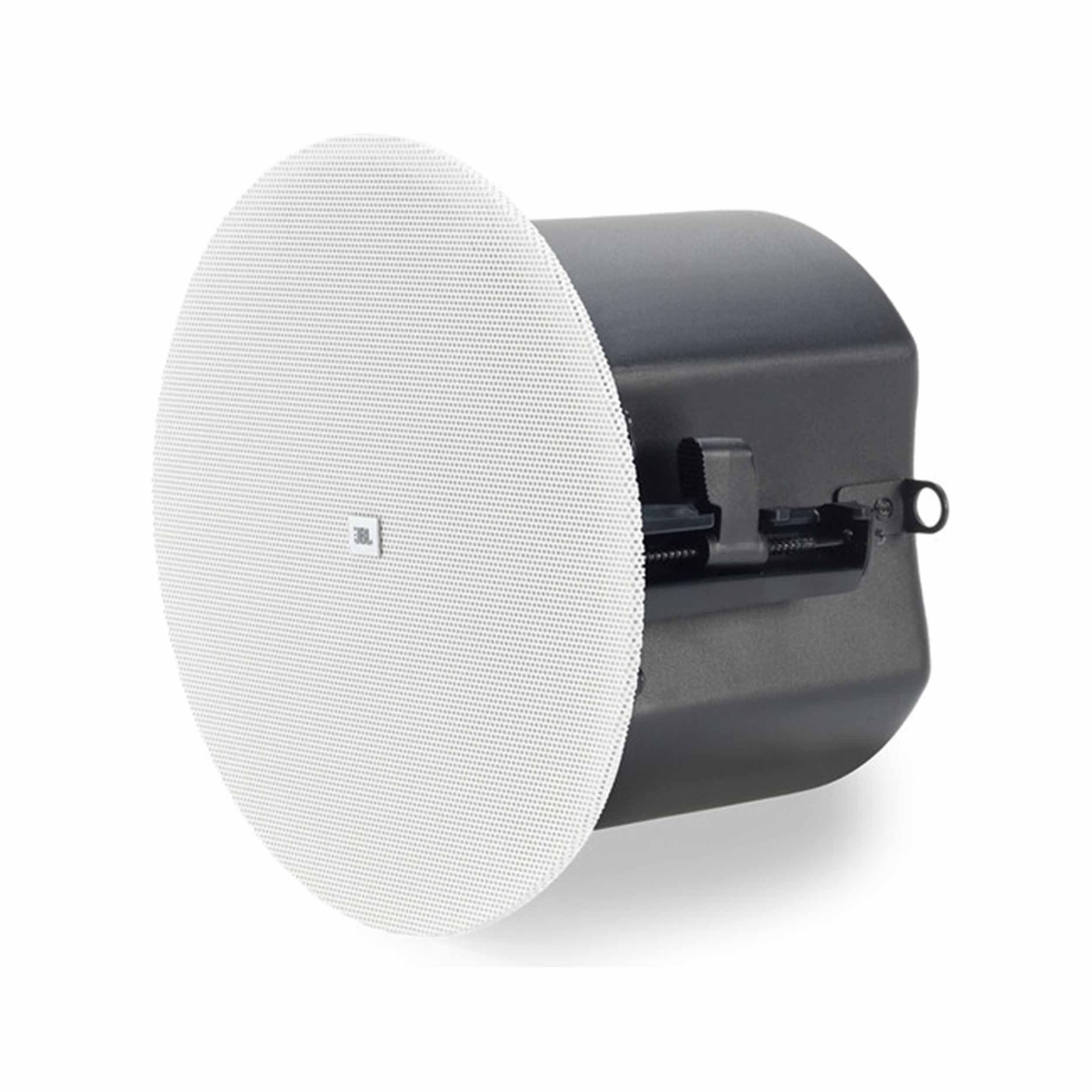

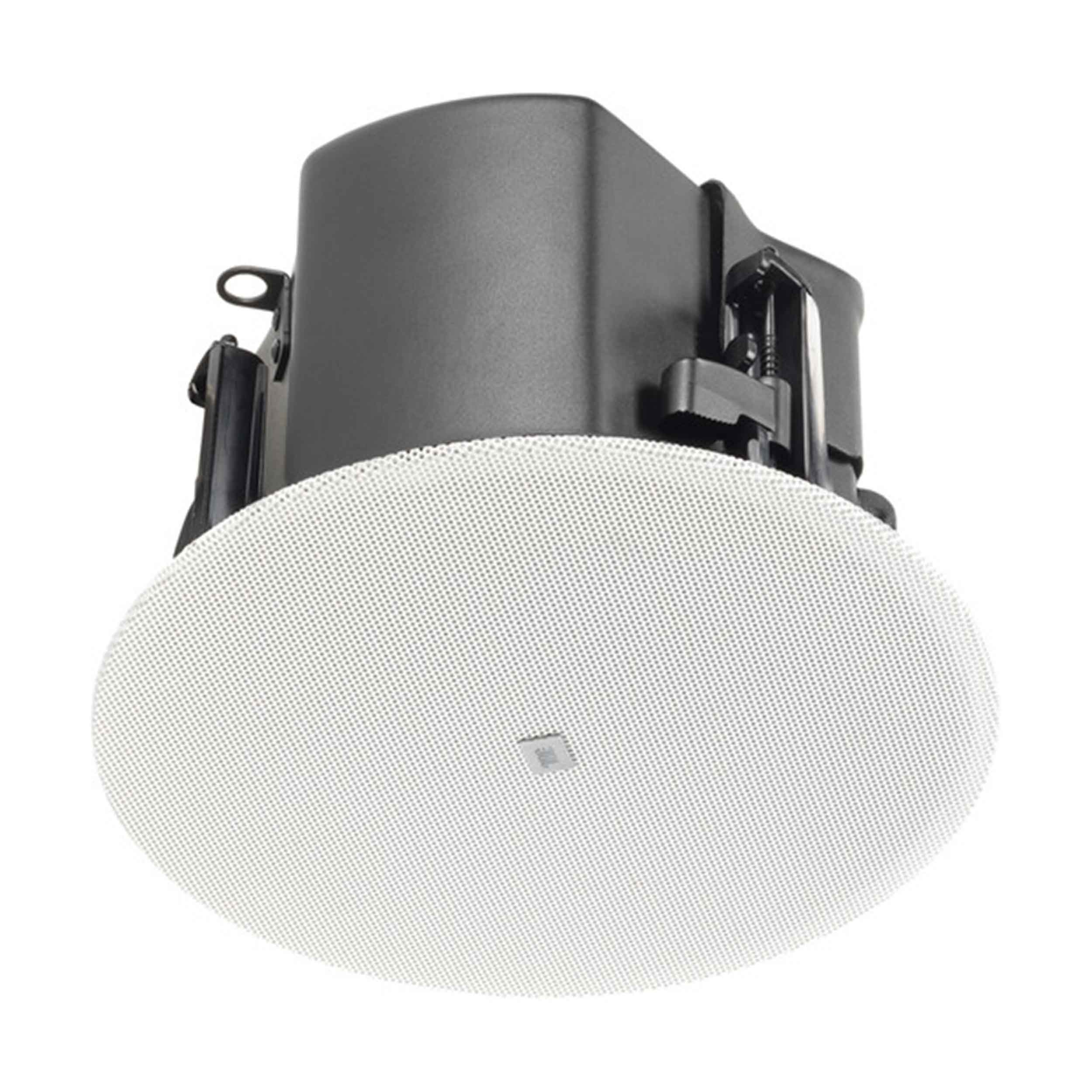

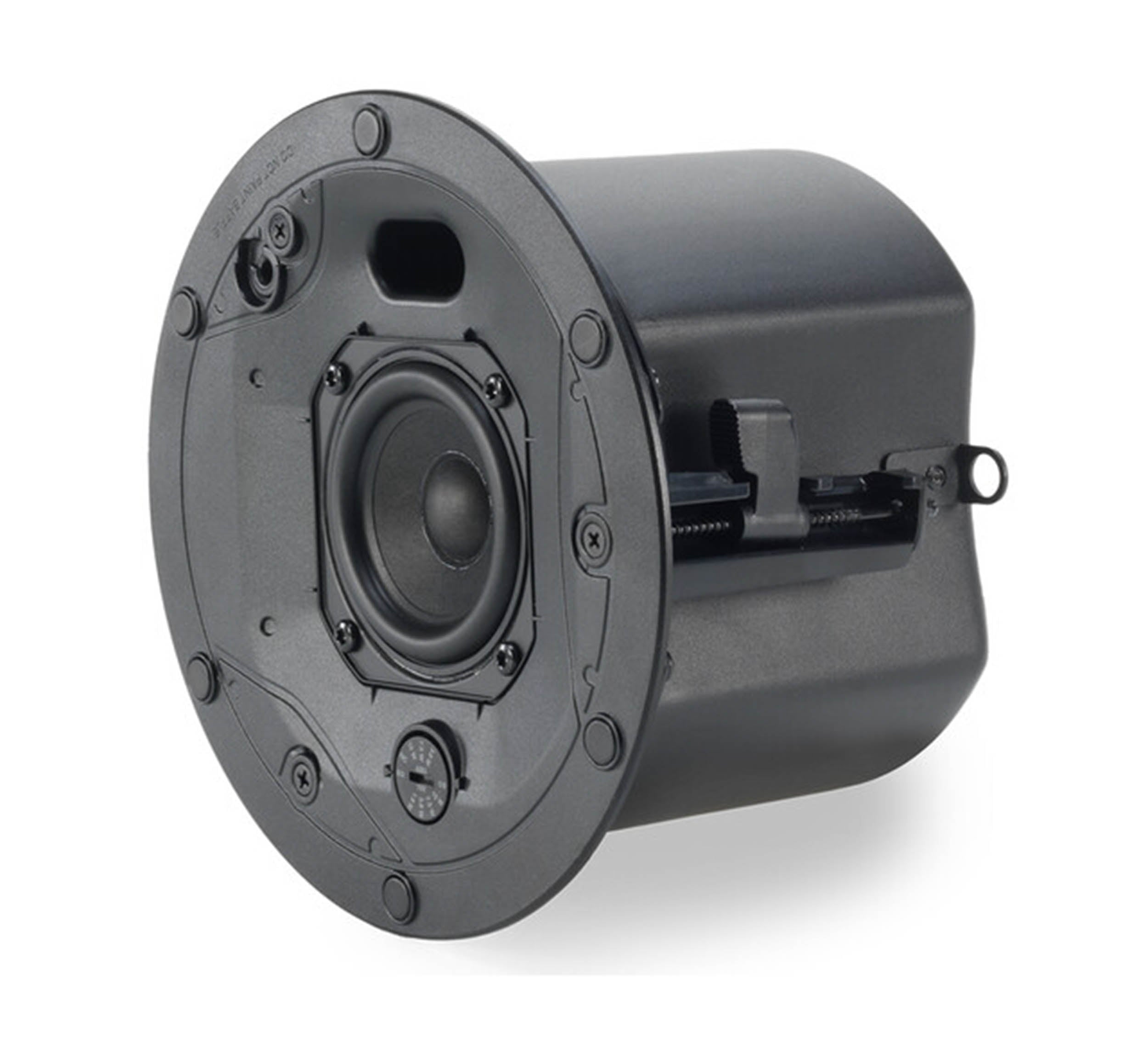

The JBL Control 412C/T is a compact full-range in-ceiling loudspeaker designed to deliver clear, consistent audio for commercial installations. Equipped with a 3-inch full-range driver and a wide 160° conical coverage pattern, it provides even sound distribution throughout the listening area. Its ported enclosure enhances low-frequency performance while maintaining excellent speech intelligibility and music reproduction. Supporting both low-impedance and 70V/100V distributed audio systems, it offers exceptional installation flexibility. The bezel-less paintable grille blends seamlessly into modern architectural spaces, making it suitable for retail stores, offices, restaurants, hotels, and educational facilities.
Built for dependable commercial performance, the Control 412C/T delivers 20W RMS, 60W program, and 120W peak power handling. Its high-quality 15W transformer provides multiple 70V and 100V tap settings along with an 8-ohm bypass option for direct-drive applications. The speaker offers a frequency response of 85 Hz to 16 kHz with an extended frequency range down to 68 Hz, producing balanced sound for music and paging systems. Durable construction using ABS, aluminum, steel, and polycarbonate materials ensures long-lasting reliability. An integrated output limiter further protects the speaker during demanding operation.

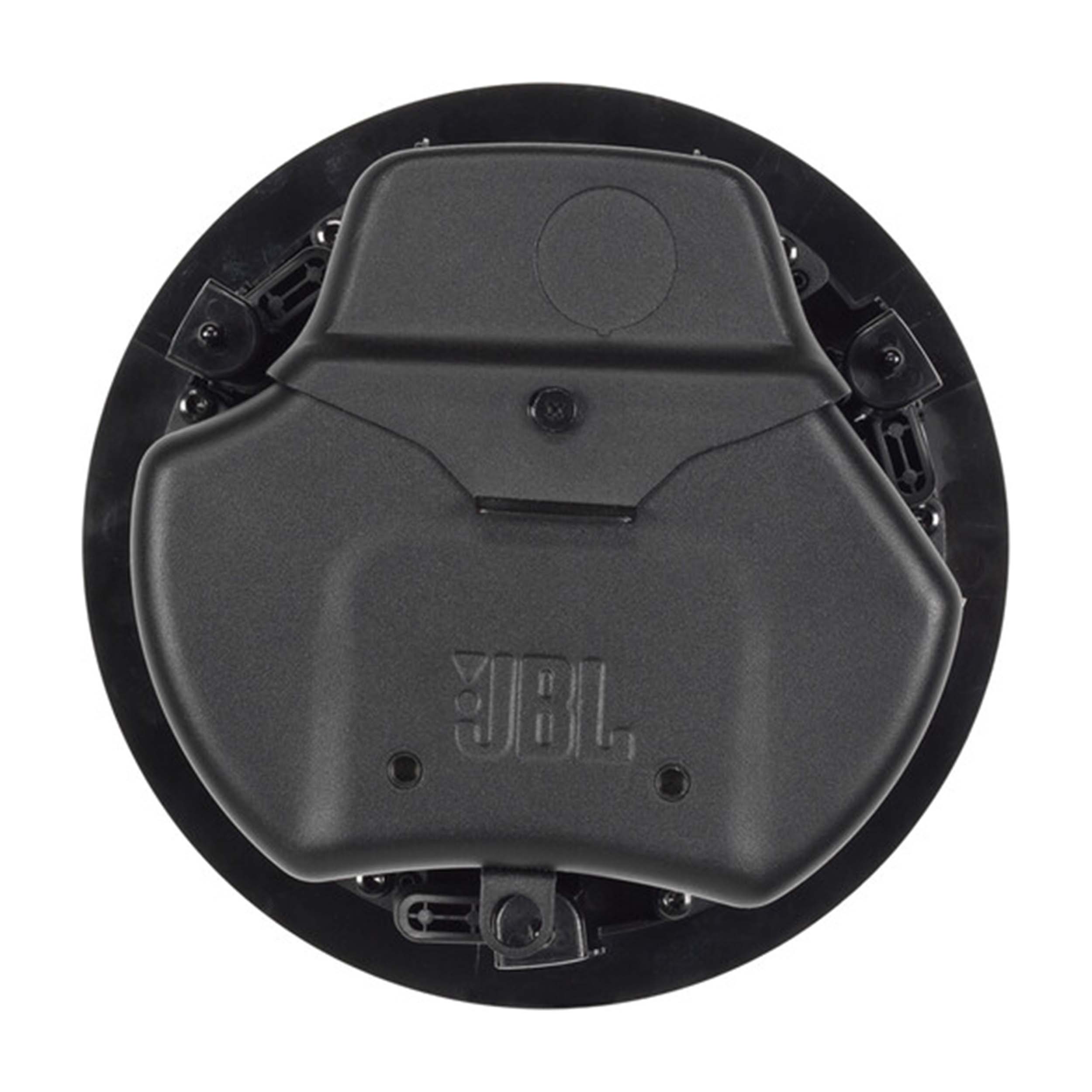

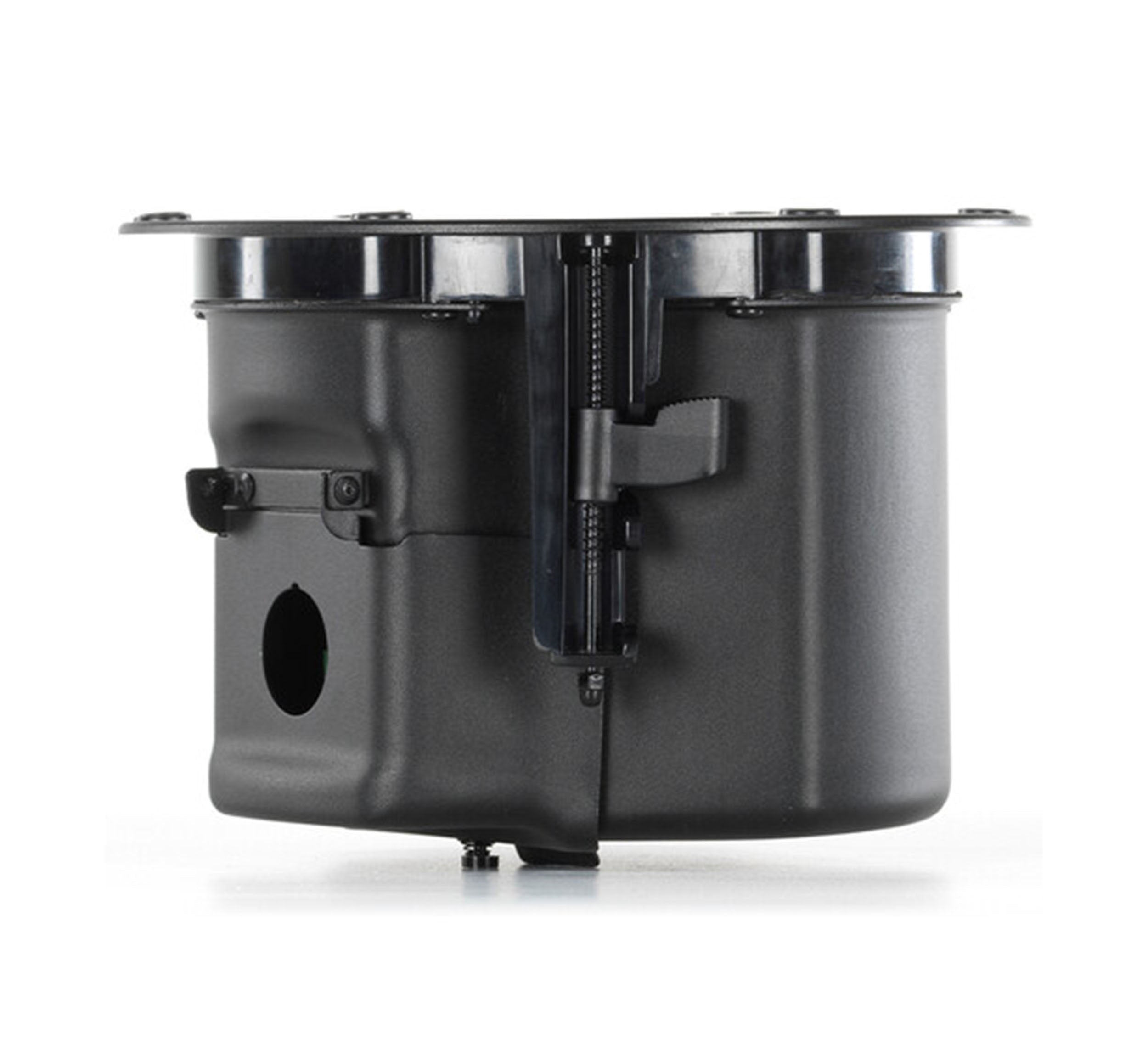

Installation is simple with the integrated backcan, C-ring support plate, tile rails, mounting hardware, cable strain relief, and cutout template included in the package. The removable locking 2-pin terminal block provides secure wiring, while the paintable grille can be customized to match virtually any ceiling finish. Its compact design fits easily into standard ceiling spaces without sacrificing performance. The IP33-rated enclosure offers protection against dust and water, making it suitable for a wide variety of indoor commercial environments. The Control 412C/T combines professional JBL sound quality with fast installation and reliable long-term performance.
Product Specifications:
Product Type: Passive full-range in-ceiling loudspeaker.

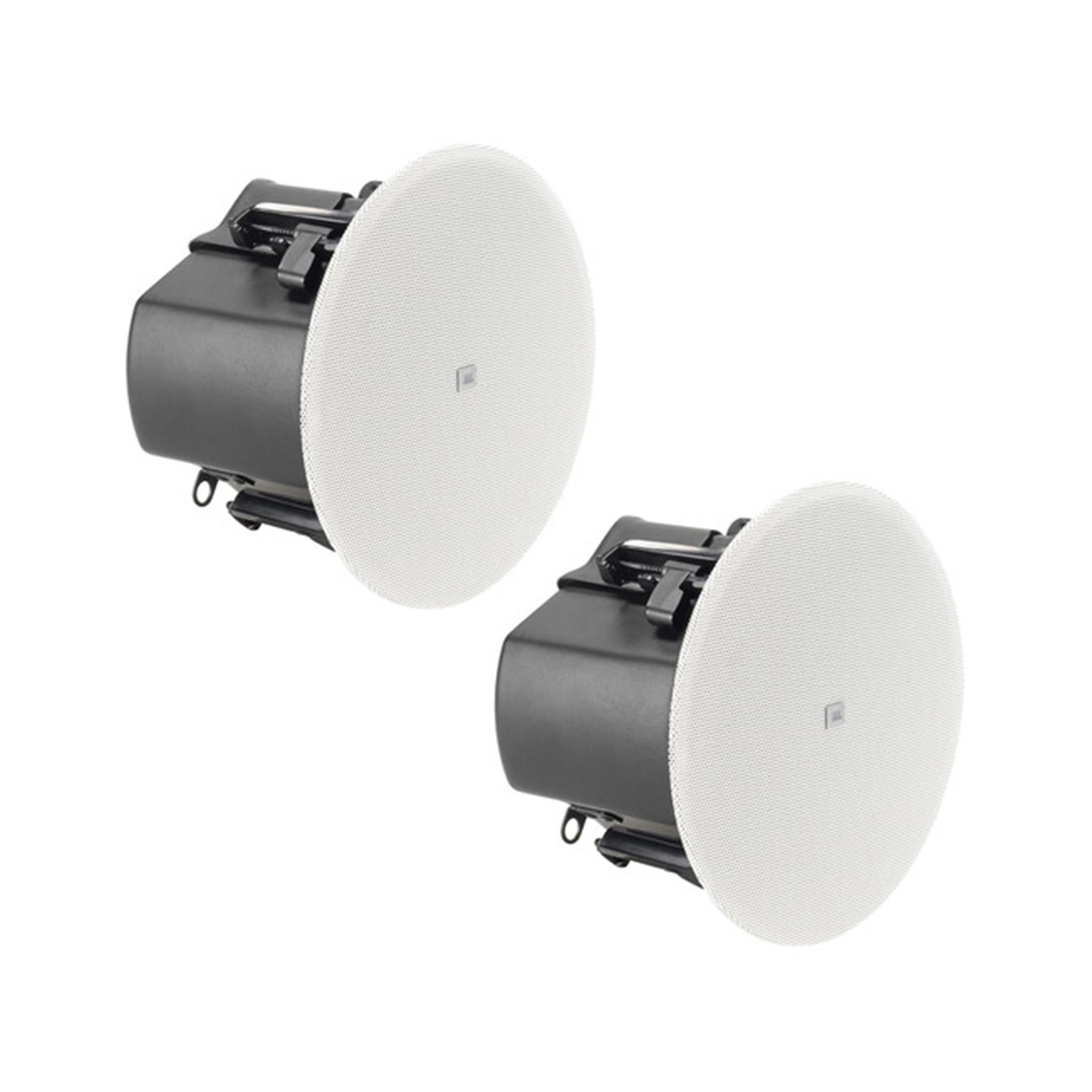

Included Speakers: 2.
Speaker Configuration: Full-range.
Power Handling (RMS): 20 W.
Power Handling (Program): 60 W.
Power Handling (Peak): 120 W.
Constant Voltage Taps (70V): 15 W / 7.5 W / 3.8 W / 1.9 W / 8-ohm bypass.
Constant Voltage Taps (100V): 15 W / 7.5 W / 3.8 W / 8-ohm bypass.
Impedance: 8 ohms (paralleled).
Transformer: 15 W multi-tap transformer.

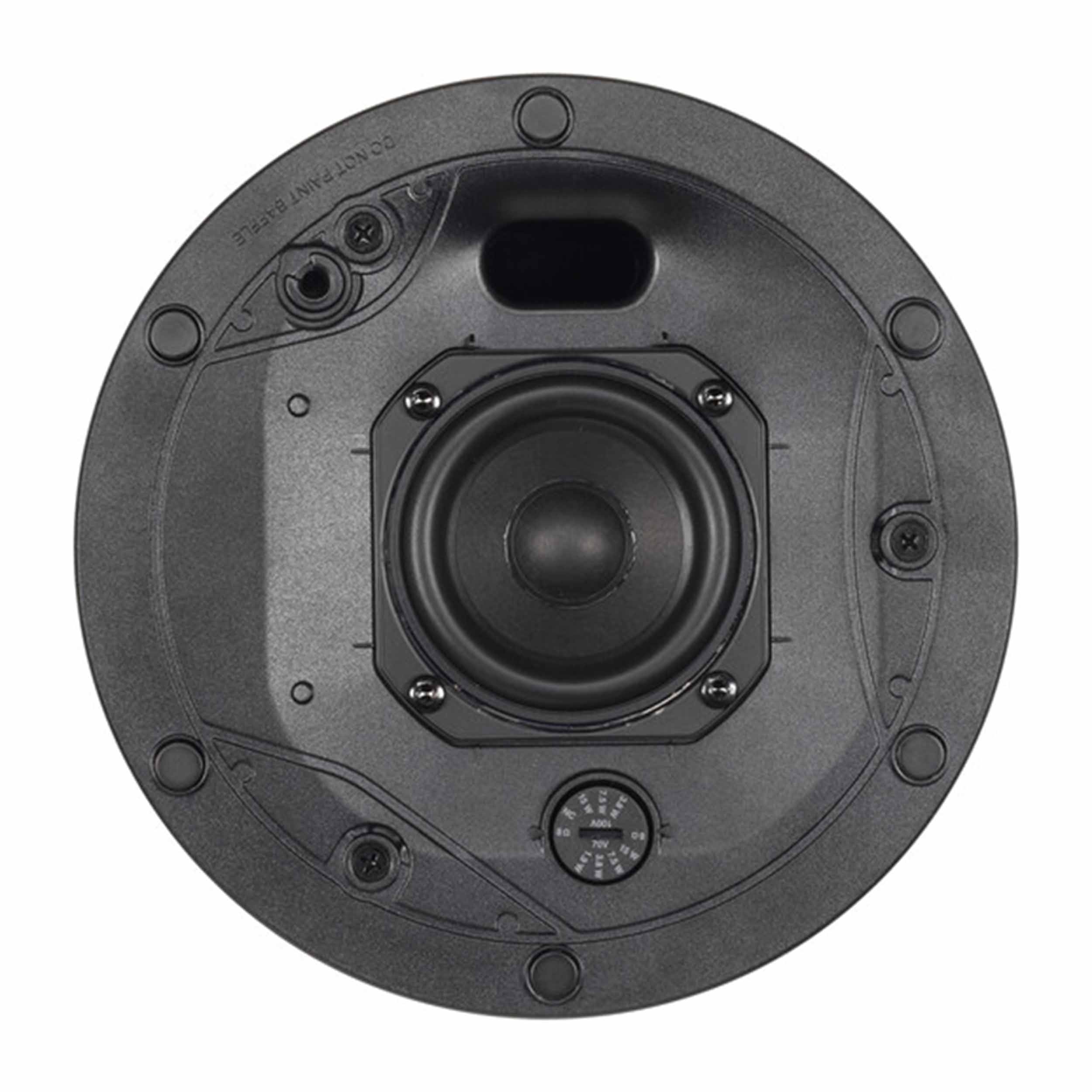

Driver: 3" (7.6 cm) paper cone full-range driver.
Frequency Range: 68 Hz – 17 kHz (-10 dB).
Frequency Response: 85 Hz – 16 kHz.
Maximum SPL: 99 dB continuous / 105 dB peak.
Sensitivity: 84 dB.
Coverage Angle: 160° conical.
Directivity Factor (Q): 2.9.
Directivity Index (DI): 4.6 dB.
Protection: Integrated output limiter.
Input Connection: Locking removable 2-pin terminal block (Input/Thru).
Environmental Rating: IP33 dust and water resistant.
Certifications: RoHS.
Operating Temperature: 32°F to 113°F (0°C to 45°C).
Mounting Type: In-ceiling.
Cutout Size: 6.6" (16.8 cm).
Cutout Depth: 5.4" (13.7 cm).
Construction Materials: ABS, aluminum, paper, polycarbonate, and steel.
Color: Black or White.
Product Weight: 3.8 lbs. (1.7 kg) each.
Product Dimensions (L × W × H): 8.1" × 5.7" × 5.4"
