Description

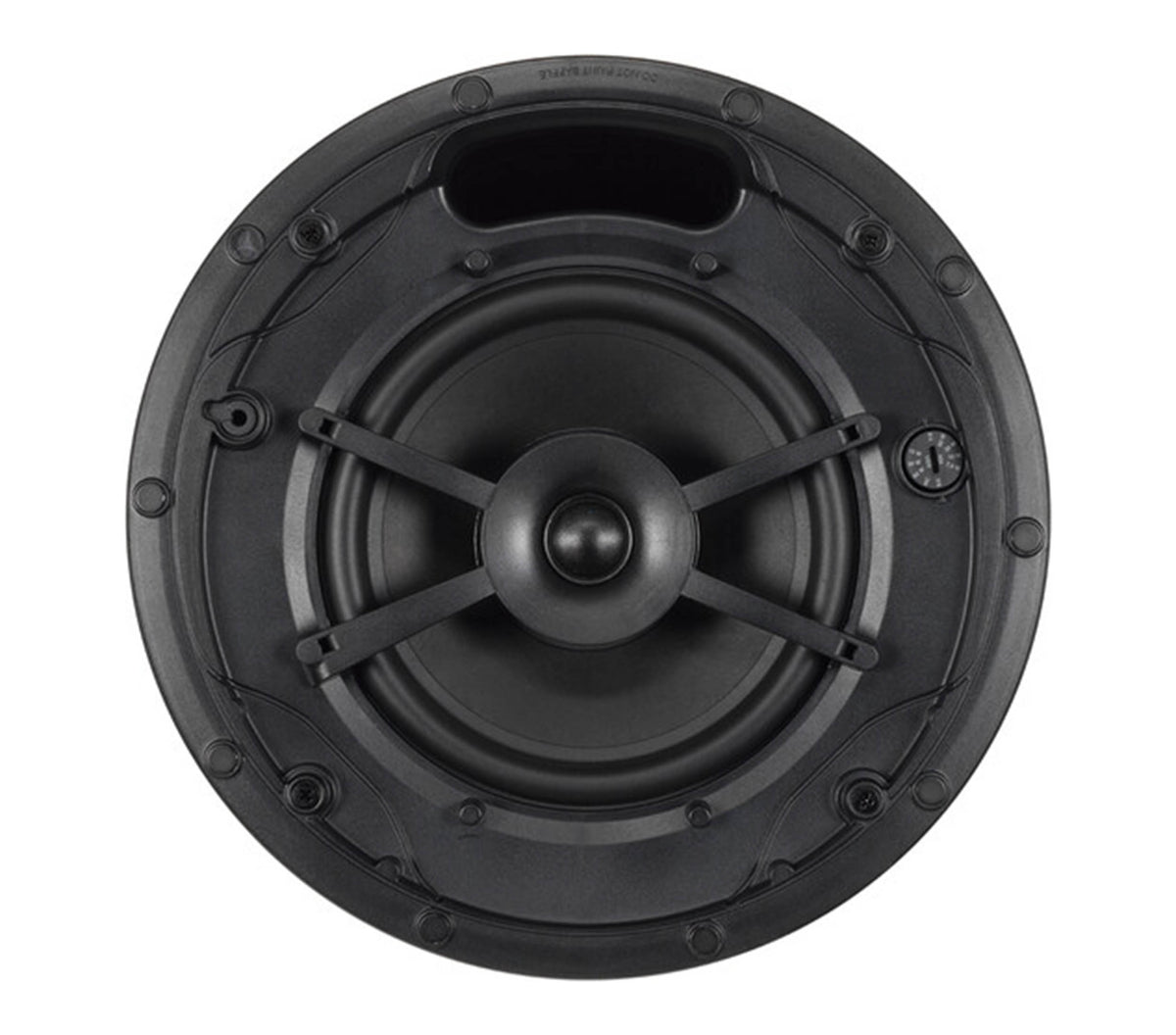

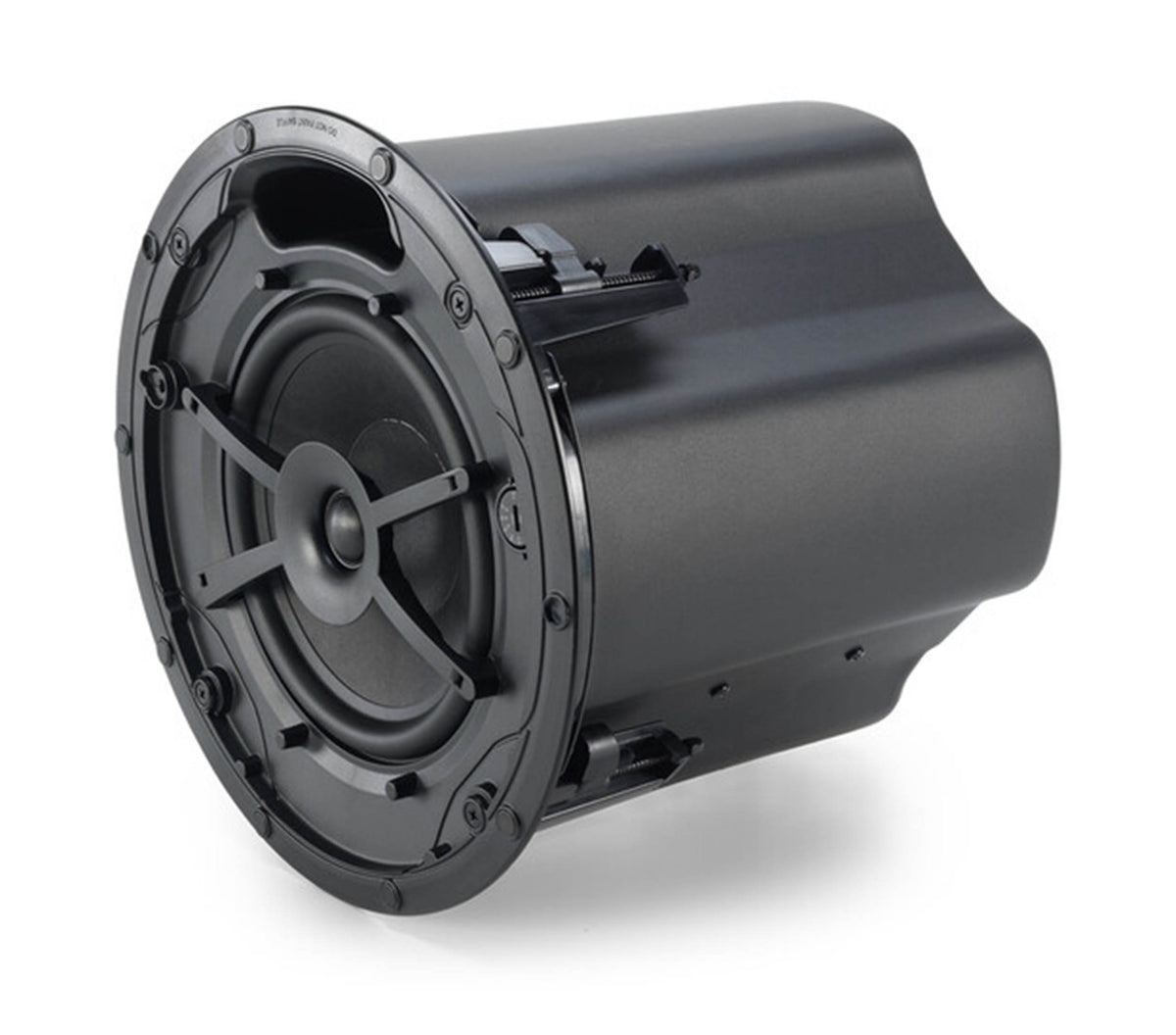

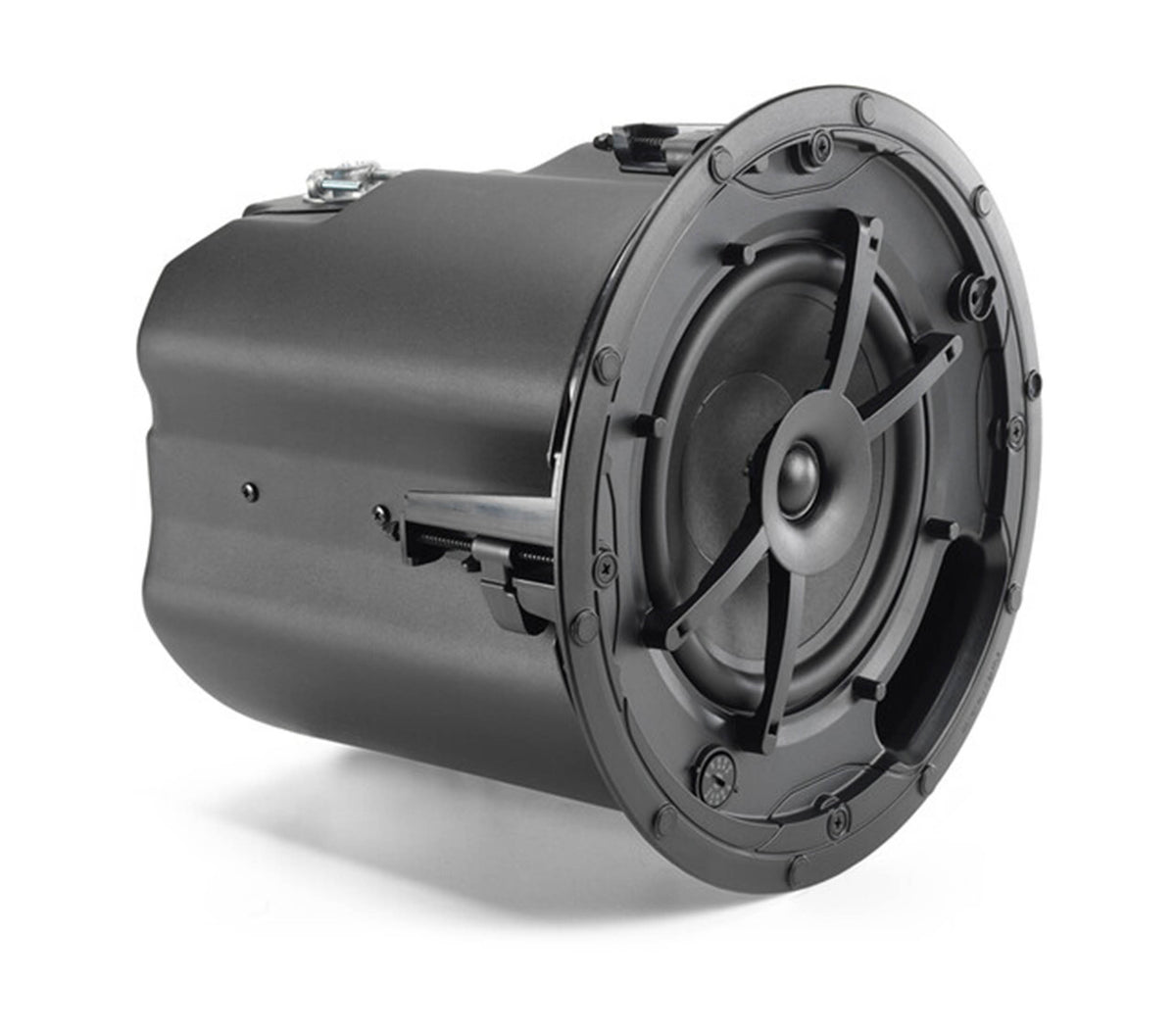

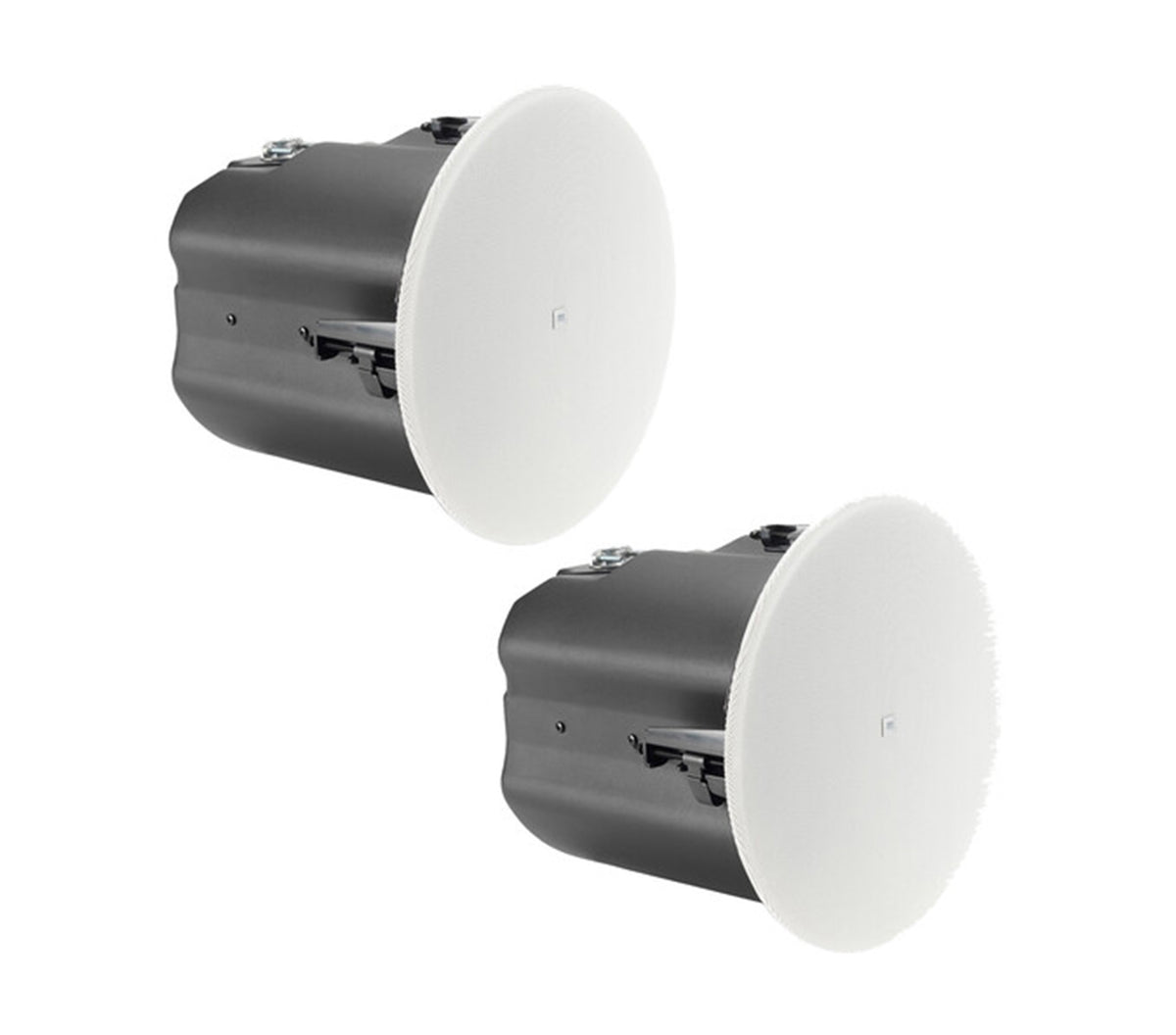

The JBL Control 418C/T 2-Pack delivers powerful full-range audio through two professional 8-inch two-way coaxial ceiling loudspeakers from the Control 400 Standard Coverage Series. Each speaker combines a 200 mm (8-inch) woofer with a 25 mm (1-inch) soft-dome tweeter, providing a 57 Hz–20 kHz frequency range and 92 dB sensitivity. With 100° conical coverage and up to 119 dB peak SPL, the pair provides high-output performance for commercial spaces, hotels, museums, and other installed audio environments.
Flexible 70V/100V & 8Ω Operation
Each Control 418C/T supports both 70V/100V distributed audio systems and direct 8Ω low-impedance operation. The built-in transformer provides 70V taps of 60W, 30W, 15W, and 7.5W, while 100V operation supports 60W, 30W, and 15W. Each speaker handles 135W continuous pink-noise power for 2 hours and up to 540W peak, while the direct 8Ω input provides flexibility for conventional low-impedance amplifier systems.
Efficient Installation & Modern Architectural Design

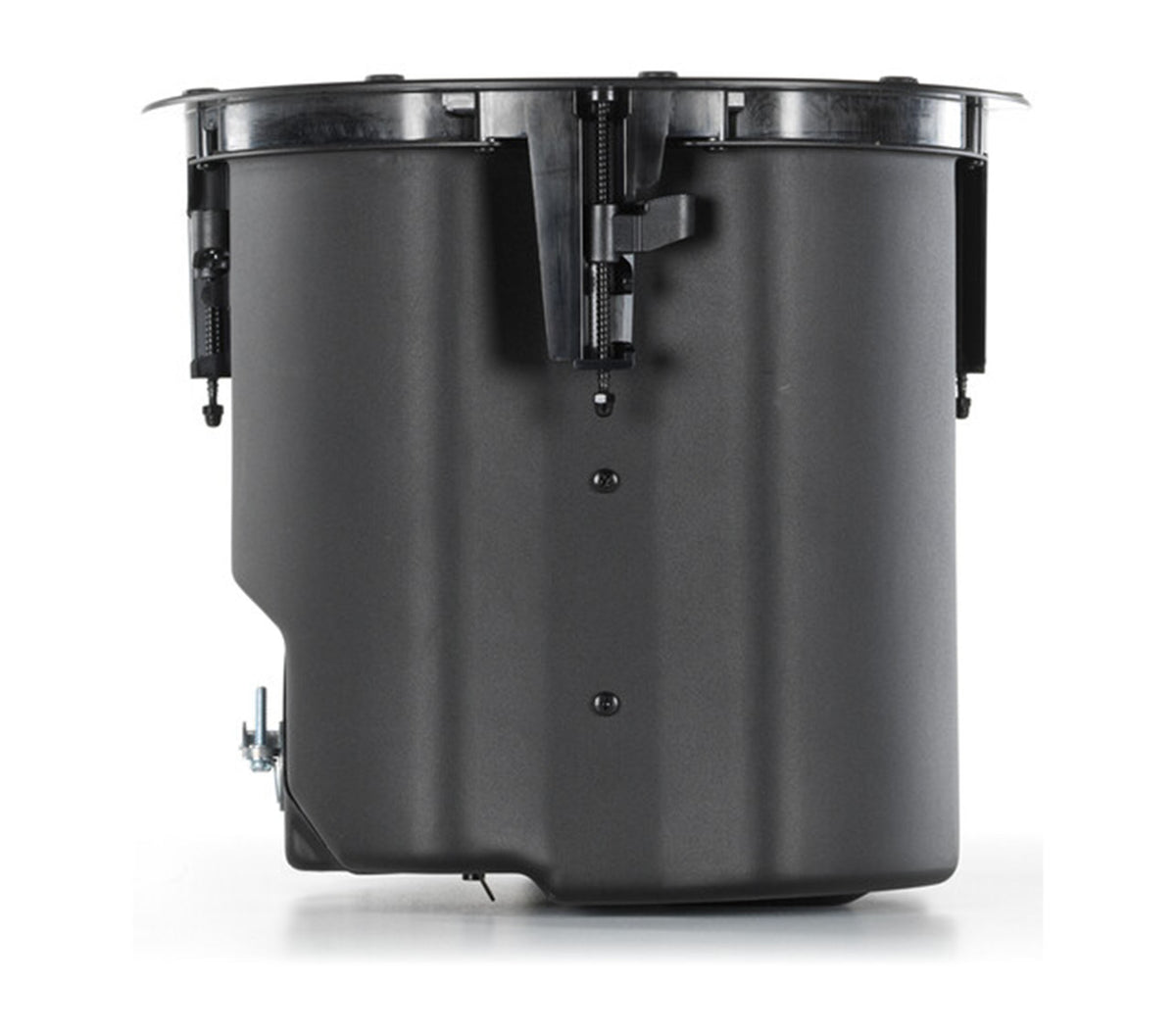

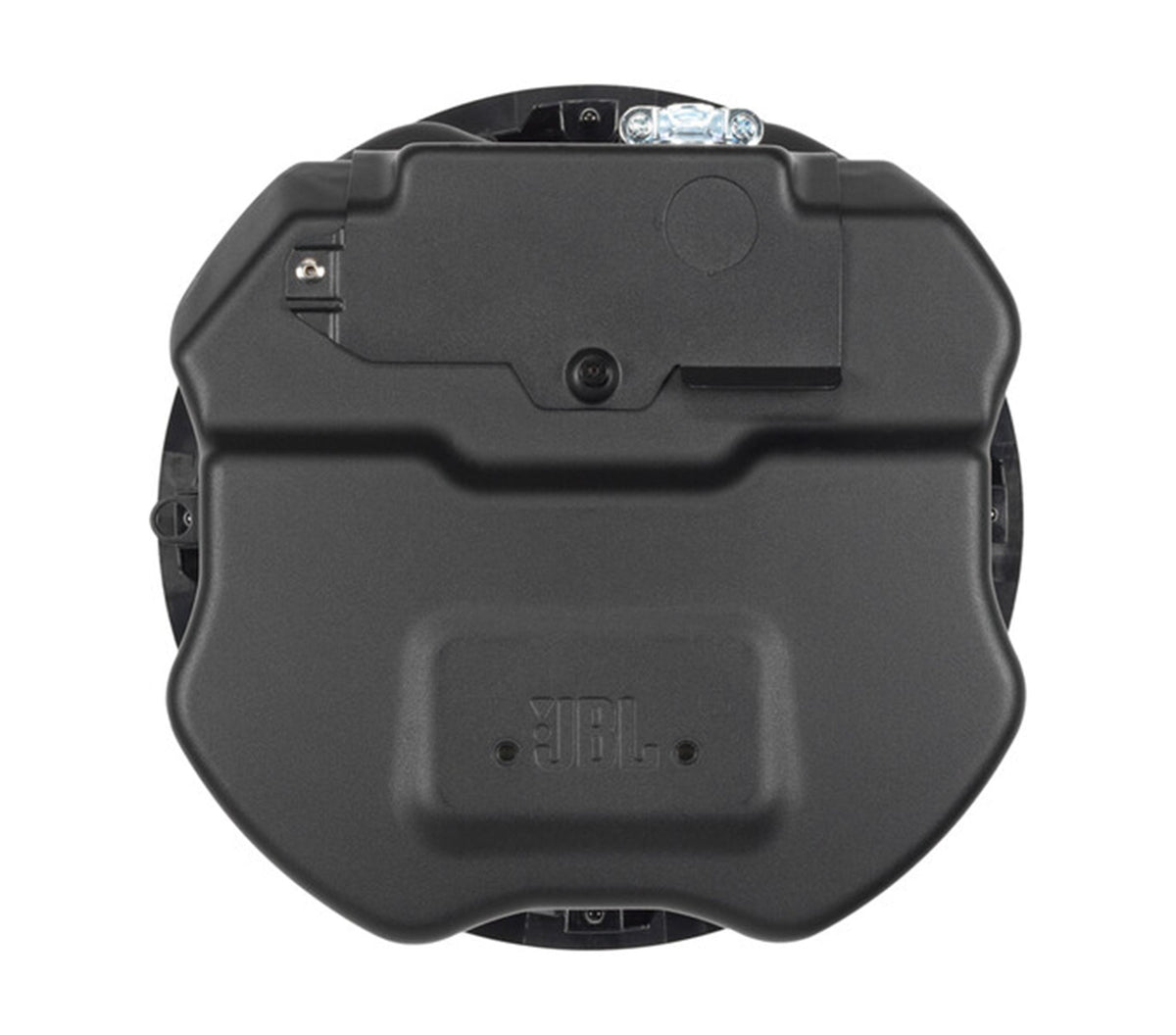

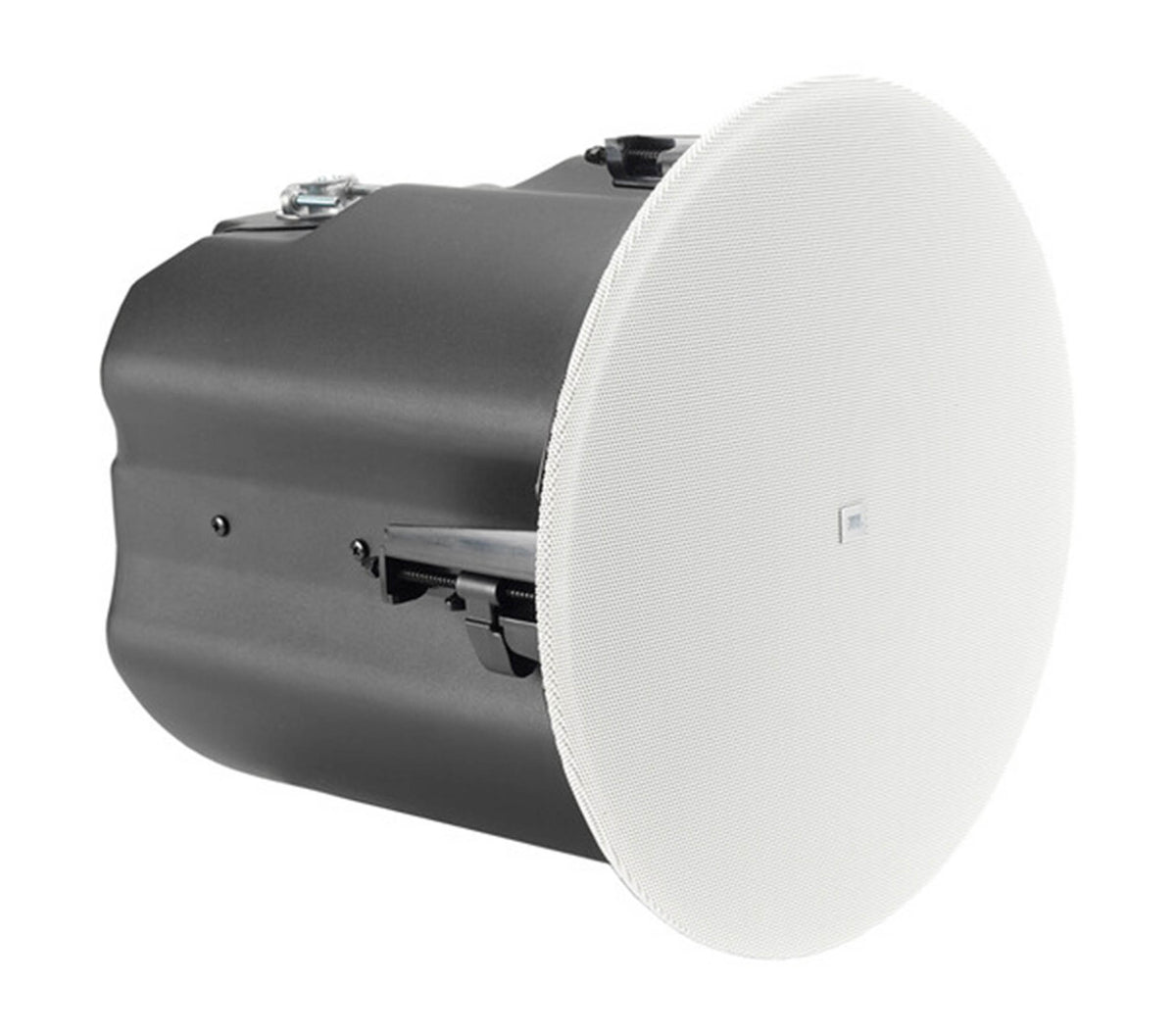

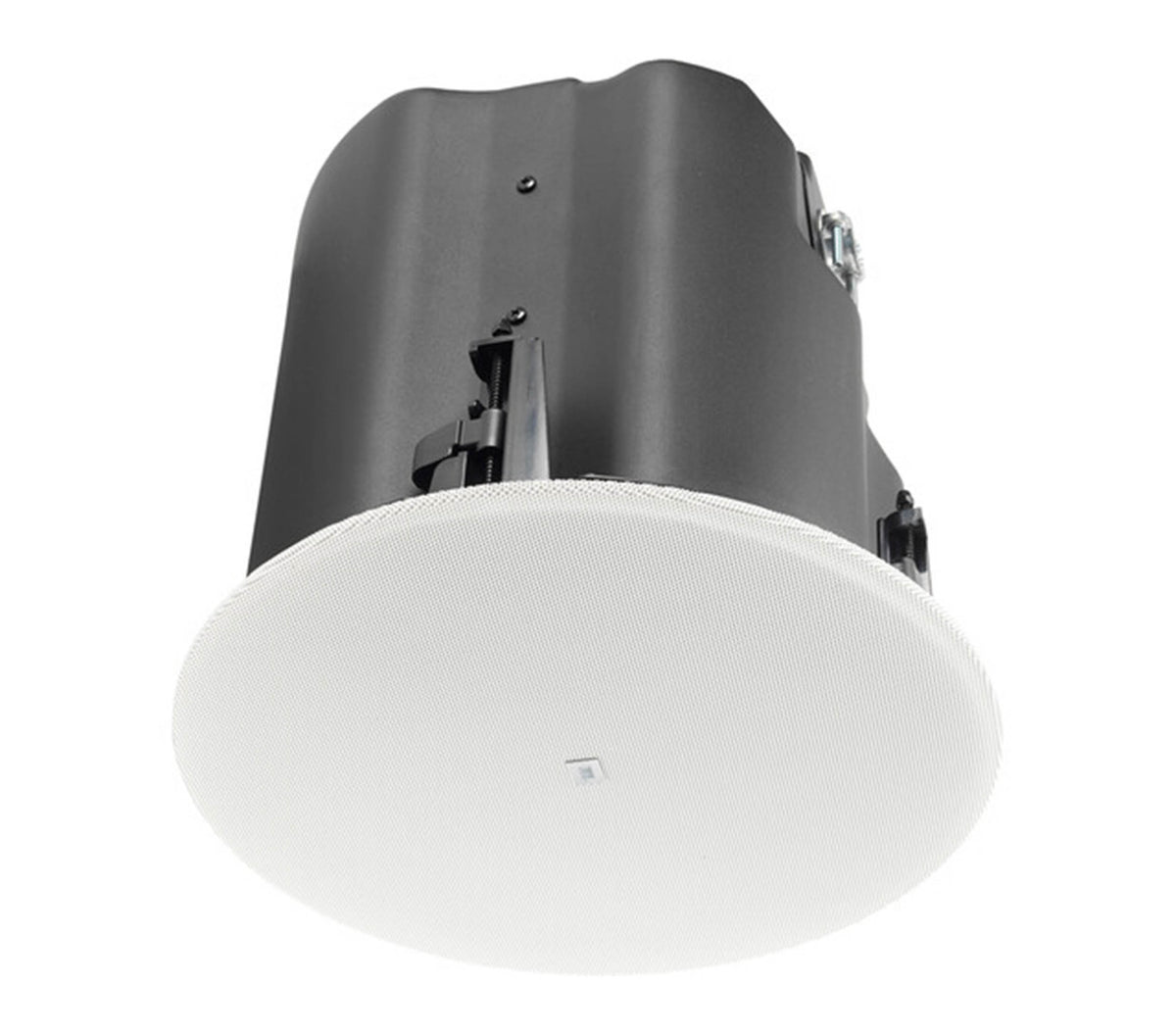

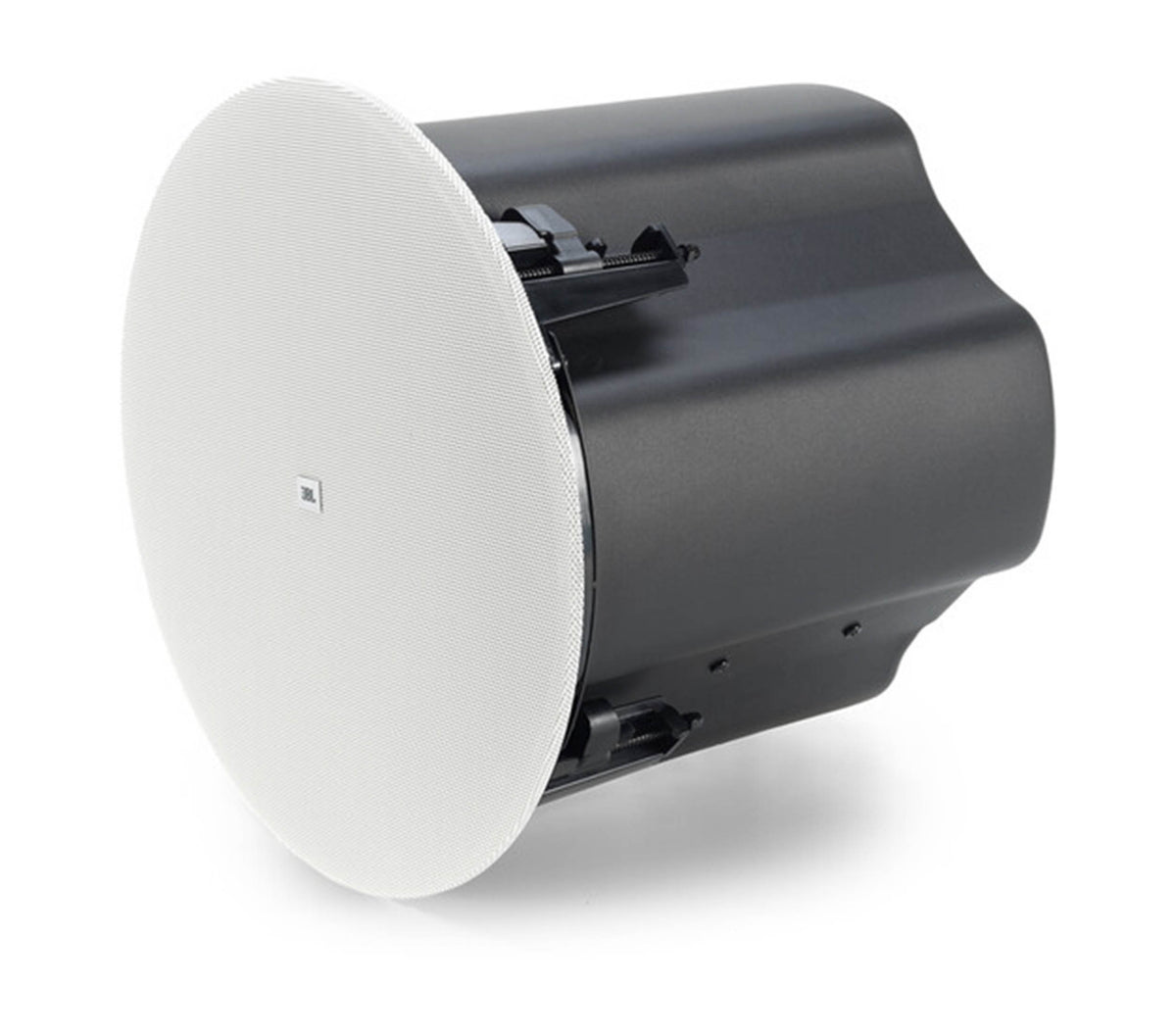

The integrated enclosure is designed for installation in most ceiling plenum spaces, while the redesigned terminal cover provides convenient top and side cable entry options. The reliable captive dogear mounting system accommodates a wide range of ceiling thicknesses and improves installation repeatability. Full-face bezel-free magnetic grilles provide a clean, paintable appearance with integrated safety tethers, while the package includes mounting hardware for professional installation.
Product Specifications:
Package Quantity: 2 Loudspeakers
Product Type: Two-Way Coaxial Ceiling Loudspeaker
Series: Control 400 Standard Coverage Series
Woofer Size: 200 mm (8")
Tweeter Size: 25 mm (1") Soft-Dome
Driver Configuration: Two-Way Coaxial
Enclosure Type: Integrated Ceiling Enclosure
Frequency Range (-10 dB): 57 Hz–20 kHz
Frequency Response (±3 dB): 74 Hz–19 kHz
Power Capacity: 270W Continuous Program (2 hrs) per Speaker
Continuous Pink Noise Power: 135W (2 hrs), 90W (100 hrs) per Speaker
Peak Power Handling: 540W (2 hrs), 360W (100 hrs) per Speaker
Sensitivity: 92 dB
Nominal Coverage Angle: 100° Conical
Directivity (Q): 6.2
Directivity Index (DI): 7.9 dB
Rated Maximum SPL @ 1 m: 113 dB Continuous Pink Noise, 119 dB Peak
Nominal Impedance: 8Ω
Minimum Impedance: 6.9Ω at 200 Hz
Transformer Type: 70V/100V Multi-Tap
70V Transformer Taps: 60W, 30W, 15W, 7.5W
100V Transformer Taps: 60W, 30W, 15W
Direct Input: 8Ω Low-Impedance Operation
Recommended High-Pass Filter: 60 Hz, 24 dB/oct LR
Transformer Insertion Loss: 0.6 dB @ 7.5W, 0.8 dB @ 15W, 0.9 dB @ 30W, 0.9 dB @ 60W
Maximum Input Voltage: 30V RMS, 61V Peak at 8Ω Input
Grille Type: Full-Face Bezel-Free Magnetic Grille
Grille Safety: Integrated Safety Tether
Cable Entry: Top and Side
Terminal Cover: Top/Side Entry with Captive Hardware
Mounting System: Captive Dogear
Environmental Rating: IP33
Compatible Applications: Commercial Spaces, Hotels, Museums, Installed Sound
Included Accessories: Mounting Hardware, Grilles
Optional Grilles: Black Round and White Square
