Description
The JBL Control 419CS/T 2-Pack delivers powerful low-frequency reinforcement through two professional 8-inch ceiling subwoofers designed for integration with JBL Control 400 Series full-range speakers. Each unit features a 200 mm (8-inch) woofer and two large tapered ports that produce warm, smooth bass response, extending system performance down to 47 Hz. The integrated passive low-pass filter simplifies pairing with compatible full-range ceiling loudspeakers.
Flexible Distributed & Low-Impedance Operation
Each Control 419CS/T supports both 70V/100V distributed audio systems and direct 8Ω operation, making the pair adaptable to a wide range of commercial sound installations. The built-in subwoofer-band transformer provides 70V taps of 60W, 30W, 15W, and 7.5W, while 100V operation supports 60W, 30W, and 15W. Each subwoofer handles up to 160W continuous IEC-shaped pink noise for 2 hours and 640W peak, providing substantial low-frequency output for music and commercial audio systems.
Efficient Installation & Modern Architectural Design

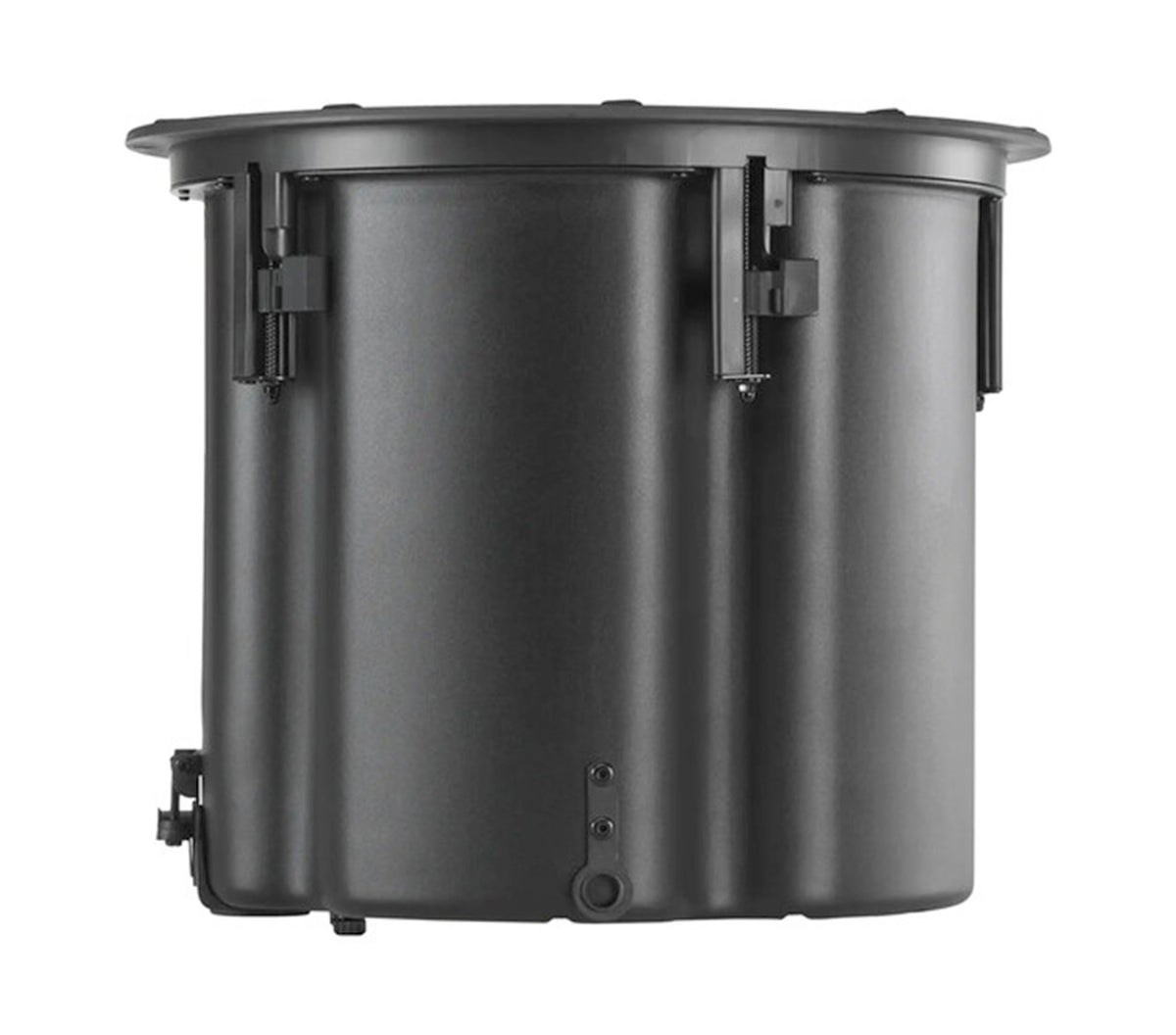

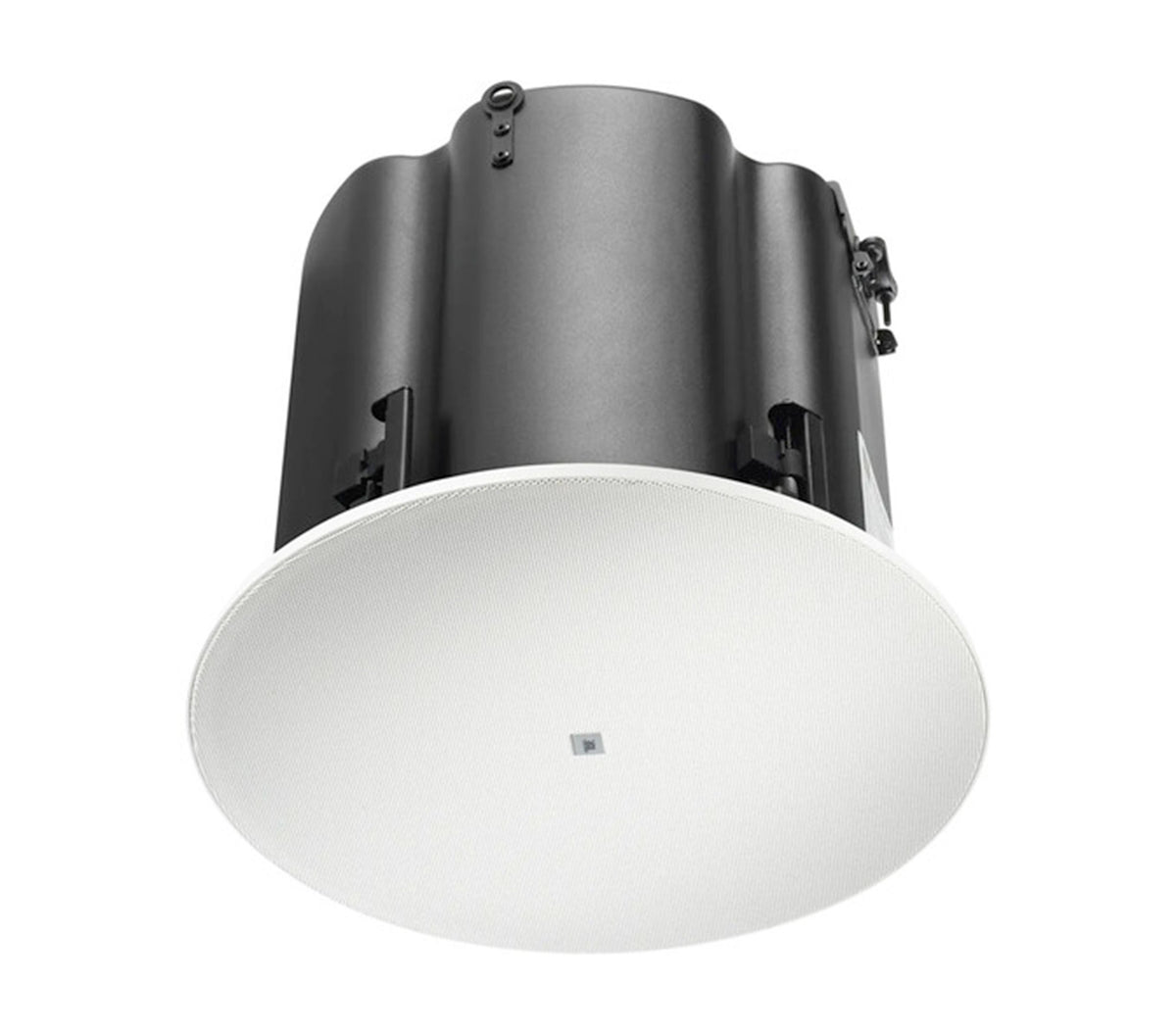

The Control 419CS/T features an integrated enclosure designed for installation in most ceiling plenum spaces, with redesigned terminal covers offering convenient top and side cable entry. Captive hand-screws allow tool-free terminal-cover access, while the robust captive dogear system accommodates a wide range of ceiling thicknesses. The full-face bezel-less magnetic grille provides a clean architectural appearance and includes a safety tether, while the package includes the grille, C-ring, and tile rails for streamlined installation.
Product Specifications:

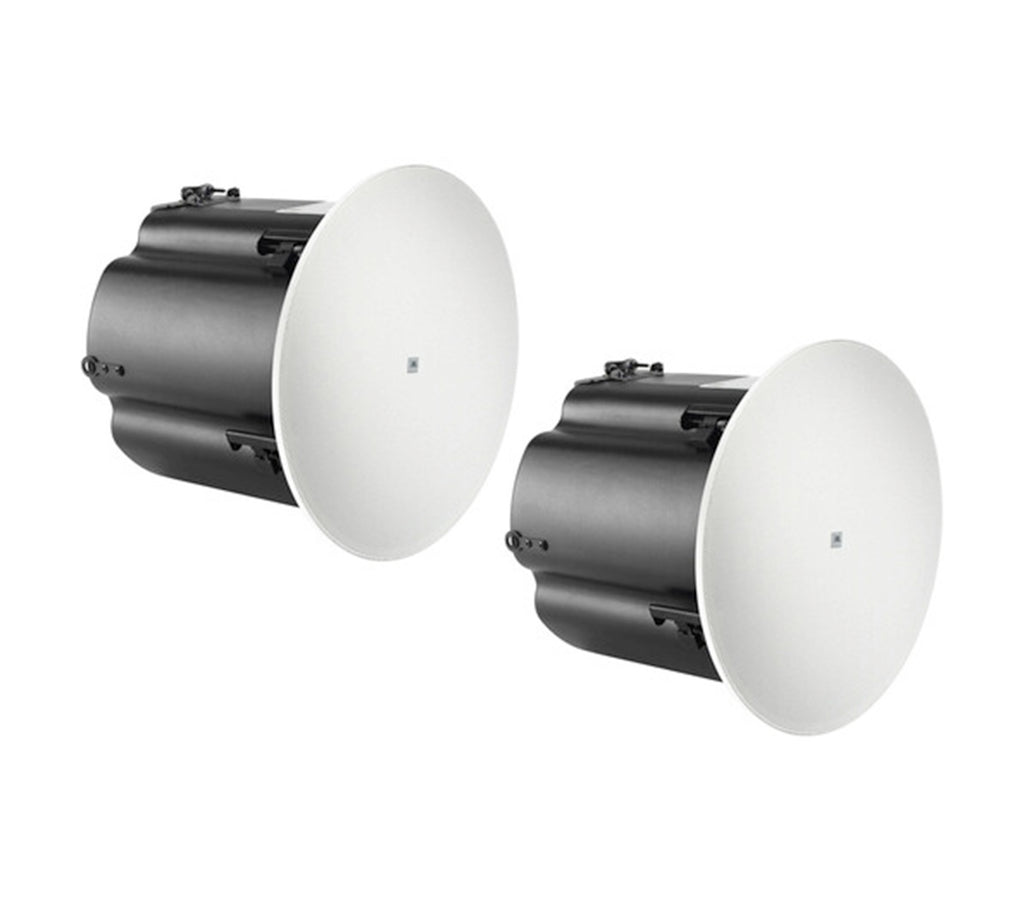

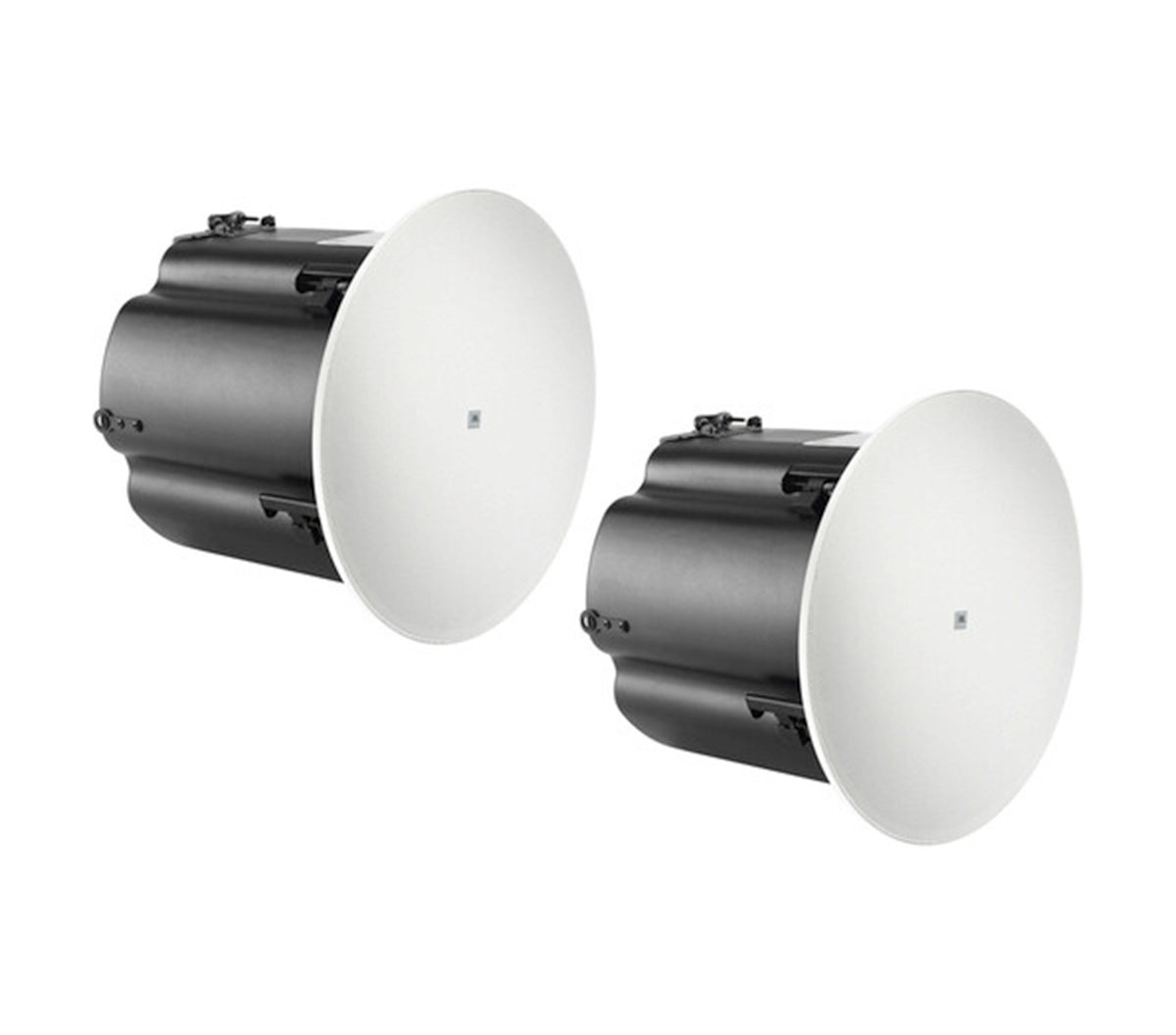

Package Quantity: 2 Subwoofers
Product Type: Ceiling Subwoofer
Series: Control 400 Enhanced Coverage Series
Woofer Size: 200 mm (8")
Driver Type: Subwoofer
Voice Coil: 1.5" Copper Voice Coil
Enclosure Type: Integrated Ported Enclosure

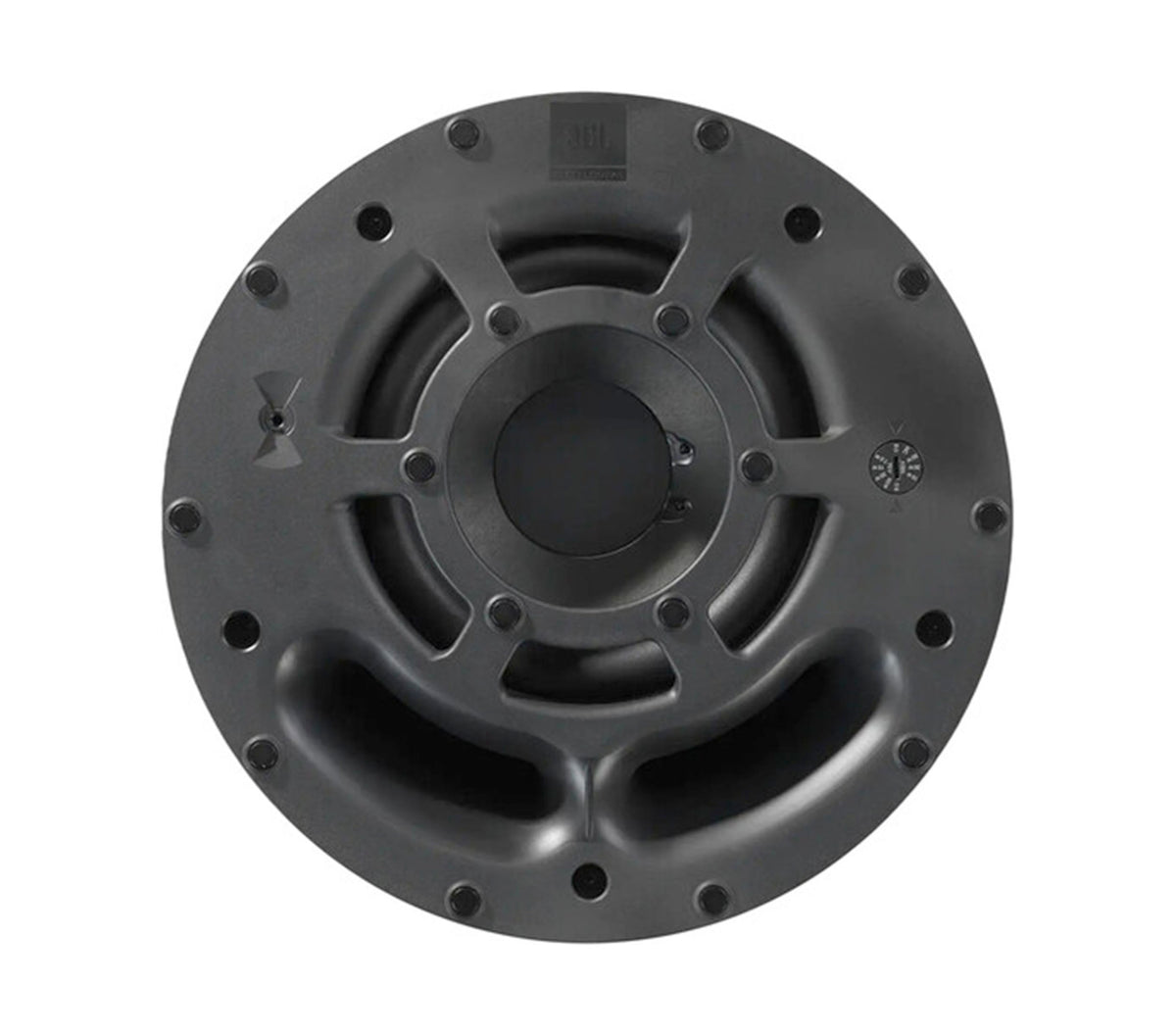

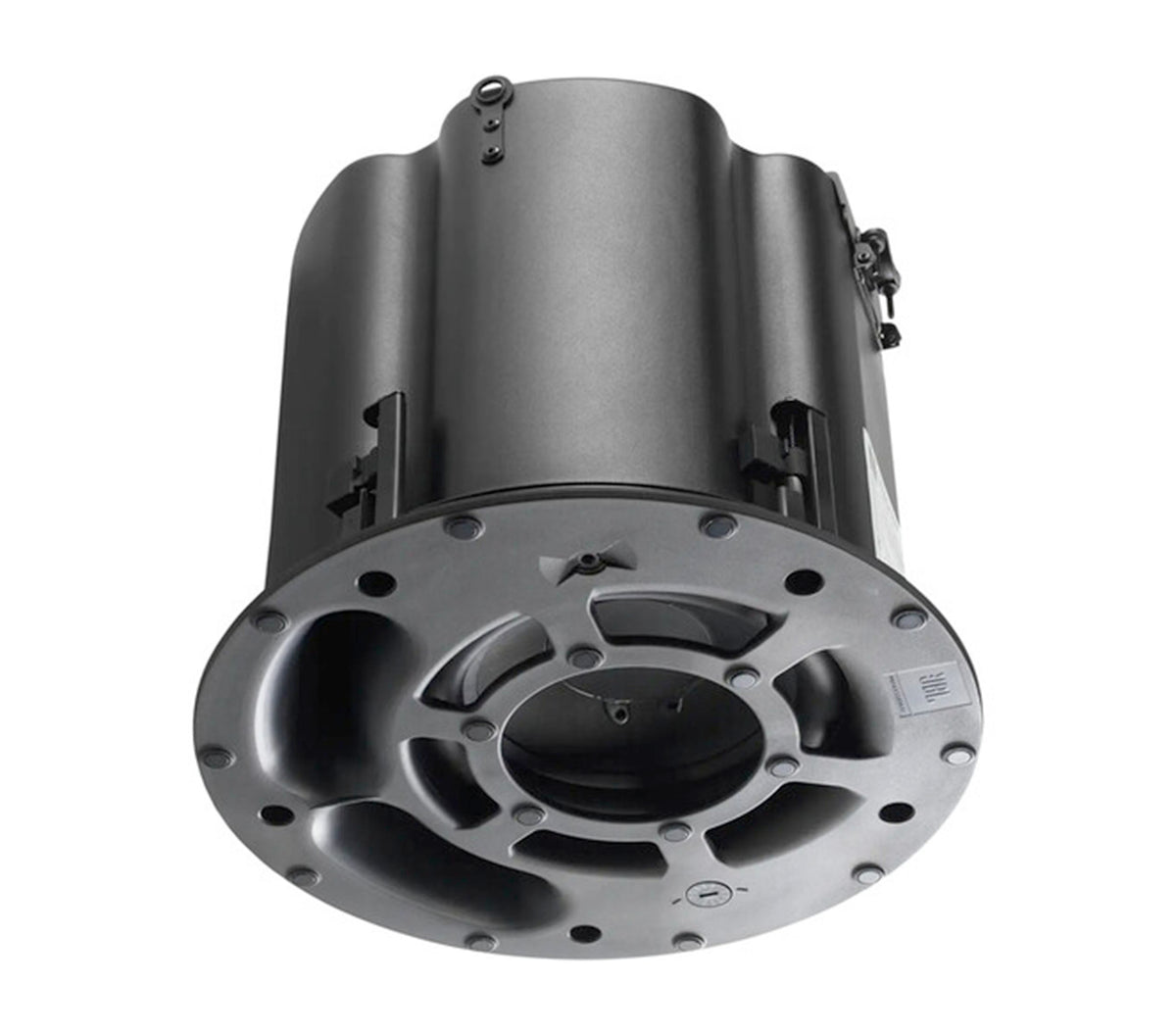

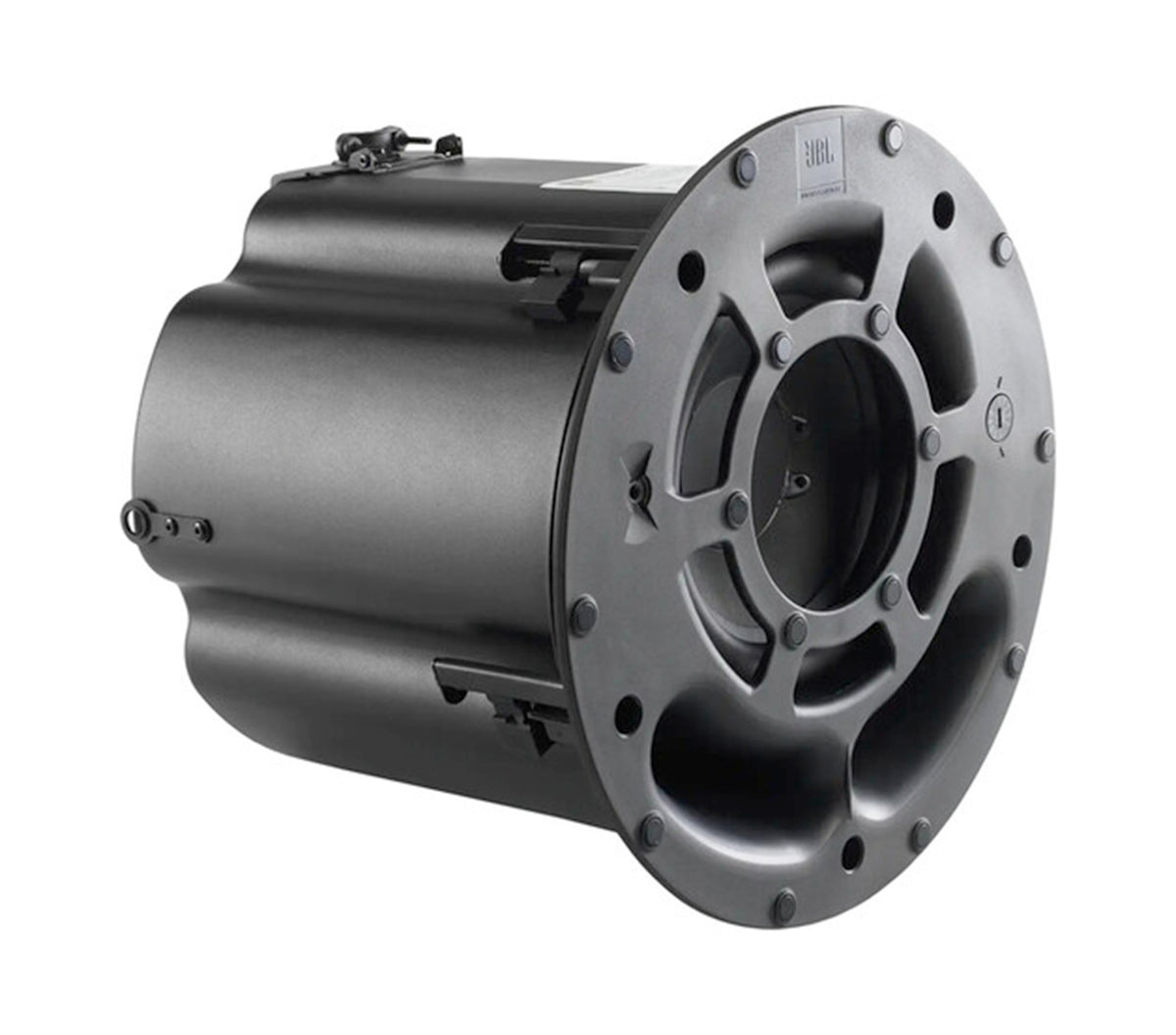

Port Design: Two Large Tapered Ports
Bass Extension: Down to 47 Hz via Low-Pass Filter
Frequency Range (-10 dB): 47 Hz–320 Hz
Frequency Response (±3 dB): 55 Hz–150 Hz
Power Capacity: 320W Continuous Program (2 hrs) per Speaker
Continuous Pink Noise Power: 160W (2 hrs), 80W (100 hrs) per Speaker
Peak Power Handling: 640W (2 hrs), 320W (100 hrs) per Speaker
Sensitivity: 96 dB in Ceiling Near Corner, 93 dB Near Wall, 90 dB at 1W/1m in Center of Ceiling
Nominal Coverage Angle: 180° Conical
Directivity (Q): 2.0
Directivity Index (DI): 3.0 dB
Rated Maximum SPL @ 1m: 124 dB Peak / 118 dB Continuous with π/2 Loading; 118 dB Peak / 112 dB Continuous with 2π Loading
Nominal Impedance: 8Ω
Minimum Impedance: 7.6Ω @ 106 Hz
Transformer Type: 70V/100V Subwoofer-Band Multi-Tap
70V Transformer Taps: 60W, 30W, 15W, 7.5W
100V Transformer Taps: 60W, 30W, 15W
Required High-Pass Filter: 45 Hz, 24 dB/oct LR
Transformer Insertion Loss: 0.8 dB @ 7.5W, 0.8 dB @ 15W, 0.9 dB @ 30W, 1.0 dB @ 60W
Maximum Input Voltage: 35V RMS, 70V Peak at 8Ω Input
Overload Protection: PTC Power Limiting
Grille Type: Full-Face Bezel-Less Magnetic Grille
Grille Safety: Safety Tether Included

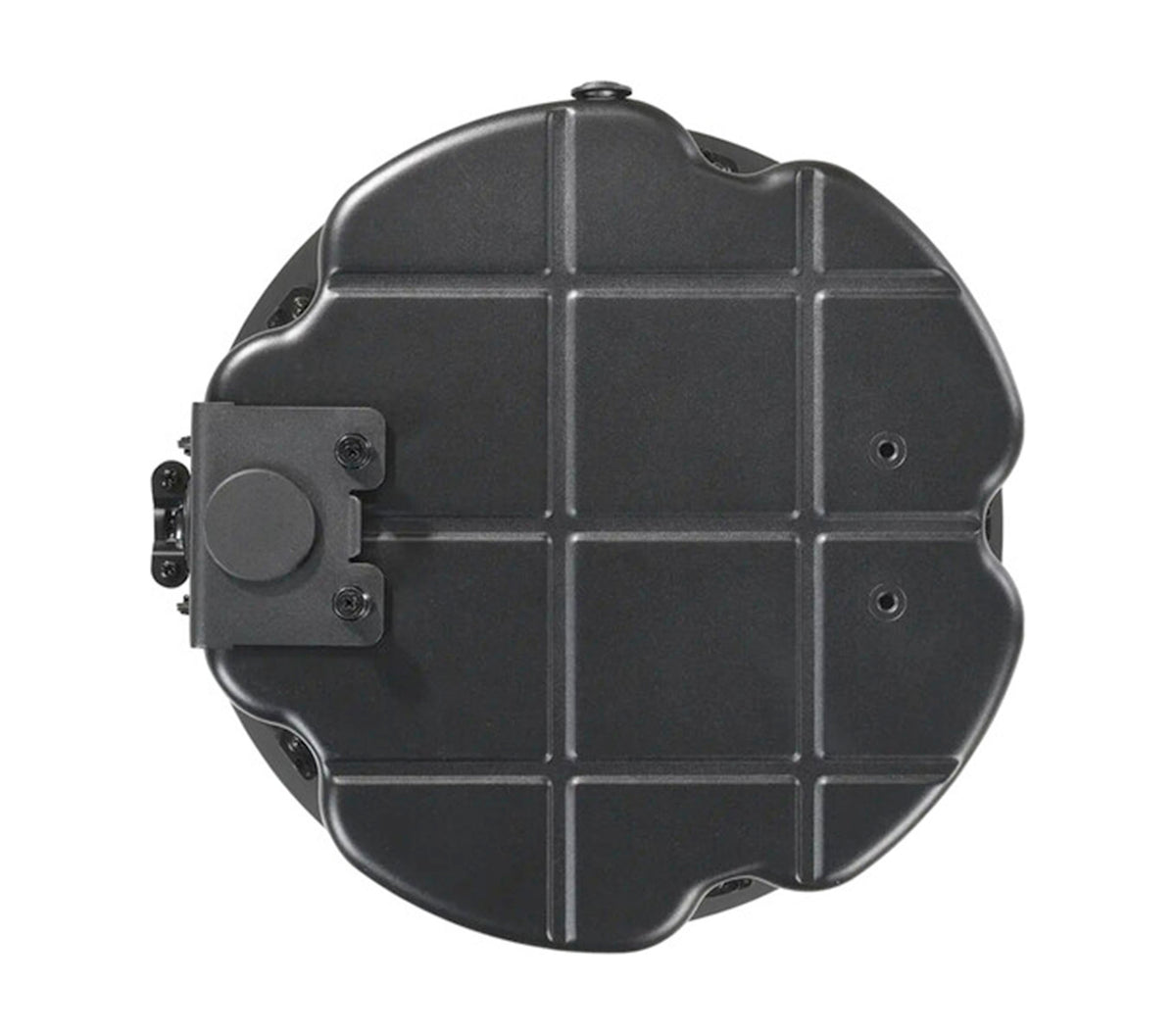

Cable Entry: Top and Side
Terminal Cover: Captive Hand-Screws, Tool-Free Access
Ceiling Mounting: Captive Dogear System
Ceiling Cutout: 308 mm (12.2")
Plenum Installation: Suitable for Most Ceiling Plenum Spaces
Environmental Rating: IP33
Included Accessories: Grille, C-Ring, Tile Rails
Optional Grilles: Black Round and White Square
Compatible Speakers: JBL Control 400 Series Full-Range Models
Primary Application: Commercial Installed Sound
