Description

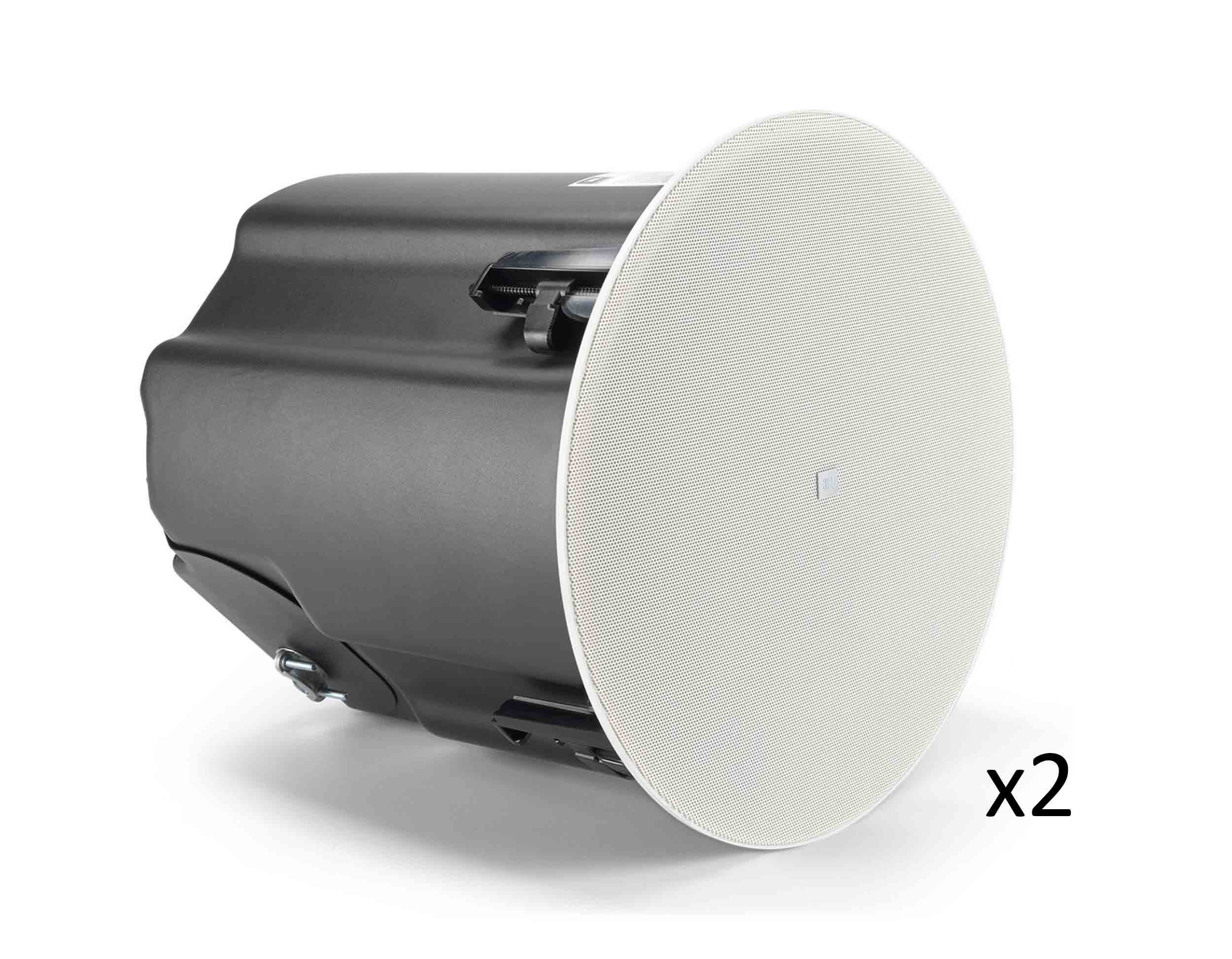

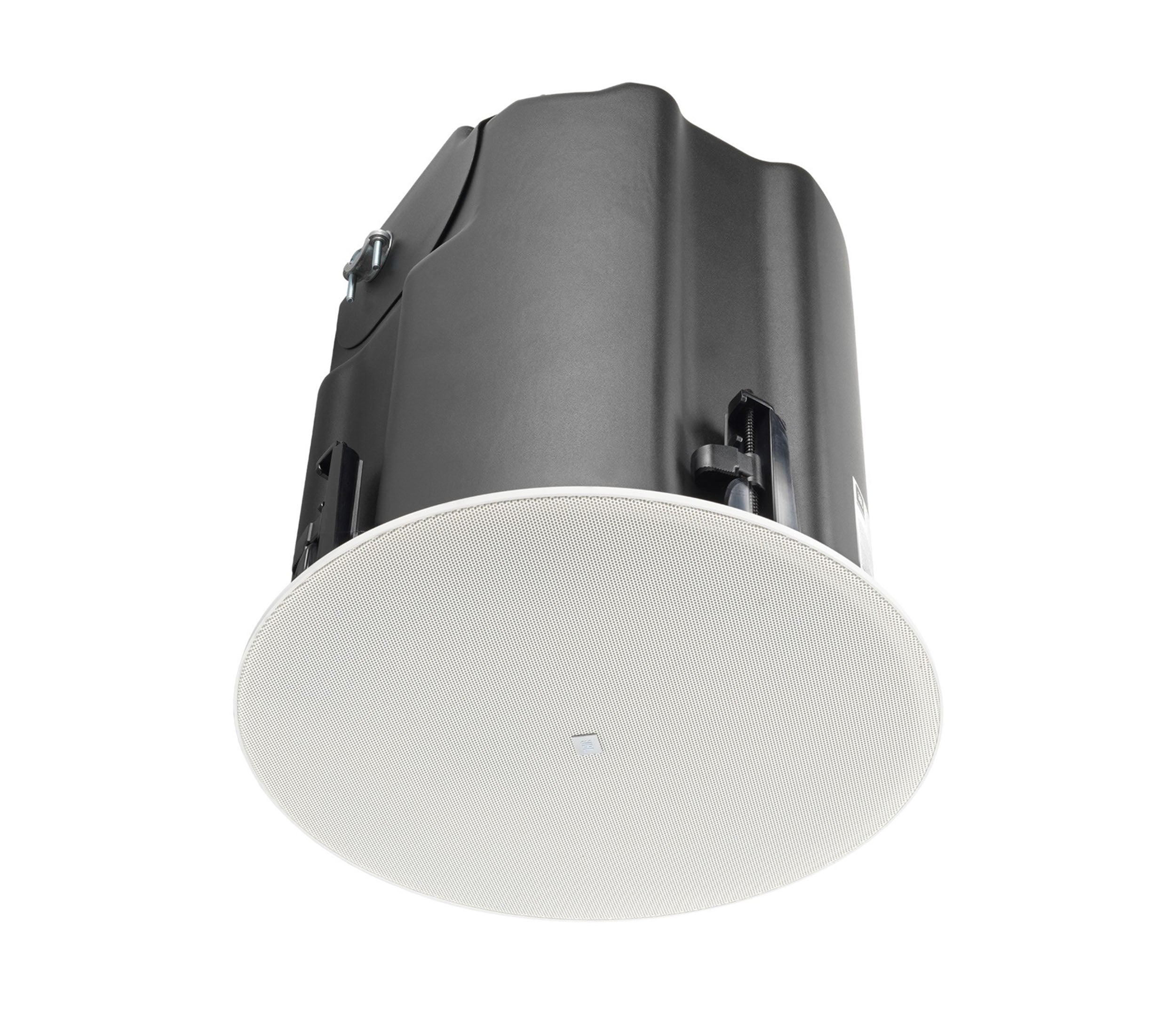

The JBL Control 440CS/T, part of the flagship Control 400 Premium Coverage Series, is a high-power, low-distortion in-ceiling subwoofer, featuring an 8” woofer, passive crossover, and an extremely durable, reinforced enclosure.

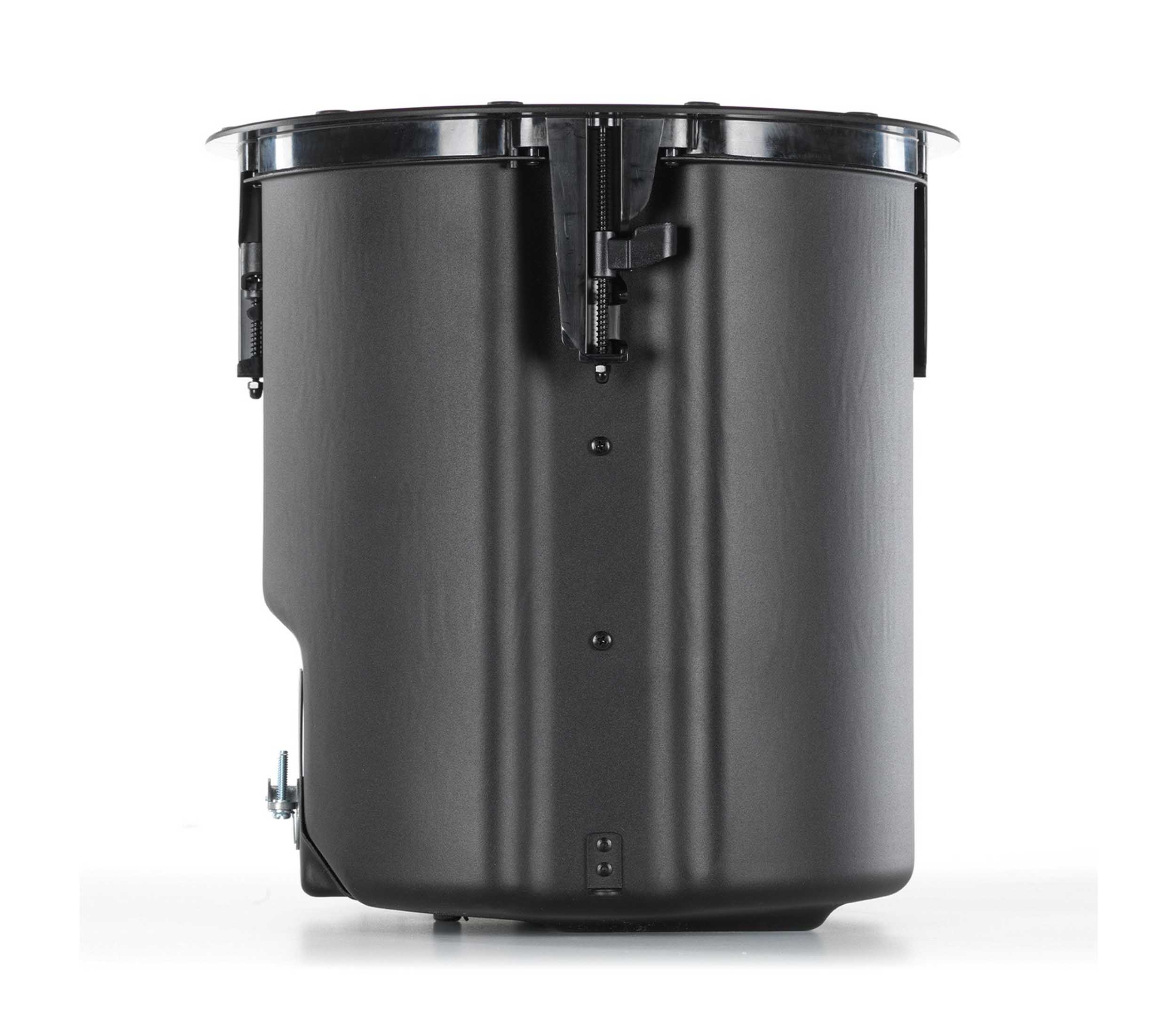

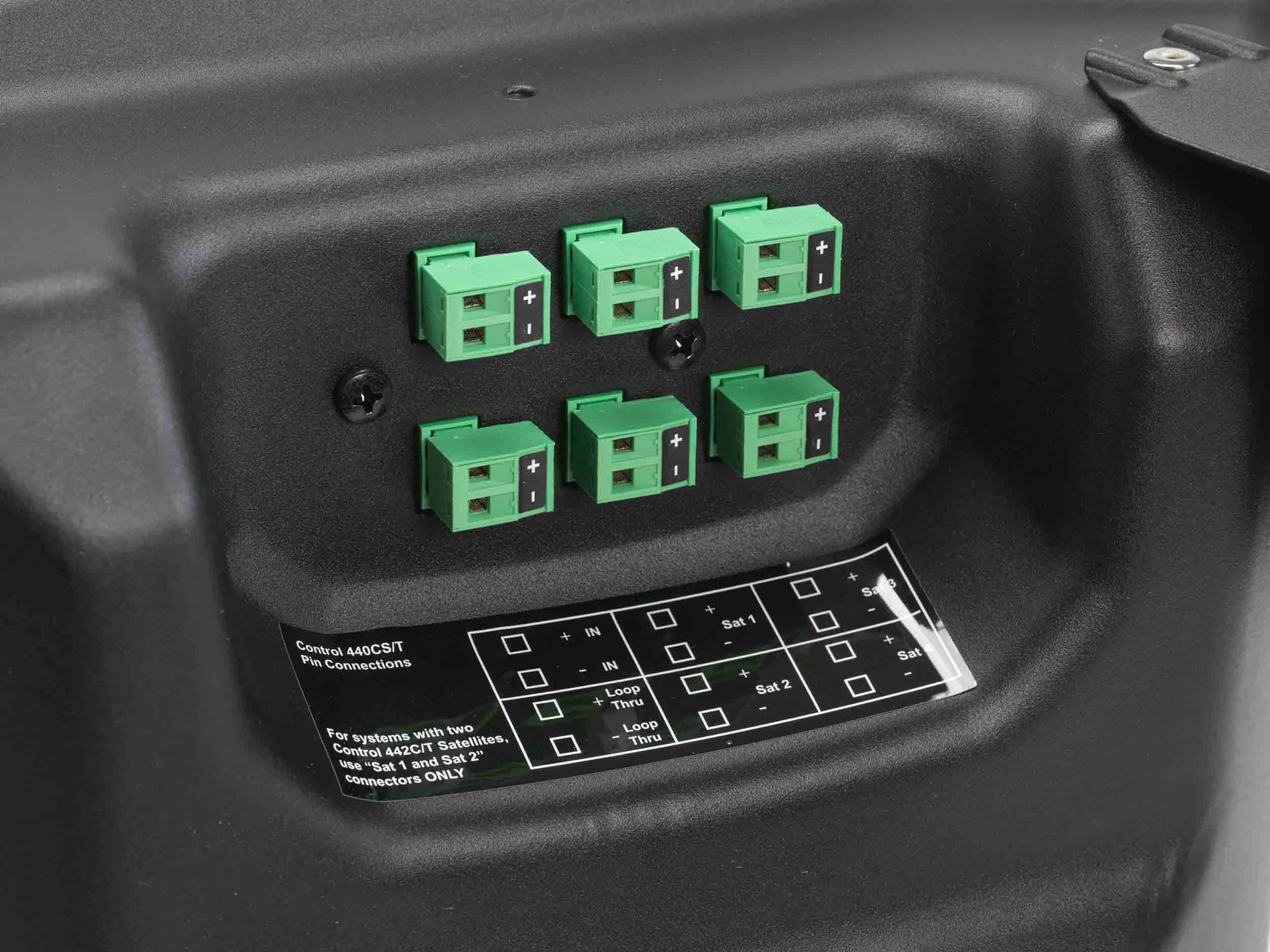

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 440CS/T supports both 70V/100V and low impedance applications.
Efficient, Flexible Installation

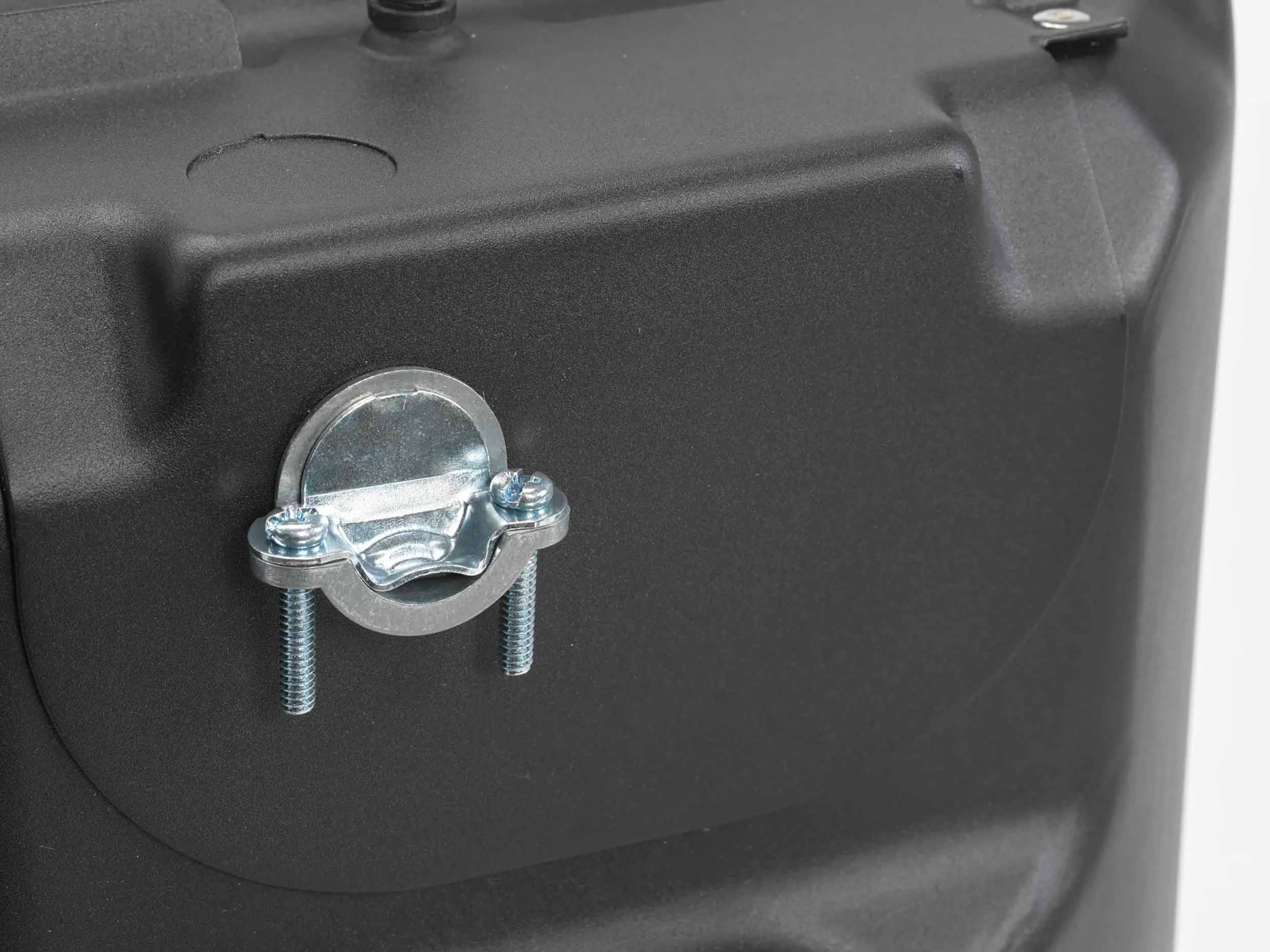

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.
Refined, Modern Aesthetics

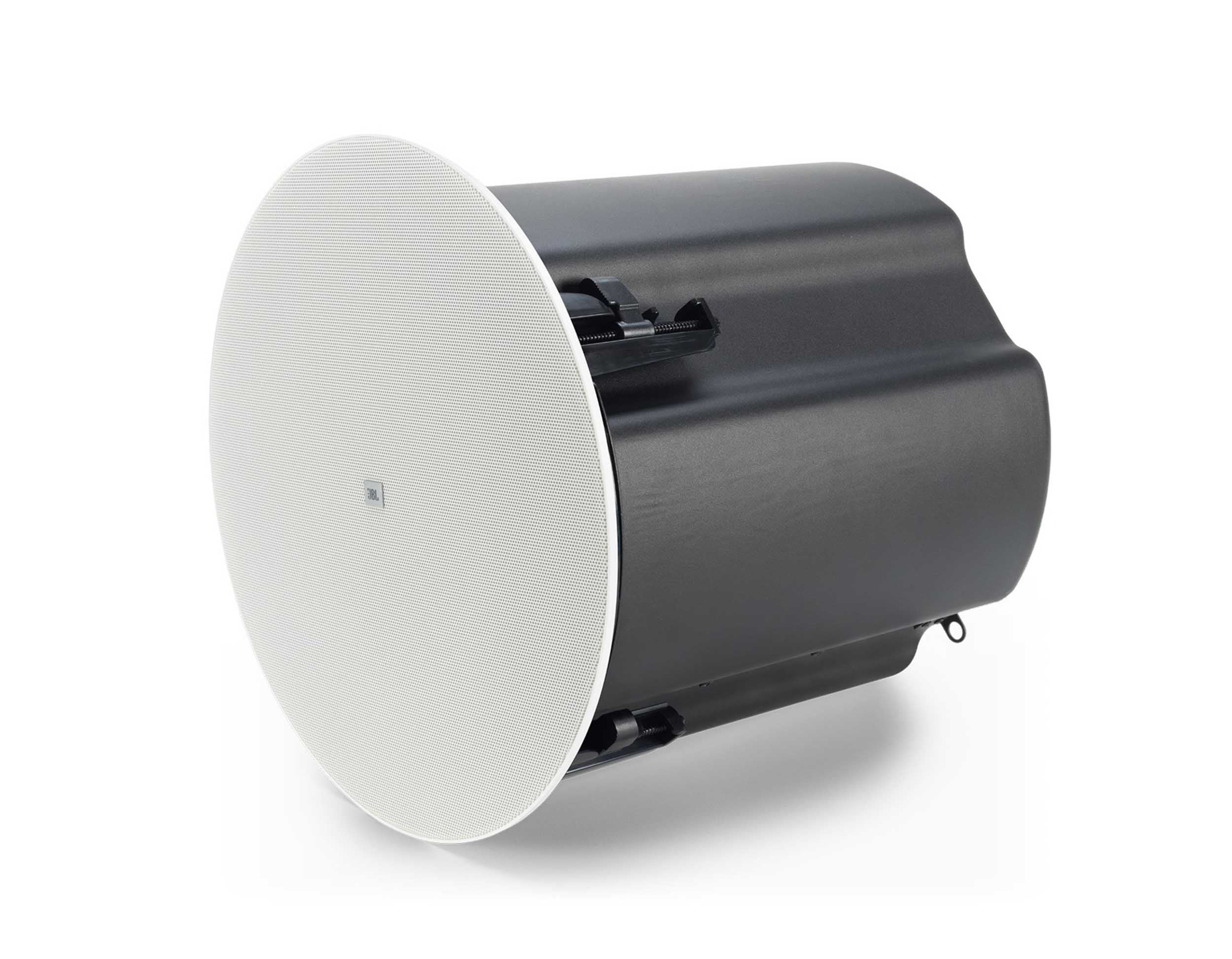

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.
Product Specifications:
Frequency Range (-10 dB): 32Hz - 300Hz
Power Capacity:
150 W (600 W Peak), Cont. Pink Noise (2 hrs.)
100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W): 95dB in ceiling near corner (π/2 loading)
Coverage Angle: -
Maximum SPL (1m): 117 dB Cont. pink noise (123 dB peak, π/2 loading)
Nominal Impedance: 8Ω
Transformer Taps:
70 V: 80 W, 40 W, 20 W & 10 W
100 V: 80 W, 40 W, 20 W

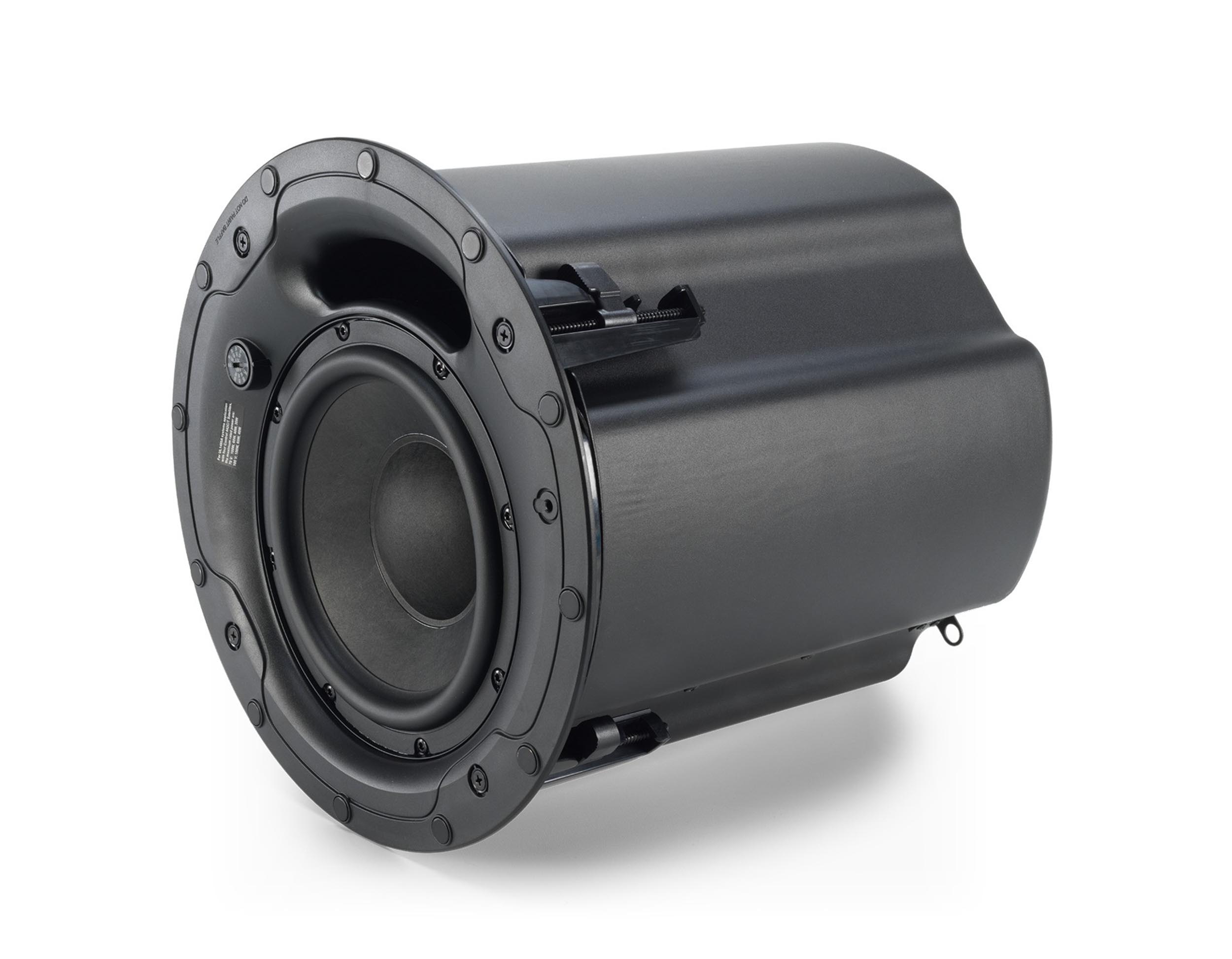

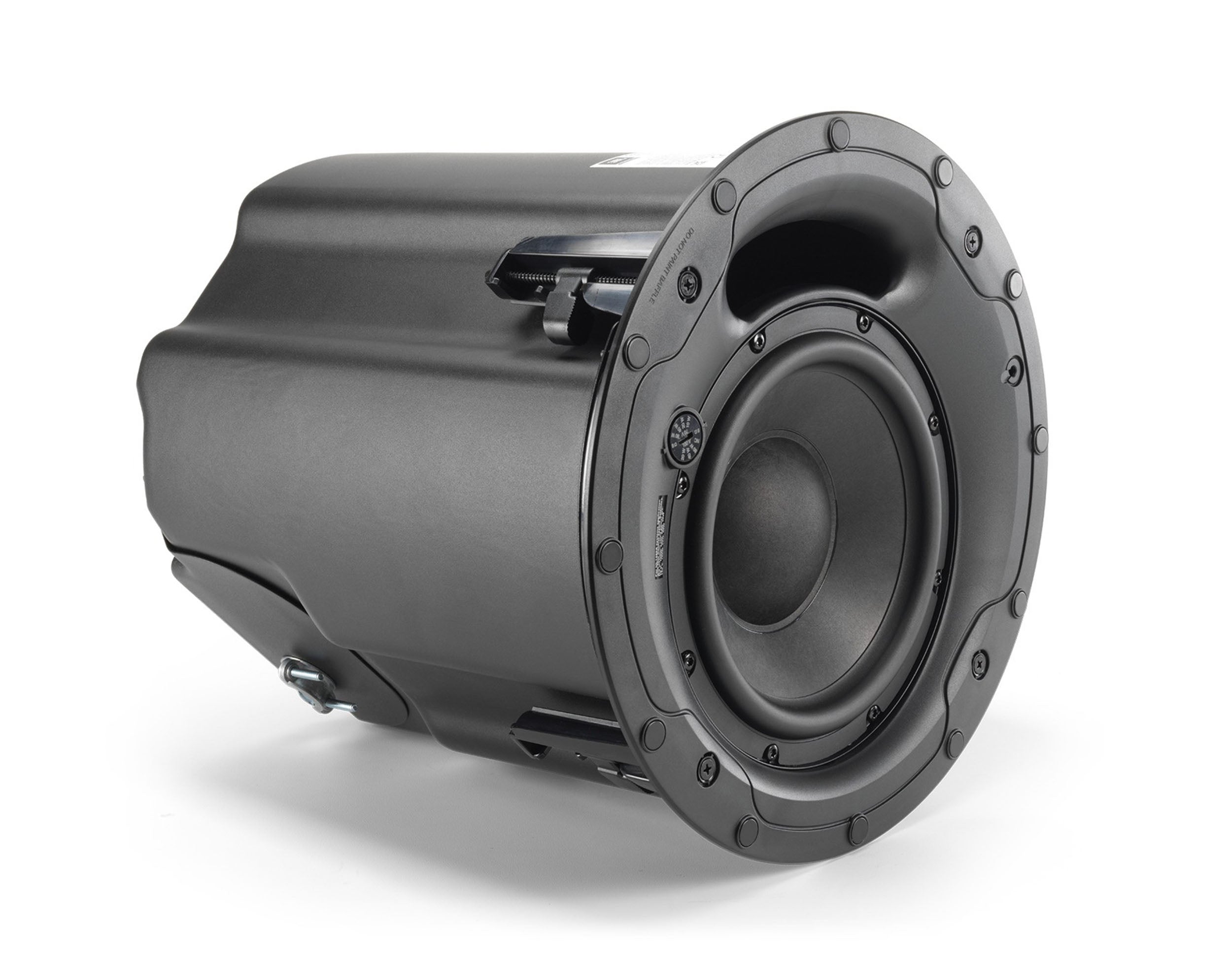

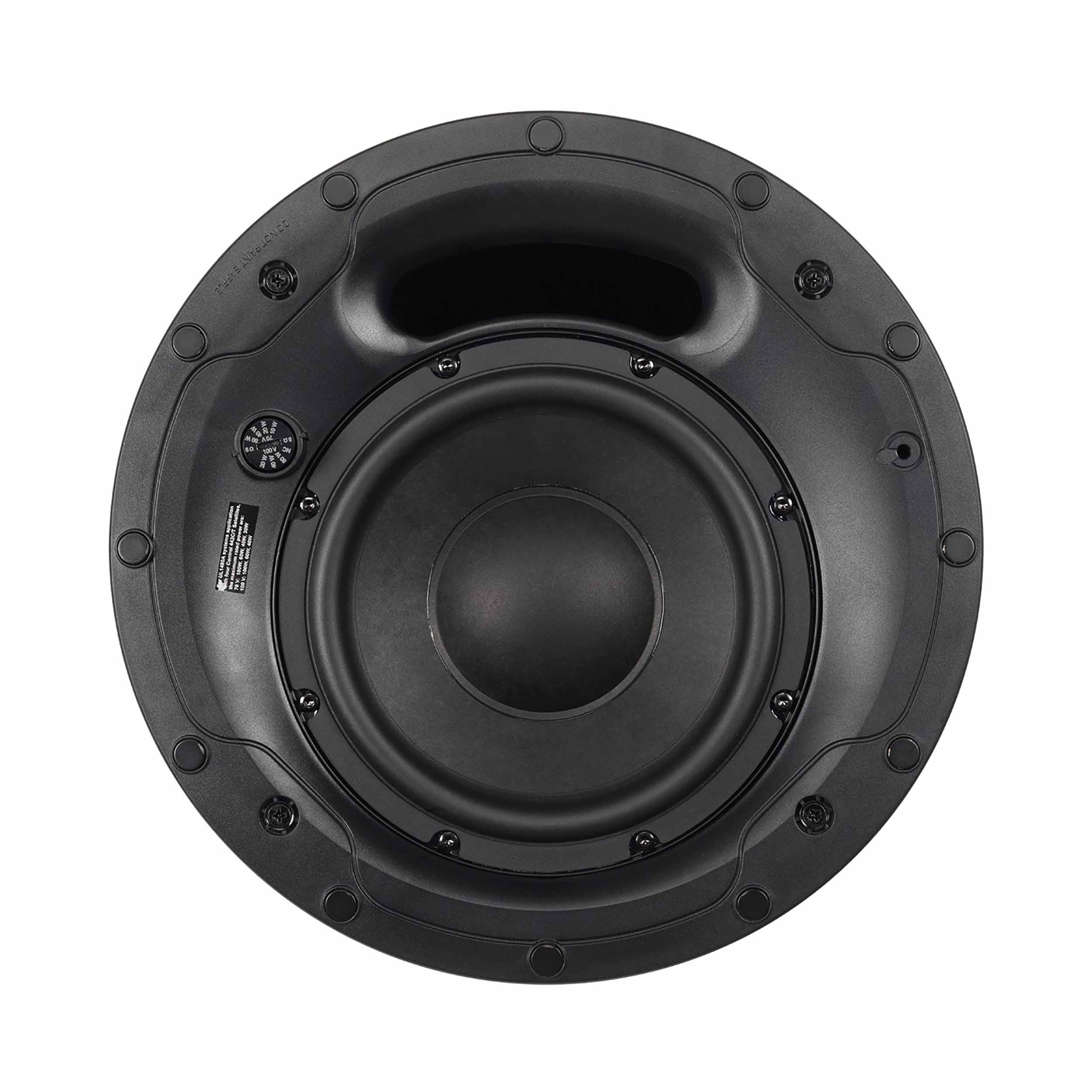

Drivers: 200 mm (8 in) treated paper cone with SBR surround and high-performance magnet
Ceiling Cutout Size: 307 mm (12.1 in)
Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental: IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories:
JBL-MTC-440BG black (RAL9004) round grille
JBL-MTC-440SG white (RAL9003) square grille
JBL-MTC-419NC new construction bracket
JBL-MTC-419MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color: Stock grille is White (RAL9003), paintable
Dimensions:
351mm (13.8 in) H x 342 mm (13.5 in) dia.
337mm (13.3 in) from bottom of ceiling tile to top of backcan
Net Weight (ea): 8.72 kg (19.22 lbs)
Shipping Weight: 25.02 kg (55.16 lbs)
