Description

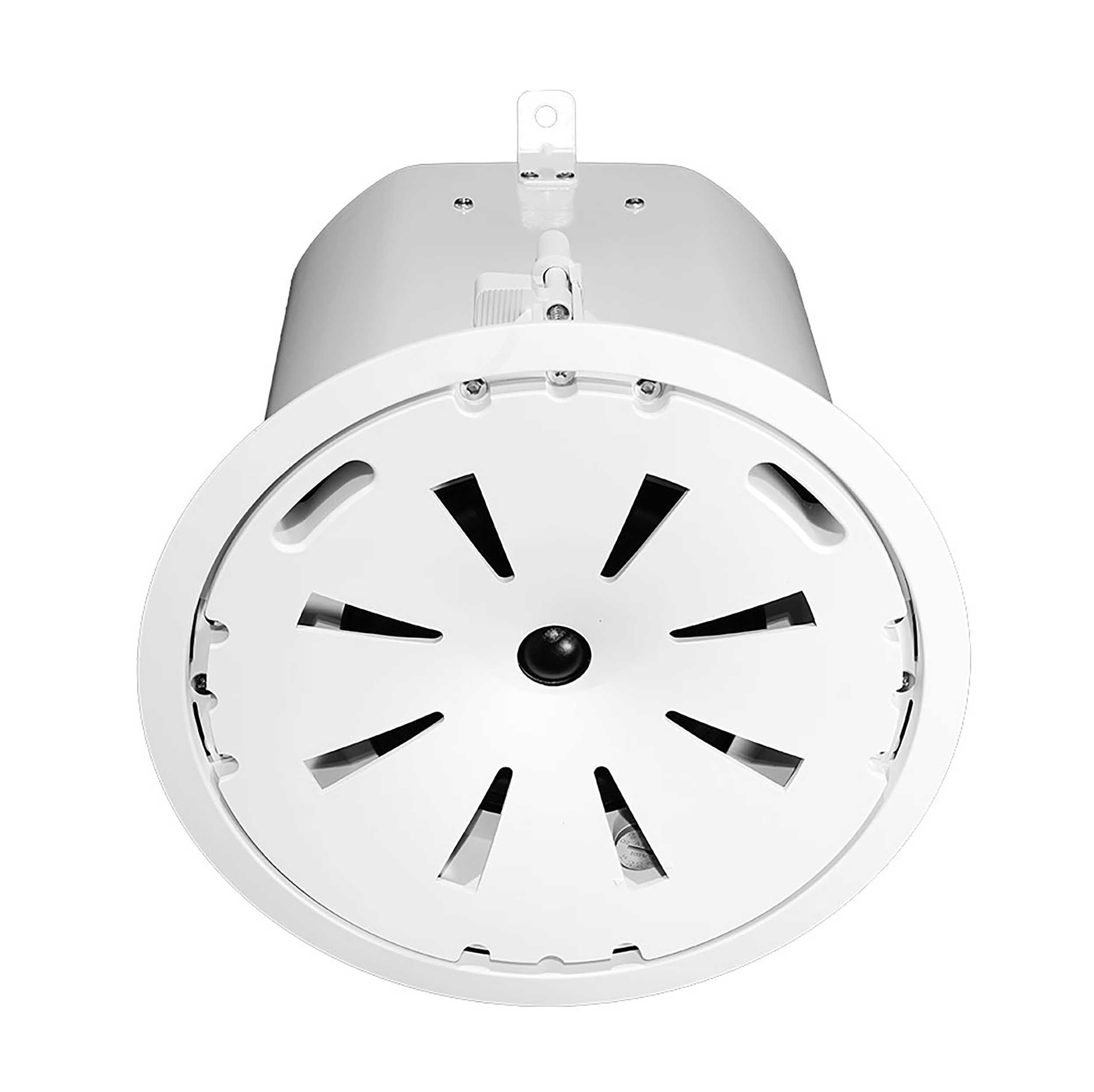

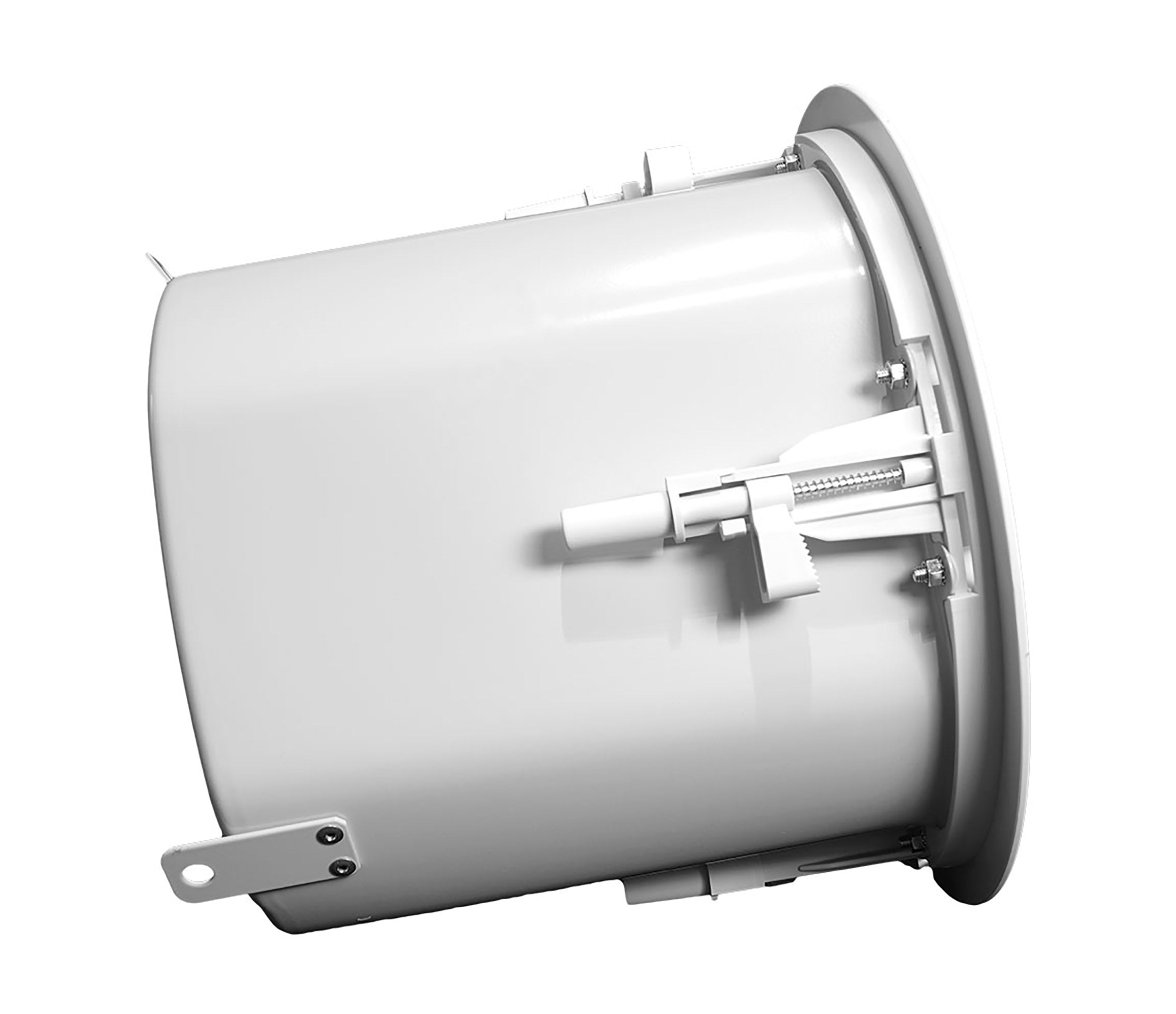

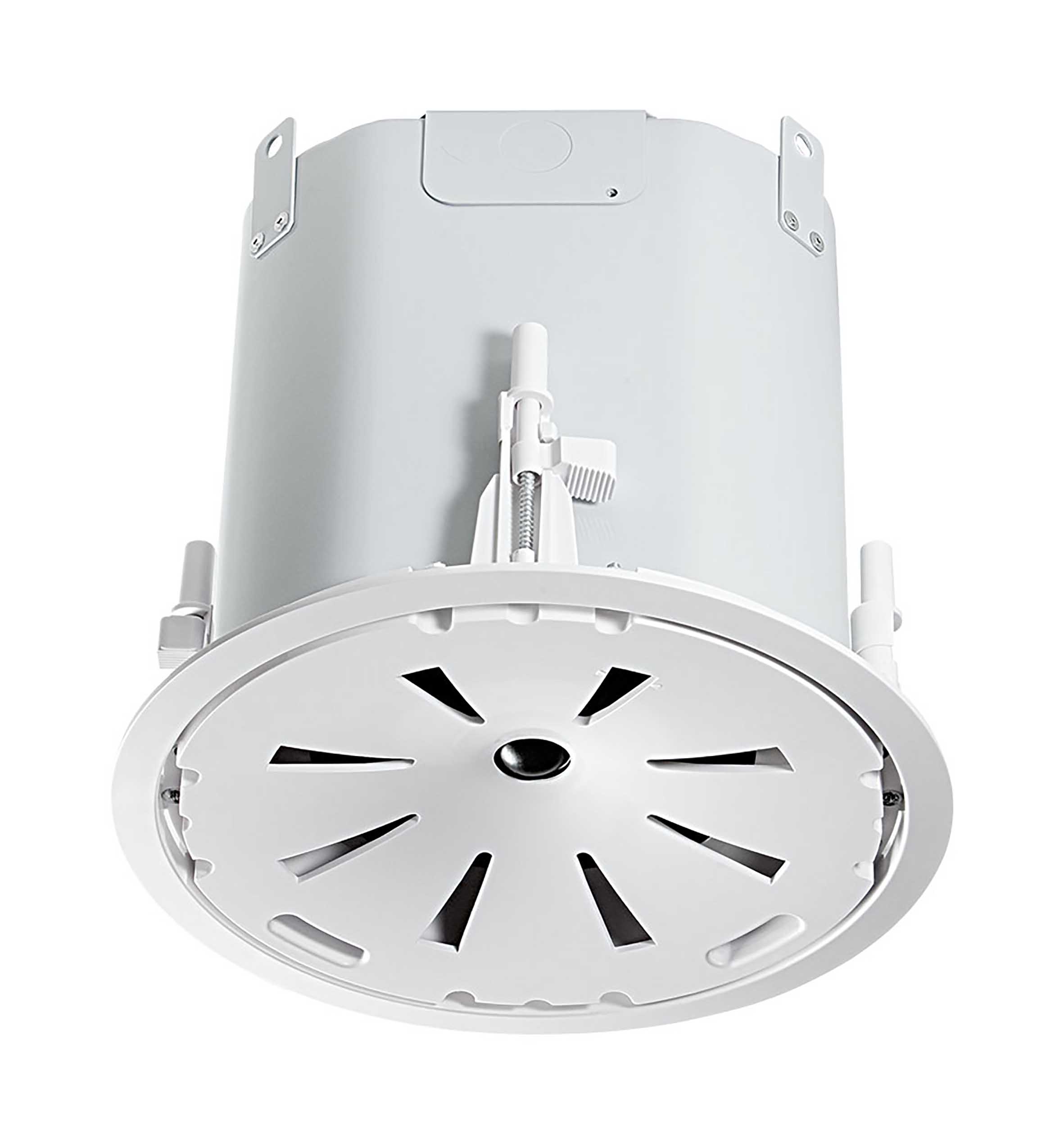

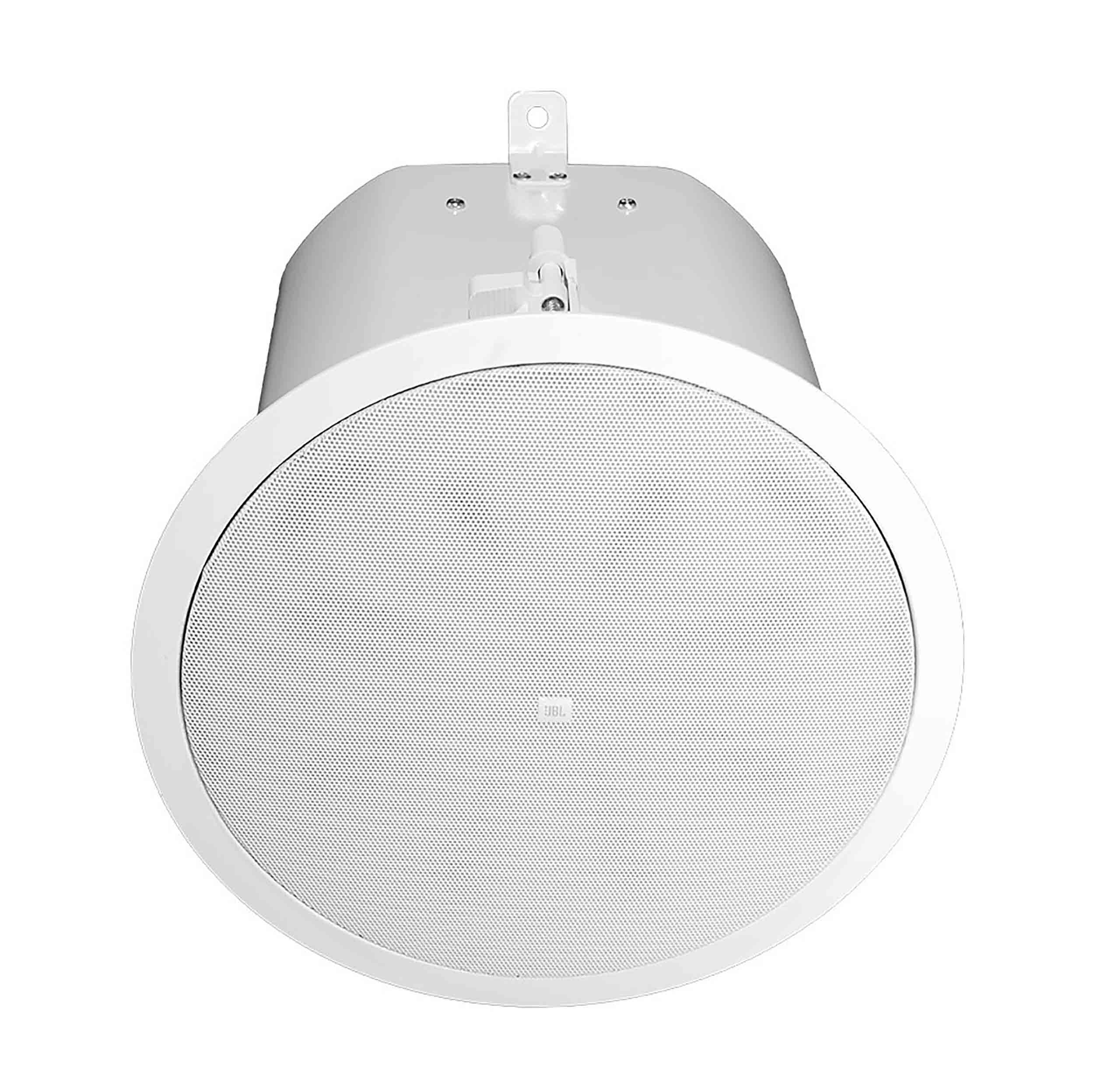

The JBL Control 47C/T Pair delivers extended bass performance and consistent wide-area coverage in a compact in-ceiling loudspeaker design. Each 6.5-inch coaxial loudspeaker provides a 55 Hz to 20 kHz frequency range, making the pair suitable for restaurants, retail spaces, casinos, hospitality venues, and other commercial installations requiring high-quality distributed audio.
Proprietary Conical Radiation Boundary Integrator® (RBI®) technology provides a consistent 120° coverage pattern across the listening area. The wide, controlled coverage allows fewer speakers to cover larger spaces while maintaining reliable sound distribution. Its flat frequency response and 91 dB sensitivity provide clear, efficient performance for both music and speech applications.
The Control 47C/T supports 8-ohm direct operation as well as 70V/100V distributed audio systems through selectable 60W, 30W, 15W, and 7.5W transformer taps. The large formed-steel backcan is designed for extended bass performance, while the integrated blind-mount construction, included grilles, C-rings, tile rails, and installation accessories simplify professional ceiling installation.
Product Specifications:
Product Type: Two-Way Coaxial In-Ceiling Loudspeaker Pair
Quantity: 2 Loudspeakers
Frequency Range: 55 Hz to 20 kHz
Power Rating: 150W Continuous Program, 75W Continuous Pink Noise, 300W Peak
System Rating: IEC System Long-Term Ratings
Sensitivity: 91 dB, 1 kHz to 16 kHz
Coverage Angle: 120° Conical, Constant Directivity
Impedance: 8 Ohms in Bypass Mode
Transformer Taps: 60W, 30W, 15W, and 7.5W at 70V
LF Driver: 165 mm, 6.5"
HF Driver: 25 mm, 1"
Maximum SPL: 110 dB Low-Z, 116 dB Peak
Maximum SPL at 70V/100V: 109 dB at Top Transformer Tap

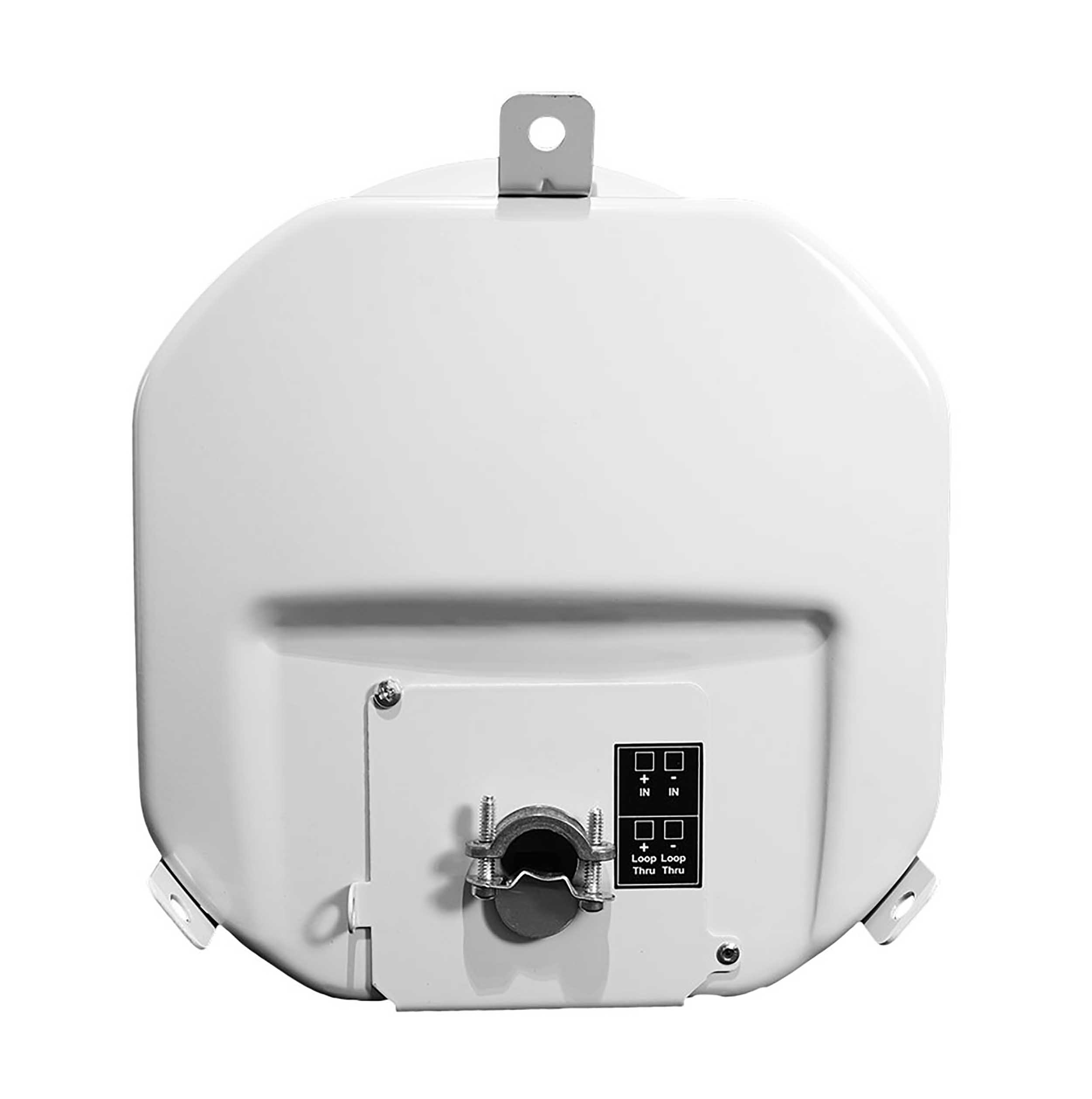

Input Connectors: Two Removable Locking 2-Pin Connectors with Screw-Down Terminals
Suspension Tabs: Three, on Top Panel
Backcan: Formed Steel, Blind-Mount
Baffle/Rim: ABS with UL94-V0 Flame Rating
Ceiling Cutout: 11.1" Diameter
Plenum Usage: Yes, Backcan Included
Safety Certifications: UL1480, UL2043, NFPA90, NFPA70
Signaling Speaker Listing: S7232/UL Listed
Transformer Certification: UL Registered per UL1876
Standards Compliance: IEC60849/EN60849
Optional Accessories: MTC-47NC New Construction Bracket, MTC-47MR Mud Ring Construction Bracket
Color: White
Pair Configuration: 2 Matching JBL Control 47C/T Ceiling Loudspeakers
Product Weight: 18 lbs. per piece
Product Dimensions (L x W x H): 12.0 x 12.0 x 10.2 in. per piece
