Description

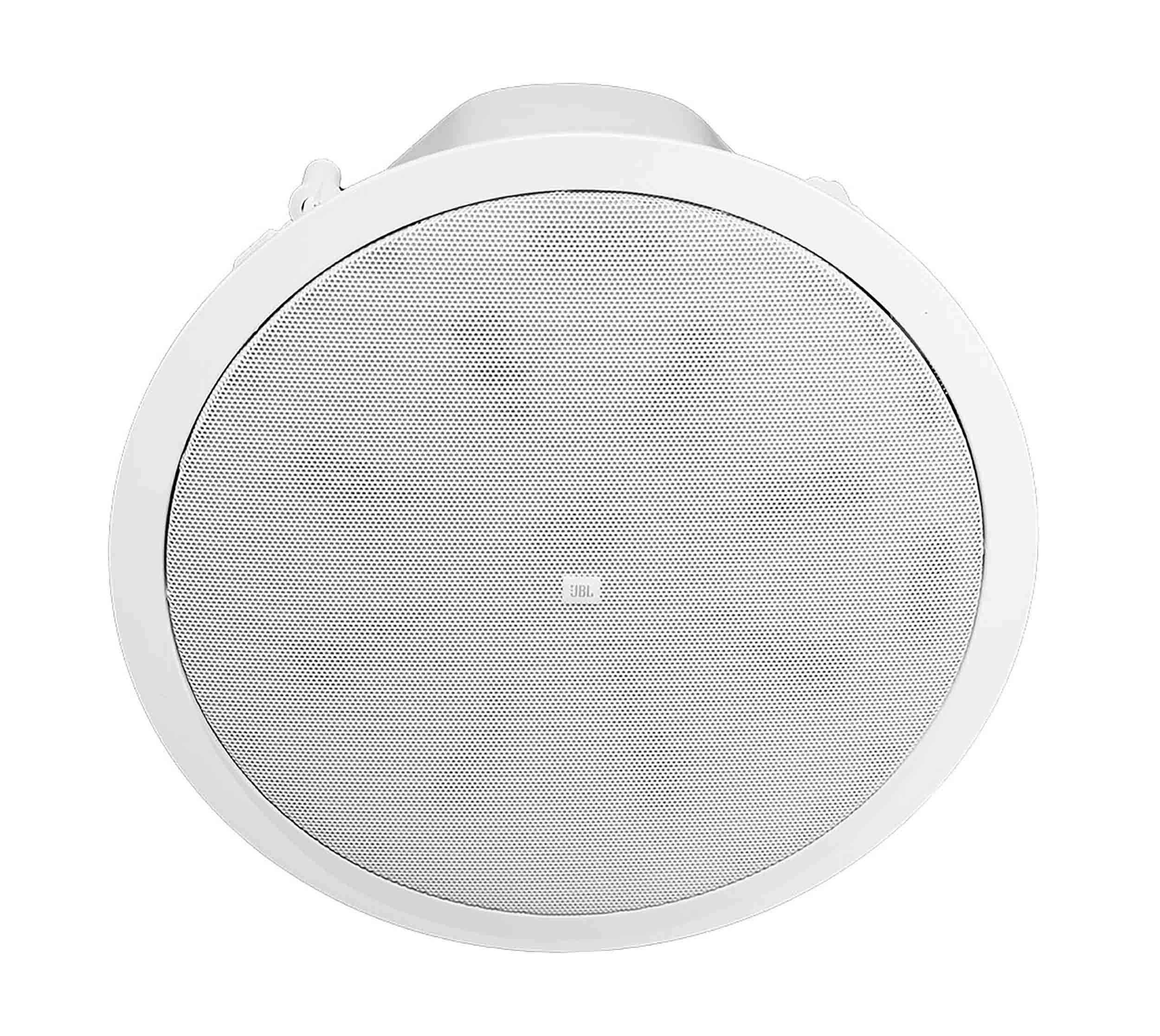

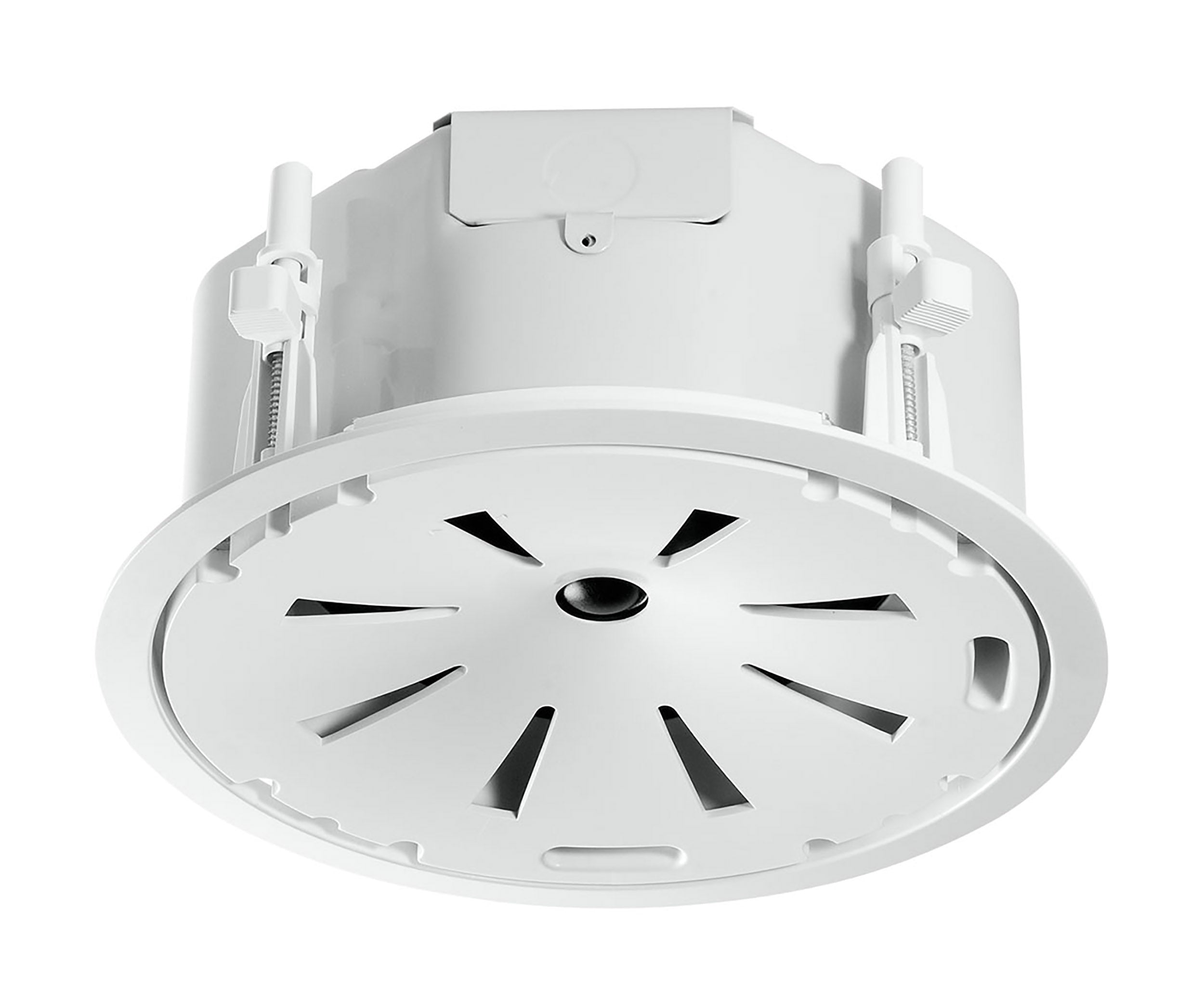

The JBL Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.
Product Specifications:
Frequency Range: 68 Hz - 20 kHz
Sensitivity: 91 dB (1kHz - 16 kHz)
Transformer Taps: 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
Coverage Angle: 120° conical, constant directivity
Impedance: 8 ohms (in bypass mode)
Drivers: LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1 in)
Input Connectors: Two removeable locking 2-pin connectors with screwdown terminals.
Included Accessories: C-rings, tile rails, paint shield, cutout template, Grille
Dimensions (Diameter x Depth): 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in)
Maximum SPL (1m): 110 dB (low-impedance, 116 dB peak)
109 dB (top 70V/100V tap)
Color: White

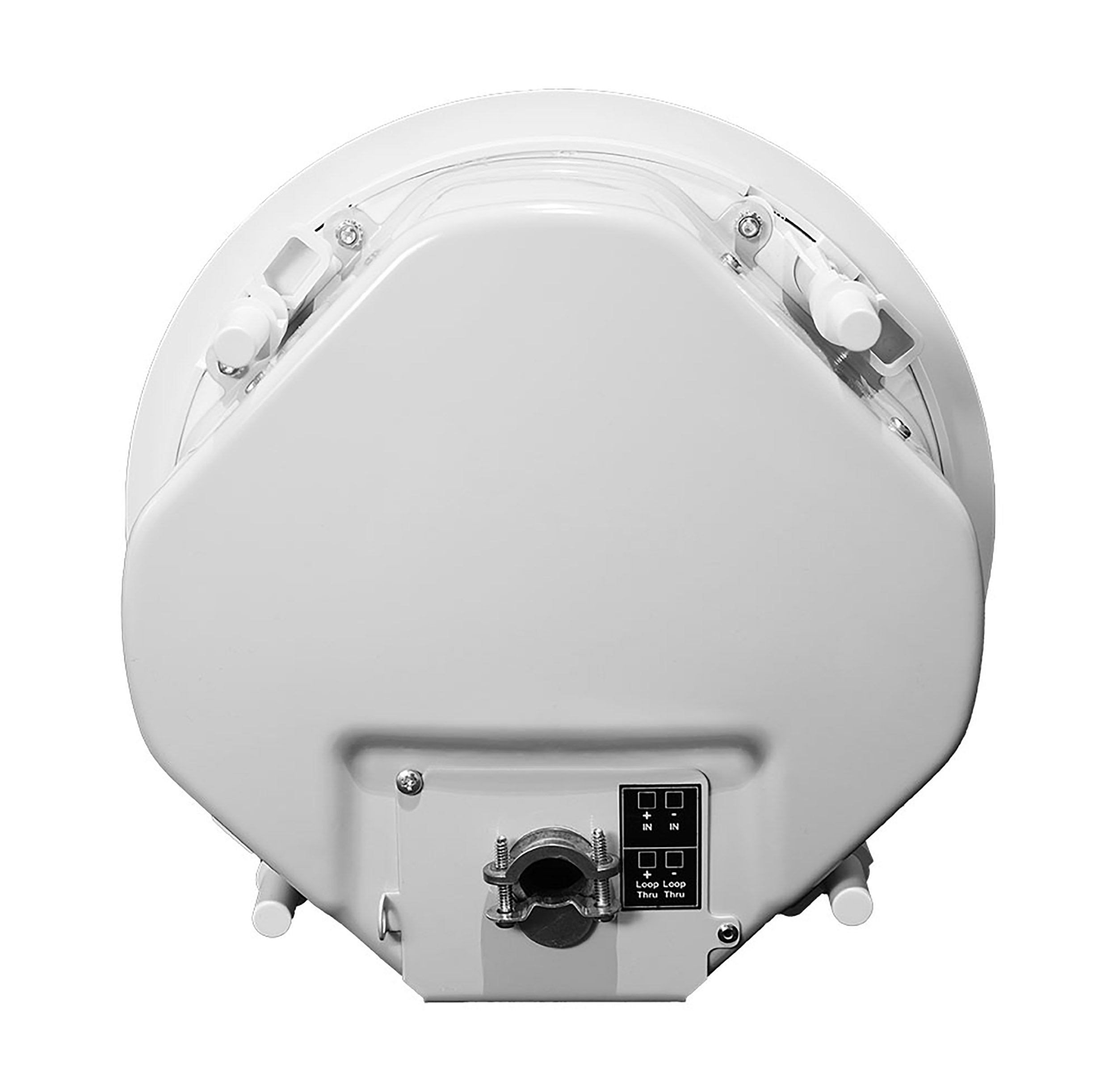

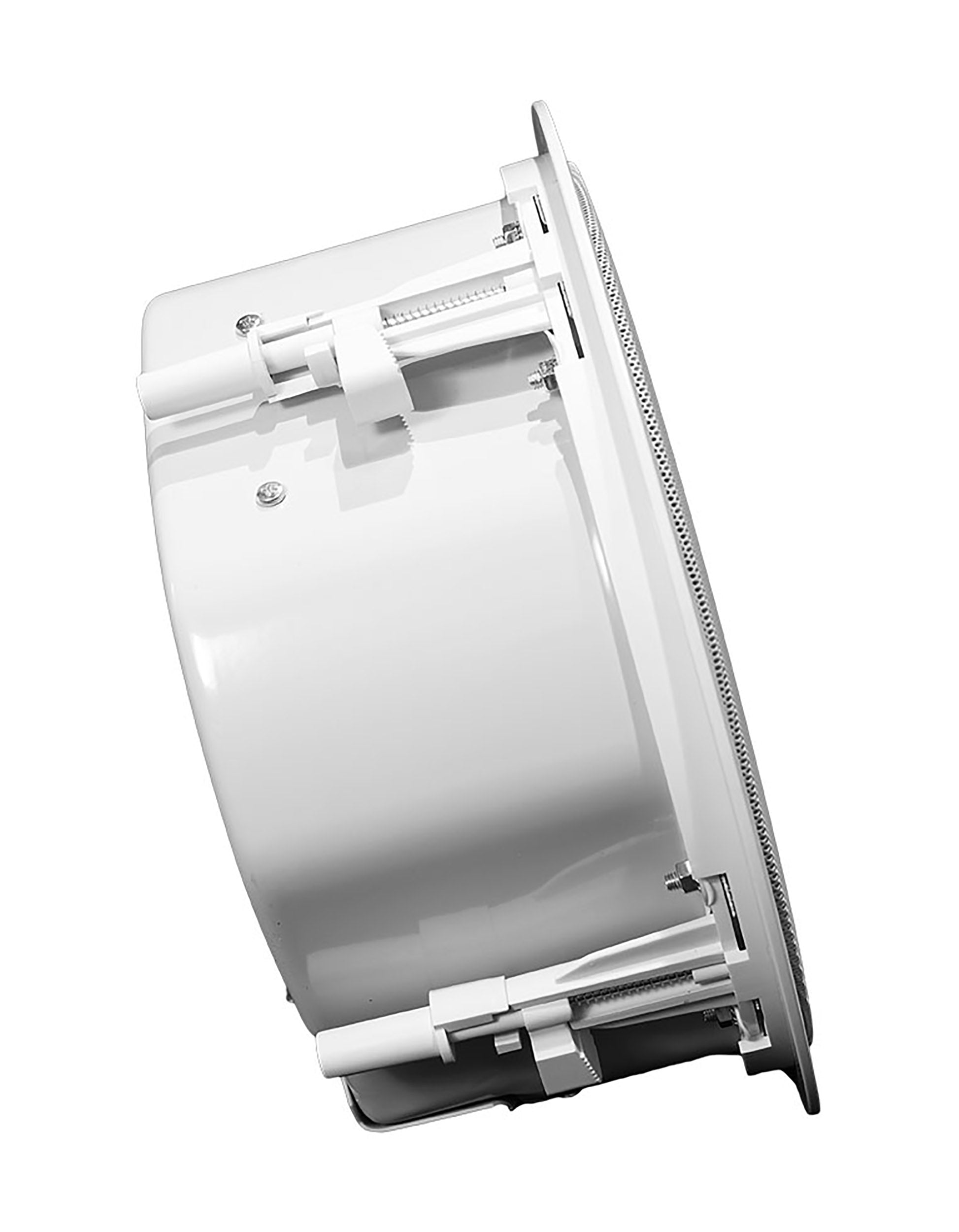

Backcan: formed steel (included "blind-mount")

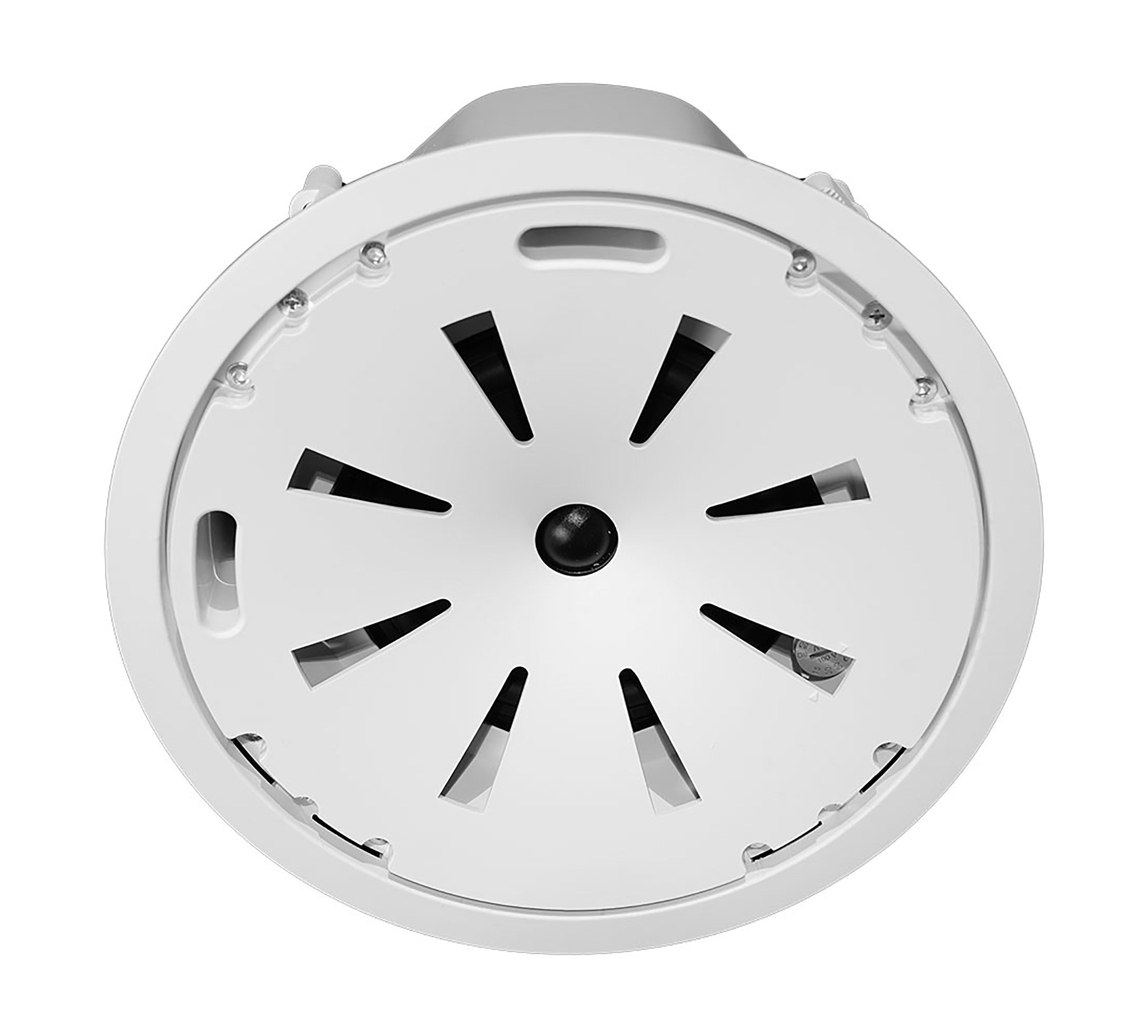

Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size: 282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories: MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage: Yes, backcan included
