JBL CONTROL 52, Surface Mount Satellite Loudspeaker - Black

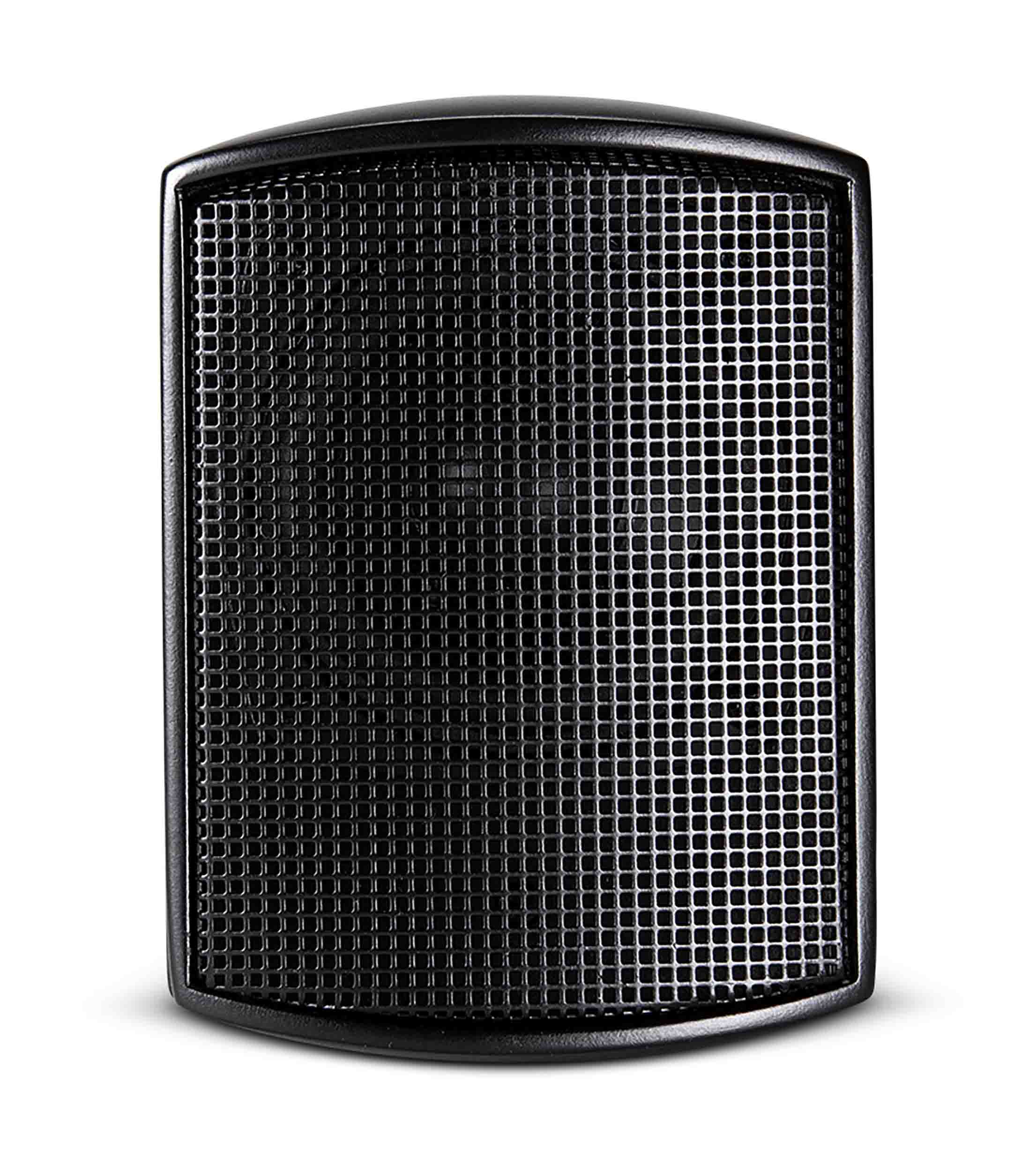

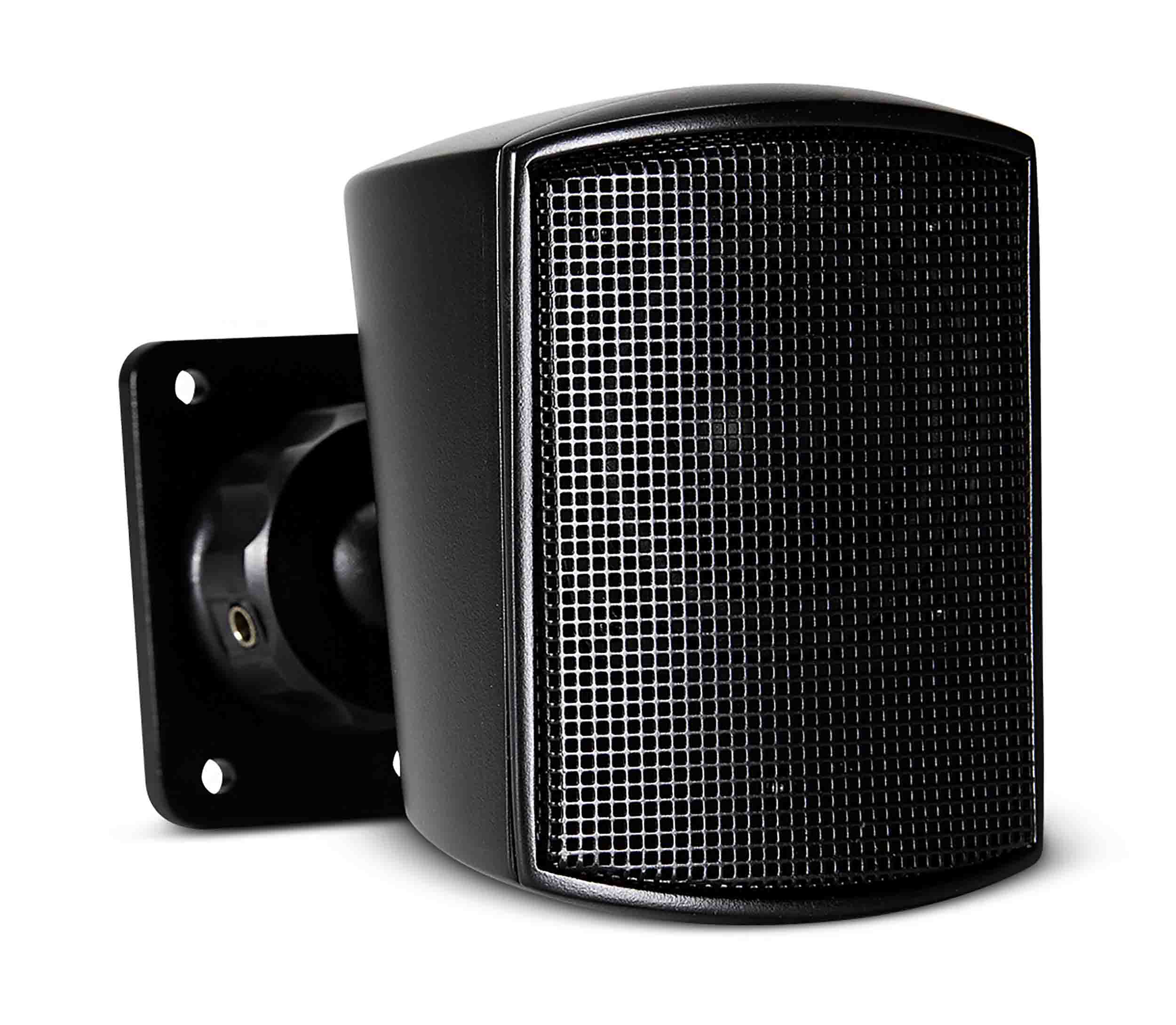

The JBL Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Product Specifications:

Frequency Range (-10dB): 140 Hz – 20 kHz

Frequency Response (±3 dB): 180 Hz – 17 kHz

Sensitivity: 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)

Coverage Angle: Omnidirectional

Maximum SPL (1m): 94 dB average, 100 dB peak

Impedance: 16 ohms

Enclosure: High impact polystyrene, painted zinc-plated metal grille.

Dimensions (H x W x D): Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)

Net Weight (each): 0.7 kg (1.5 lbs)

Shipping Weight: 0.8 kg (1.8 lbs)

Included Accessories: Wall bracket (both speaker and wall parts), 2-pin locking connector.

Grille: Zinc-plated steel

Mounting Hardware: Included wall swivel ball bracket

Optional Accessories: Wall-mount ball-type bracket
