Description

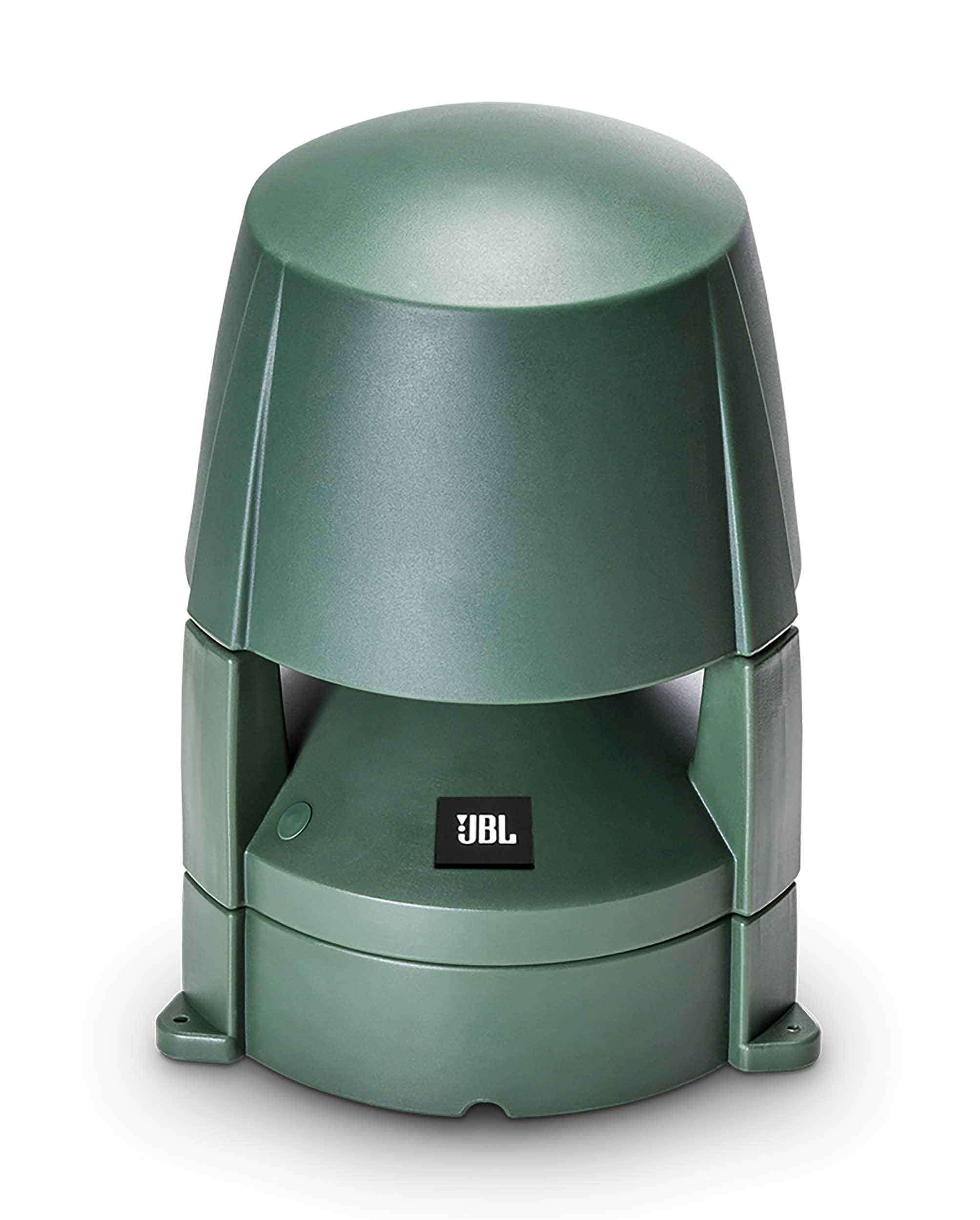

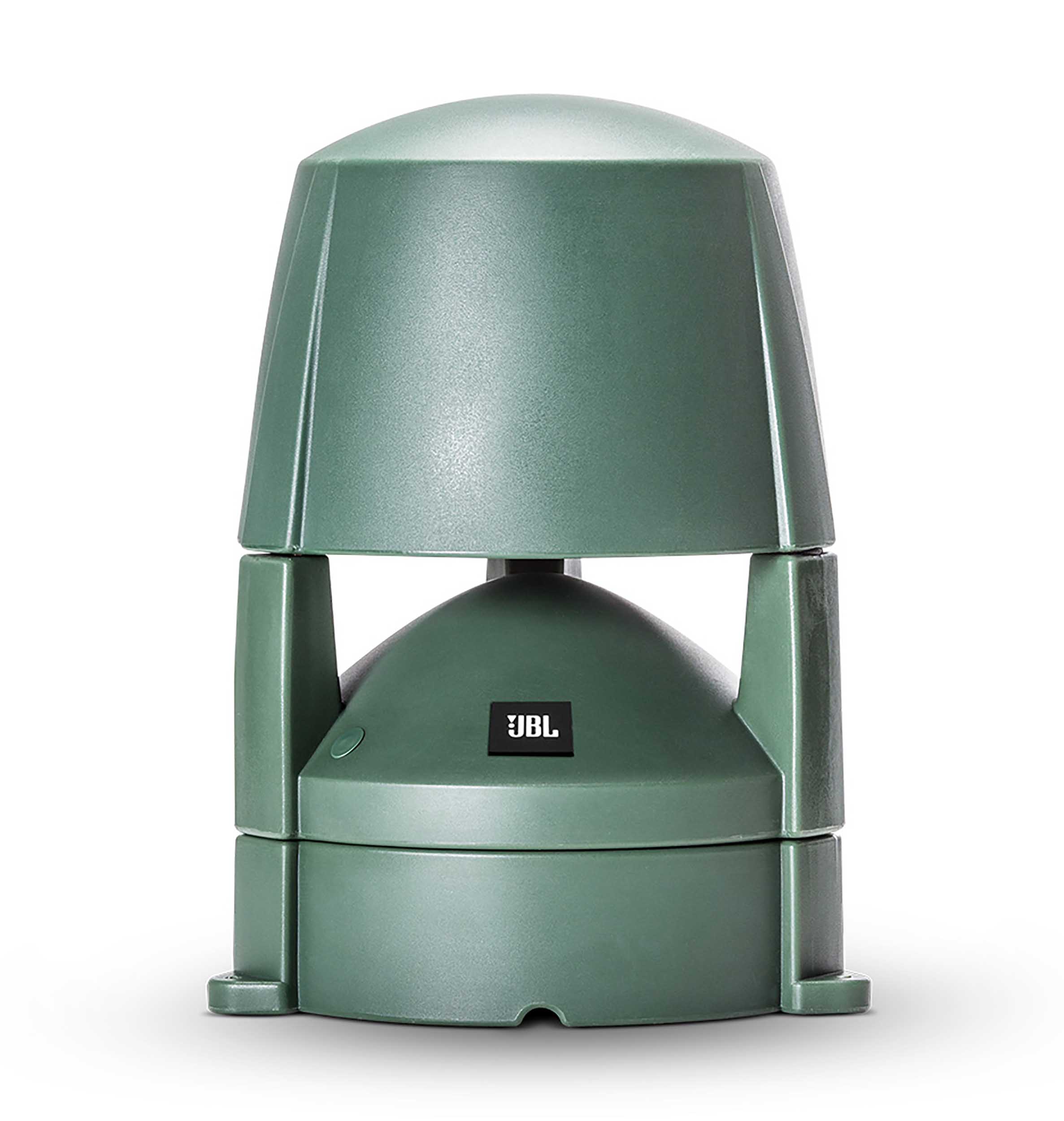

The JBL CONTROL 85M Coaxial mushroom landscape speaker designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
Product Specifications:
Frequency Range (-10dB): 55 Hz – 18 kHz
Transformer Taps: 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W
Frequency Response (±3 dB): 65Hz - 16 kHz
Maximum Input Voltage: 23.3 V
Sensitivity: 86 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern: 360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q): 2.2
Directivity Index (DI): 3.4 dB
Maximum SPL (1m): 105 dB
Impedance: 8Ω (at 8Ω setting)
Insertion Loss: <1.0 dB at any tap setting
Thru Setting: 8Ω nominal
Crossover Type: 2nd Order LPF on LF and 2nd Order HPF on HF
Enclosure: LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille: Powder coated stainless steel.
Safety Agency: UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors: Bare wire with dielectric-gel-filled wire nuts.
Colors: Hunter Green, RAL6018
Dimensions (H x W x D): 432 x 291 x 291mm (17 x 11.5 x 11.5 in.)
Net Weight (each): 5.5 kg (12 lb)
Shipping Weight: 7.3 kg (16 lb)
Included Accessories: (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools: 22mm (0.875 in, 7/8 in) twist-type drill bit
Optional Accessories: 22mm (0.875 in, 7/8 in) twist-type drill bit
