Description

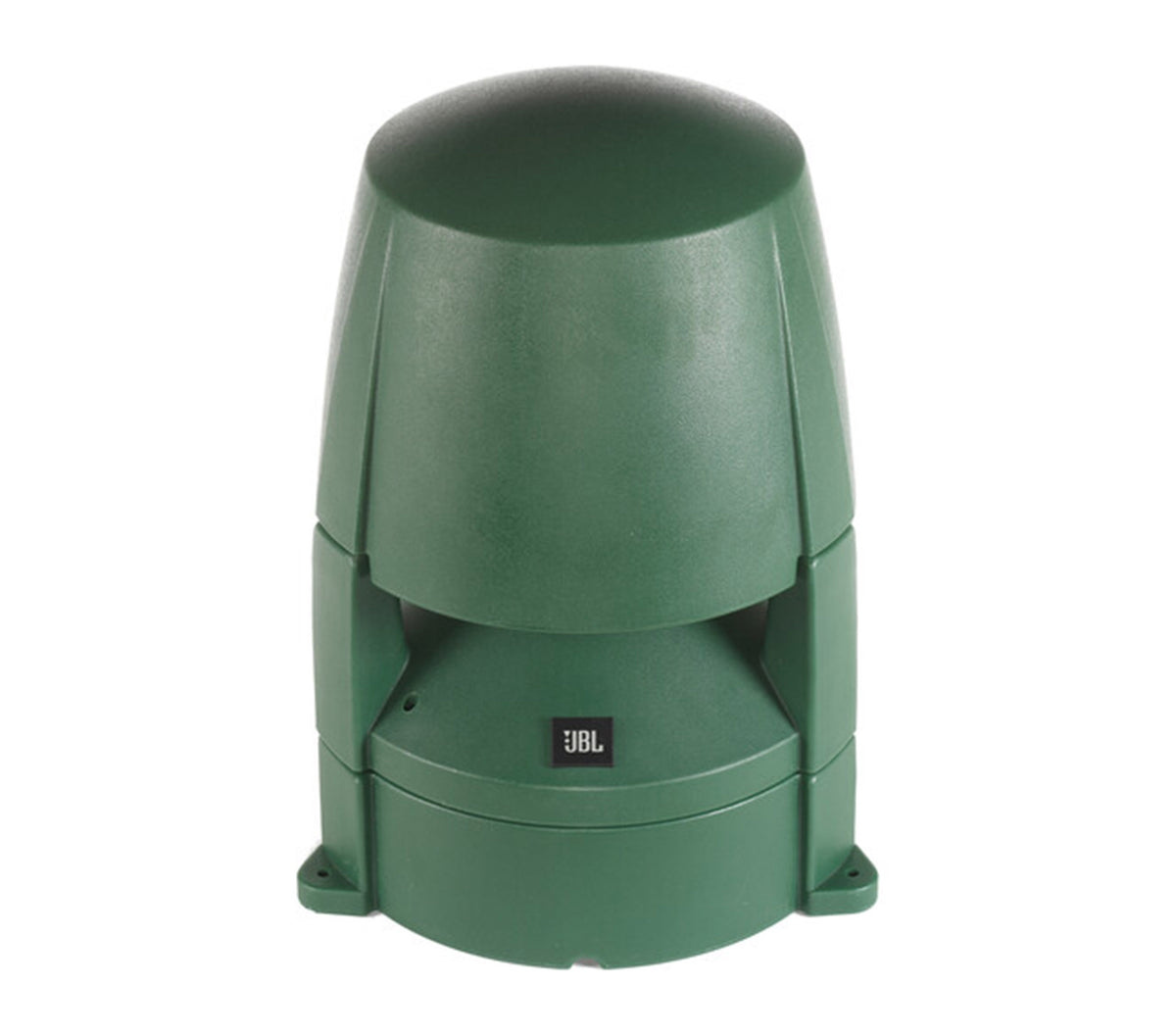

The JBL Control 89MS is an above-ground landscape subwoofer designed to add rich, powerful low-frequency performance to outdoor sound systems. It’s down-firing 8-inch long-throw driver delivers bass extension down to 40 Hz and reaches up to 115 dB peak SPL, making it well suited for lawn, garden, entrance, hospitality, retail, resort, theme park, and sports venue installations.
A built-in low-pass crossover with a dual-slope filter provides a smooth and balanced transition between the subwoofer and full-range landscape speakers. The dedicated subwoofer-band multi-tap transformer supports 70V and 100V distributed systems, while the 8Ω bypass provides direct low-impedance operation for flexible system configurations and amplifier compatibility.
Built for demanding outdoor environments, the Control 89MS features an IP56-rated tough polyethylene enclosure with a fully sealed center wiring chamber. The enclosure is finished in a durable hunter-green color that remains consistent even when scratched, while stainless steel external hardware and a powder-coated stainless steel grille provide additional resistance against weather and corrosion.
Product Specifications:
Product Type: Above-Ground Landscape Subwoofer
System Type: Passive Subwoofer
Application: Outdoor Landscape Audio
Driver Size: 8 Inches / 200 mm
Driver Type: Down-Firing Long-Throw Woofer
Woofer Cone: Polypropylene
Surround: Long-Excursion TPV
Voice Coil: 2-Inch
Voice Coil Former: Glass Fiber
Frequency Range (-10 dB): 40 Hz – 150 Hz
Frequency Response (±3 dB): 53 Hz – 110 Hz
Power Rating: 300W Continuous Program, 2 Hours
Power Handling: 150W Continuous Pink Noise, 2 Hours
Peak Power: 600W, 2 Hours
Power Handling: 100W Continuous Pink Noise, 100 Hours
Peak Power: 400W, 100 Hours
Sensitivity: 87 dB
Maximum SPL: 115 dB Peak / 109 dB Continuous, 2 Hours @ 1m
Nominal Coverage: 360° Horizontal / 160° Vertical
Primary Listening Coverage: 10°–50° Up from Ground
Directivity Factor (Q): 2.0 with Half-Space 2π On-Ground Loading
Directivity Index (DI): 3.0 dB
Nominal Impedance: 8Ω at 8Ω Tap
Transformer Type: Dedicated Subwoofer-Band Multi-Tap
70V Transformer Taps: 80W / 40W / 20W / 10W
100V Transformer Taps: 80W / 40W / 20W
Low-Impedance Bypass: 8Ω
Crossover: Built-In Low-Pass Crossover
Crossover Filter: Dual-Slope Filter
Enclosure Material: Tough Polyethylene

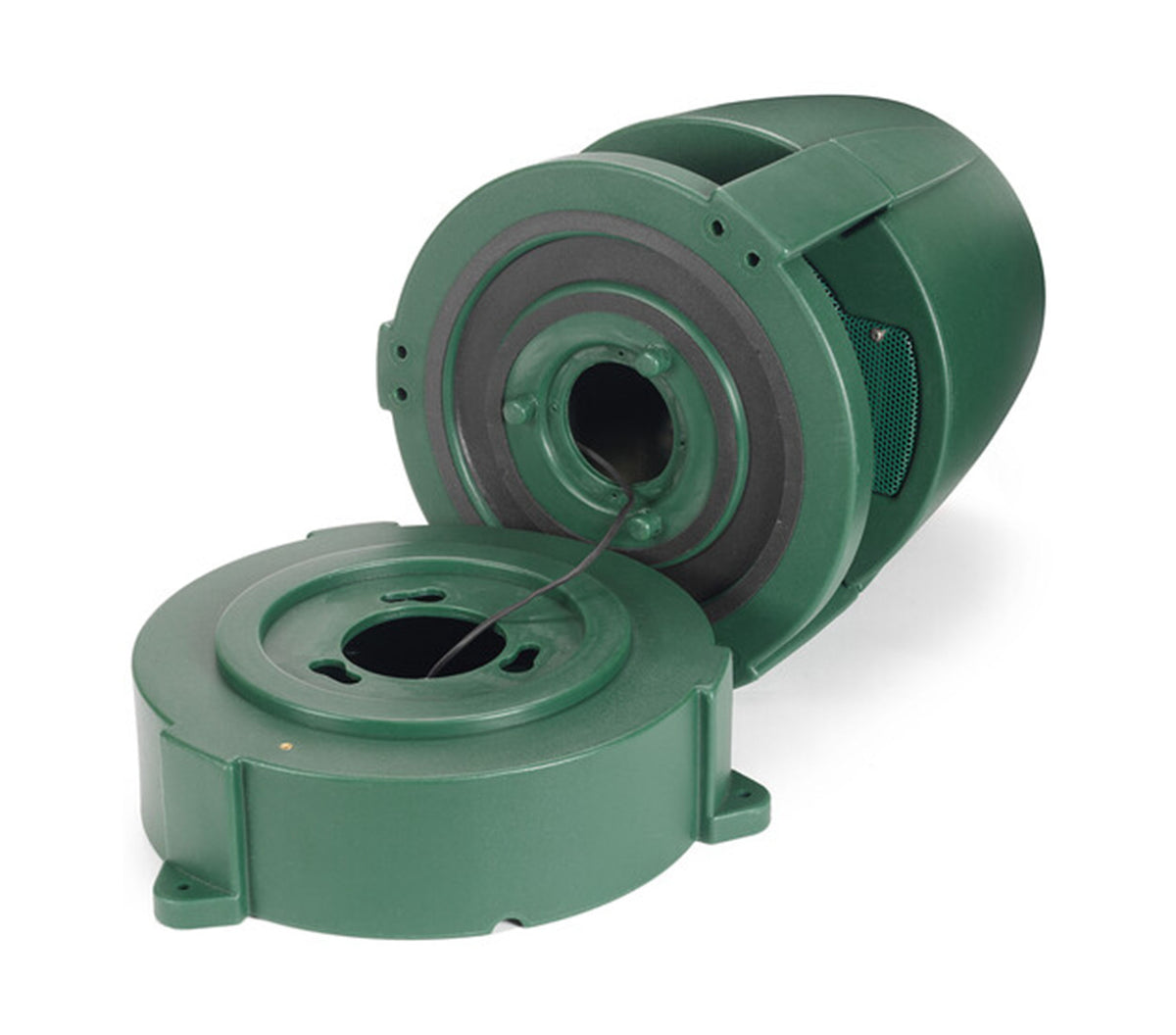

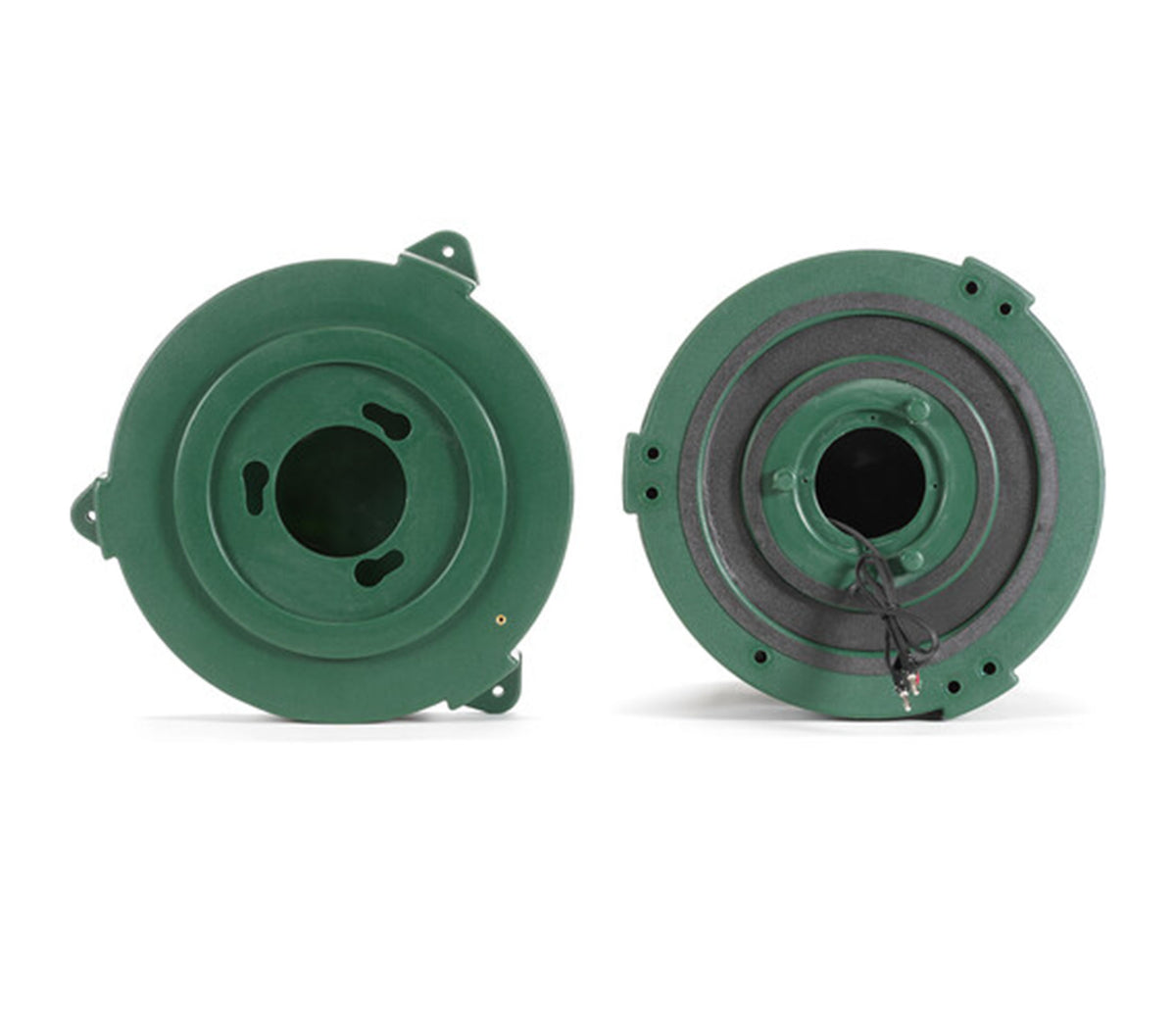

Enclosure Design: Fully Sealed Center Wiring Chamber
Weather Resistance: IP56 Rated
Grille: Powder-Coated Stainless Steel
External Hardware: Stainless Steel
Enclosure Color: Hunter Green
Included Accessories: Feet & Beveled Washers
Intended Use: Outdoor Landscape and Distributed Audio Systems
Product Weight: 24.0 lbs
Product Dimensions: 20.7" H × 14.0" W × 14.0" L
Shipping Weight: 30.0 lbs
