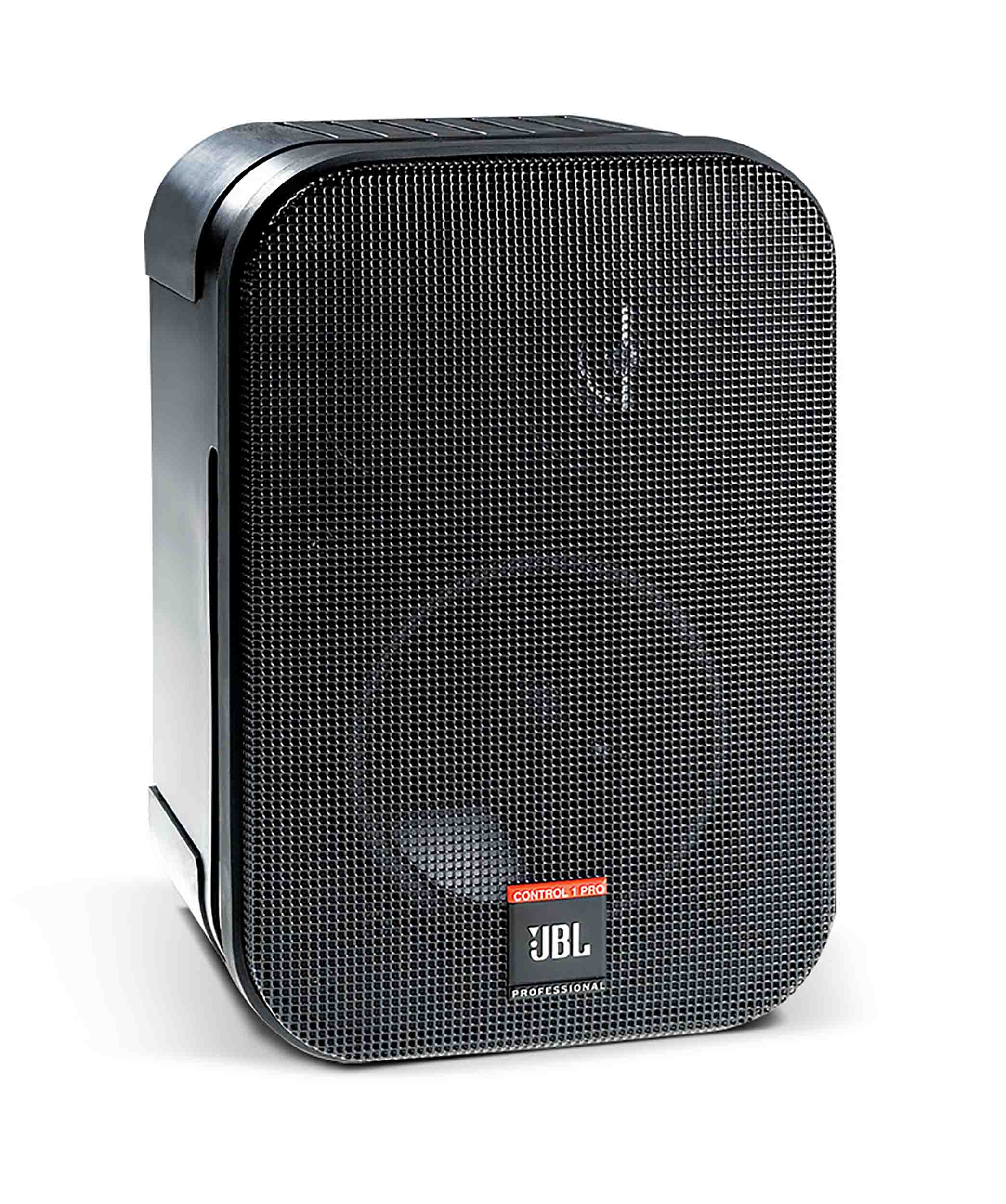

JBL CSS-1S/T, 5.25" Two Way 10W Passive Loudspeaker

The JBL CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

Product Specifications:

Frequency Range (-10dB): 85 Hz – 18 kHz

Frequency Response (±3 dB): 120 Hz – 16 kHz

Power Capacity: 60 Watts

Sensitivity: 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)

Maximum SPL (1m): 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting

Nominal Coverage: 120ºH x 120ºV

Directivity Factor (Q): 6.2

Directivity Index (DI): 7.9 dB

Nominal Impedance: 8 ohms (in 8Ω DIRECT mode, selectable on back panel)

Transformer Taps: 10 W, 5 W (& 2.5W @ 70V)

Crossover Frequency: 4.3 kHz

LF Driver: 135 mm (5.25 in) low frequency driver

HF Driver: 19 mm (0.75 in) polycarbonate dome tweeter

Input Connectors: Spring-loaded terminals

Enclosure Material: Polypropylene Structural Foam

Color: Black

Dimensions: 229 mm x 159 mm x 143 mm(9.0 in x 6.3 in x 5.6 in)

Net Weight (each): 2.0 kg (4.5 lb)

Included Accessories: Wall-mounting bracket assembly
