Description

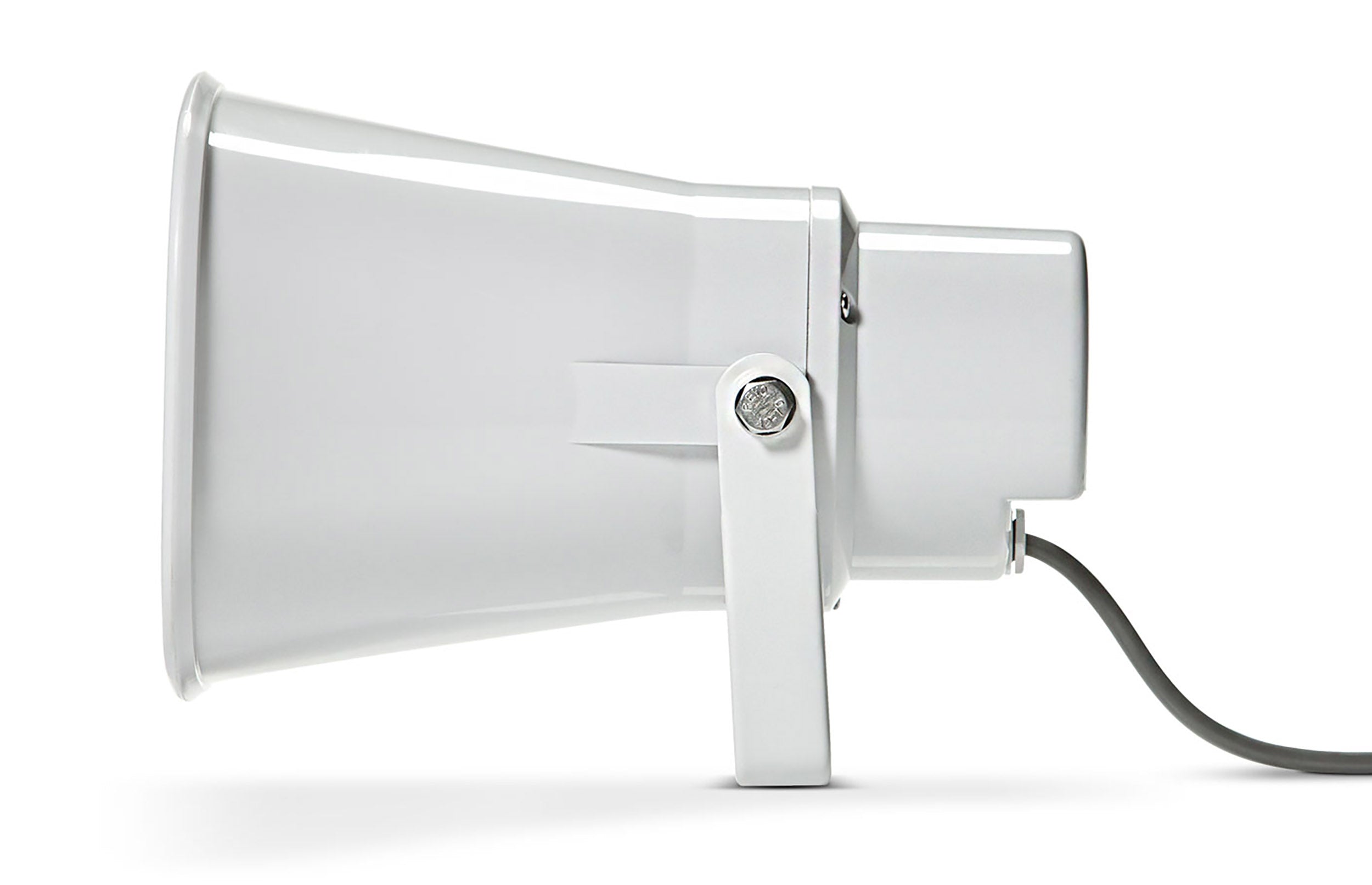

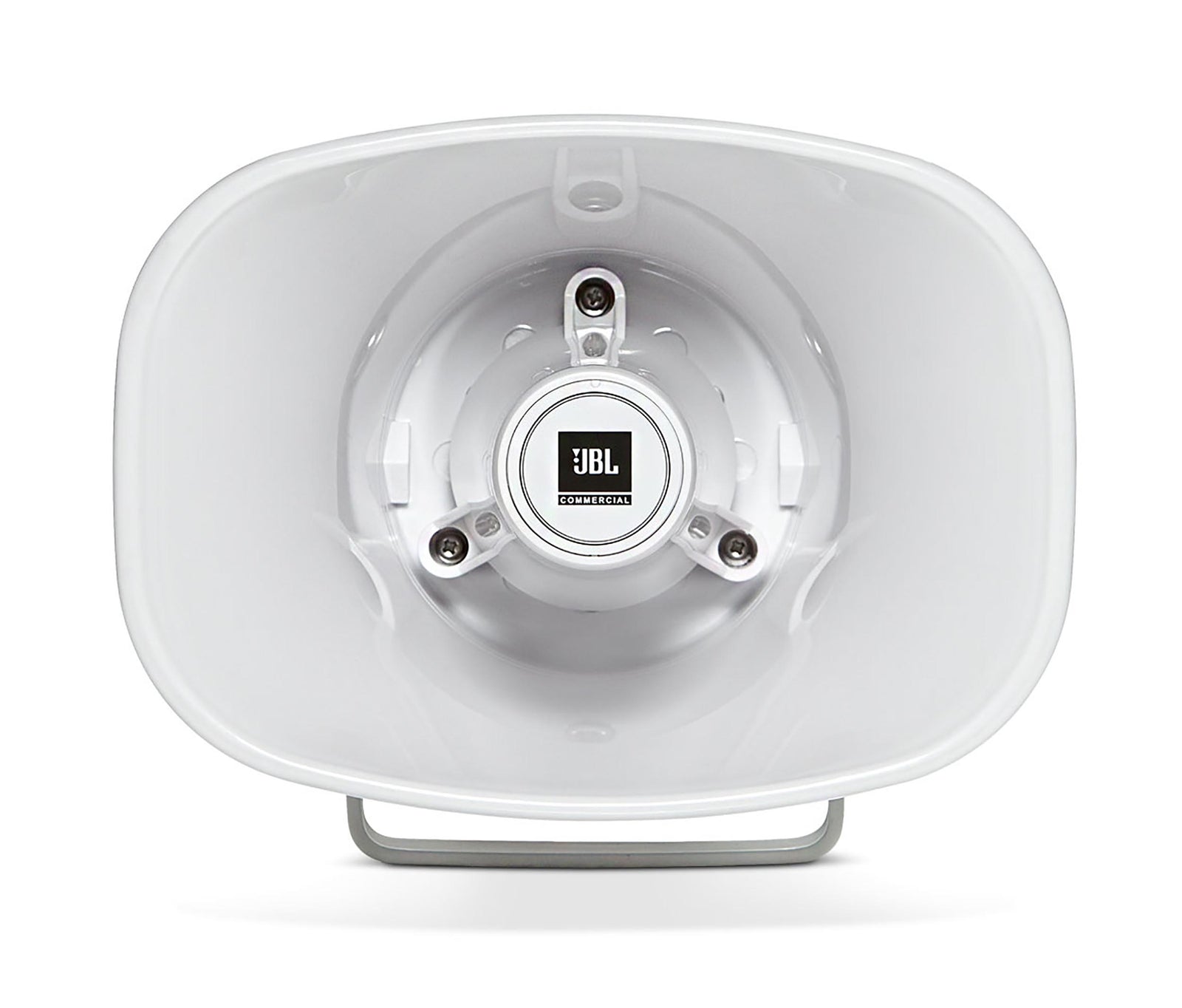

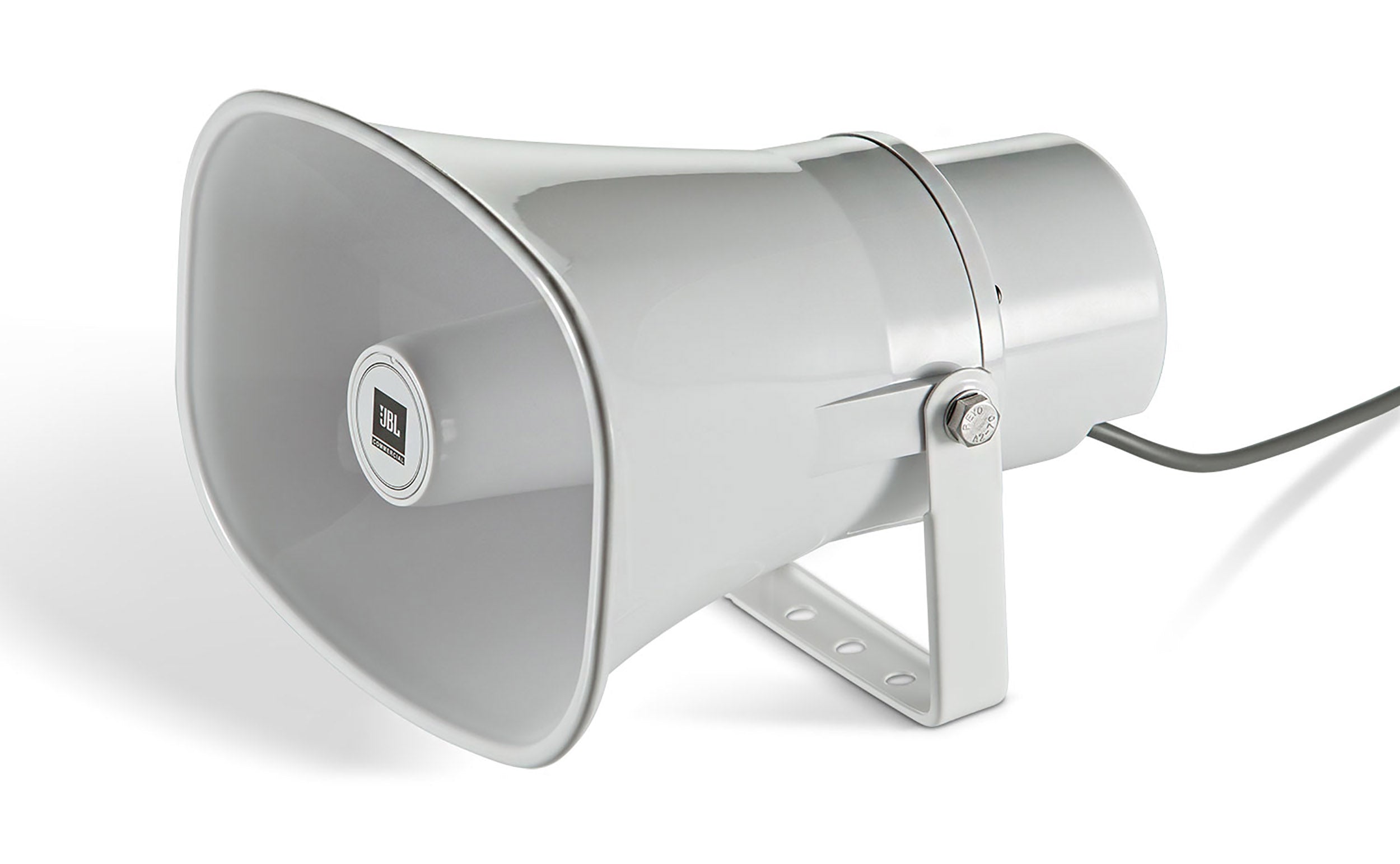

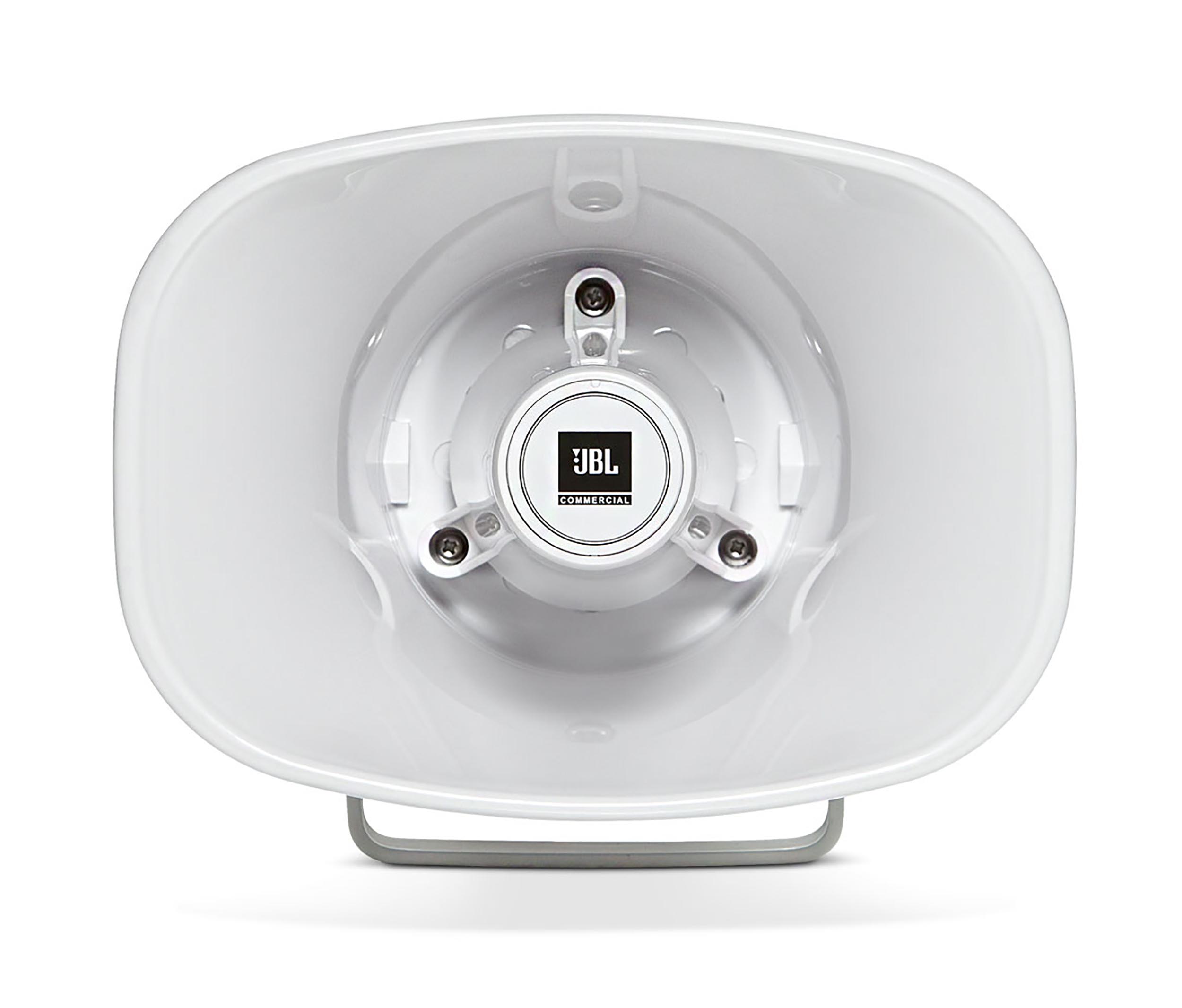

The JBL Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.
Product Specifications:
Frequency Range (-10dB): 400 Hz – 7.5 kHz
Coverage Angle: 70°H x 90°V
Directivity Factor (Q): 10.9 (2 kHz)
Directivity Index (DI): 10.4 (2 kHz)
Power Rating: 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m): 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz

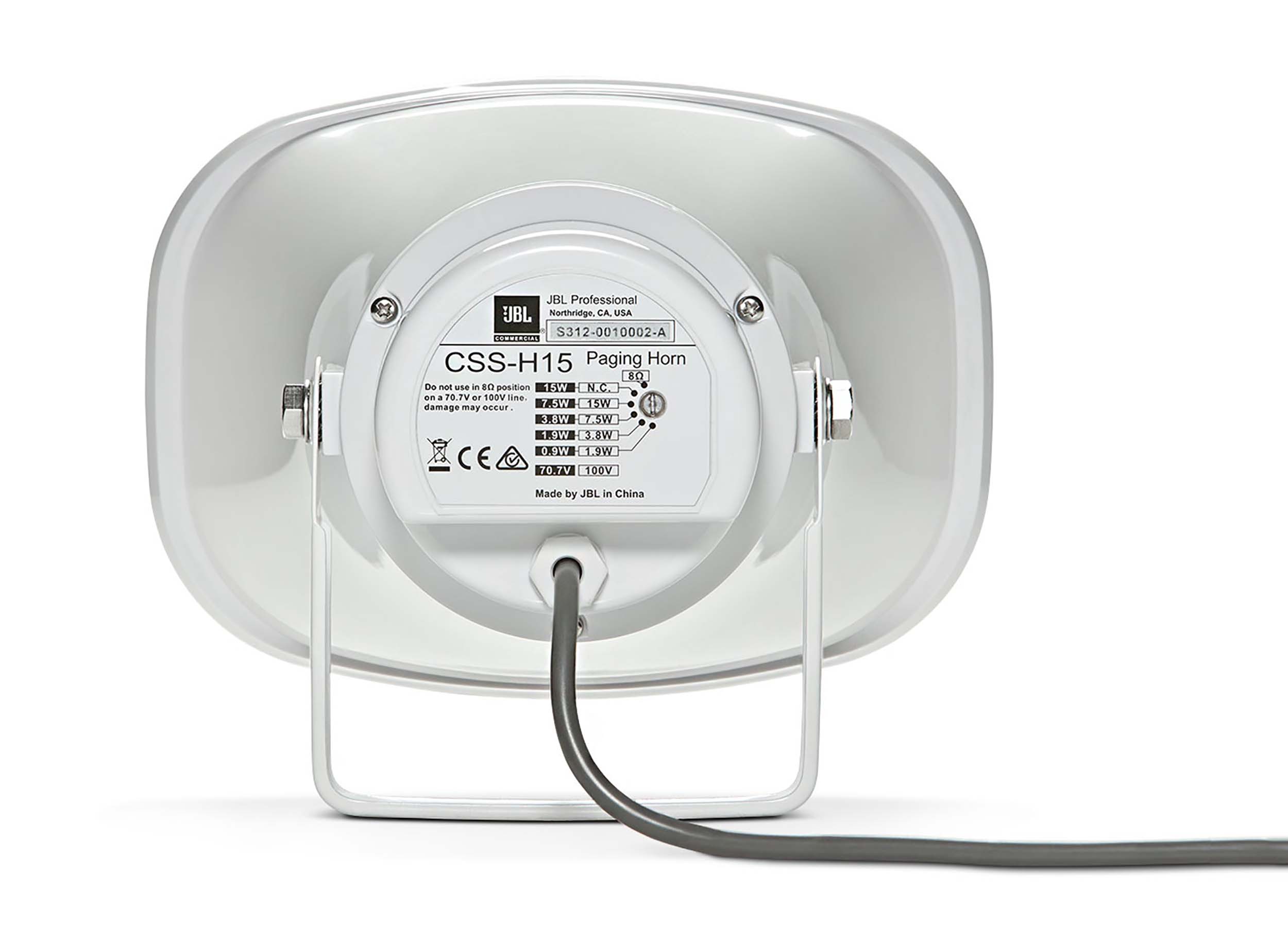

Transformer Taps: 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W 100V: 15W, 7.5W, 3.8W, 1.9W
Drivers: 33 mm (1.3 in) diameter with phenolic diaphragm
Horn Material: ABS
Color: RAL9016 (horn and bracket)
Outdoor Capability: IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Net Weight (each): 3.0 lb/1.36 kg
Included Accessories: Stainless steel mounting bracket
