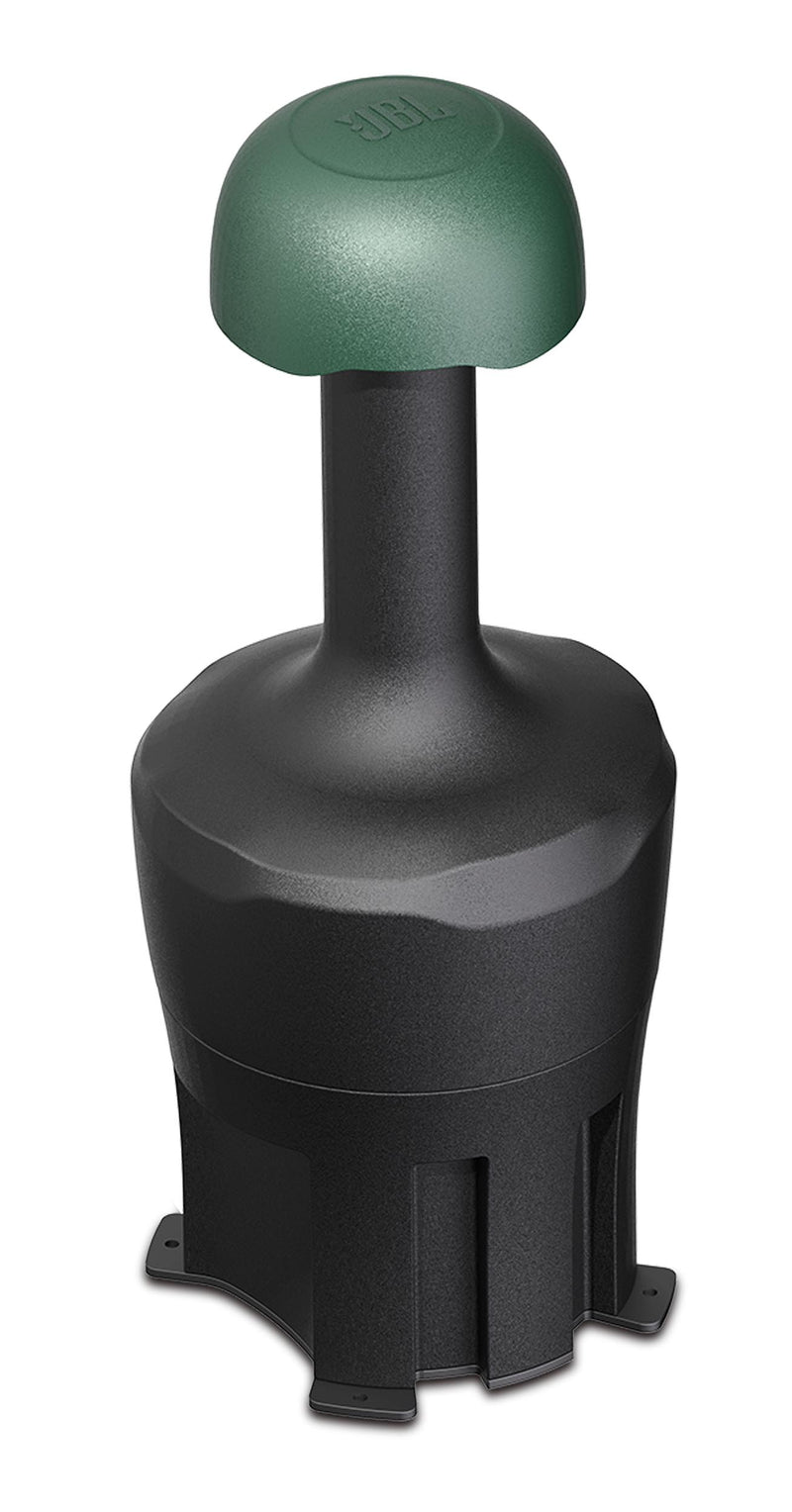

JBL GSB8, 8" In-Ground Landscape Subwoofer

The JBL GSB8 in-ground 8-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas of hospitality, corporate and retail spaces. The GSB8 focuses on fidelity, with true subwoofer extension down to 35 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium-grade, 100-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation.

This sleek, ultra-low-profile speaker-winner of international design awards for industrial design excellence-installs underground, with only the audio port visible. It’s designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors. Add the GSB8 to landscape areas of hotels, shopping complexes, restaurants, public spaces, theme parks or any application that demands legendary JBL sound with deep, rich, powerful bass.

Product Specifications:

Frequency Range (-10dB): 35 Hz – 130 Hz

Frequency Response (+/-3 dB): 43 Hz – 120 Hz

Sensitivity: 84 dB (ave. 43 Hz – 110 Hz)

Maximum SPL: 114 dB peak (108 dB continuous, 2 hr) @ 1m

Coverage Pattern: Omnidirectional

Nominal Impedance: 6Ω (at 6Ω tap)

Enclosure Material: LDPE Polyethylene plastic, 6 mm minimum wall thickness, color throughout

Color: Pine Green RAL 6028, or Beige Grey RAL 7006

Dimensions: 768 mm height x 311 mm diameter (30.1 x 12.2 in)

Net Weight: 9.3 kg (20.5 lbs)

Included Accessories: (7) gel-filled wire nuts
