Description

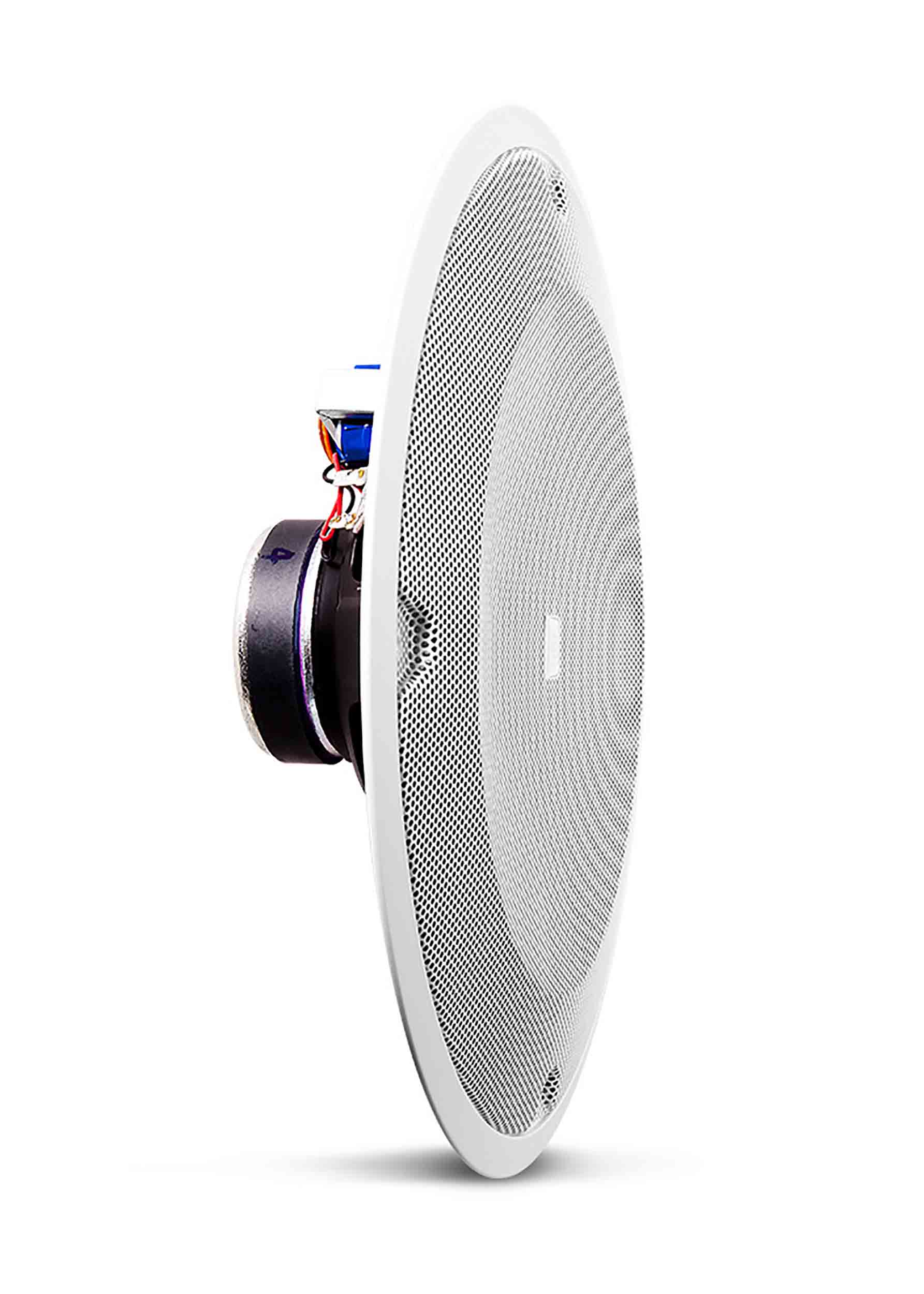

The JBL HPD8138 is an 8" ceiling speaker designed for use with a pre-install in ceiling backcan, resulting in high-fidelity performance at a cost-effective price point. The 8138 is ideal for a wide variety of commercial sound applications from restaurant and retail to professional offices and reception areas.
Product Specifications:
Drivers: 200 mm (8 in) Full-Range, Dual-cone
Frequency Range (-10dB): 95 Hz – 18 kHz
Coverage Angle: 90° conical
Sensitivity: 97 dB (2k - 8k Hz)
Driver Power Capacity: 40W (160W peak), 2 hrs25W (100W peak), 100 hrs
Transformer Taps: 6W, 3W, 1.5W, (0.75W at 70V only)
Input Connectors: Bare Wire
Magnet: 10 ounces (283 g)
Safety Agency: Transformer is UL registered per UL1876
Mounting points: 4 points on 286 mm (11.25 in) diameter mounting circle
Ceiling Cutout Size: 300 mm (11.75") with tile bridge and backbox.228 mm (9.0")
Net Weight: 1.4 kg (3.0 lb)
Included Accessories: Integral grille, 4 pcs M4 x 40 mm tapping screws
Optional Accessories: MTC-81BB8 backcan, MTC-81TB8 tile bridge
Power Rating: See transformer taps
Maximum SPL (1m): 105 dB (top 70V/100V tap)
Color: White
Backcan: formed steel (accessory)
Baffle/Rim: Plastic
Plenum Usage: Yes, with accessory backcan
