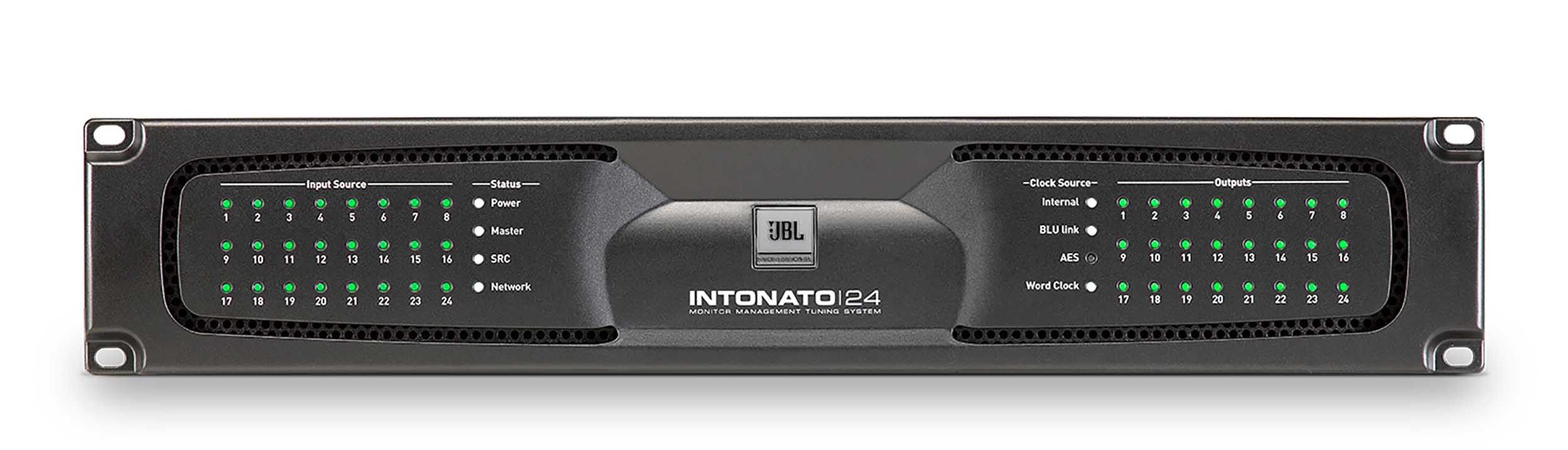

JBL INTONATO24FX, 24-Channel Monitor Management Tuning System

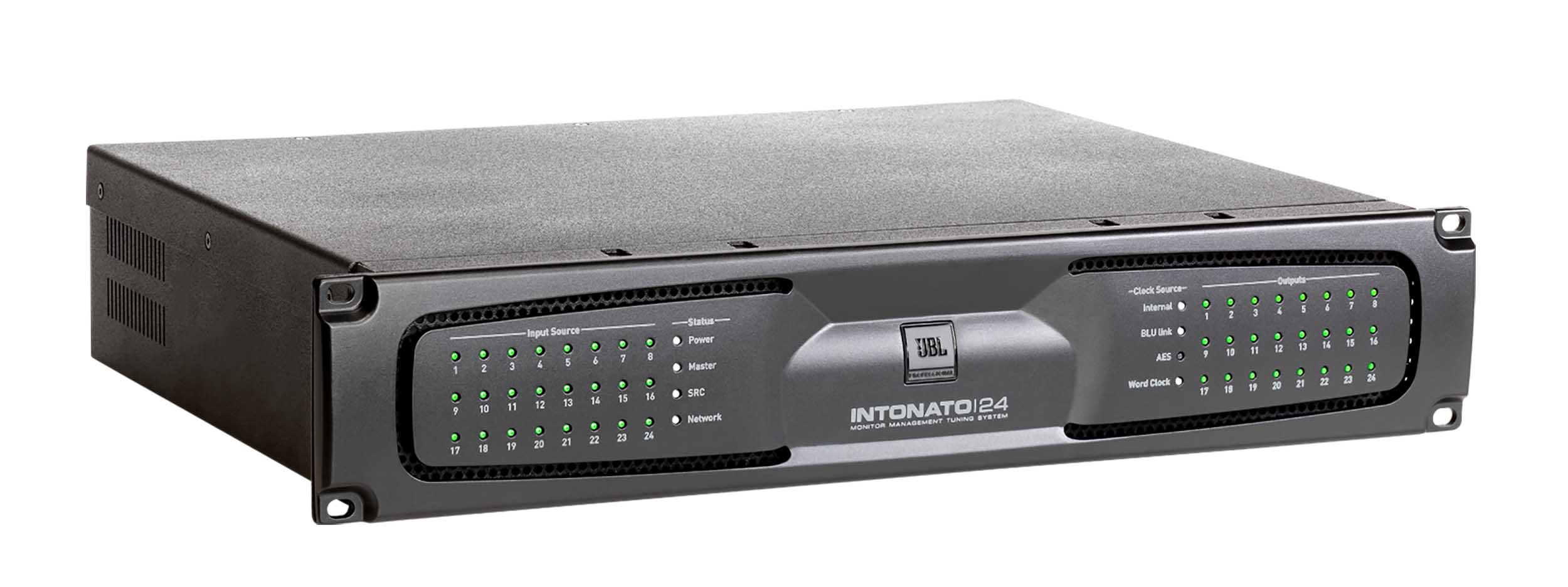

The JBL INTONATO24FX, 24 Monitor Management Tuning System provides easy setup, automated calibration and comprehensive control of professional monitoring systems. Housed in a 2U rack-mount enclosure, Intonato 24 precisely calibrates and controls up to 24 speakers configured as stereo, surround or immersive audio systems. You can create and instantly recall customized routing of up to 24 analog, digital and networked audio sources. Included software and an optional Desktop Controller put the system’s powerful monitoring features at your fingertips. Intonato 24 delivers the benefits of a precisely calibrated system, and takes control room monitoring to the next level. Intonato, from the Latin verb Intonare meaning “tuned,” “matched,” “in tune,” describes a primary attribute of all speakers in the ideal control room monitoring environment.

A Complete System

Intonato 24 pairs with JBL 7 Series studio monitors to create the first complete monitoring system designed for immersive audio production in control rooms of any size. While Intonato was designed as the hub of the new JBL 7 Series installed reference monitor system, the unit can be used with any passive or powered speakers. In addition, the HARMAN BLU link network protocol allows Intonato 24 to be digitally networked with Crown power amplifiers and a wide assortment of system components.

Sophisticated Subwoofer Integration

With Intonato 24, multiple subwoofers can be connected, tuned, balanced and integrated into your monitoring systems. Up to 4 subwoofers can be assigned as “Bass Management” subs with selectable crossover settings, and the same or different subwoofers can be used to reproduce the LFE (low frequency effects) channel of a soundtrack.

Configuration by Project, Client Workflow

Complete configurations, including speaker setup parameters, EQ, subwoofer settings, input source patching, and down-mix preferences can be stored as “profiles” and “scenes” and instantly recalled (even mid-session) to meet the requirements of specific projects and clients.

Intuitive GUI Control

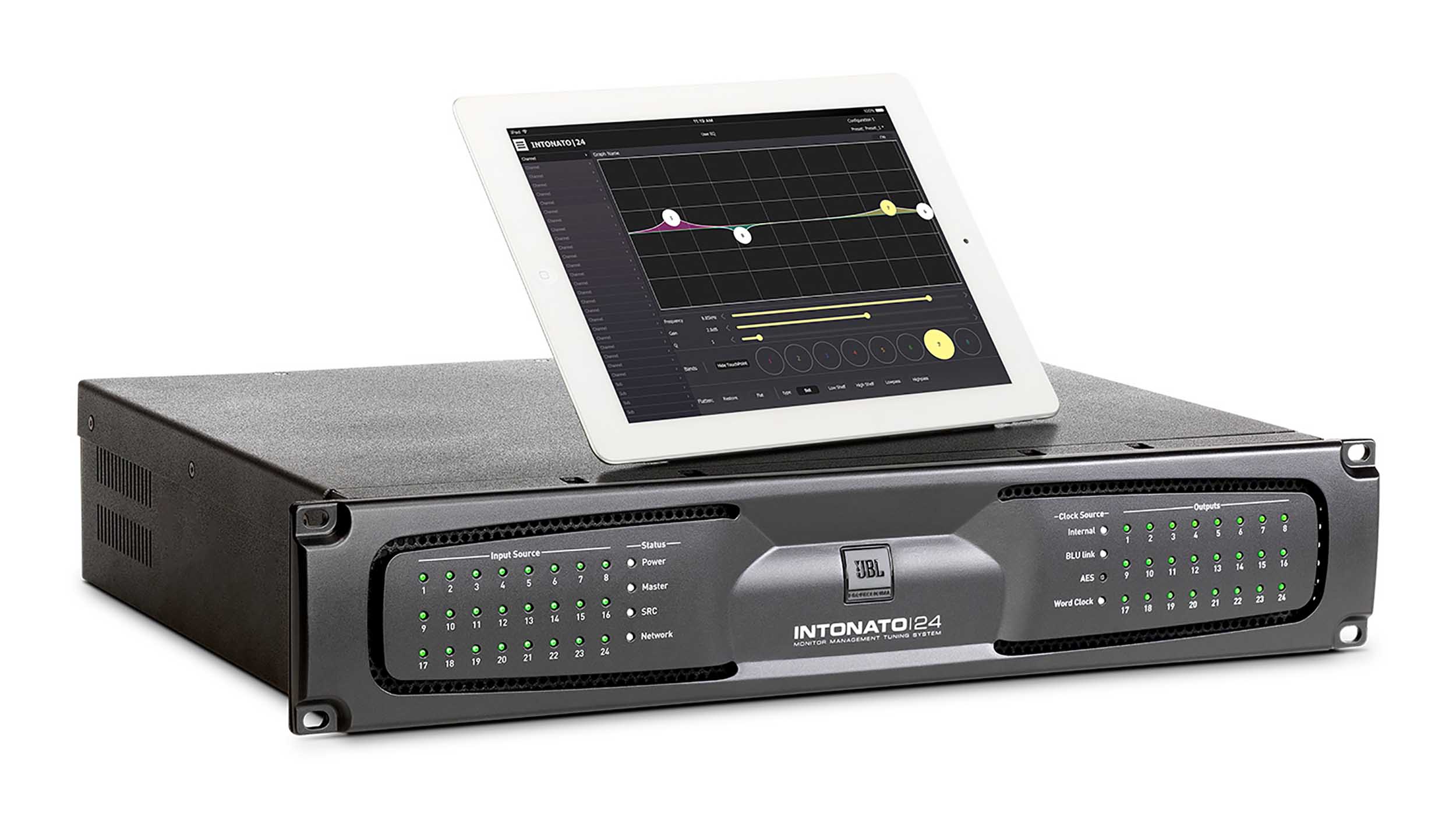

An intuitive graphical user interface (GUI) allows you to control Intonato 24 from Mac, Windows, iOS and Android tablets. The optional Intonato Desktop Controller puts monitor system control at your fingertips, providing elegant control of system volume, recall of user-configured scenes, activation of speaker mutes and solos, and other frequently used features.

Product Specifications:

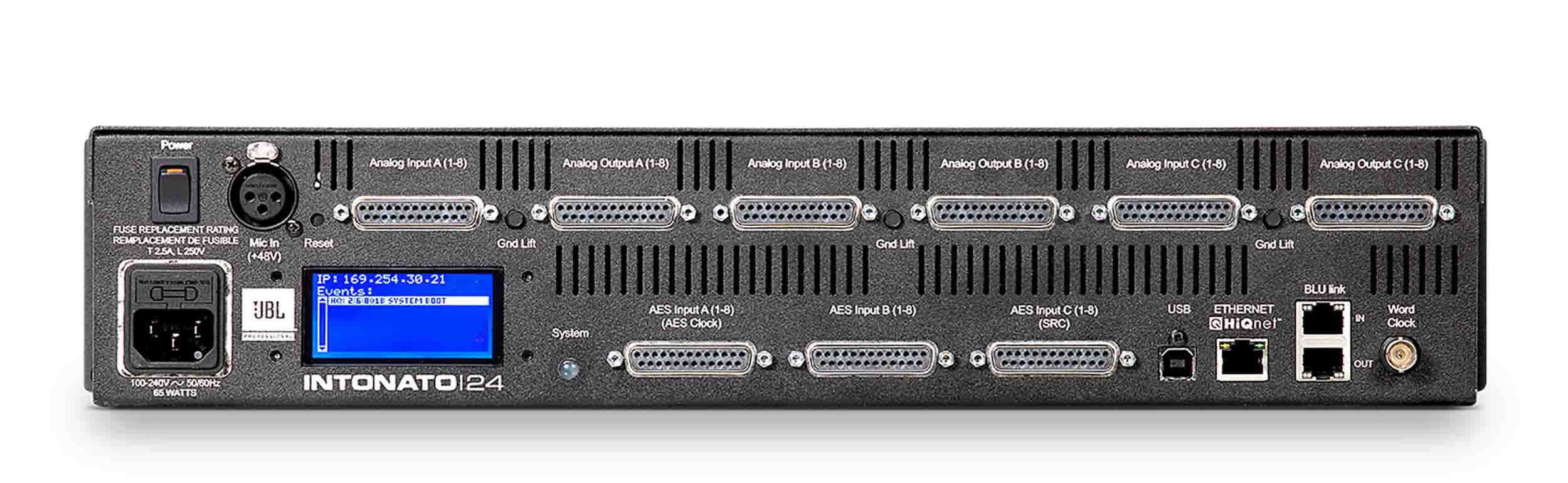

BLU LINK AUDIO Connectors: 2 x RJ45 connectors

Maximum Cable Length: 100m/328ft on Category 5e or higher cable between devices

Latency: 11/Fs [0.23ms@48k, 0.11ms@96k]

Pass Through Latency: 4/Fs [0.08ms@48k, 0.04ms@96k]

A/D Converter: 24-bit

A/D Dynamic Range: 114 dB A-weighted

D/A Converter: 24-bit

D/A Dynamic Range: 115 dB A-weighted

Internal Processing Word Length: 32-bit floating point

Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz; 32-192 kHz, sample-rate convertors enabled.

Dynamic Range: 114 dB A-weighted; 112 dB unweighted

THD+Noise: 0.007% typical at +4 dBu, 1 kHz, 0 dB input gain

Frequency Response: 20 Hz – 20 kHz, +0 /- 0.5 dB

Latency: Analog IN to analog OUT (96 kHz)

AES IN to analog OUT (96 kHz): 2.15 ms

BLU link input to BLU link output (96 kHz): 0.04ms

Included Speaker Tuning Presets: JBL 705i, 708i, M2

User EQ: 8-band fully parametric EQ w/ selectable filter type

Room EQ: 12-band fully parametric EQ

Bass Management Crossover: Variable

Speaker Output Delay: Up to 18 ms per output channel for speaker time-of-arrival offset)

A/V Synchronization Delay: Up to 150 ms (globally applied to all output channels except aux outputs)

Aux Out Delay: Up to 150 ms

Master Volume Control: -120 dB to 0 dB

Dim Control: User-adjustable, -120 dB to 0 dB
