Description

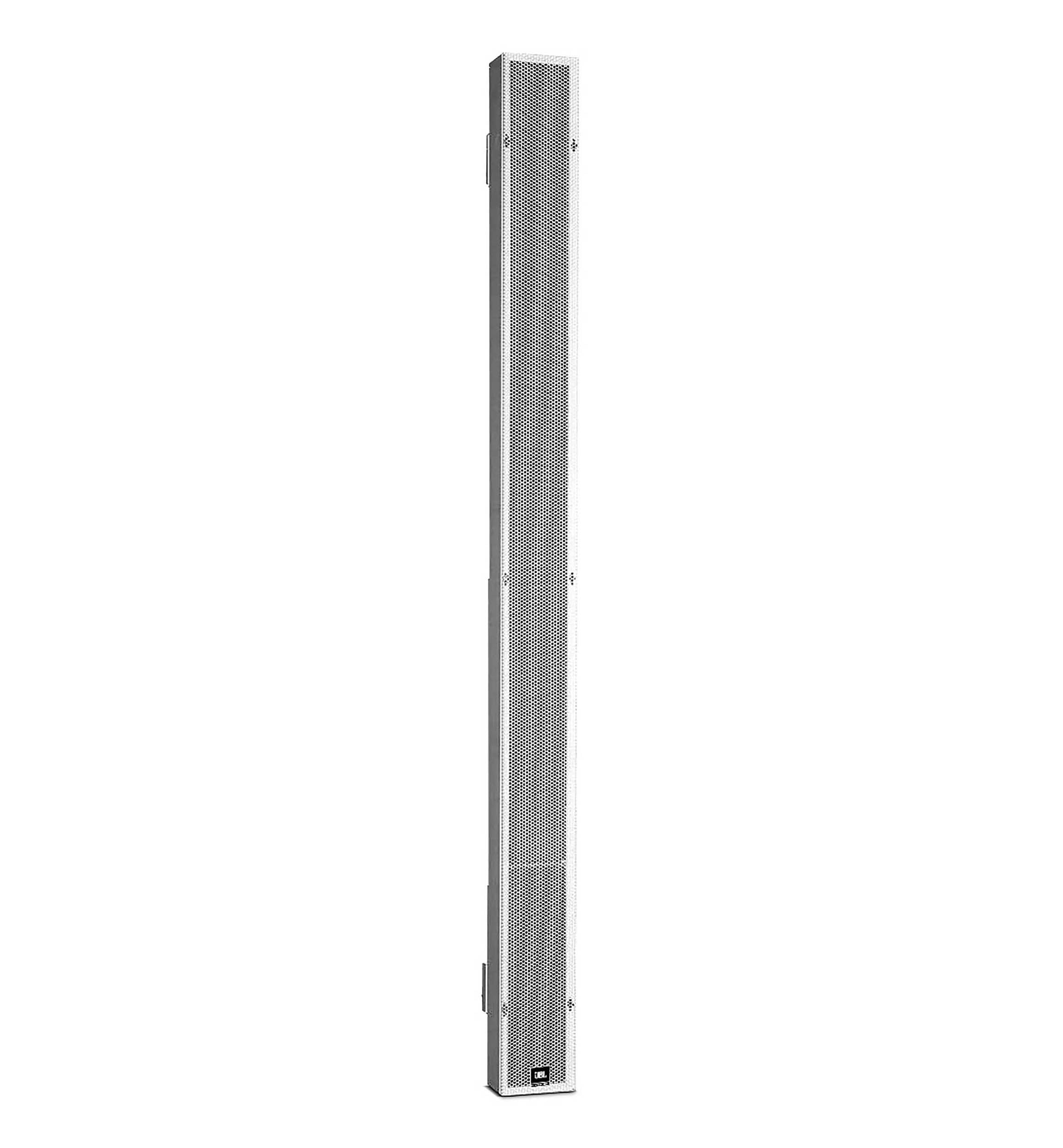

The JBL IVX-587040, is ideally suited for smaller less reverberant environments where improved speech intelligibility is required. It also can be used as a ‘fill system’ in larger Intellivox installations, providing coverage in shadow zones. A single IVX-587040 is capable of covering an area of up to 25 m while maintaining an even sound pressure over the audience area. The ten, custom designed, 4” loudspeakers and the four 1" dome tweeters are driven by an eight-channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation.
The dome tweeters in the DSX units not only improve the horizontal coverage at high frequencies but also enhance the subjective sound quality of the system for both speech and music. An extensive set of surveillance functions have also been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary WinControl software which offers user friendly control of the beam steering parameters, audio processing and surveillance features. Its modest array length makes the IVX-587040 suitable for easy and unobtrusive implementation in even the most architecturally sensitive environment. The low frequency response of the system can be easily extended using a JBL sub-woofer system.
Product Specifications:
Maximum SPL (30m): Continuous: 89 dB SPL
Peak: 92 dB SPL
Typical Maximum Throw: 15-25 m / 49-82 ft
Drivers: 10 x 4” full range
4 x 10 mm ferrofluid cooled tweeter, coaxially mounted
Dimensions: Height- 1780mm
Width- 134mm
Depth- 92mm
Weight- 19kg / 41.8lb
Enclosure: Stainless steel (AISI 304) with epoxy coating
Color: Enclosure and Grill: RAL 9010 (white)
Speaker Baffle: RAL 9011 (black)
Optional Accessories: Multiple optional accessories available.
Coverage Angle: Vertical complex beam shaping (via software), wide horizontal dispersion
