Description

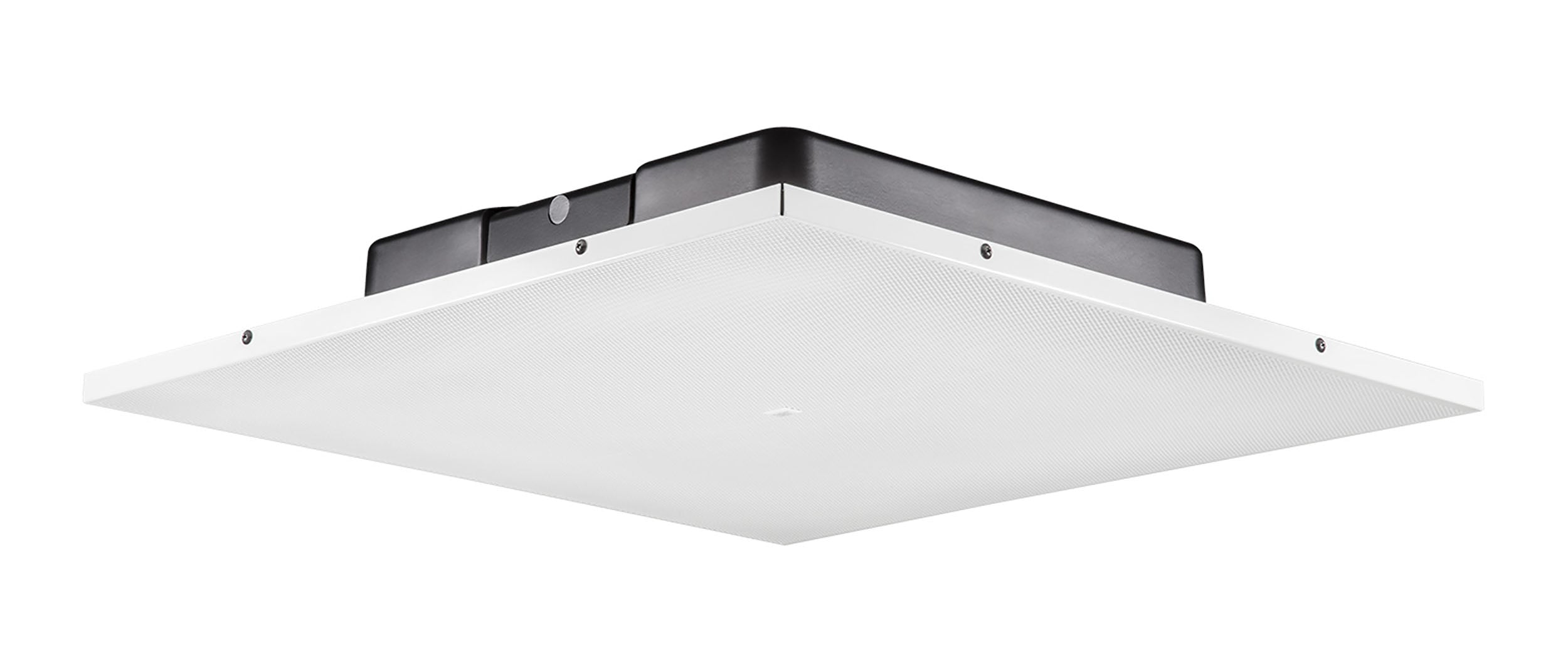

The JBL-LCT 81C/TM is a full-range ceiling speaker designed to lay into a 600 mm x 600 mm metric suspended grid ceiling, with no cutting of ceiling tiles required, making for an easy and cost-effective installation with a minimum of mess. The low-profile depth of only 103 mm (4.1 in) allows the speaker to fit in locations where deeper loudspeakers do not. This loudspeaker is designed to provide excellent performance for voice reinforcement and light-to-medium music in a wide variety of applications, including education classrooms, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, meeting rooms, and more.

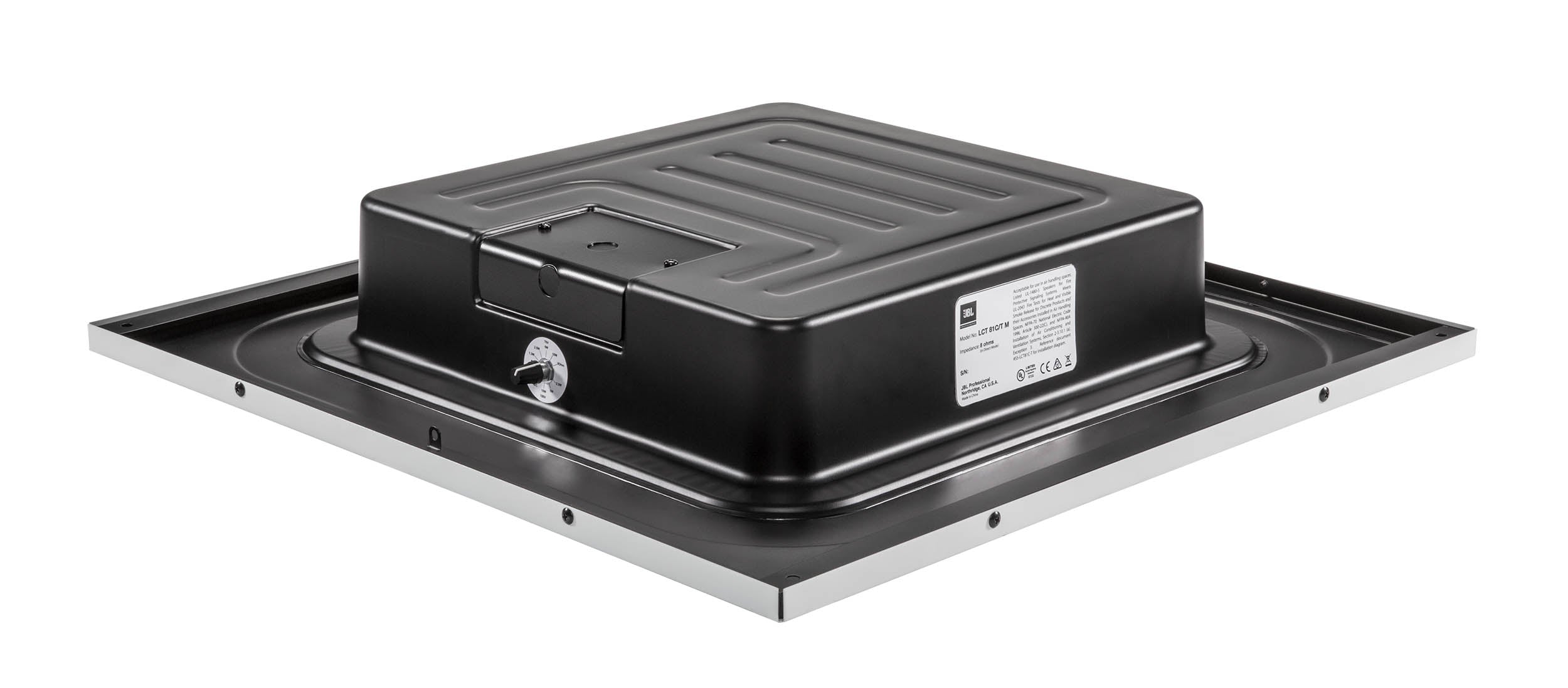

The very high sensitivity of 96 dB provides maximum sound level, even at low tap settings. JBL-LCT 81C/TM includes a 200 mm (8 in) dual-cone driver with a very high 96 dB sensitivity. The driver features a 25 mm (1 in) diameter voice coil with a Kapton coil-former and high-temperature wire for better power dissipation and long-term reliability. The speaker's built-in 10-Watt transformer provides versatility by allowing use on 100V or 70V distributed loudspeaker lines, as well as at 8 ohms (low impedance) for driving directly from a low impedance power amplifier. Adjusting is convenient via a rotary switch on the side of the rear enclosure. Two safety seismic attachment tabs are provided for securing to ceiling deck, plus 4 holes are provided -- one in each corner. The color of the perforated grille is white.
Product Specifications:
Frequency Range (-10dB): 100 Hz – 16 kHz
Sensitivity: 96 dB (2 kHz - 6 kHz)
Coverage Angle: 100° conical
Maximum SPL (1m): 108 dB (low-impedance, 116 dB peak) 106 dB (top 70V/100V tap)
Impedance: 8 ohms (in direct/thru setting)
Transformer Taps: 10 W, 5 W, 2.5 W (plus 1.3 W @ 70V)
Recommended Protective High-Pass: 90 Hz high-pass (24 dB/oct) for 8Ω direct or any 70V or 100V tap setting
Power Capacity (at low-Z): 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise
Input Connectors: Bare wire inside protected in touch-proof wiring compartment.

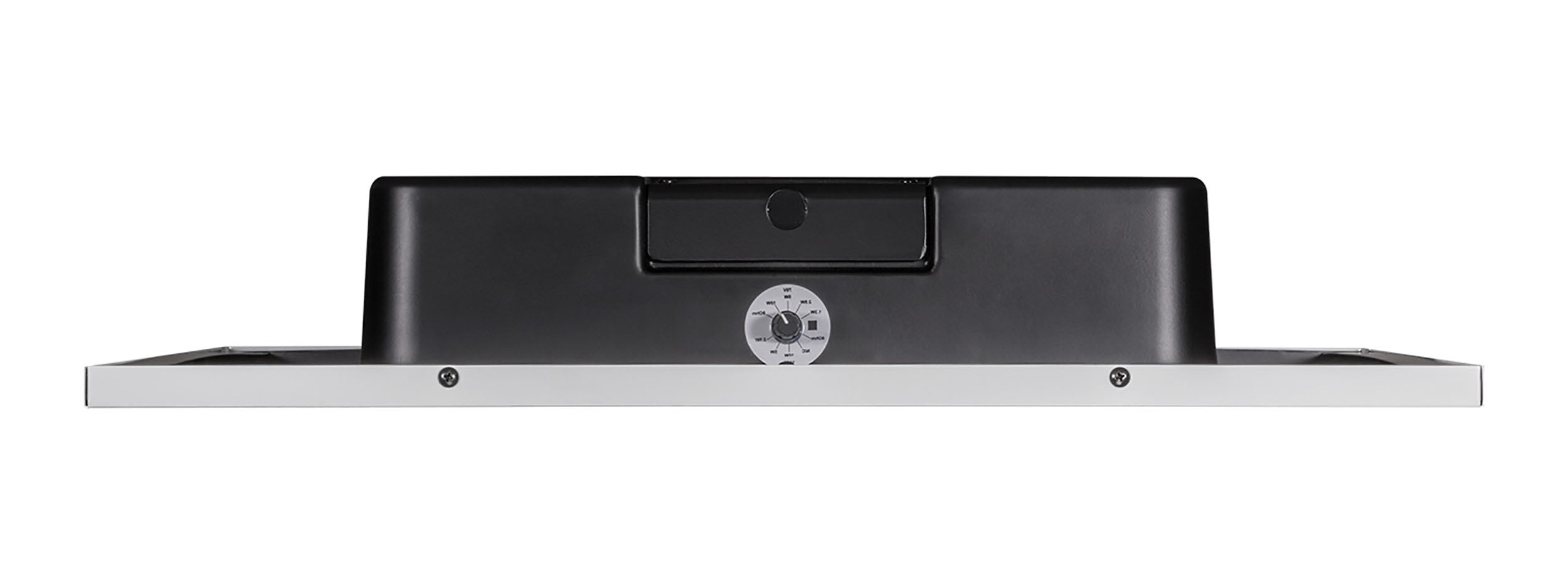

Tap Selector: Rotary switch accessible from side of backcan
Materials: Steel rear enclosure, front baffle, and perforated grille
Grille Color: White
Dimensions: 595 x 595 x 103 mm (23.4 x 23.4 x 4.1 in)
Weight: 6.9 kg (15.2 lbs) each
Ceiling Cutout Size: No cutout required. Speaker drops into ceiling grid
Suspension / Safety-Seismic Attachment Points: Two tabs on back baffle, plus 4 holes in corners
Power Rating: See transformer taps
Color: White
Backcan: formed steel (blind-mount)
Baffle/Rim: Metal
Plenum Usage: Yes, backcan included
