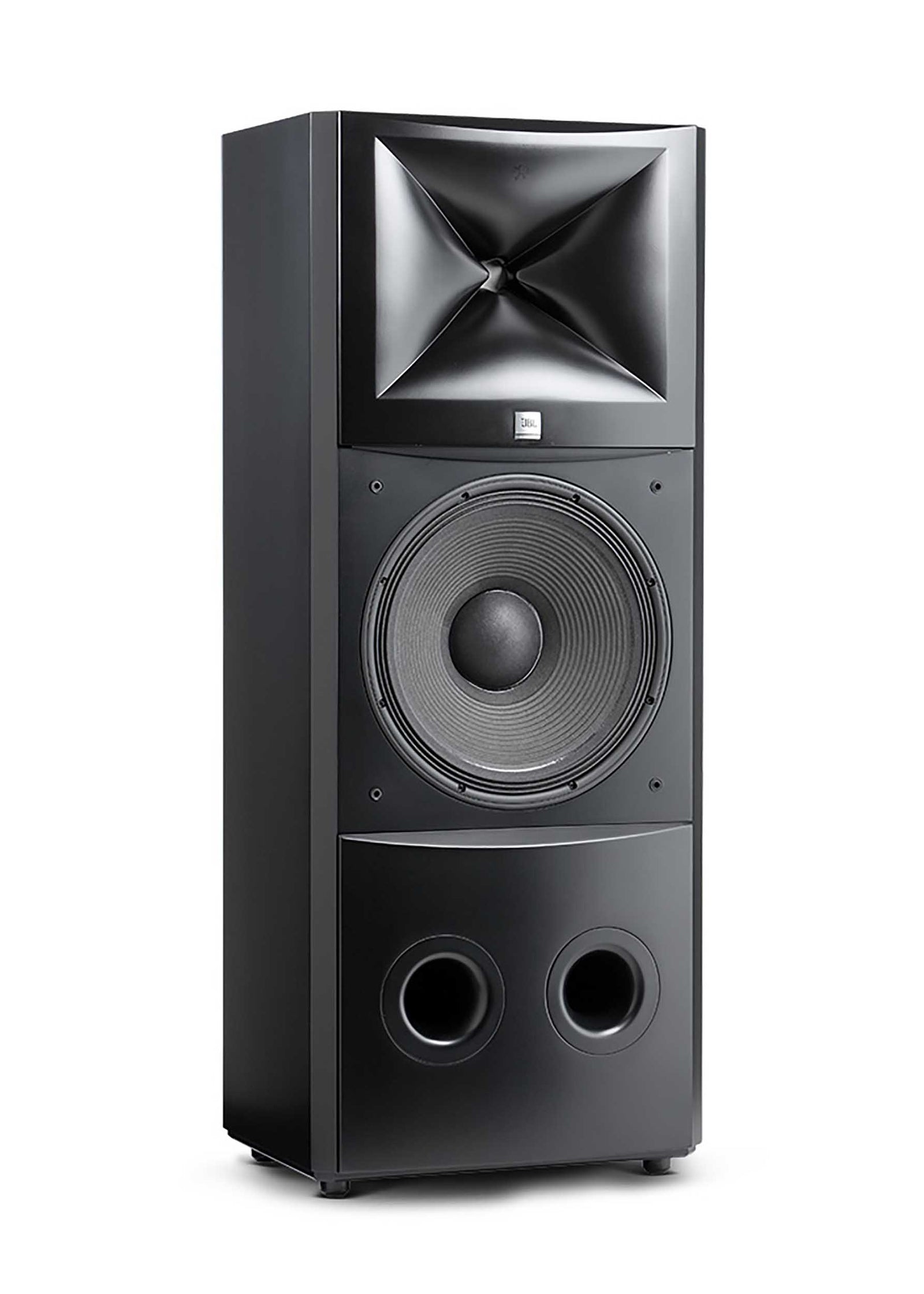

JBL M2, Master Reference Studio Monitor

The JBL M2, Master reference monitor addressing the growing need for high dynamic range and reference-monitor accuracy in a broad range of studios, JBL has developed the M2 Master Reference Monitor: A Free-Standing, 2-Way System that can be placed in any environment to provide an exceptionally accurate monitoring experience. Leveraging a new generation of JBL high-output, ultra-low distortion transducers, the M2 provides in-room frequency response of 20 Hz to 40 kHz, and an extraordinary 123 dB maximum SPL to meet the demanding music, cinema and broadcast production requirements for impactful dynamic range.

Product Specifications:

System Format: 2-Way Floor Standing or Soffit Mountable

HF Driver: D2430K Dual Diaphragm Dual Voice Coil Compression Driver

LF Driver: 2216Nd 15 in (381 mm) Differential Drive® Woofer

Crossover Frequency: 800 Hz

Frequency Response (±3 dB): 20 Hz - 40 kHz

Coverage Angle: 120° H x 100° V

Sensitivity: 92 dB

Continuous/Peak SPL@ 1m: 117 dB /123 dB; 108 dB Peak SPL @ 8m

Amplifier Power Rating: 1,200 Watts into 8 ohms

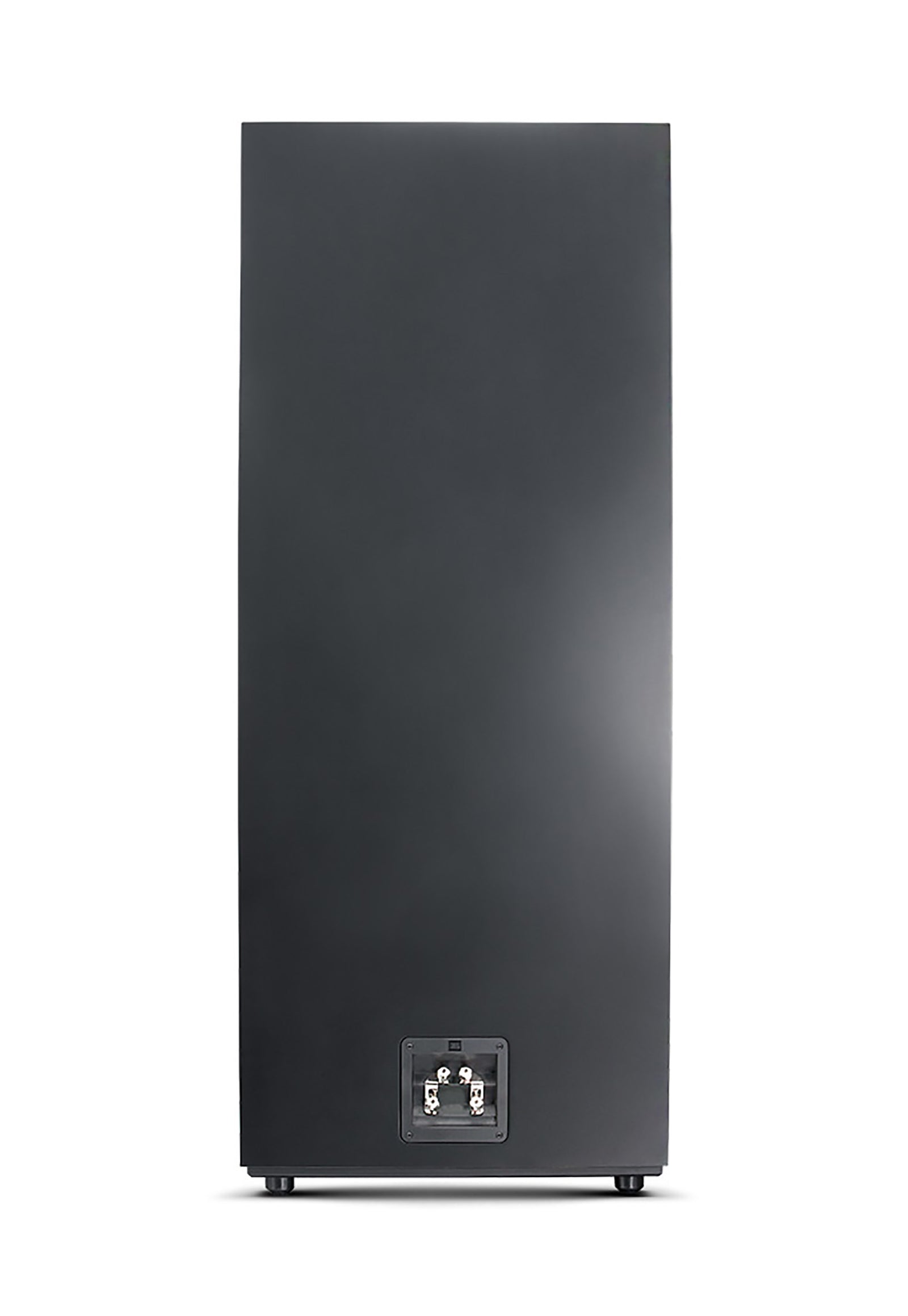

Input Connectors: Spring Terminals

Enclosure: 25 mm (1 in) MDF

Finish: Satin Black Lacquer

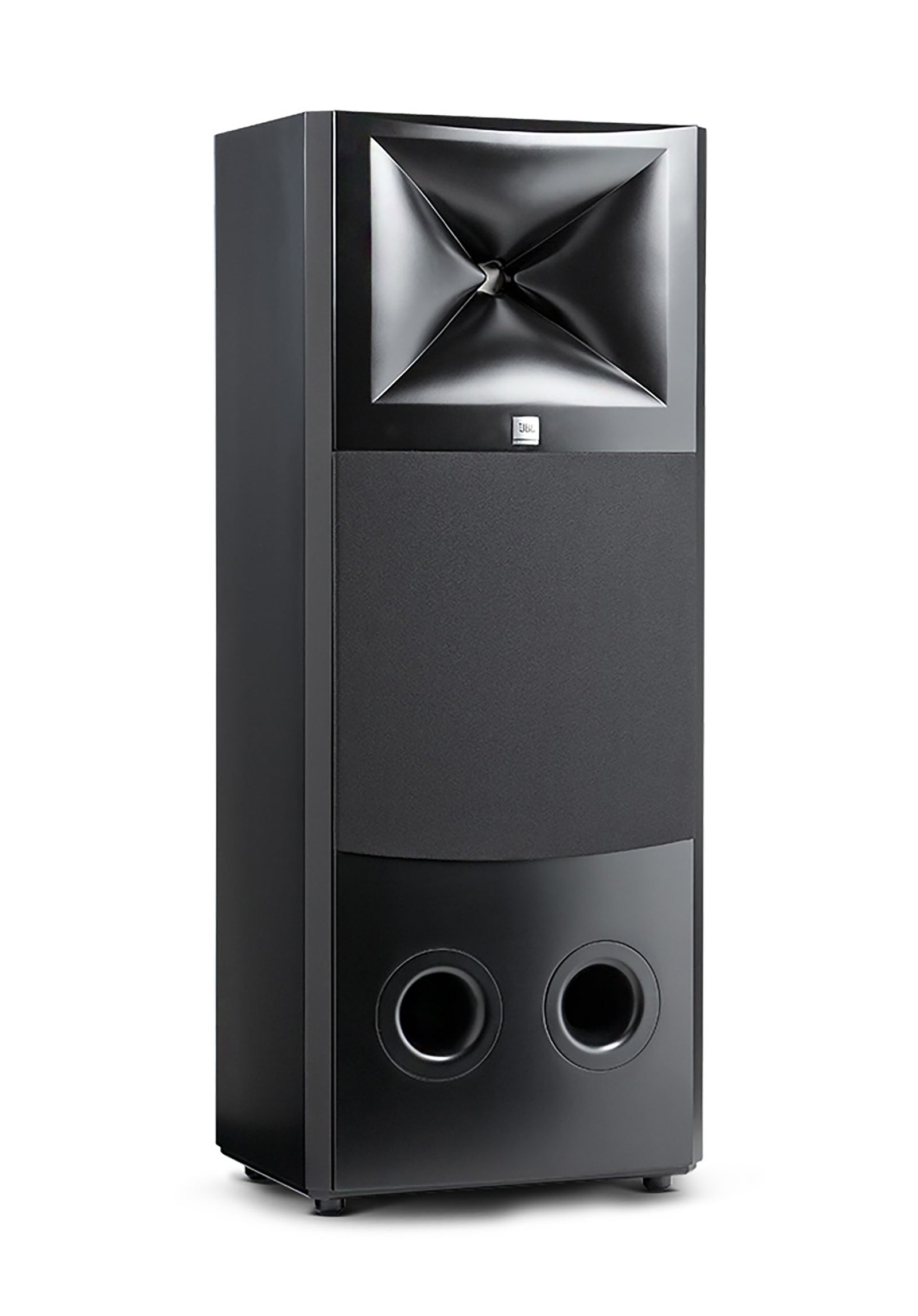

Included: Removable ABS Grille with Black UL Compliant Fabric

Dimensions (w x h x d): 508mm x 1256mm x 355.6mm (20in x 49.5in x 14in)

Net Weight (each): 58.5 kg (129 lb)

Maximum Peak SPL: 123 dB

Maximum Continuous SPL: 117 dB
