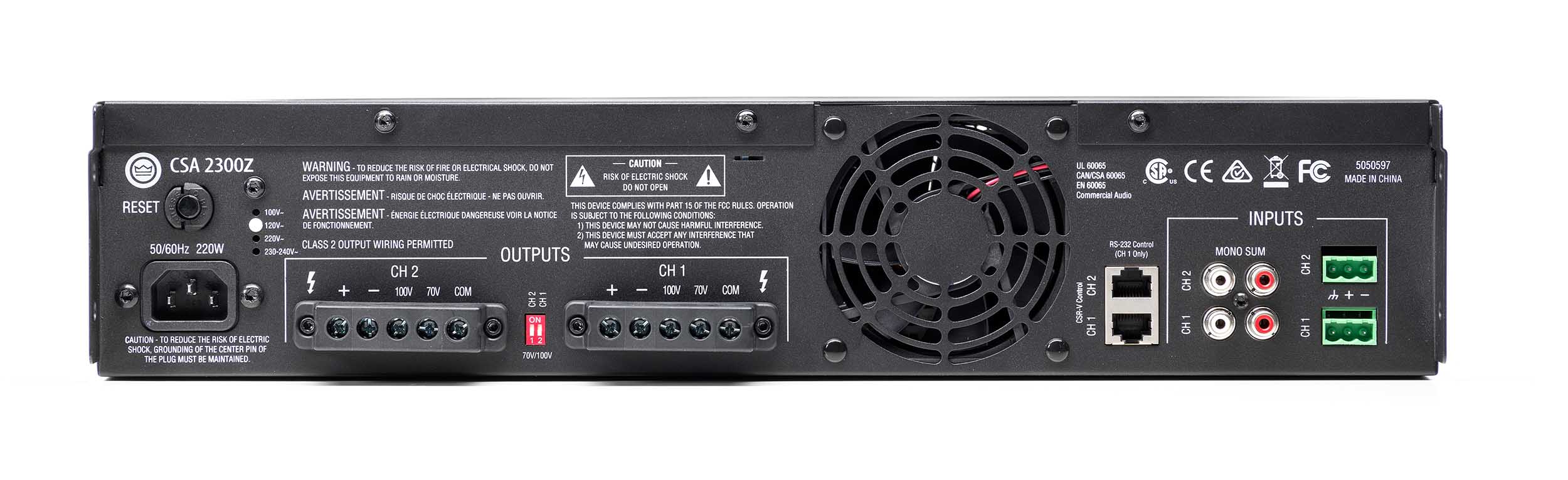

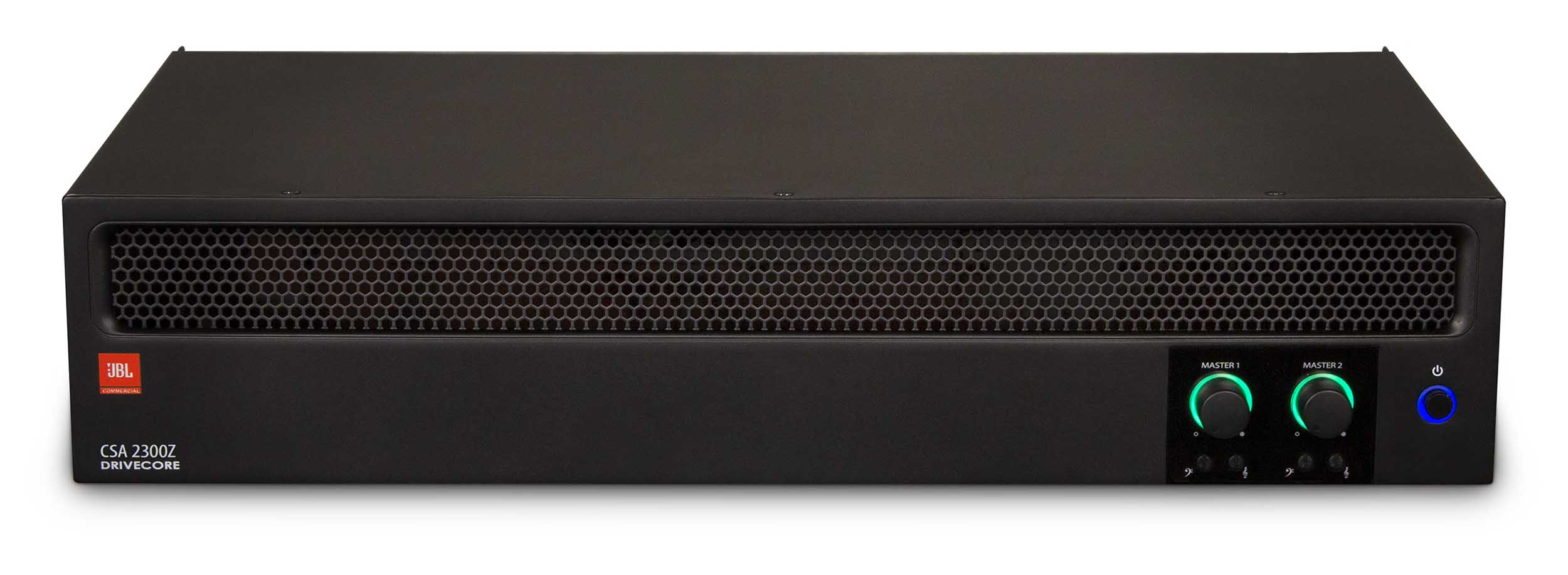

JBL NCSA2300Z-0-US, 2-Channel 300W Amplifier

The JBL NCSA2300Z-0-US Dual-Channel 300W Amplifier delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL's CSR-V control module.

Product Specifications:

Number of Channels: 2

Power Rating: 4 Ohms / 8 Ohms:

300 W (1 kHz, 0.5% THD)

Load Impedance / Voltage: 4 Ohms (Minimum)

70 / 100 V

Analog Audio I/O: 2 x Block 3-Pin Balanced/Unbalanced Input

2 x 2RCA TS Unbalanced Summed-Mono Input

2 x Barrier Strip 5-Pin Output

DSP: Yes

Crossover: Yes

EQ: 2-Band

Compressor: Yes

Limiting: Yes

Analog Audio I/O: 2 x Block 3-Pin Balanced/Unbalanced Input

2 x 2RCA TS Unbalanced Summed-Mono Input

2 x Barrier Strip 5-Pin Output

Phantom Power: Yes

AC Input Power : 100 to 240 VAC, 50 / 60 Hz

Operating Temperature: 32 to 95°F / 0 to 35°C

Storage Temperature: -4 to 185°F / -20 to 85°C

Dimensions: 17.0 x 11.0 x 3.5" / 43.0 x 27.0 x 8.9 cm

Weight: 17.8 lb / 8.1 kg
