JBL NCSMA1120-U-US, Commercial Series Mixer/Amplifier

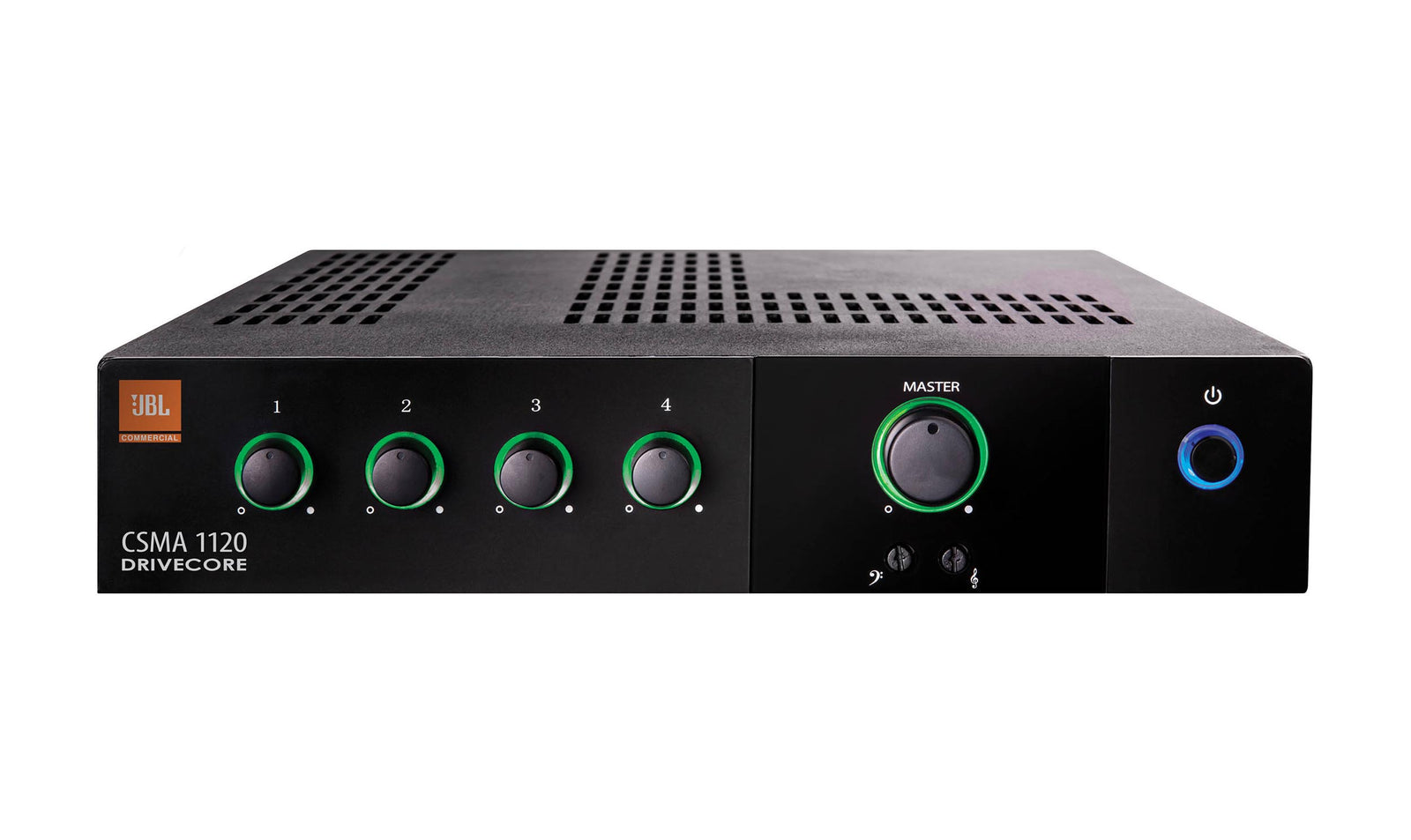

The JBL NCSMA1120-U-US Commercial Series Mixer/Amplifier is a mixer/amplifier with four mixer-channel inputs and one output channel. It's capable of reaching 120W of peak power with 15W per channel. The unit's front panel sports volume controls for each channel, as well as a master volume adjustment knob, bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.

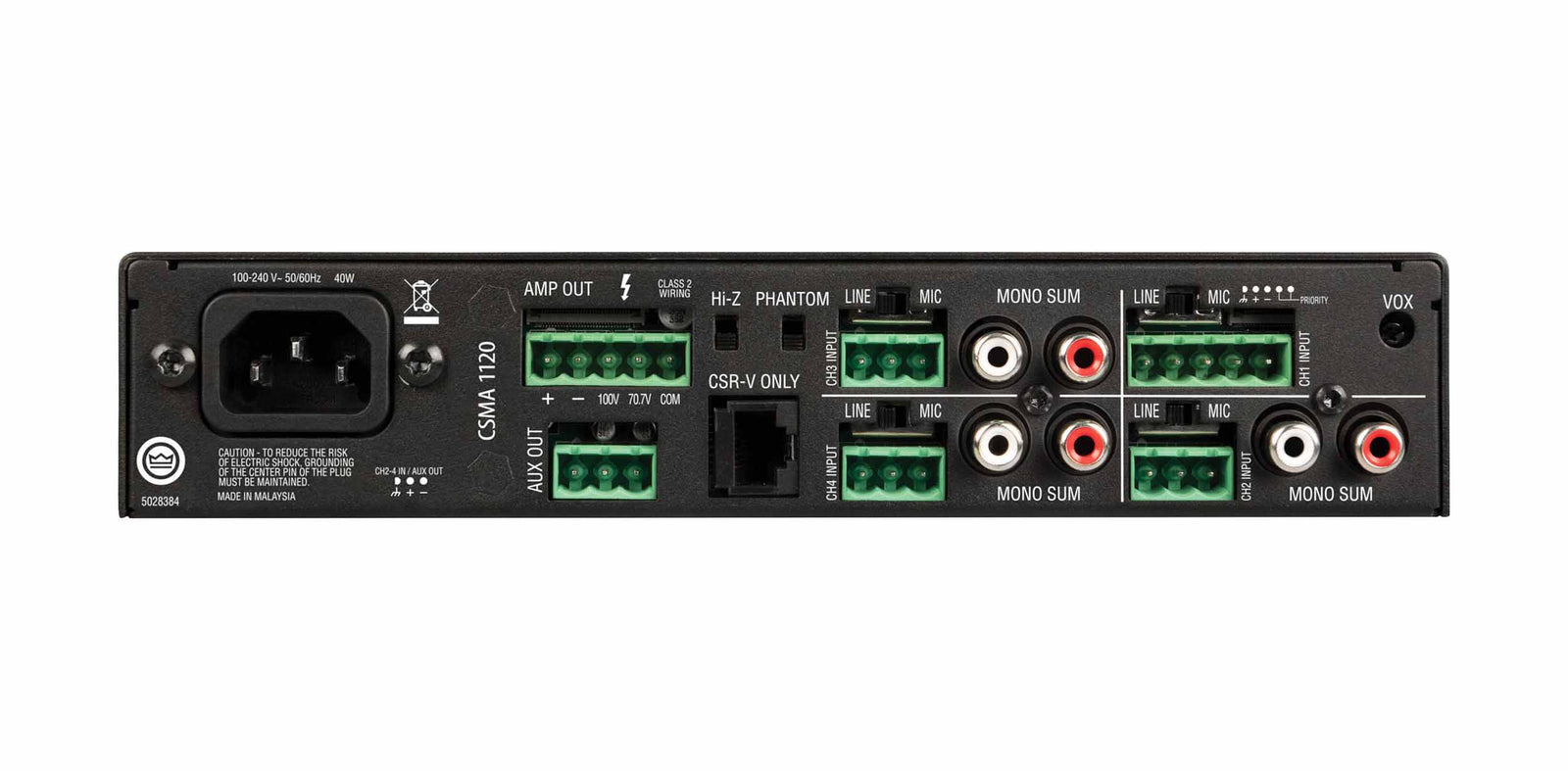

The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find the mic/line inputs, unbalanced RCA inputs, speaker connections, Hi-Z and phantom power switches, and more. The unit is also equipped with a RJ45 connector for use with JBL CSR-V in-wall volume controls (available separately).  This Commercial Series mixer/amplifier boasts such features as voice activating ducking (useful for paging over background music), priority muting for channel one's input, and a sleep mode which automatically powers down the unit when no audible signal has been received for longer than 30 minutes. Also, with an auxiliary output, you may connect to an additional amplifier, though the master volume and tone controls will have no bearing on the resulting signal.

Product Specifications:

Number of Channels: 4 Input / 1 Output

Power Rating: 4 Ohms / 8 Ohms:

120 W per Channel (1 kHz, 0.5% THD)

15 W per Channel

Load Impedance / Voltage: 4 Ohms (Minimum)

70 V (40 Ohms Minimum)

100 V (80 Ohms Minimum)

Rackmount Size: 1 RU (1/2-Rack)

Number of Channels: 4 Input / 1 Output

Power Rating: 4 Ohms / 8 Ohms:

120 W per Channel (1 kHz, 0.5% THD)

15 W per Channel

Load Impedance / Voltage: 4 Ohms (Minimum)

70 V (40 Ohms Minimum)

100 V (80 Ohms Minimum)

Output Level: Line Output:

5 Vrms (10-Kilohm Load)

VCA Control: Yes

Insertion Loss: 1 dB Maximum

SNR: > 90 dB

THD: < 0.5% (20 Hz to 20 kHz, Main Output)

0.05% (Line Output)

Crosstalk: -70 dB (1 kHz)

DSP: Yes

EQ: 2-Band

Compressor: Yes

Limiting: Yes

Digital Audio I/O: No

Network I/O: No

Other I/O: 1 x RJ45 Remote/Volume

Speaker Outputs: 1 x Block 5-Pin 4-Ohm/8-Ohm/16-Ohm/70 V/100 V Main

Phantom Power: 27 VDC

Media/Memory Card Slot: No

AC Input Power : 100 to 240 VAC, 50 / 60 Hz

AC Power Connector: 1 x IEC

AC Outlet: Yes

Rackmount Size: 1 RU (1/2-Rack)

Operating Temperature: 32 to 95°F / 0 to 35°C

Storage Temperature: -4 to 185°F / -20 to 85°C

Operating Humidity: 0 to 95% (Non-Condensing)

Dimensions: 8.6 x 1.7 x 11.9" / 21.9 x 4.3 x 30.3 cm

Weight: 7.1 lb / 3.2 kg
