Description

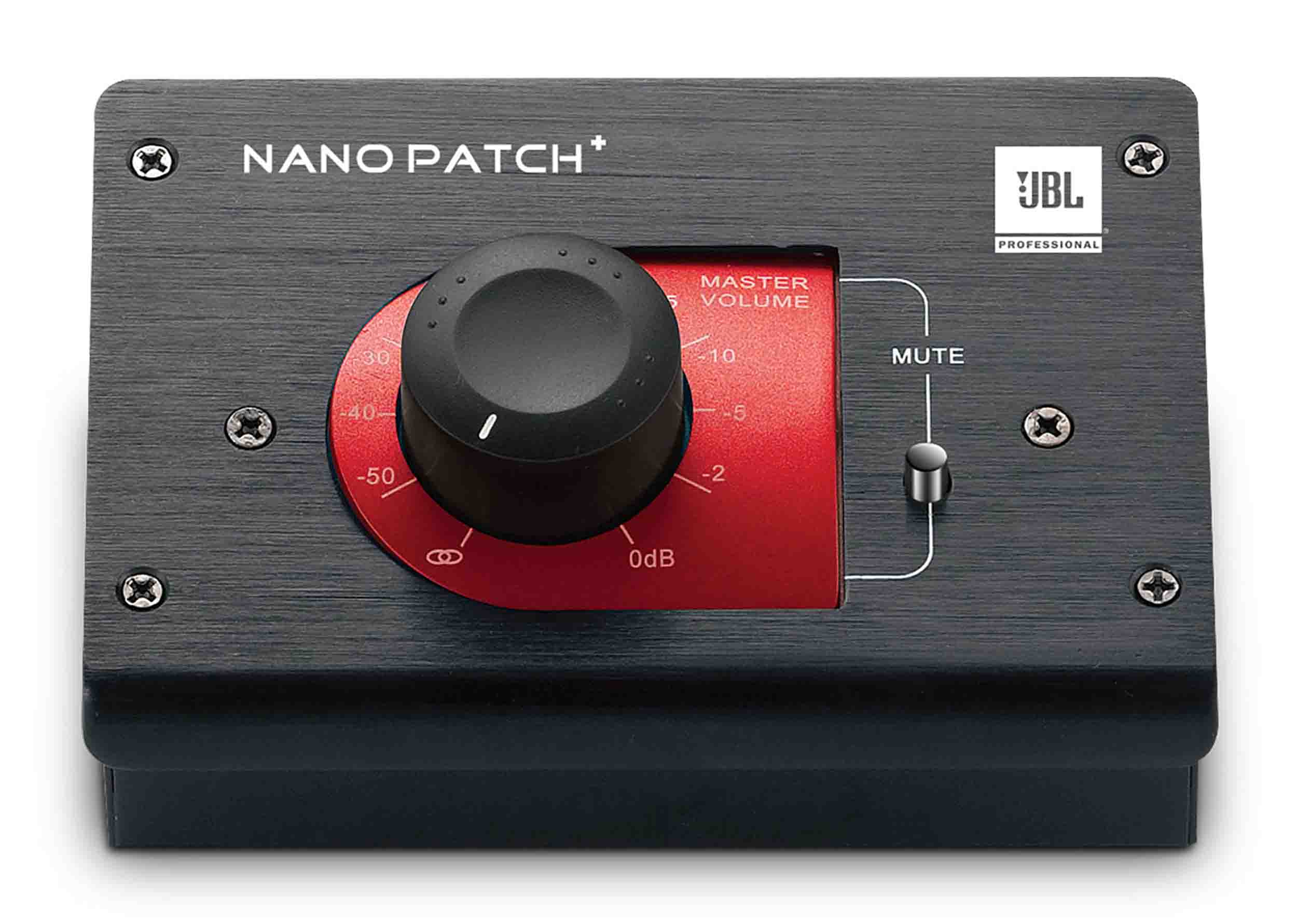

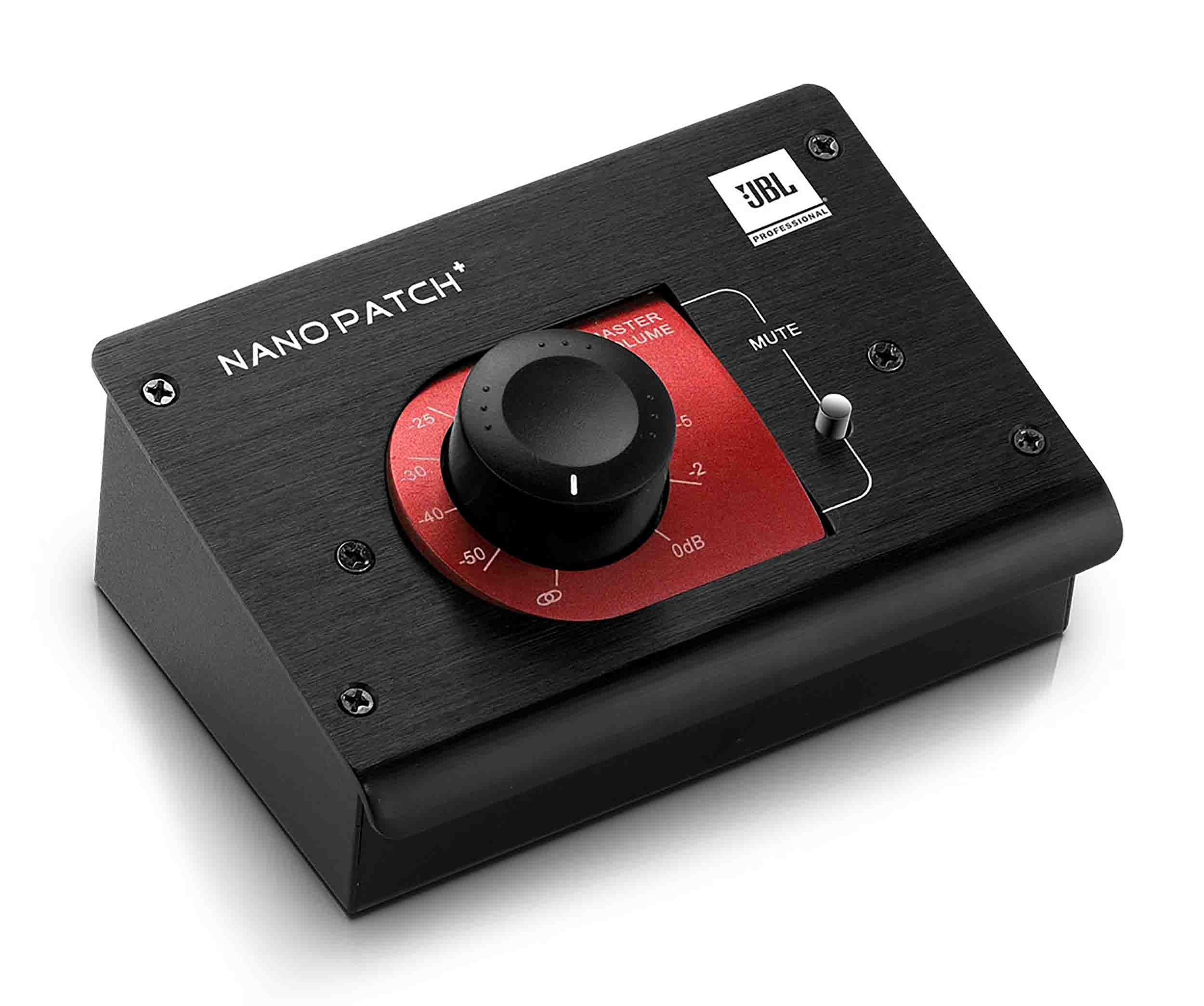

The JBL NPATCH BLK, Nano Patch+ really comes into its own when connected between your computer audio interface/soundcard master outputs and a pair of active (powered) monitor speakers. One of the benefits of passive volume attenuation is that you no longer have to control volumes with your software’s master volume fader. Reducing levels from your software only reduces the audio bit depth. It is much more appropriate to keep your software masters at unity and attenuate the audio to your active monitors with a passive controller like the Nano Patch+. This way you can maintain maximum audio resolution and attenuate your monitoring volume with the confidence that the sonic integrity of your audio is not compromised.
Product Specifications:

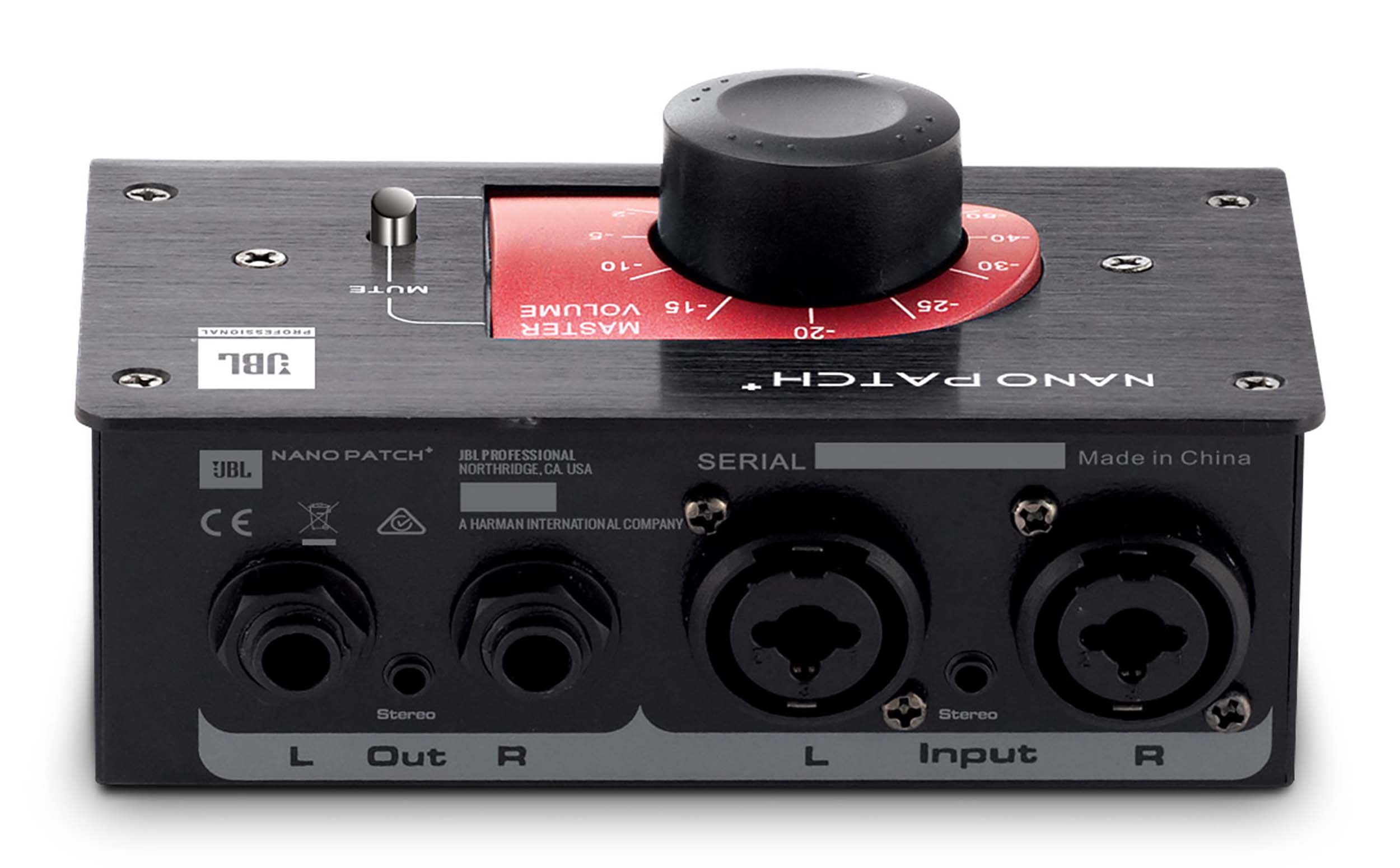

Input 1: 2 x combination XLR/TRS 1/4" (6.3 mm) balanced/unbalanced
Input 2: 1/8" (3.5 mm) mini-jack
Maximum Input Level: +26 dB
Input Impedance: 5 kOhms
Output 1: 2 x TRS 1/4" (6.3 mm) balanced/unbalanced
Output 2: 1/8" (3.5 mm)
Maximum Output Level: > +26 dB
Impedance: 0 to 5 kOhms
Frequency Response: 10 Hz to 40 kHz (0/0.15 dB)
Signal to Noise: Better than -120 dB
Channel Cross Talk: > -80 dB
Distortion: < 0.0004%
Dimensions: 5.1 x 3.75 x 2.0" (130 x 95 x 51 mm)
Weight: 0.8 lb (.34 kg)
