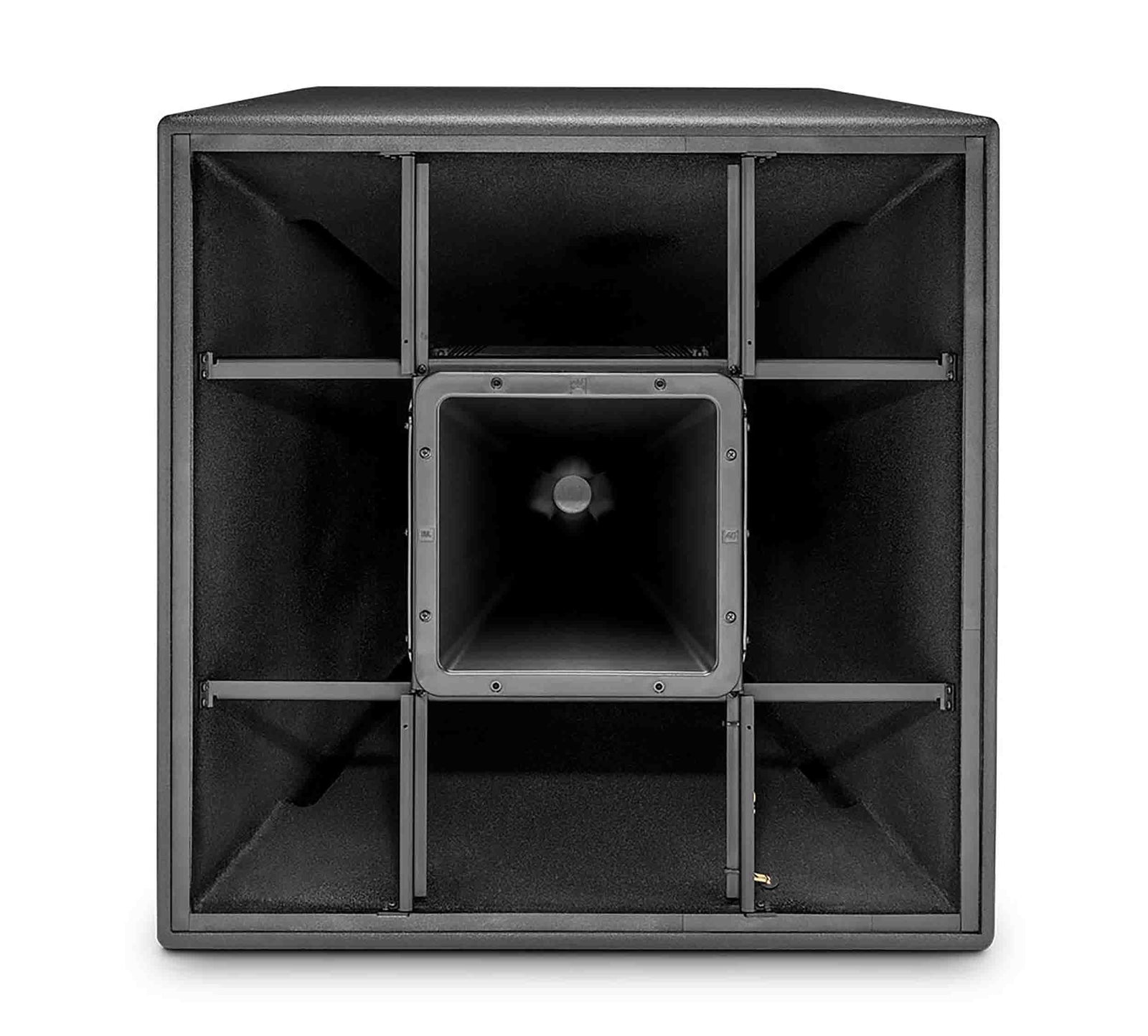

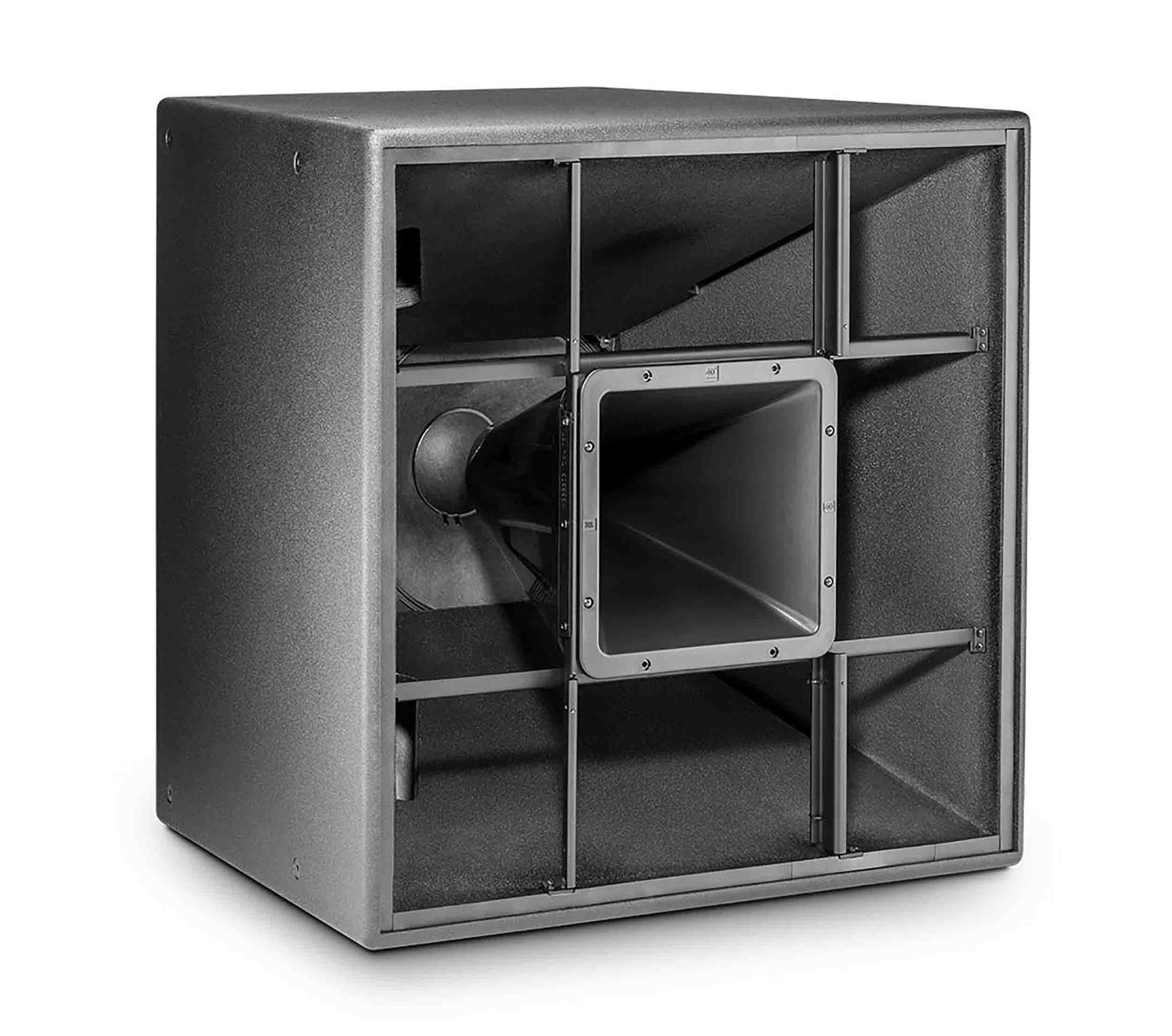

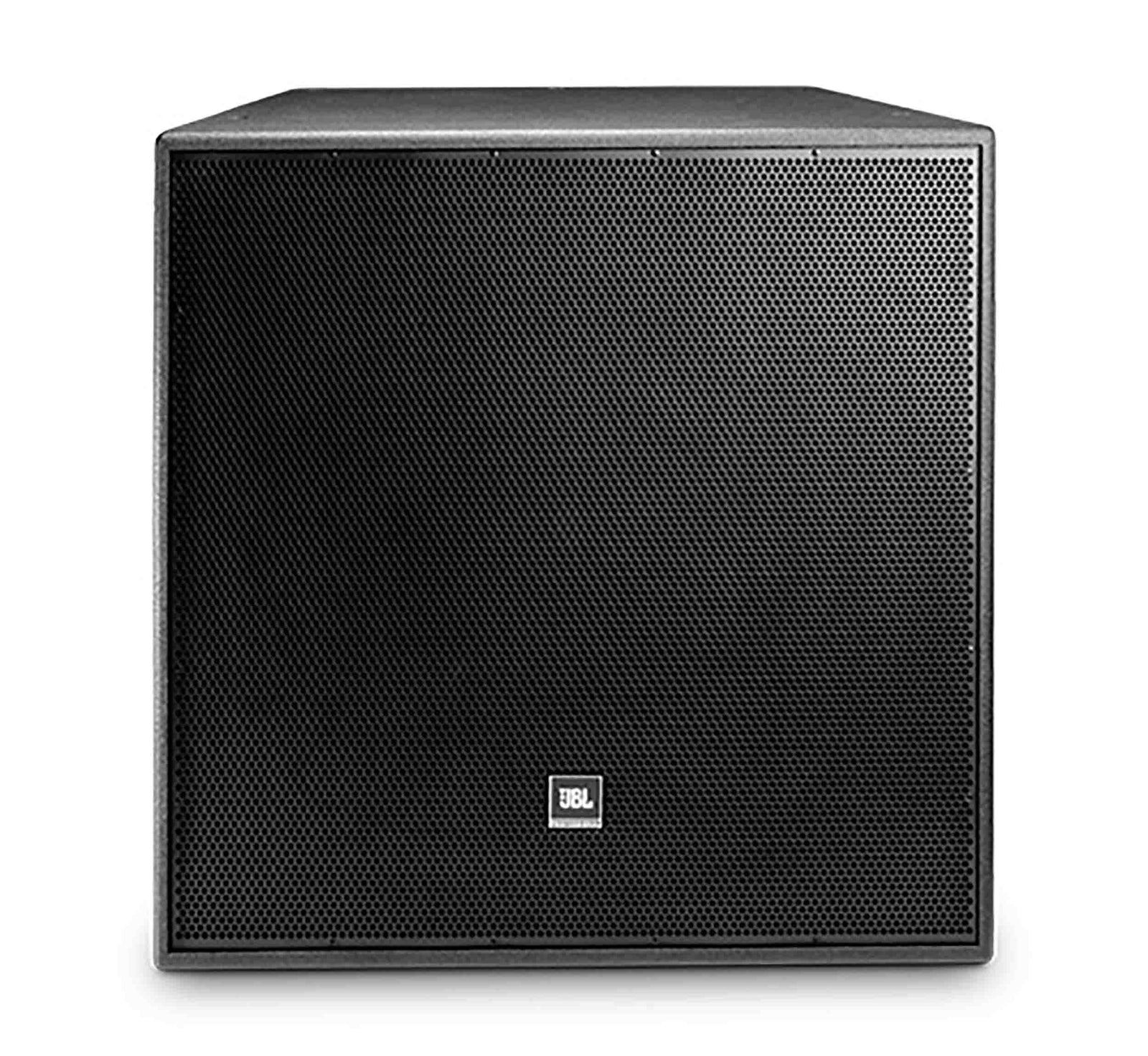

JBL PD564, 15 Inch Horn Loaded Full Range Loudspeaker System

The JBL PD564 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD564 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.

Product Specification:

Frequency Range (-10dB): 50Hz to 20kHz

Frequency Response (±3 dB): 90Hz to 17kHz

Coverage Pattern: 60° x 40°

Directivity Factor (Q): 20

Directivity Index (DI): 13 dB

Crossover Modes: Bi-amp/Passive switchable

Passive Crossover: 1.2 kHz

Transducer Power Ratings (AES): LF: 450W 2hrs, 300W 100hrs HF: 75W, 2hrs, 50W 100hrs

System Power Rating: Passive mode: 500W 2hrs, 300W 100hrs (IEC)

Maximum SPL (1m): Bi-amp: LF: 133 cont (139 peak) HF: 132 cont (138 peak) Passive: 132 cont (138 peak)

System Sensitivity (1w @ 1m): Passive Mode: 105 dB SPL

Nominal Impedance: 8 ohms

LF Driver: 2031H 380 mm (15 in) driver with 75 mm (3 in) voice coil

Sensitivity (1W, 1m within operational band): 106dB (avg 300Hz-1.3kHz)

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity: 114 dB (avg 1.5k-5kHz)

Waveguide: HF: PT-H64HF-1 300 x 300 mm (12 x 12 in)

Enclosure: Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.

Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware.

Finish: Black DuraFlex finish

Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.

Dimensions (H x W x D in vertical orientation): 782 mm x 783 mm x 670 mm

30.8 in x 30.8 in x 26.4 in"

Weight: 69.0 kg (152 lb)
