Description

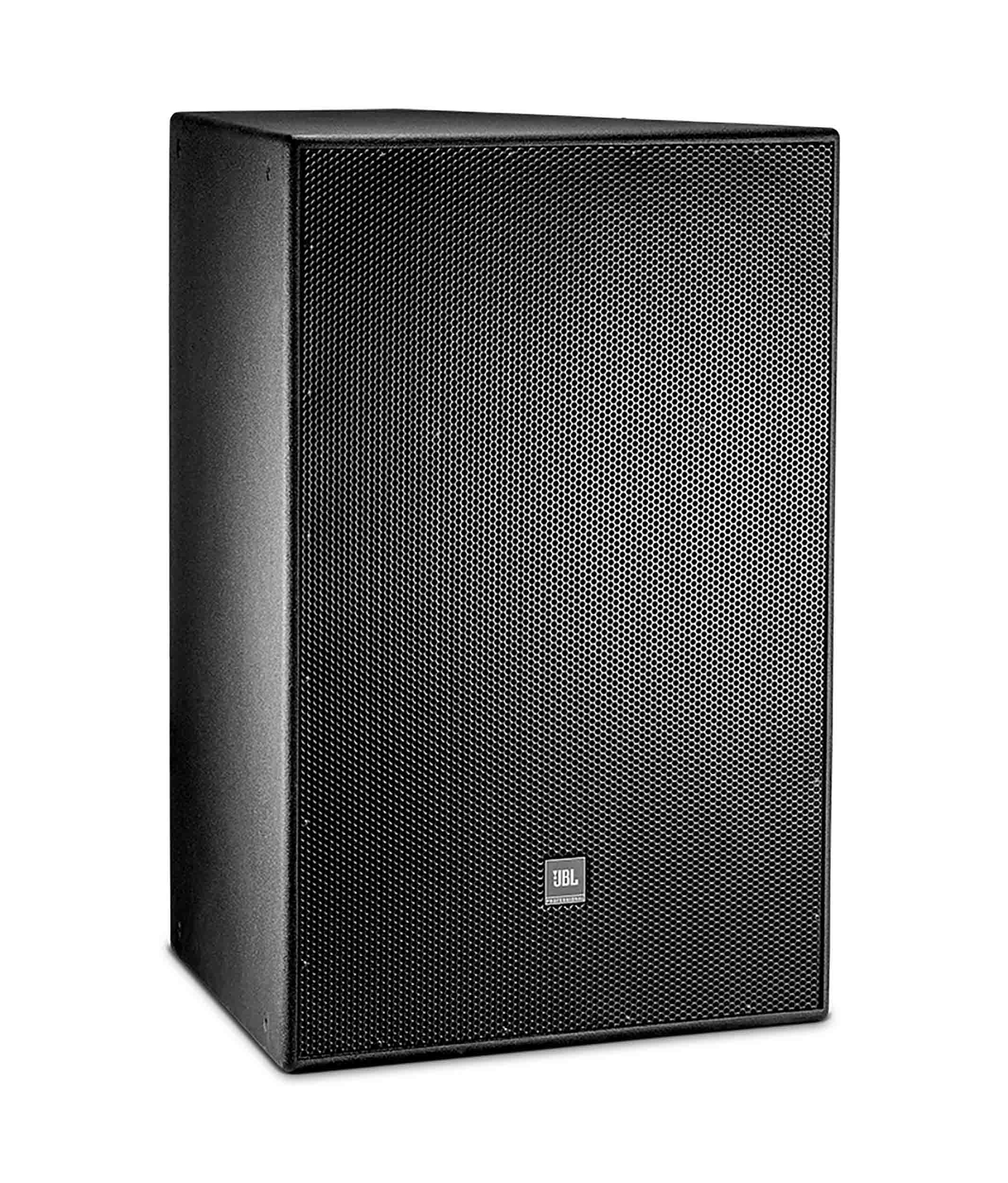

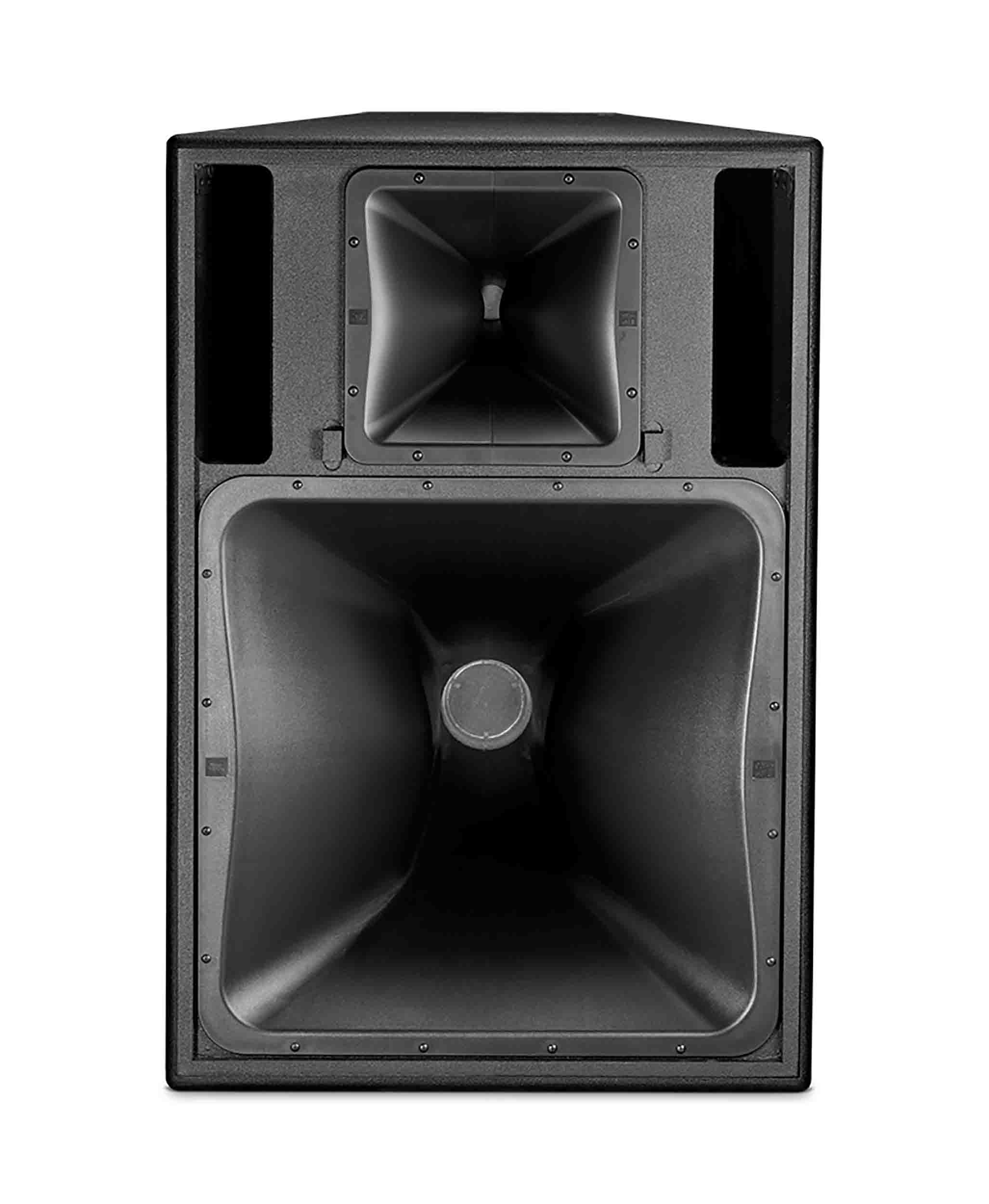

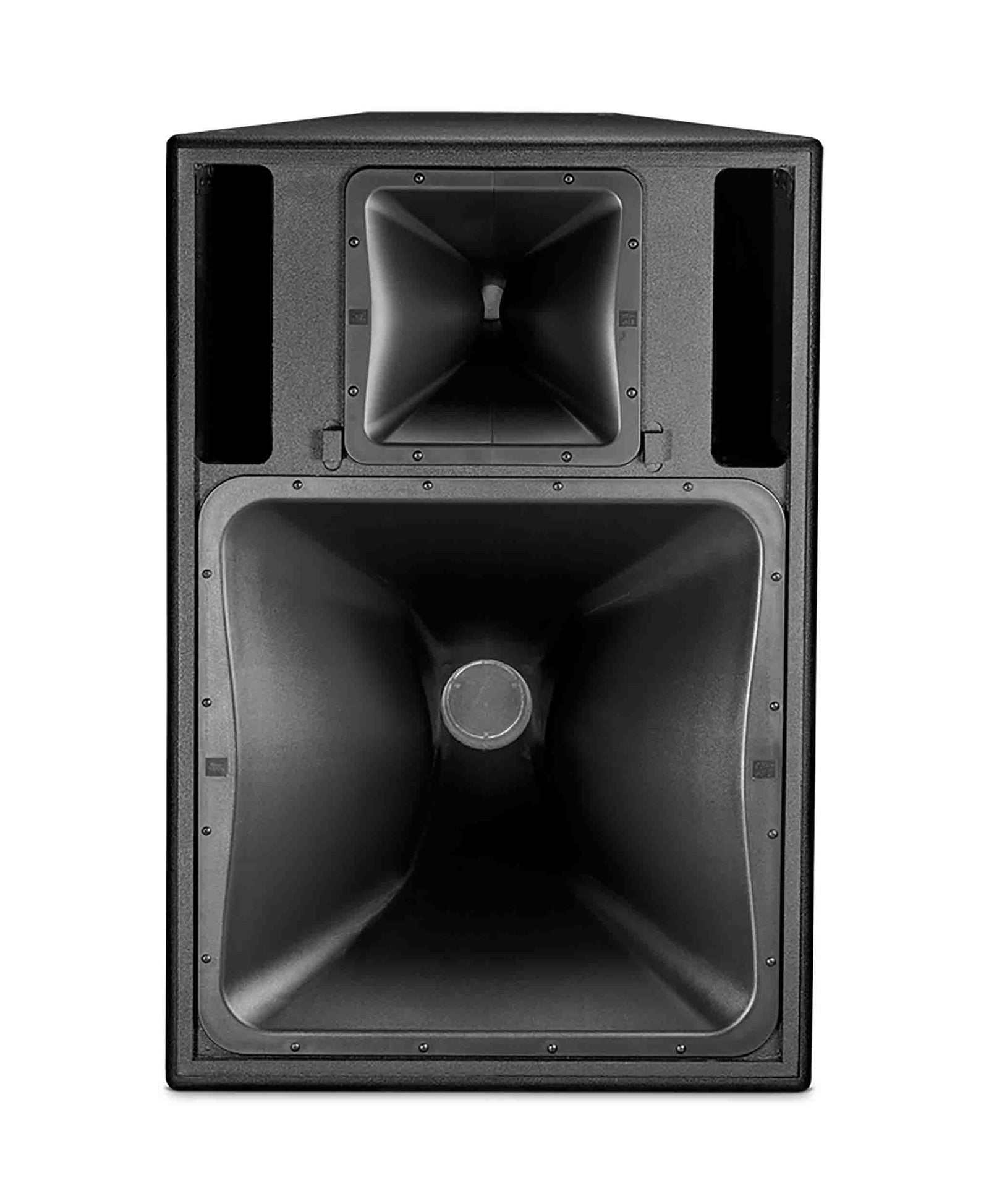

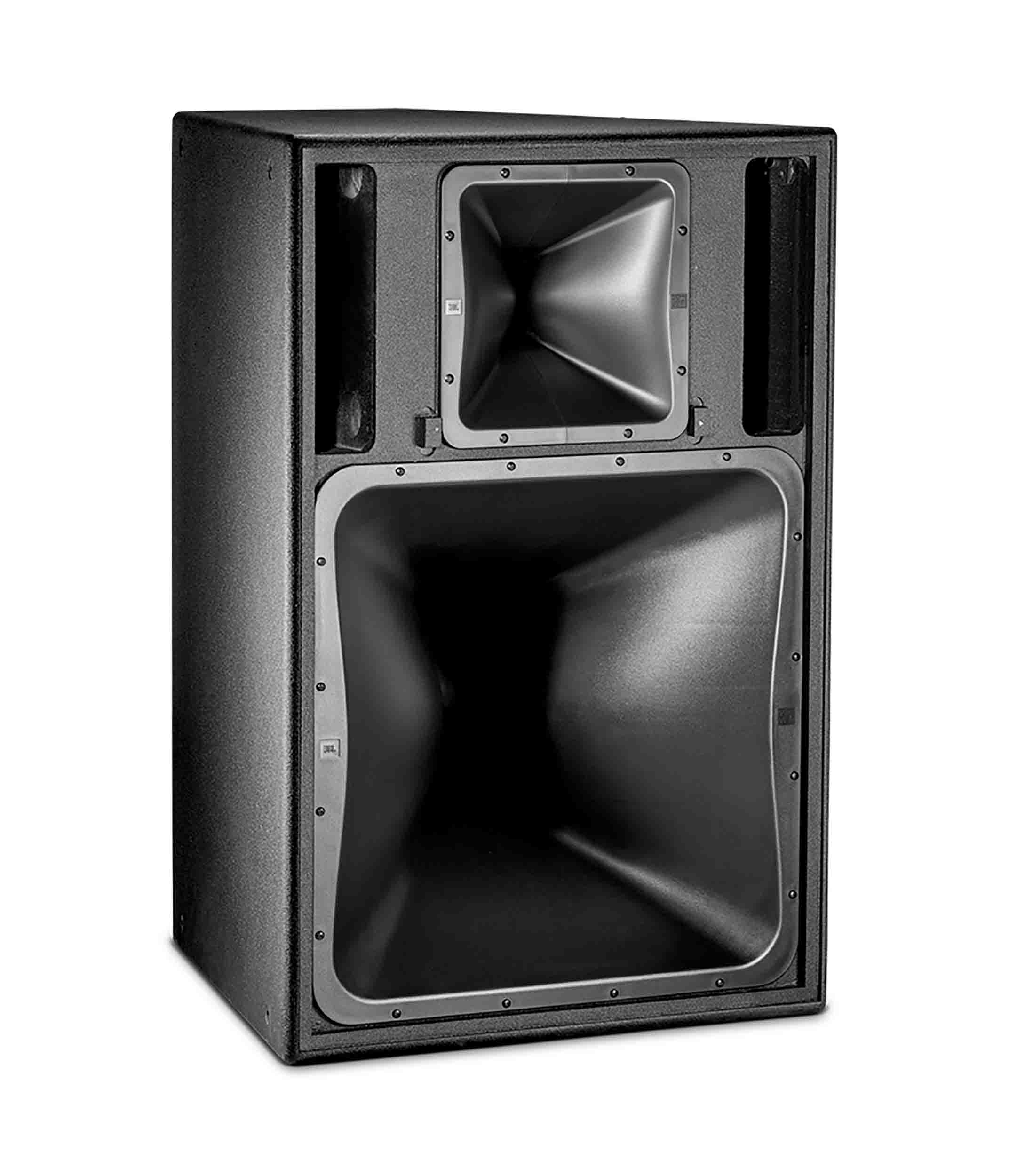

The JBL PD6322/43 Passive/Tri-Amp Three-Way Full-Range Loudspeaker is a versatile, high-output speaker delivering clear and intelligible high-frequency projection, an extended low-frequency response, and low distortion at even the highest drive levels. The loudspeaker is well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The PD6322/43 is comprised of two JBL 2206H 12" Vented Gap Cooled (VGC) low-frequency transducers with 4" voice coils, a CMCD-82H 8" cone midrange compression driver with a 3" voice coil, and a 2432H, 1.5" exit compression driver with 3" voice coil. The midrange compression driver consists of a driver/phasing plug assembly providing high output with low distortion. The two PT Progressive Transition waveguides provide 40x30° of coverage and both are rotatable for deploying the loudspeaker system in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap, while a well-controlled off-axis response enhances arrayability. The PD6322/43 will perform as either a tri-amp or bi-amp (passive mid-high) cabinet, at the flick of a switch.
Product Specification:
Frequency Range (-10dB): 41 Hz to 17 kHz
Frequency Response (±3 dB): 49 Hz to 15 kHz
Coverage Pattern: /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
Crossover Modes: Tri-amp / Bi-amp (passive mid-high) switchable
Passive Crossover: 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
System Power Rating: LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
System Sensitivity (1w @ 1m): Passive Mode: 111 dB-SPL (mid/high section only)
LF Driver: 2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil
HF Driver: 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Enclosure: Trapezoidal with 12.5 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood.
Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware.
Finish: Black DuraFlex finish

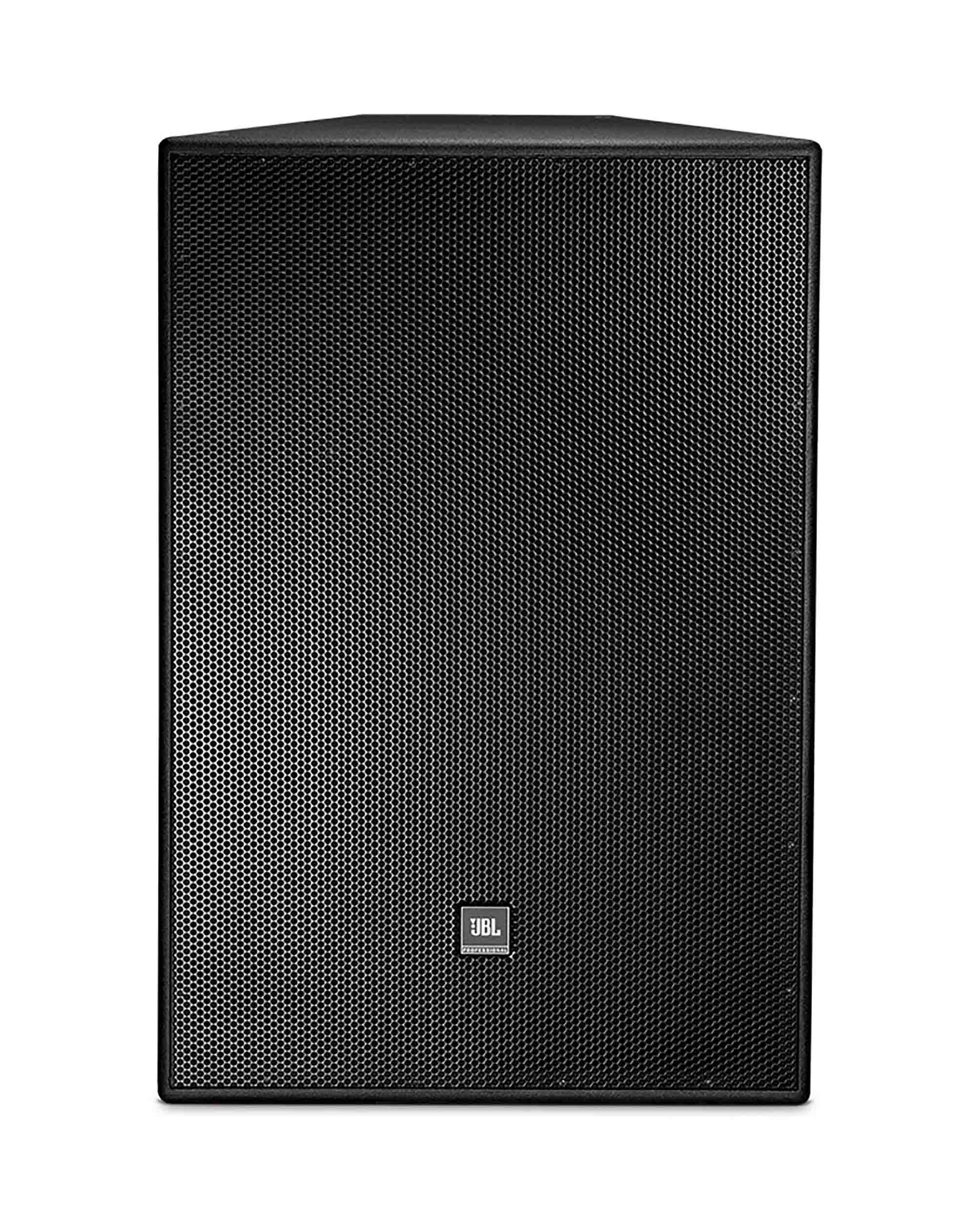

Grille: Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing
Environmental: Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation): 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Net Weight (each): 87.3 kg (192 lb)
Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
Nominal Impedance: 4 ohms (2 x 8 ohms, internally wired in parallel)
Nominal LF Driver Impedance: 4 ohms (2 x 8 ohms, internally wired in parallel)
Nominal MF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
