Description

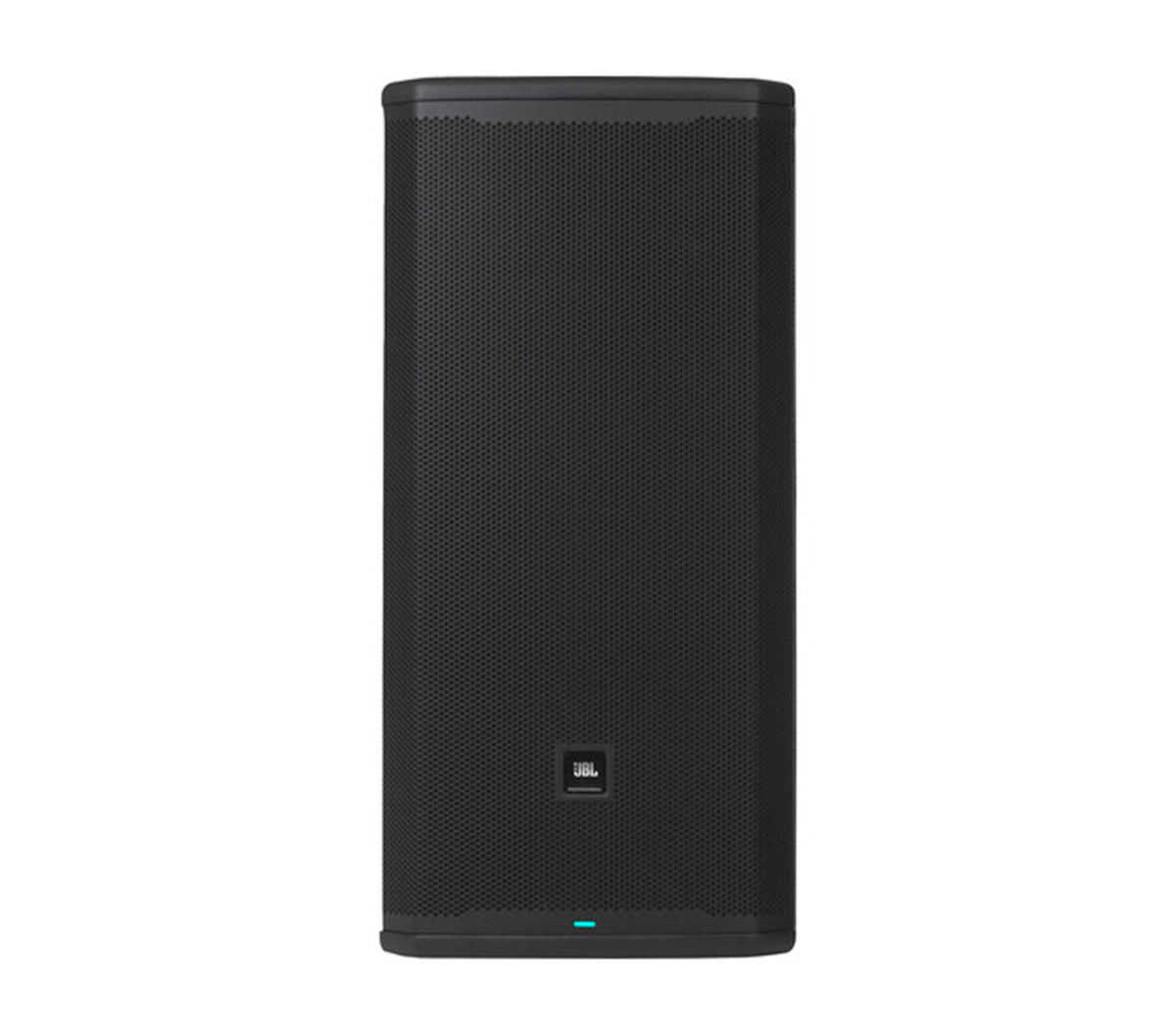

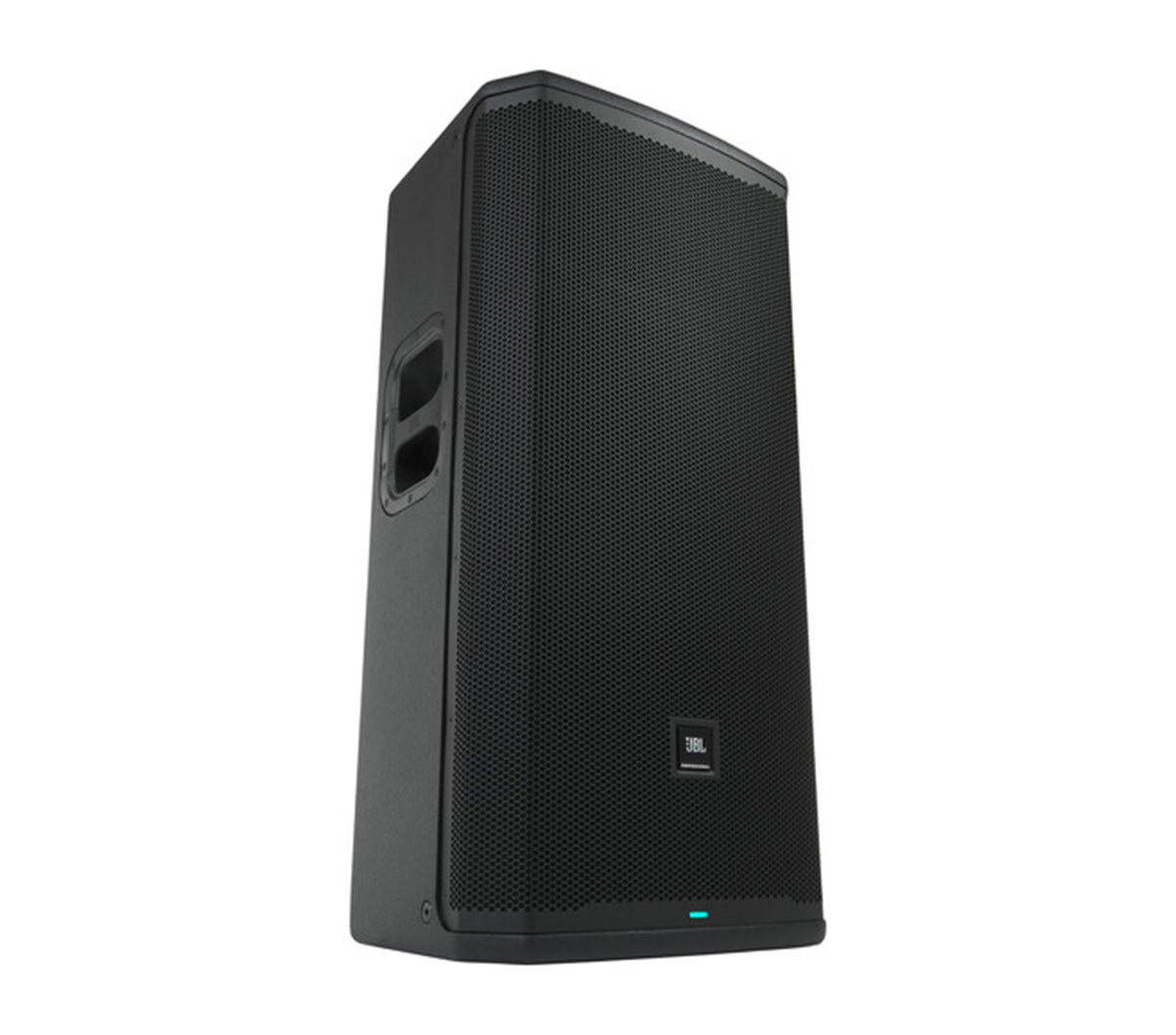

The JBL PRX935 is a professional three-way powered PA loudspeaker designed for main PA applications requiring powerful full-range sound with exceptional midrange performance and vocal clarity. It combines a 15-inch ferrite magnet woofer, 6-inch ferrite magnet midrange transducer, and patented JBL 2408H-2 1.5-inch poly-annular diaphragm compression driver to deliver detailed, room-filling sound across a wide frequency range.
A 2000W peak, 1000W continuous Class-D amplifier drives the three-way system to produce a 46 Hz to 18 kHz frequency response and 136.1 dB maximum peak SPL. Updated JBL Image Control Waveguides provide controlled 90° × 50° coverage, while the FEA-flared port design helps reduce air noise and distortion. The integrated DSP suite includes Automatic Feedback Suppression, system limiting, parametric EQ, user presets, and up to 180 ms of speaker delay.
The PRX935 provides complete wireless DSP control through Bluetooth and the JBL Pro Connect app for iOS and Android devices. Designed for bands, DJs, clubs, schools, churches, corporate A/V, and event venues, it features an 18 mm birch cabinet with optimized bracing, dual integrated side handles, a 36 mm pole socket, eight M10 suspension points, quiet fanless operation, and ultralow system latency below 1 ms.
Product Specifications:
Product Type: Powered PA Loudspeaker
System Type: Three-Way Active Loudspeaker
Application: Main PA / Full-Range Sound Reinforcement
LF Driver: 15-Inch Ferrite Magnet Woofer
Midrange Driver: 6-Inch Ferrite Magnet Transducer
HF Driver: 1.5-Inch JBL 2408H-2 Compression Driver
HF Diaphragm: Poly-Annular
HF Magnet: Neodymium
Amplifier Type: Class-D
Power Rating: 1000W Continuous / 2000W Peak
Frequency Response: 46 Hz–18 kHz (±3 dB)
Maximum SPL: 136.1 dB Peak
Coverage Pattern: 90° × 50°
Waveguide: JBL Image Control Waveguide
Port Design: FEA-Flared Port
DSP: Comprehensive Onboard DSP
DriveRack Technology: Integrated
Feedback Suppression: Automatic Feedback Suppression
System Limiter: Yes
Speaker Delay: Up to 180 ms
Delay Resolution: 100-Microsecond Intervals
Parametric EQ: Yes
User Presets: Yes
Bluetooth Control: Yes
Control App: JBL Pro Connect
Mobile App Compatibility: iOS & Android
App Speaker Control: Up to 10 JBL Pro Connect-Enabled Systems
Display: Color LCD
System Latency: <1 ms
Pole Mount: Single 36 mm Pole-Mount Socket
Suspension Points: 8 × M10
Cabinet Material: Birch
Cabinet Thickness: 18 mm (0.7")
Cabinet Bracing: Optimized Internal Bracing

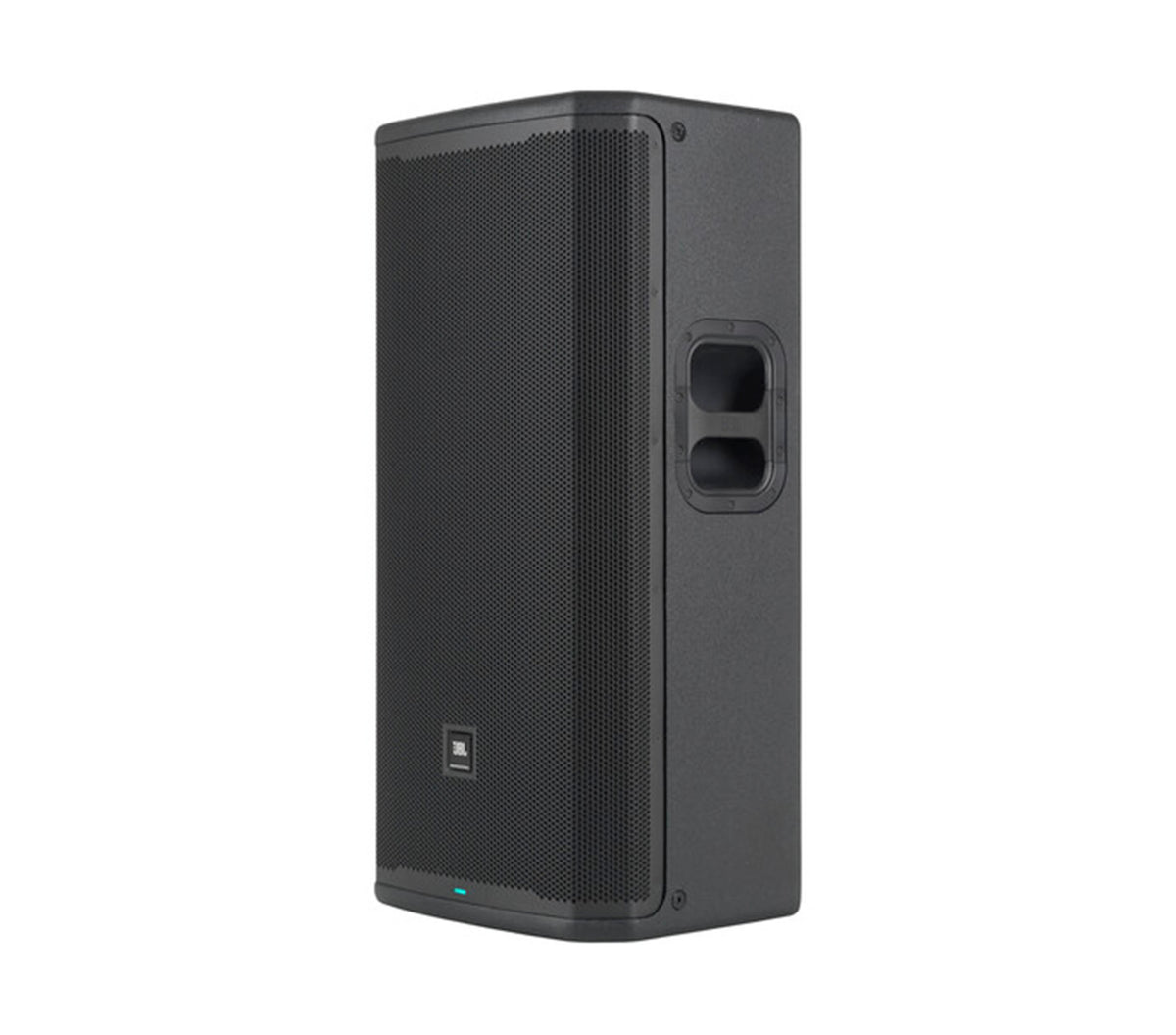

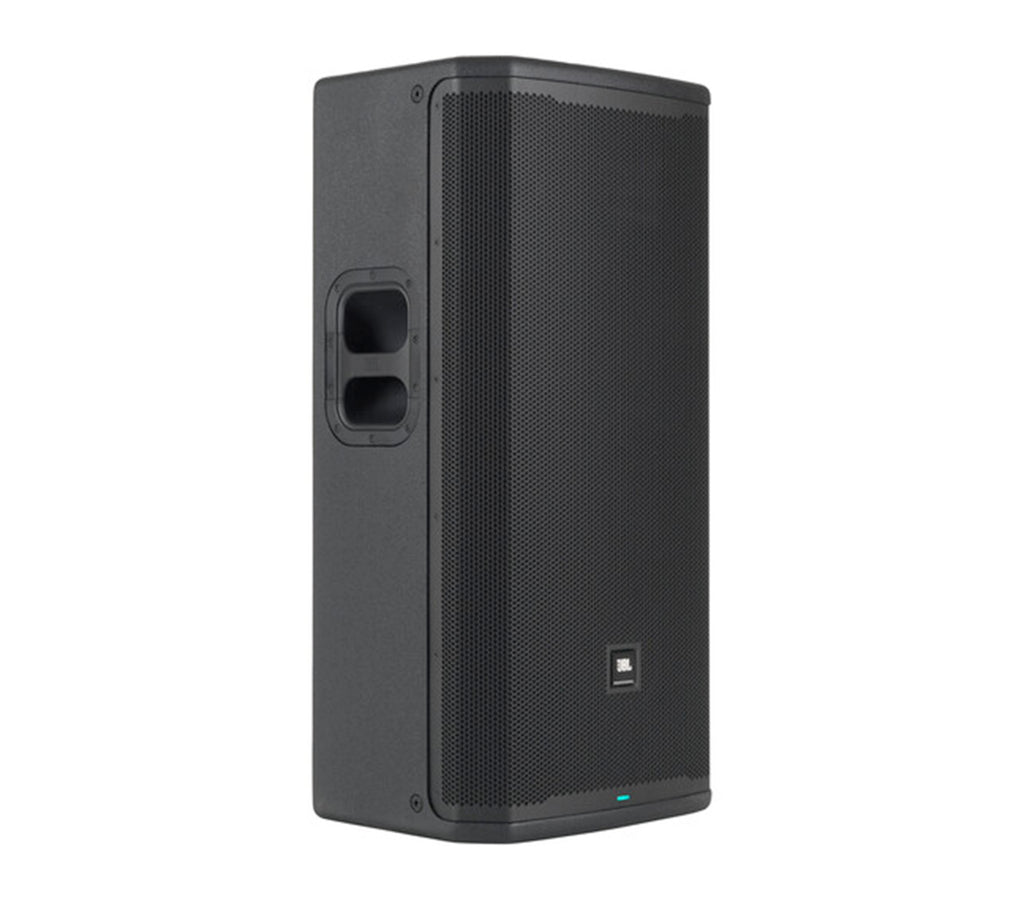

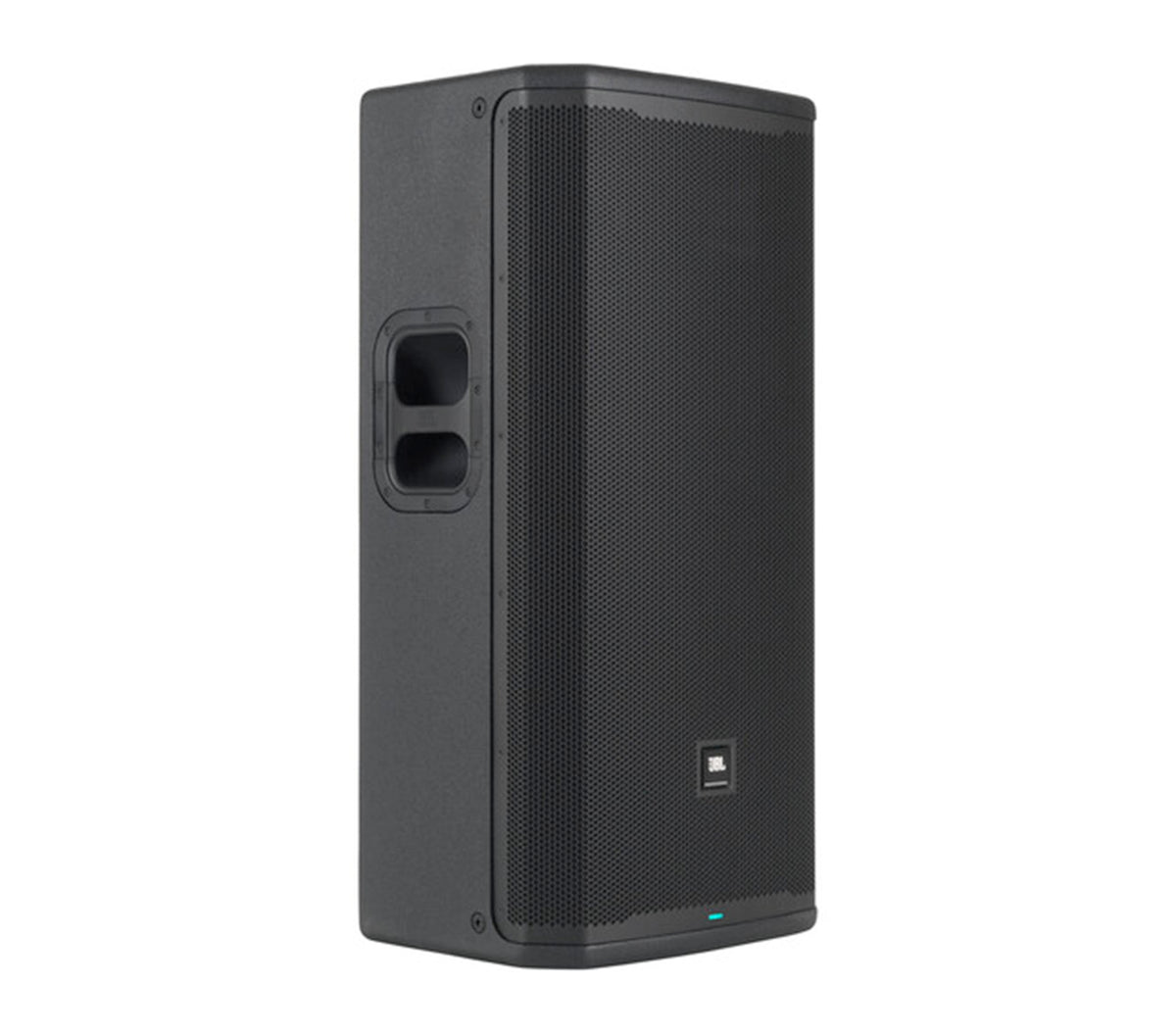

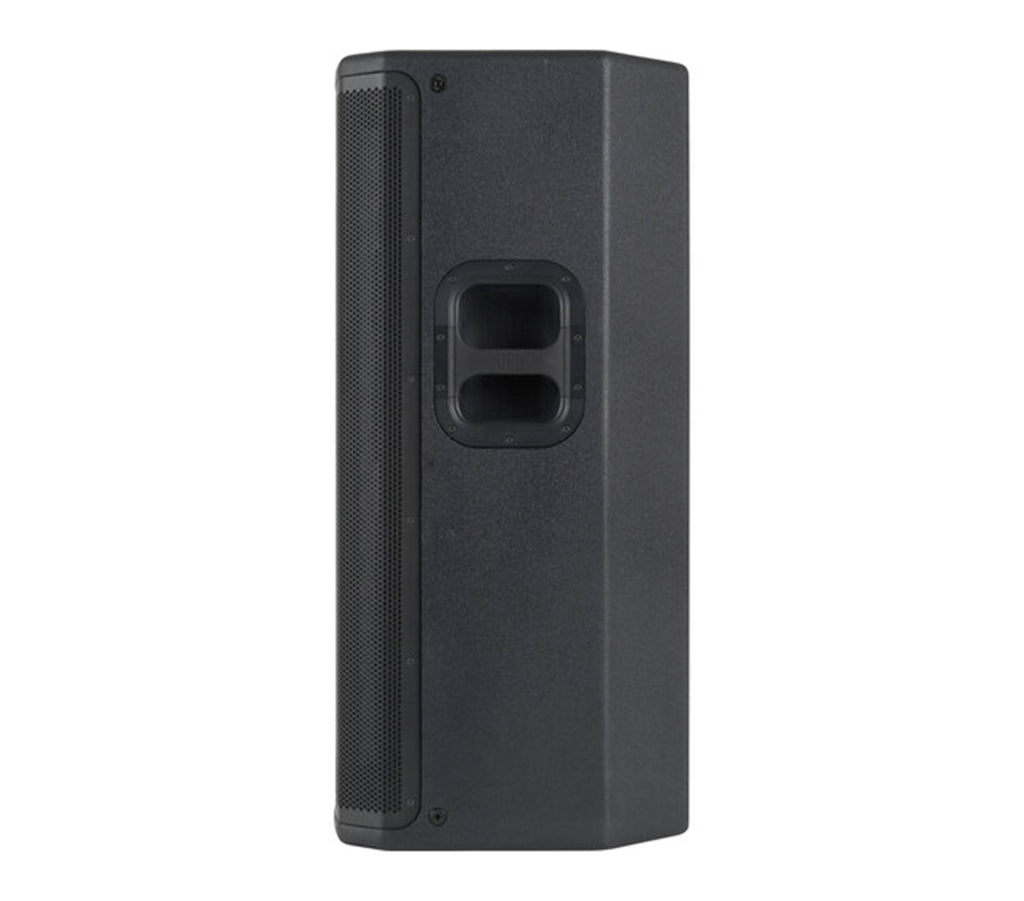

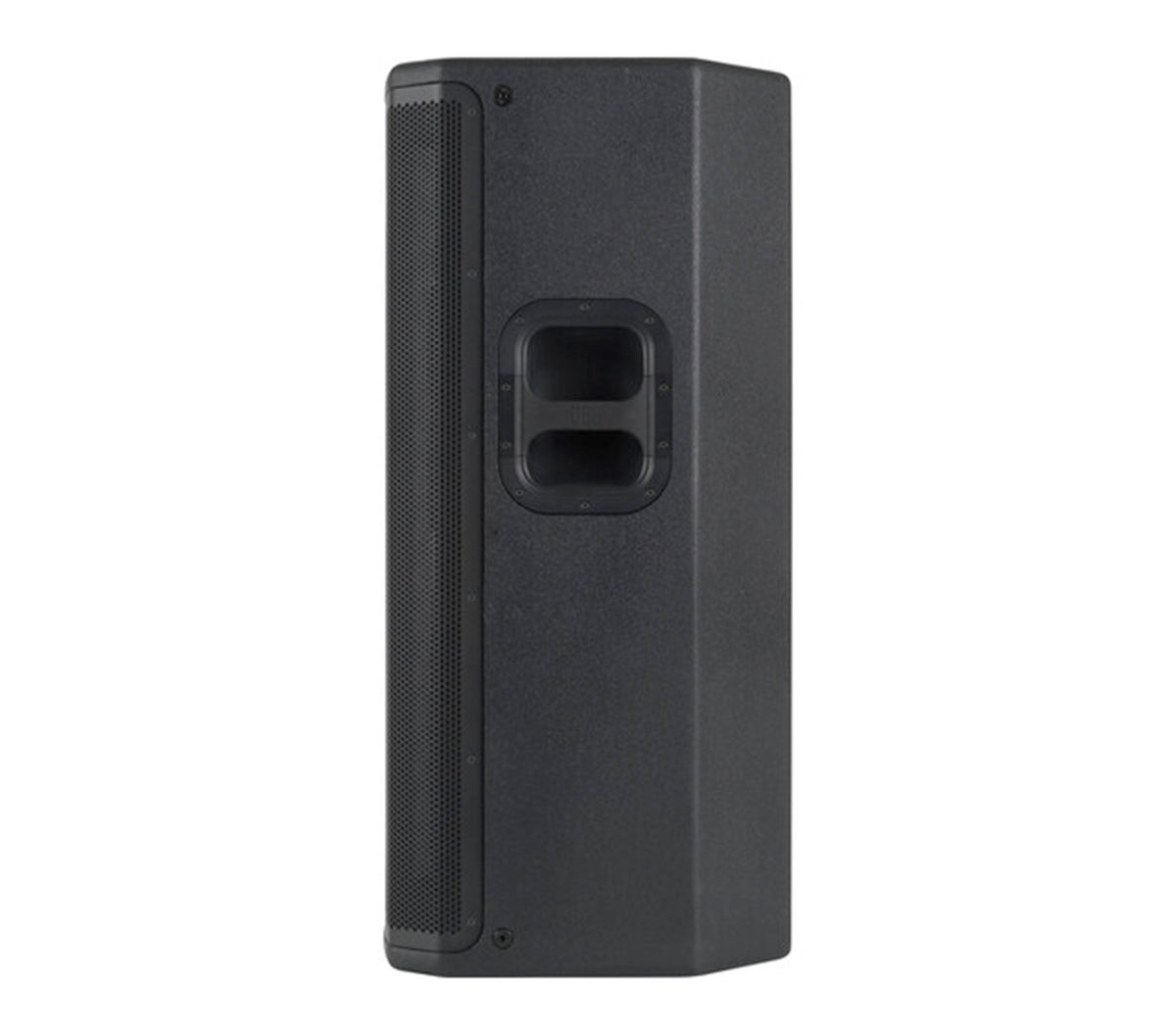

Handles: 2 × Integrated Side Handles
Cooling: Fanless
Operating Style: Portable / Installed
Compatible Subwoofers: JBL PRX915XLF / PRX918XLF
Product Weight: 82.2 lbs
Product Dimensions: 41.7" H × 17.6" W × 17.1" L
