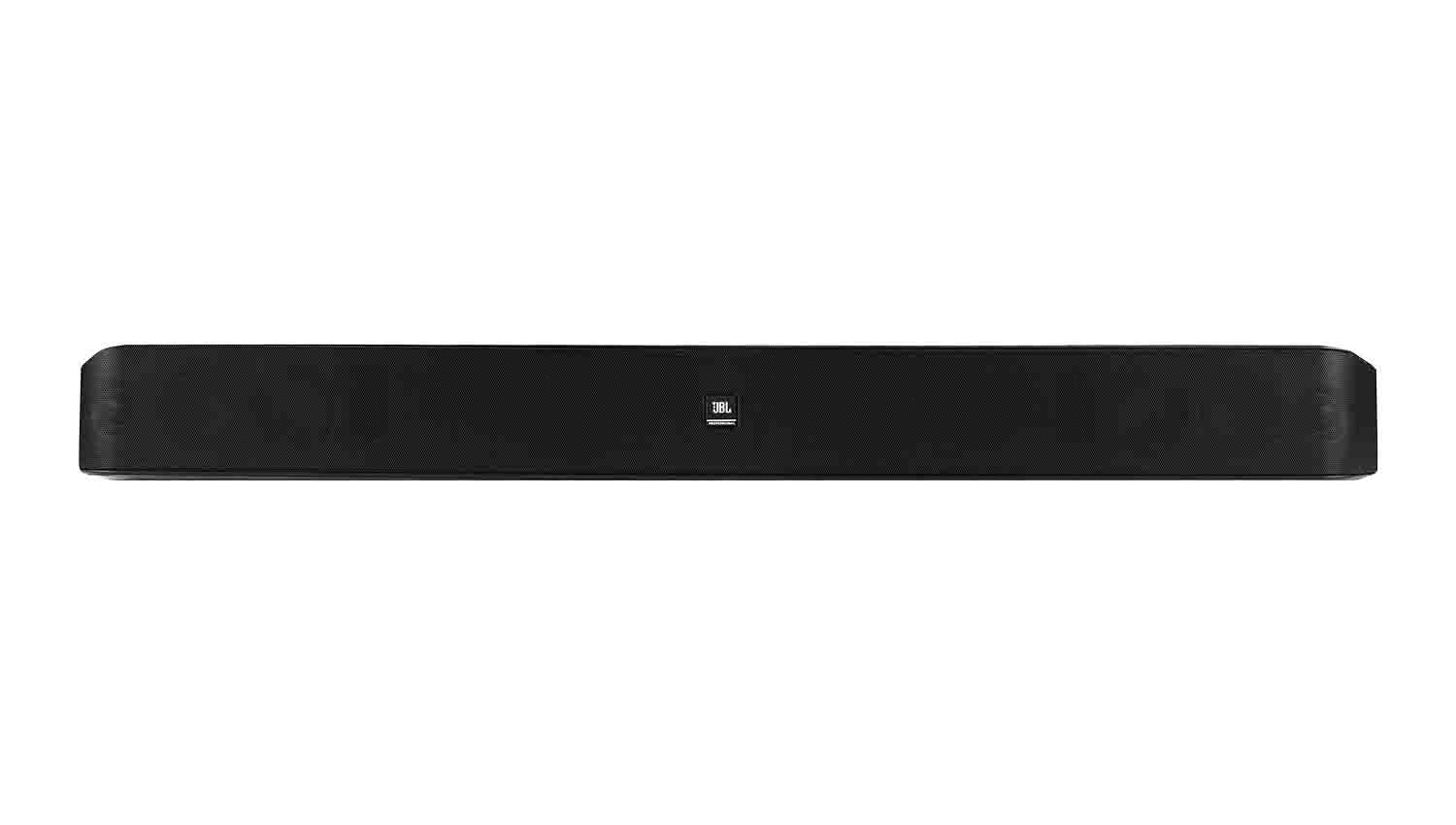

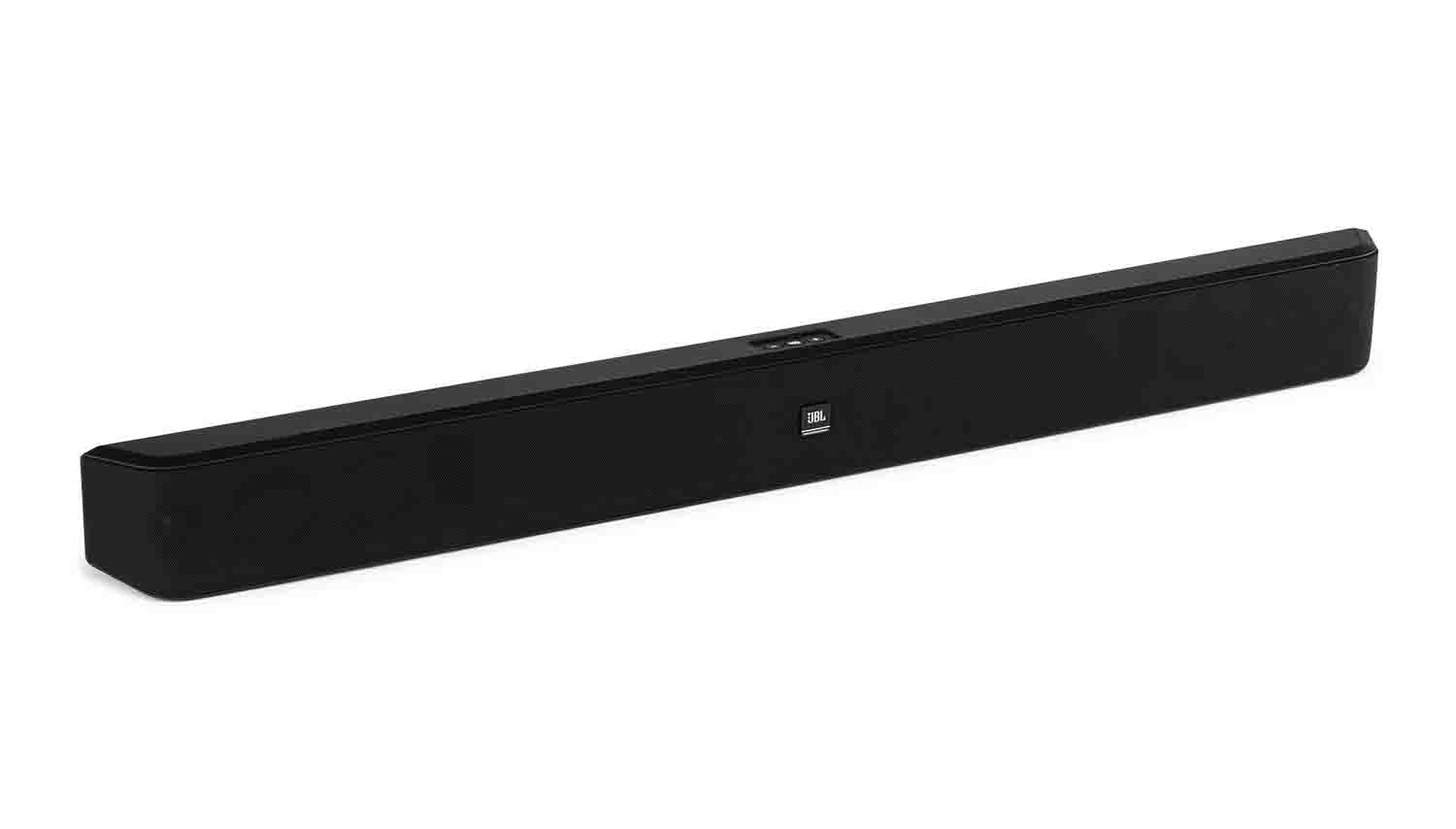

JBL PSB-1, Pro 2.0 Channel Commercial-Grade Soundbar

The JBL PSB-1 is a Pro 2.0 Channel Commercial-Grade Soundbar. The JBL Pro SoundBar PSB-1 is a cost-effective, commercial-grade active soundbar designed specifically for use in applications such as hotel guestrooms and cruise ship staterooms. With an optimized feature set targeting the unique requirements of these applications, the Pro SoundBar reduces the cost and complexity found in consumer-grade soundbars while providing excellent sound quality, security, and reliability.

The all-in-one design of the Pro SoundBar provides full-range sound without the need for a separate subwoofer, providing excellent quality audio while minimizing sound transfer to neighboring rooms. For further volume management, the Pro SoundBar offers a 4-position volume limiting switch to control the maximum volume output of the soundbar. The Pro SoundBar supports both fixed and variable source volume for maximum TV compatibility. Controls for the volume switch and source volume selection can be covered by a lockout plate to prevent tampering by anyone other than the support staff.

Product Specifications:

Frequency Range (-10dB): 42Hz – 20kHz

Frequency Response (±3 dB): 56Hz – 20kHz

Maximum Peak SPL(0dBV): 90 dB-SPL at 1m (0 dBV input; Max Volume setting, one channel)

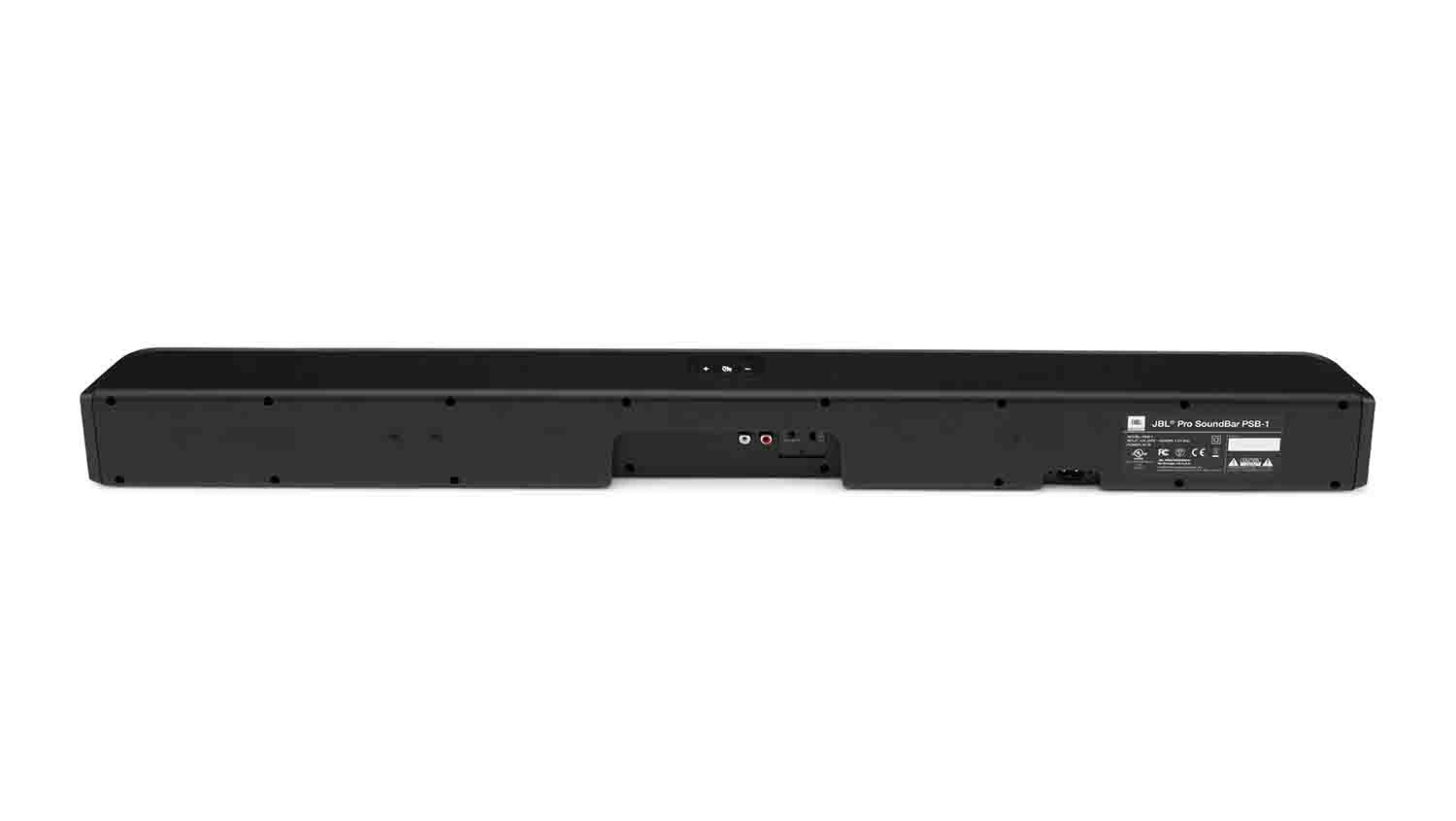

Input Connectors: 2 x RCA (left & right)

Nominal Input Sensitivity: -10 dBV for 85 dB-SPL at 1m (Max Volume setting)

HF Driver Size: 2 x 19 mm (0.75”) Soft Dome Tweeter (one per channel)

LF Driver Size: 4 x 51 mm (2.0”) Low-Frequency Driver (two per channel)

Power Amp: 20W per Channel, Class D

Enclosure Material: Injection-Molded ABS

Enclosure Finish: Black
