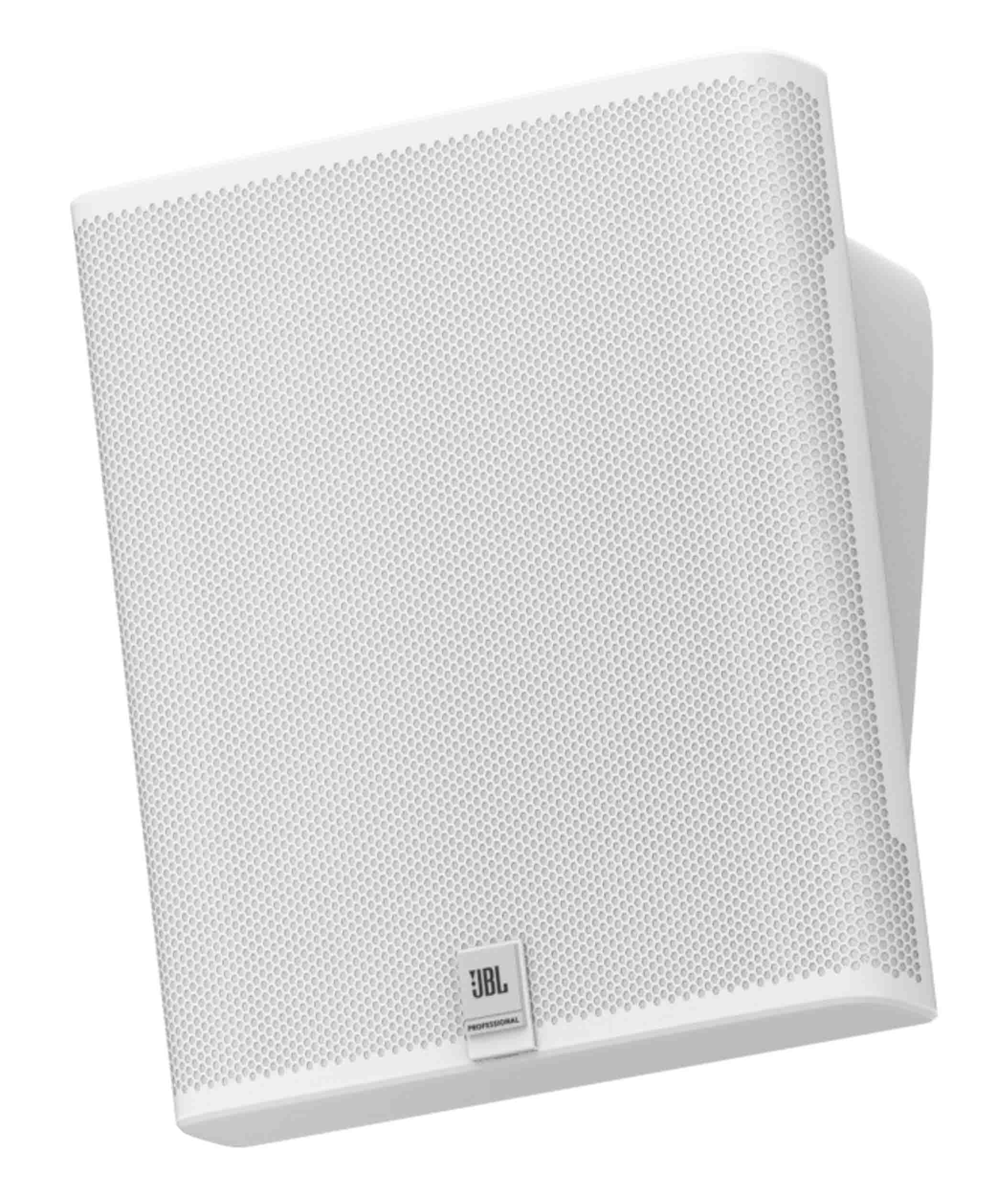

JBL SLP12/T-WH, 160W Low Profile On-Wall Full Range Loudspeaker in White - Pair

The JBL SLP12/T-WH Pair is a sleek, low-profile full-range on-wall loudspeaker system designed to provide superior sound and broad, consistent coverage in discreet installation environments. Each speaker features a 75 mm 3-inch polypropylene full-range driver with a 20 mm voice coil mounted on a Kapton voice coil former. Its 74 Hz to 20 kHz frequency range, 84 dB sensitivity, and 120° x 120° coverage make it well suited for background music, paging, and distributed audio applications. The stylish enclosure complements a wide range of architectural décors, making the pair an ideal choice for high-finish restaurants, hotels, resorts, retail stores, and hospitality venues.

Each SLP12/T-WH provides 40W continuous pink-noise power handling and 80W continuous program power, with a built-in 15W multi-tap transformer for 70V and 100V systems. Transformer taps include 15W, 7.5W, 3.8W, and 1.9W at 70V, plus 15W, 7.5W, and 3.8W at 100V. The speaker also supports direct 8-ohm operation through the 8-ohm tap setting. A 15° down-tilted coverage angle allows the loudspeaker to be mounted flush against a wall while directing sound toward the listening area. The included slide-in wall bracket simplifies installation and provides a clean, low-profile appearance.

The SLP12/T-WH uses a polycarbonate and ABS enclosure with a UL94V-0 flammability rating for dependable installation performance. An included protective rain cover helps shield the terminal compartment in protected outdoor applications, while the compact enclosure measures less than 4 inches deep for ADA-compliant installation requirements. Its elegant design is available in black or white finishes and was recognized with international industrial design awards. The compact form factor, flexible transformer operation, wide coverage, and simple wall-mounting system make the SLP12/T Pair a practical solution where discreet aesthetics and reliable distributed audio performance are important.

Product Specifications:

Product Type: Full-Range Low-Profile On-Wall Loudspeaker Pair

Color Options: Black or White

Quantity: 2 Loudspeakers

Frequency Range: 74 Hz to 20 kHz, -10 dB

Frequency Response: 91 Hz to 18 kHz, ±3 dB

Power Rating: 80W Continuous Program, 40W Continuous Pink Noise, 160W Peak, 20W Continuous Pink Noise 100 Hours, 80W Peak

Sensitivity: 84 dB, 80 Hz to 20 kHz, Half-Space Mounted on Wall

Maximum SPL: 106 dB Peak, 100 dB Continuous at 1m

Coverage Angle: 120° Horizontal x 120° Vertical

Directivity Factor: Q 7.5

Directivity Index: 8.8 dB

Nominal Impedance: 8 Ohms at 8-Ohm Tap Setting

Transformer Taps: 70V: 15W, 7.5W, 3.8W, 1.9W; 100V: 15W, 7.5W, 3.8W

Driver: 75 mm, 3" Full-Range Driver with Polypropylene Cone

Voice Coil: 20 mm, 0.8" Voice Coil on Kapton Voice Coil Former

Mounting Angle: 15° Down-Tilted Coverage for Flush-to-Wall Mounting

Terminals: 4-Pin Euroblock Connector

Wire Capacity: 24 to 14 AWG, 0.25 to 2.5 mm²

Enclosure Material: Polycarbonate and ABS

Flammability Rating: UL94V-0

Mounting System: Included Slide-On Wall-Mount Bracket for Speaker and Wall Sides

Outdoor Protection: Included Protective Rain Cover for Terminal Compartment

ADA Compliance: Less Than 4 Inches Deep

Included Accessories: Wall-Mount Slide-On Bracket, 4-Pin Euroblock Plug, Protective Terminal Cover

Product Weight: 4.2 lbs. per piece

Product Dimensions (W x H x D): 9.8 x 9.1 x 3.9 in. per piece
