Description

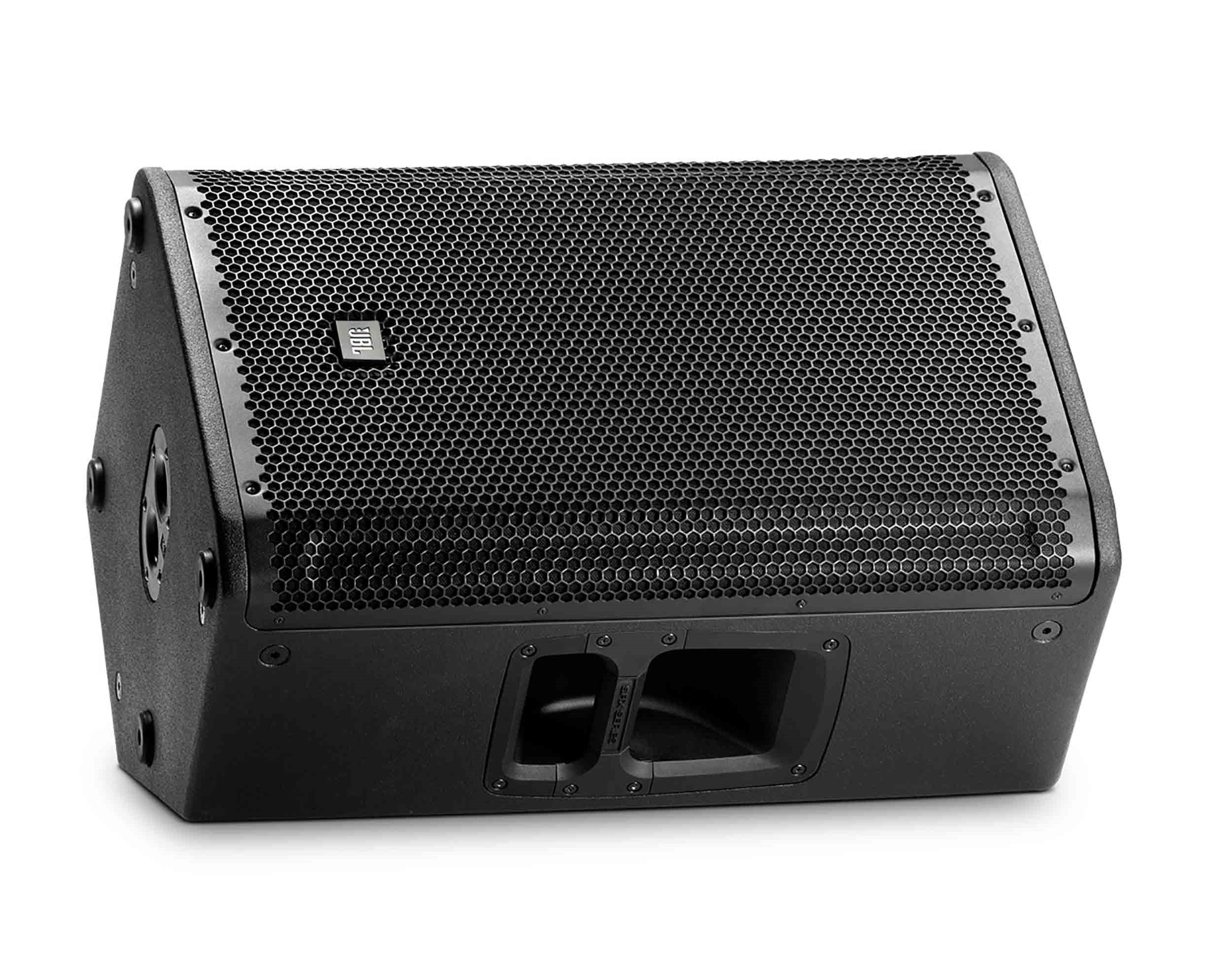

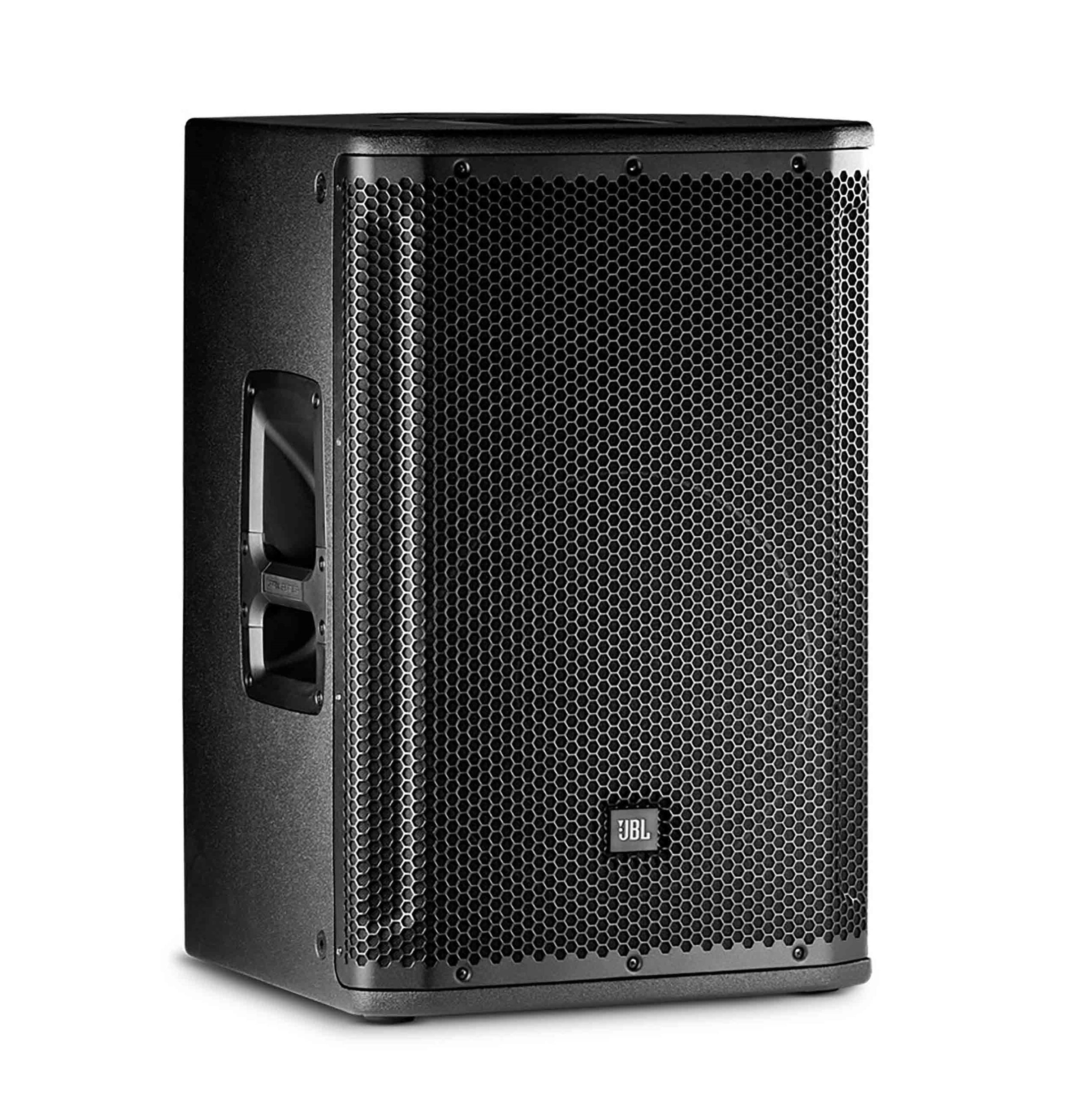

The JBL SRX812 is a two-way full range passive portable speaker with a 12” woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
Purposeful Design

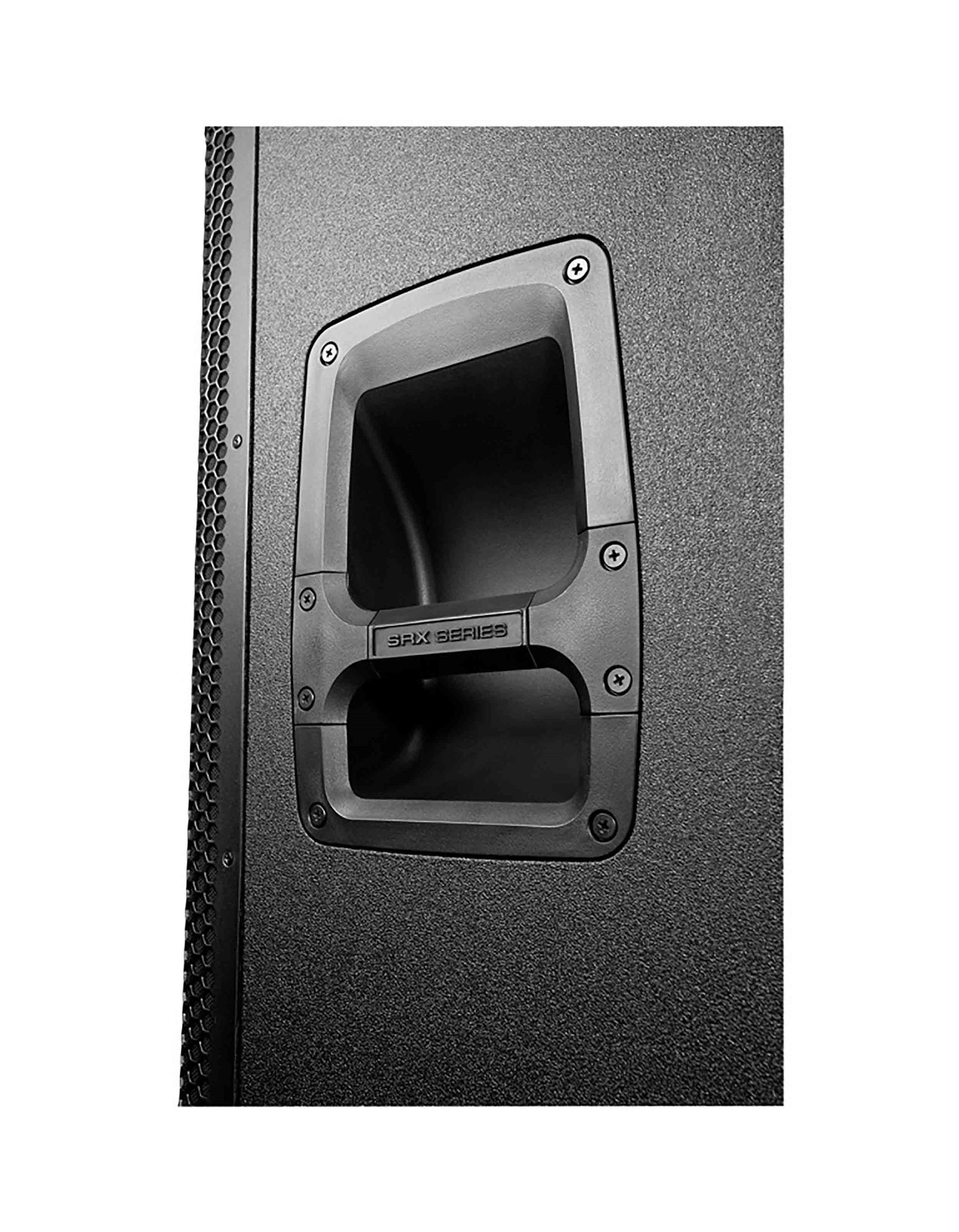

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.
Transducer Technology

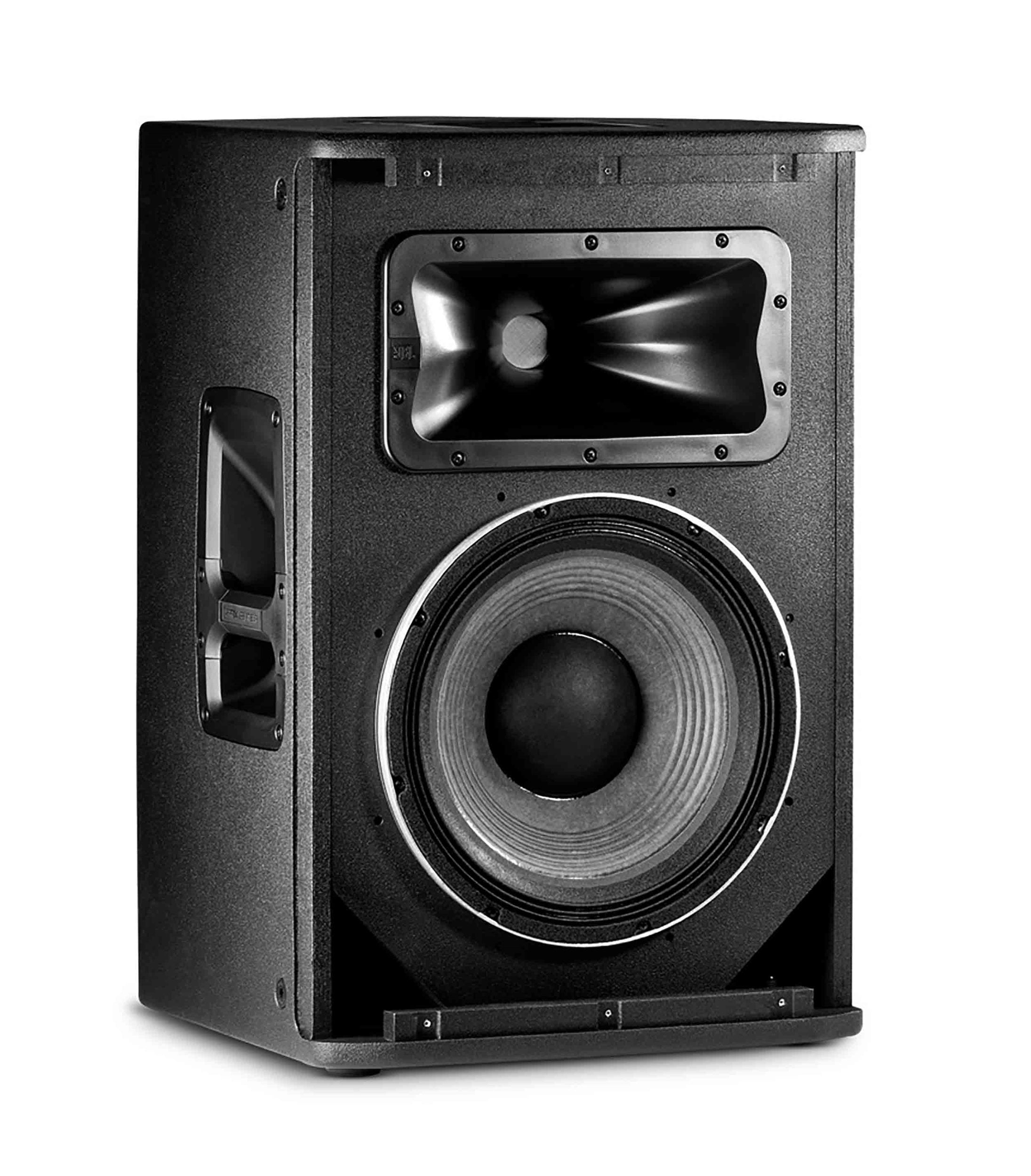

JBL’s patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.
Product Specification:
System Type: Passive 12”, two-way, bass-reflex
Maximum SPL Output: 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB): 41hz - 20khz
Frequency Response (-3 dB): 57hz - 20khz
Sensitivity: 94dB
System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance: 8 Ohm

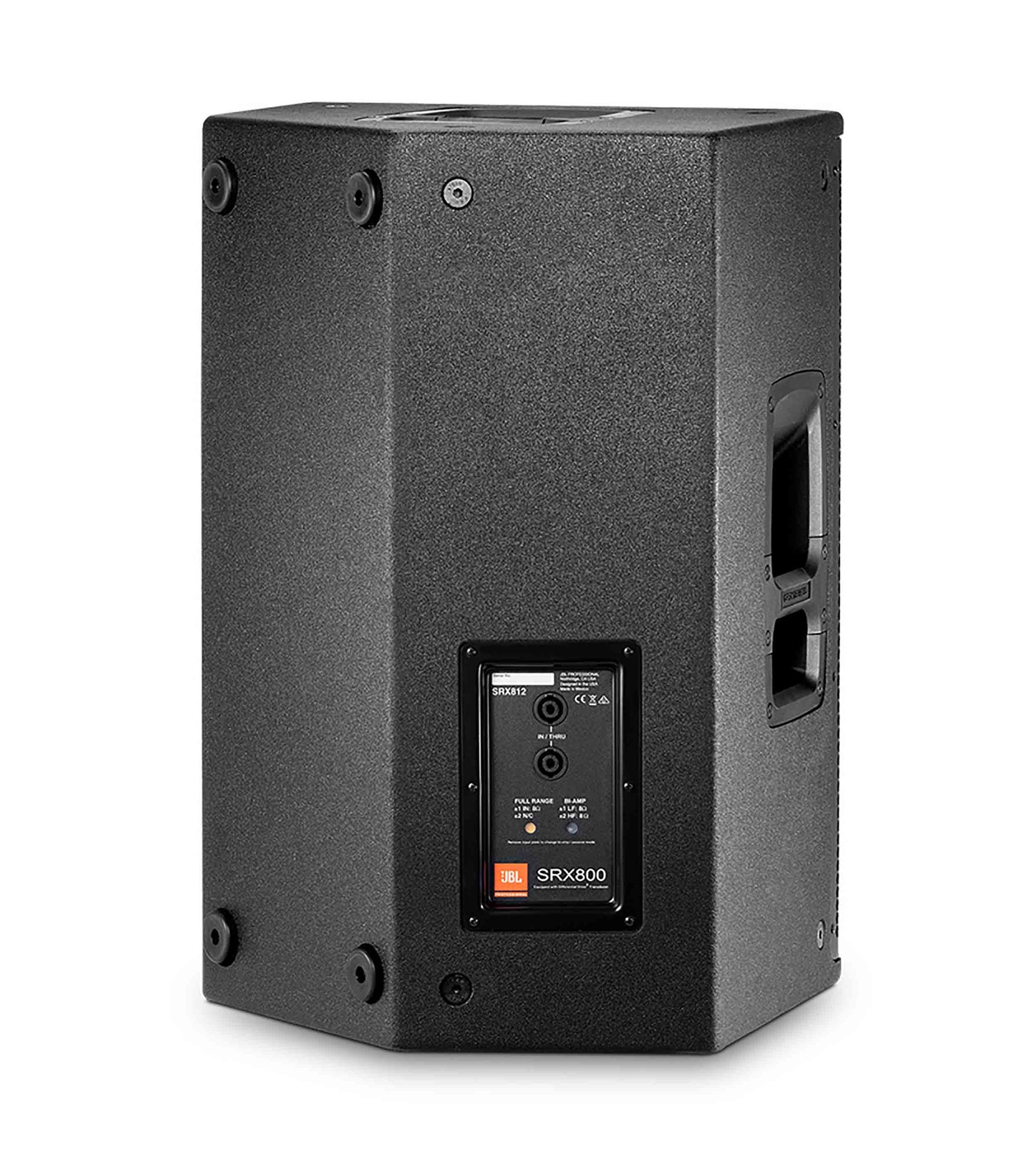

Inputs: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes: Passive/Bi-Amp
LF Driver: 2275H
HF Driver: 2432H
Coverage Pattern: 90 x 50
Crossover Frequency: 1.9khz
Enclosure: 18mm Duraflex coated plywood
Monitor Angle: 50°
Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points
Handles: 3
Finish: Obsidian Duraflex finish
Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D): 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Weight: 55.0 lbs (24.9kg)
