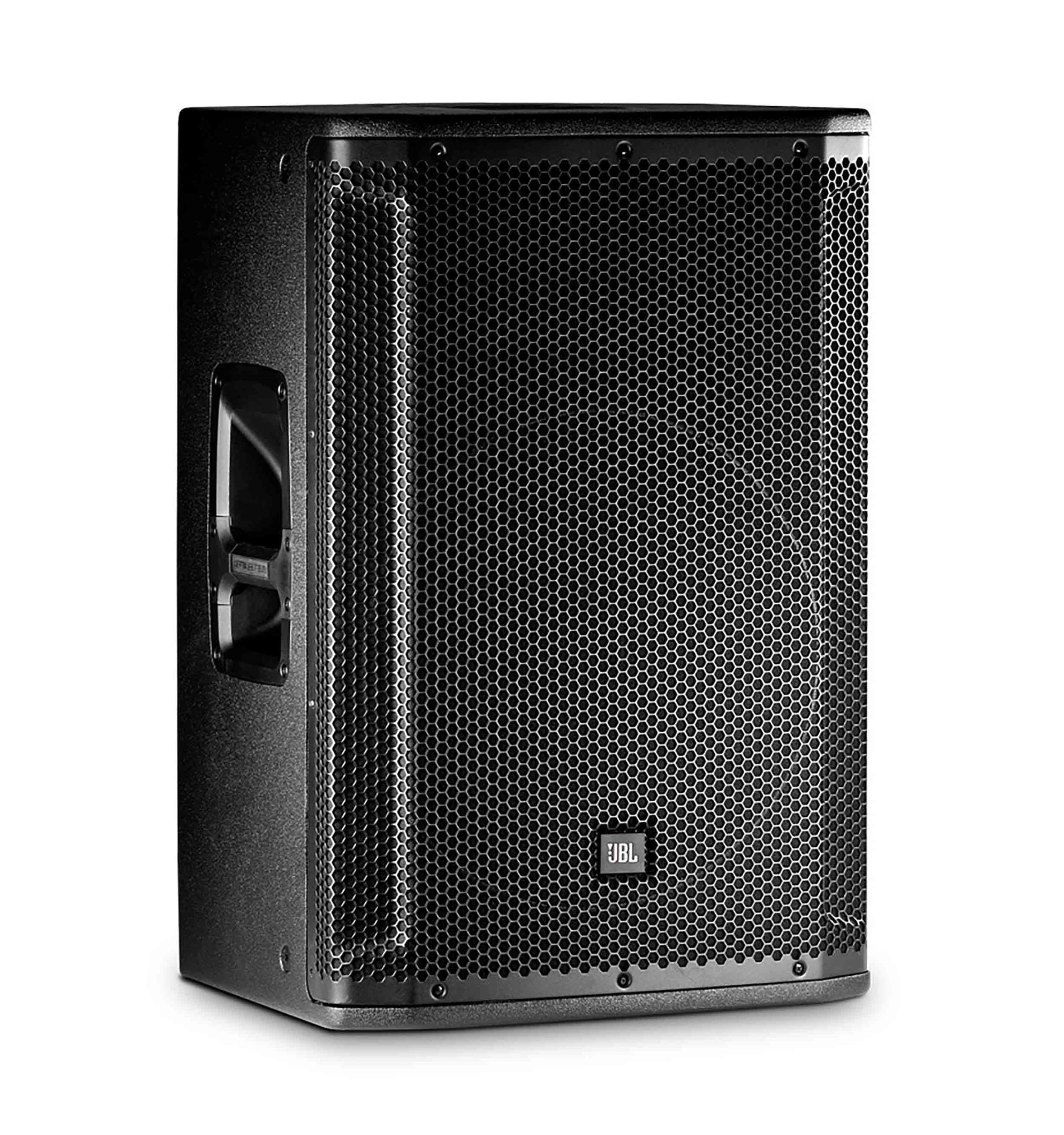

JBL SRX815P, 15 Inch 2-Way Bass Reflex Self Powered System

The JBL SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" two-way, SRX815P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

Purposeful Design

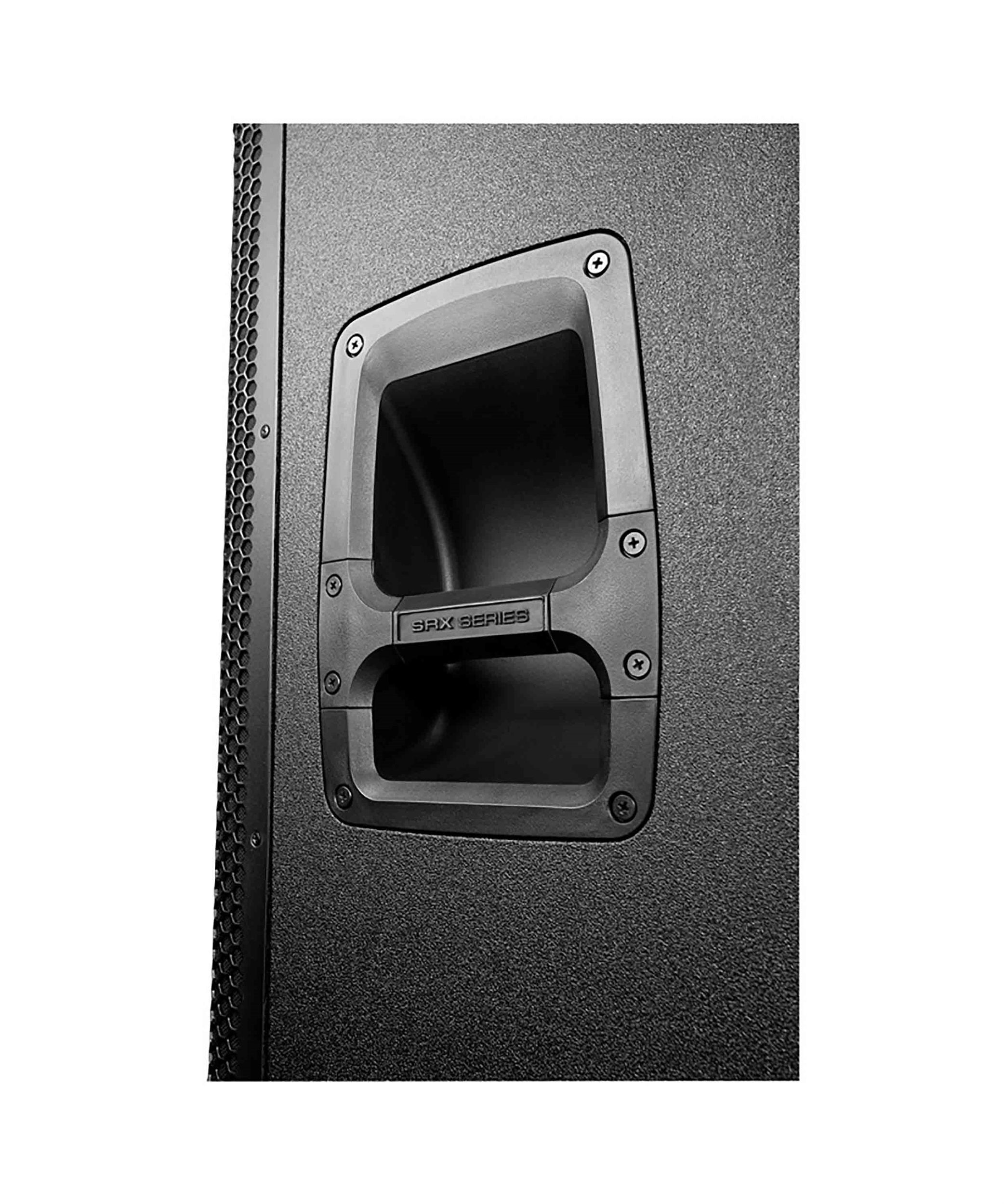

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

Transducer Technology

JBL’s patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Drive core By Crown

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

Hiqnet Network Control

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control iOS app, and standalone applications for iOS and Android.

Product Specification:

System Type: Self powered 15”, three-way, bass-reflex

Maximum SPL (1m): 137 dB

Frequency Range (-10dB): 36 Hz - 21 kHz

Frequency Response (±3 dB): 44 Hz - 20 kHz

Coverage Pattern: 90° x 50°

Amplifier Design: Class D

Power Rating: 2000 W Peak

Dimensions (H x W x D): 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in)

Net Weight (each): 28.6 kg (63 lb)

EQ: 20 parametric EQ's, speaker delay, and 50 available slots for presets

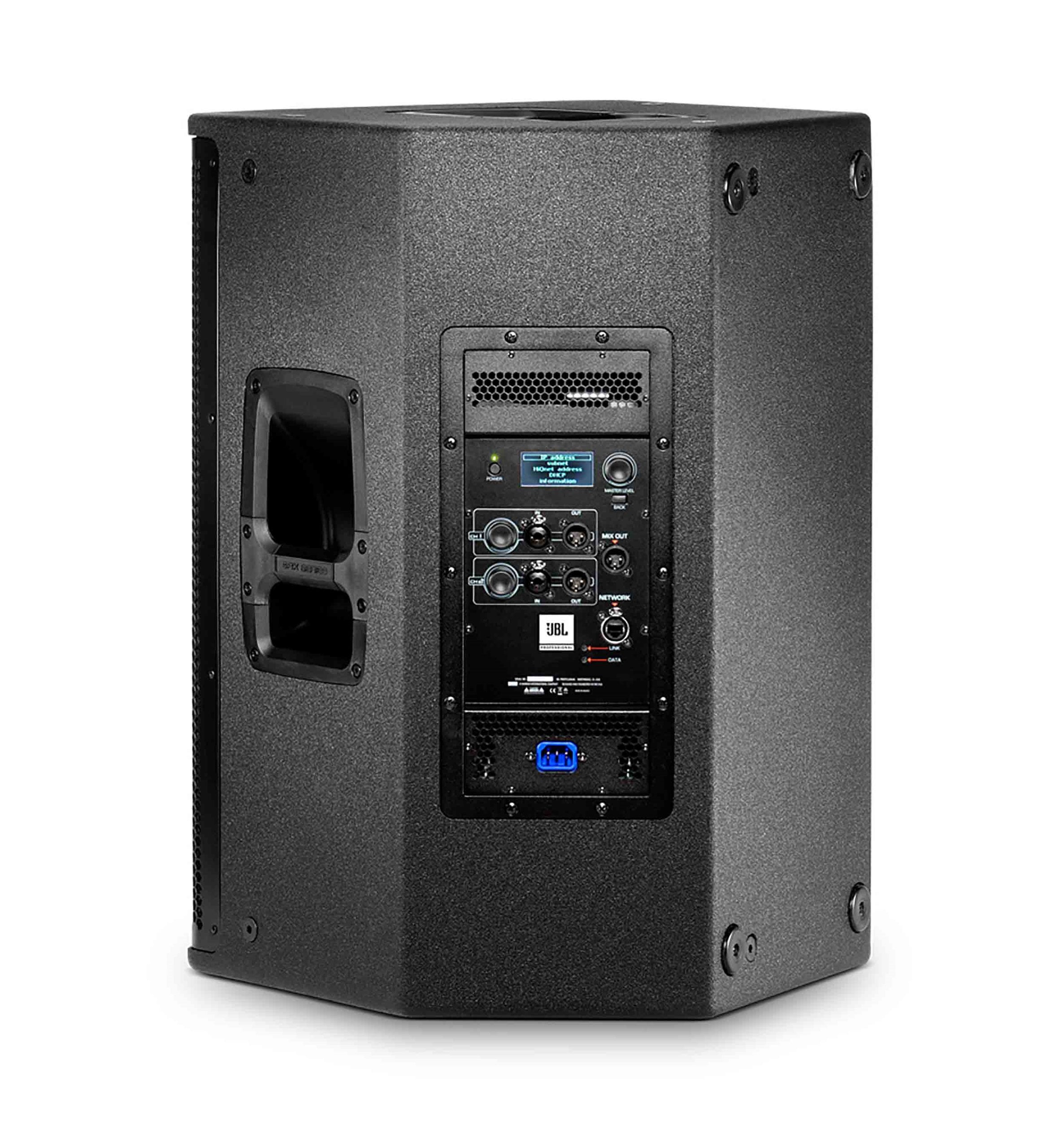

Inputs: Neutrik ¼ - XLR input; Neutrik XLR Output

Outputs: 2 x XLR

Enclosure: 18 mm, 11-ply Finnish birch plywood; black DuraFlex finish; integral recessed handles

Nominal Impedance: NA - amplification is integrated

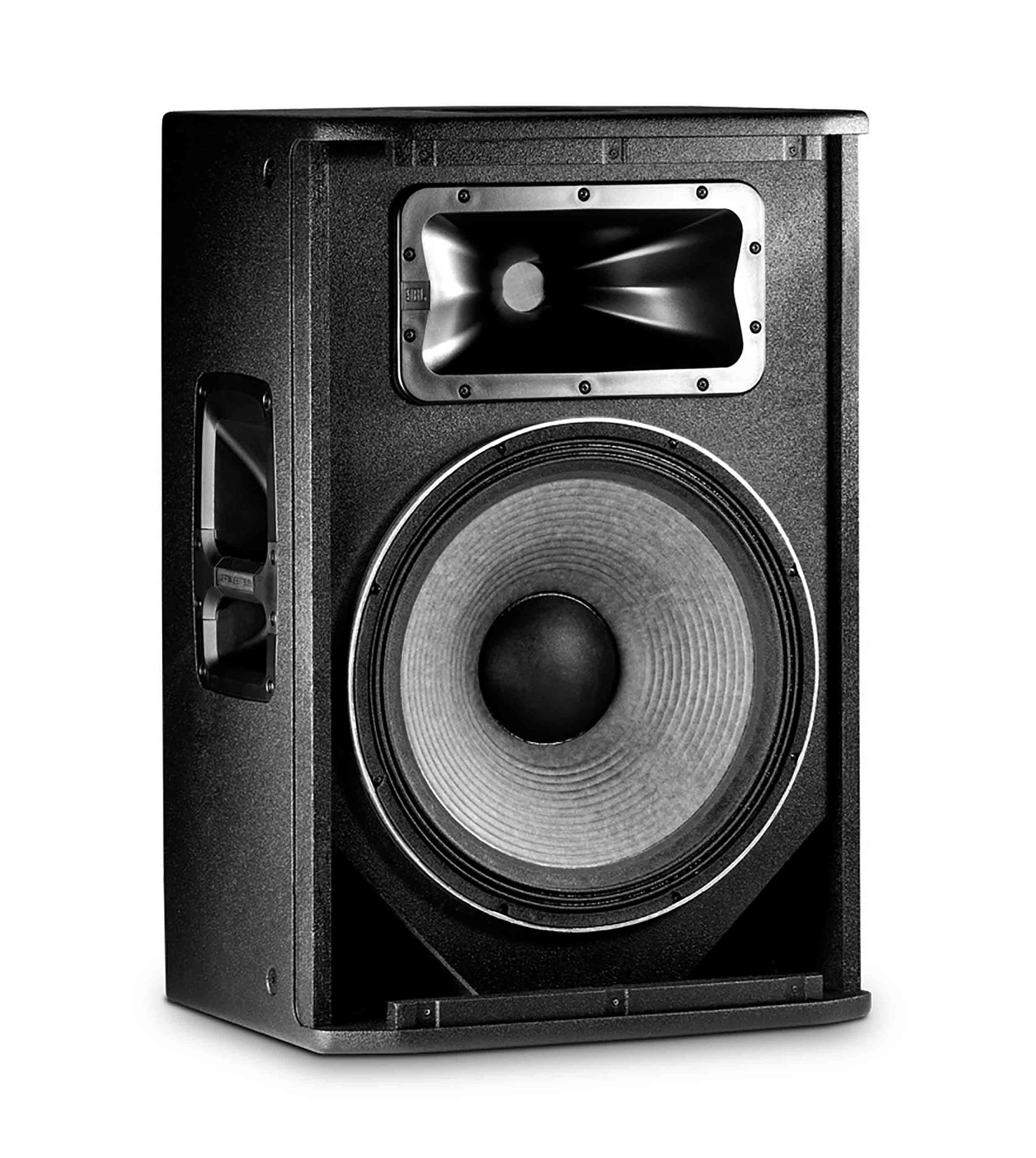

LF Driver: 1 x 2275F, Differential Drive, 15" diameter

MF Driver: 1 x 2107H

HF Driver: 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil

Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 suspension points
