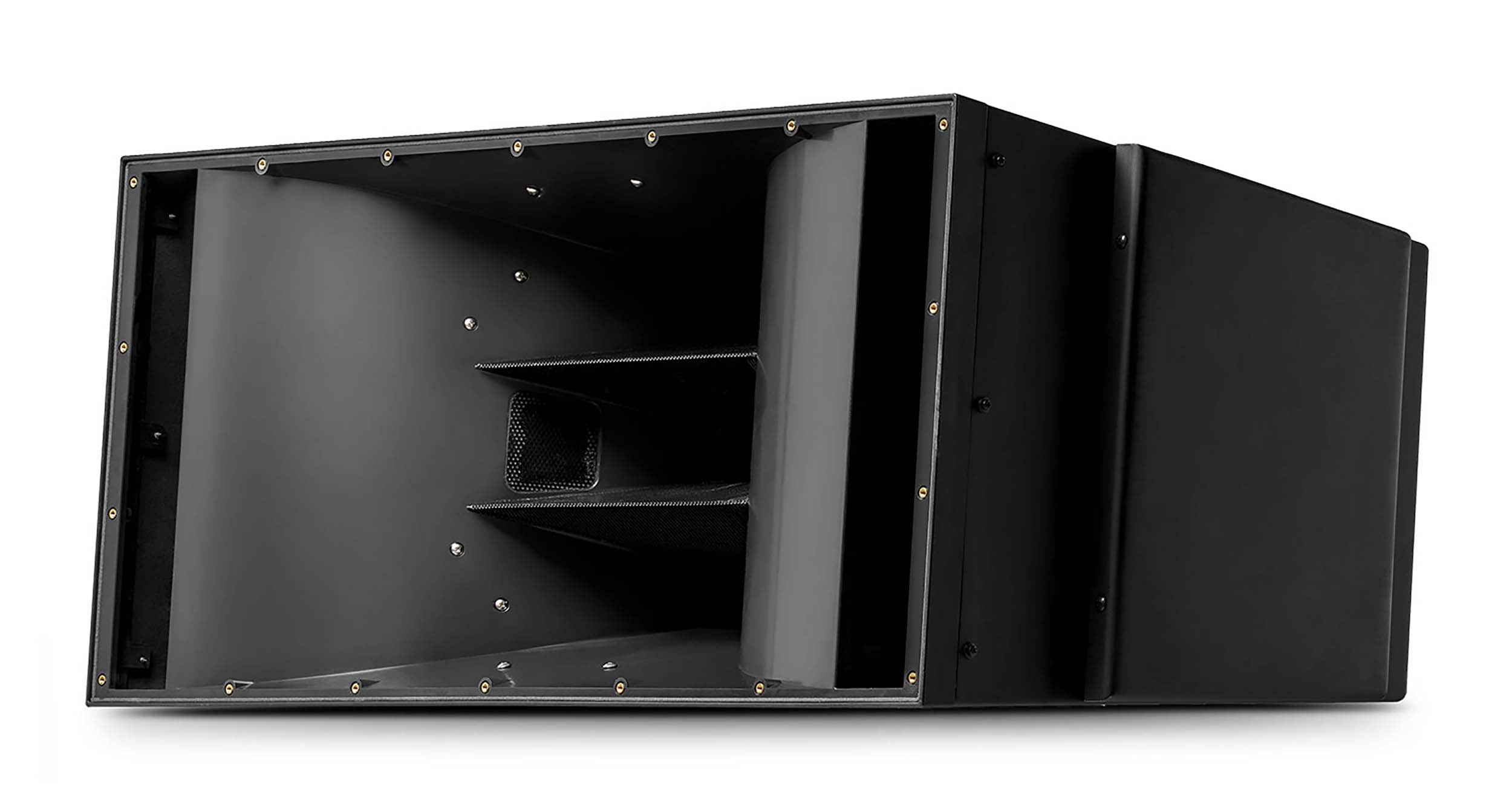

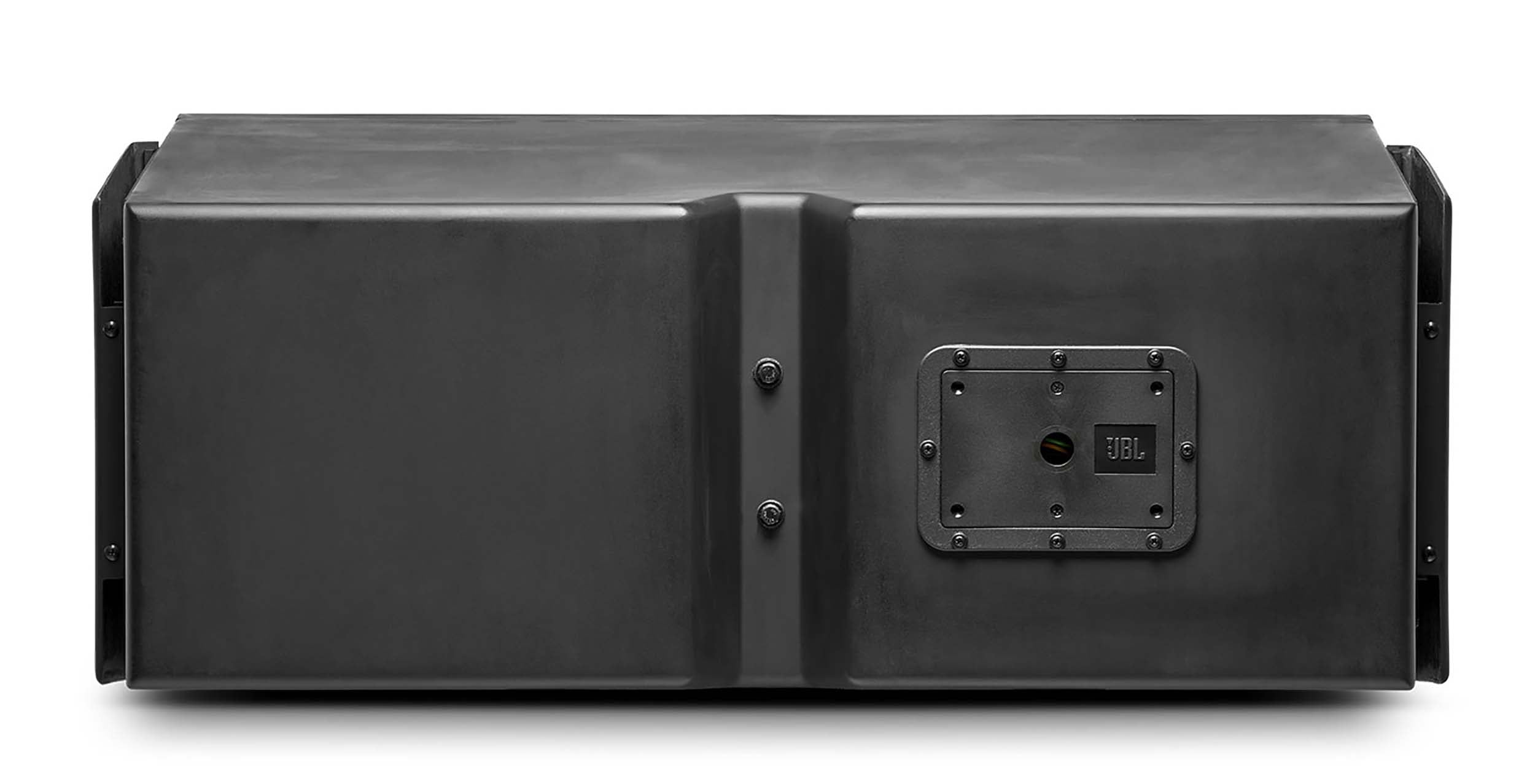

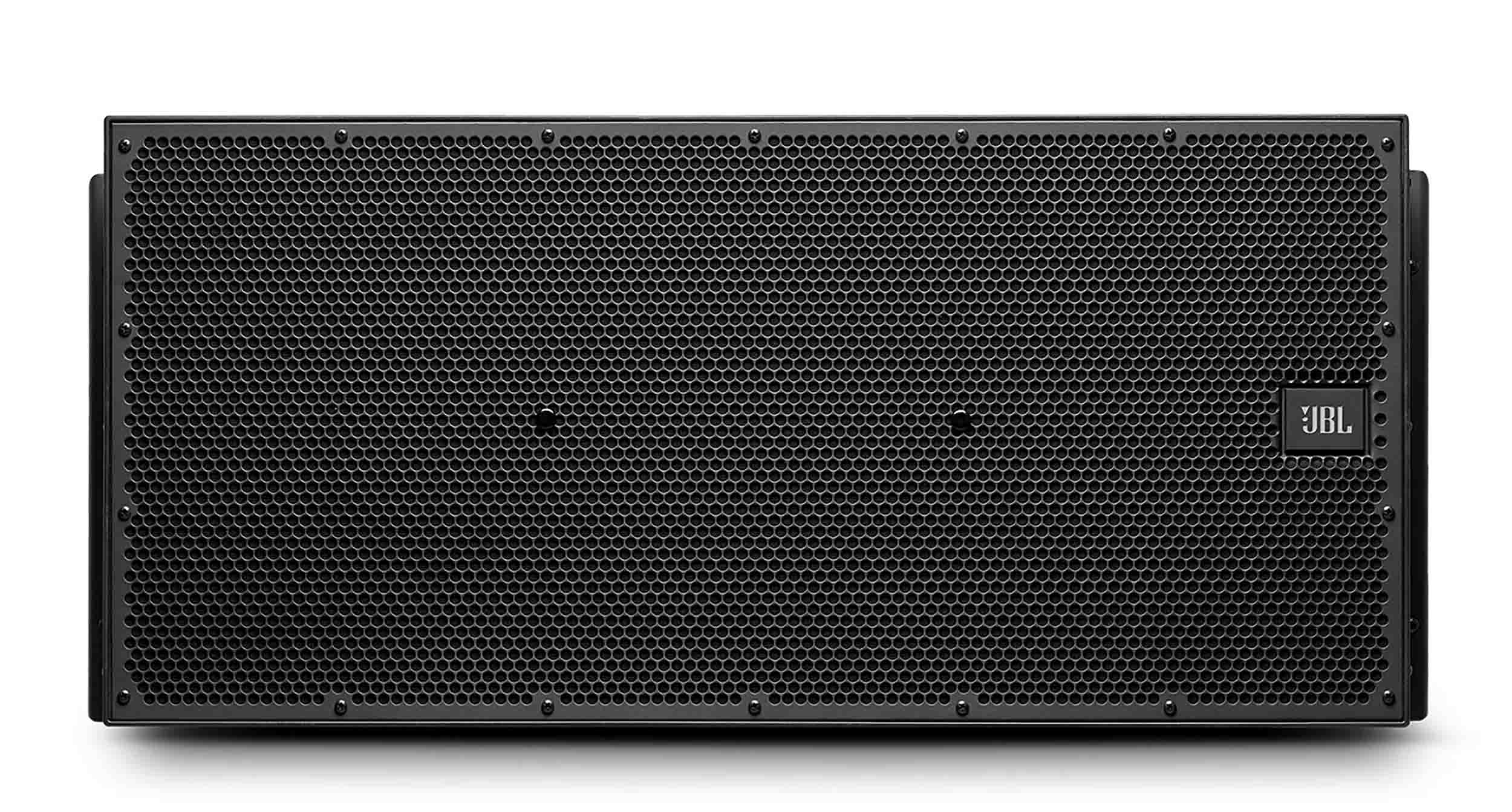

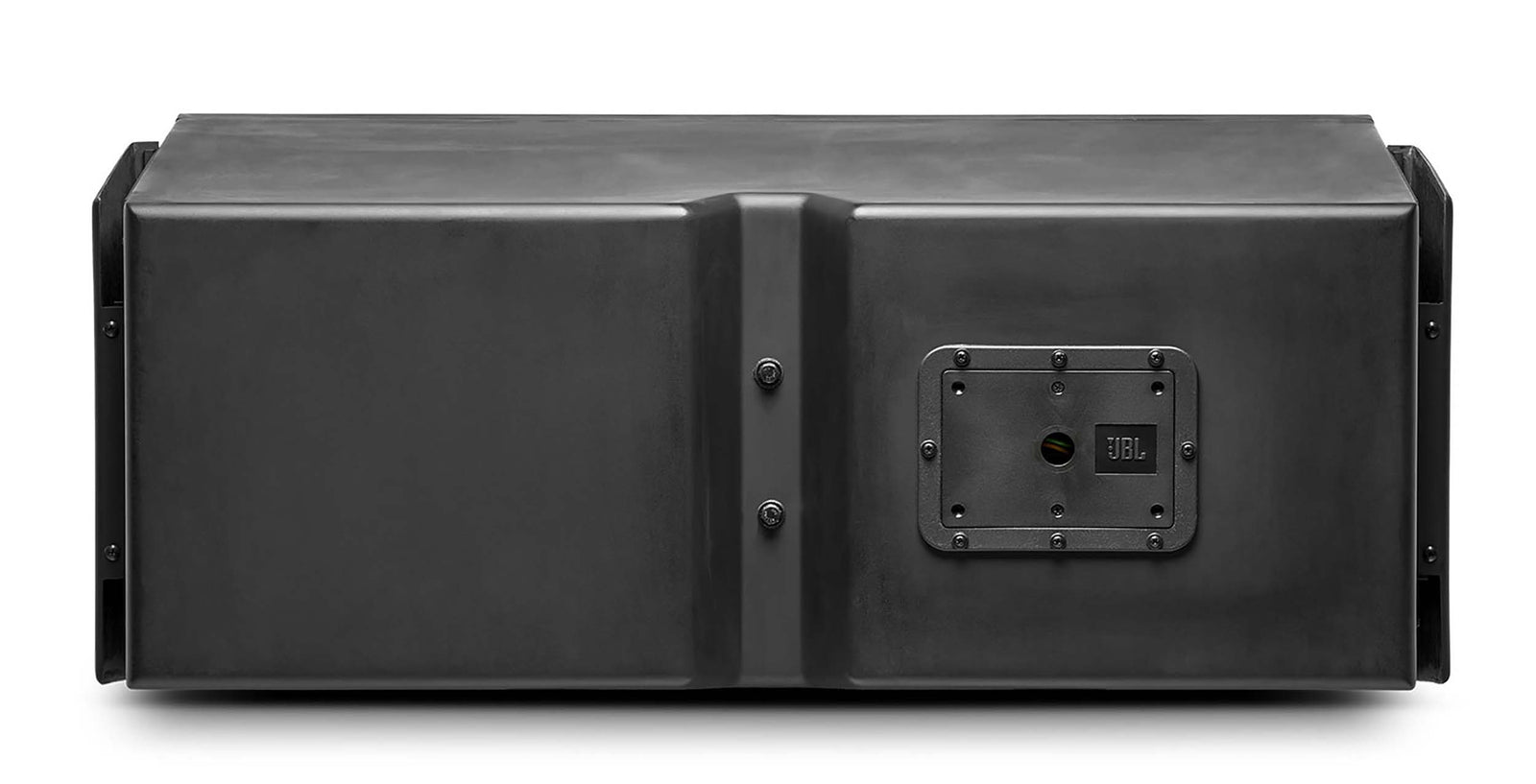

JBL VLA-C265-BK Two-Way Full Range Speaker 10" Differential Drive LF

The JBL VLA-C265-BK uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors. The low-frequency section utilizes dual 2261 10” Differential Drive 3” voice coil drivers. Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system. The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.

Product Specifications:

Frequency Range (-10dB): 85 Hz - 19 kHz

Frequency Response (±3 dB): 108 Hz – 16.5 kHz

Full Range: 800 W Continuous Pink Noise, 2 hrs 400 W Continuous Pink Noise, 100 hrs

Bi-amp LF: 800 W Continuous Pink Noise, 2 hrs 400 W Continuous Pink Noise, 100 hrs

Bi-amp HF: 150 W Continuous Pink Noise, 2 hrs 50 W Continuous Pink Noise 100 hrs

Full-Range: 80 V Rms (2 hrs), 160 V peak

Maximum SPL (1m): 131 dB Cont. Ave (2 hrs), 137 dB Peak

Coverage Pattern (-6 dB): Horizontal: 65° (+15°/-10°, 1.5 kHz to 15 kHz) Vertical: Varies with array size and configuration

Enclosure Material: Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.

Environmental: IP-55 rating per IEC529.

Colors: -BK: Black

Dimensions (H x W x D): 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)

Net Weight (each): 37.7 kg (83 lbs)

Shipping Weight (ea): 44.0 kg (97 lbs)

Optional Accessories: VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit
