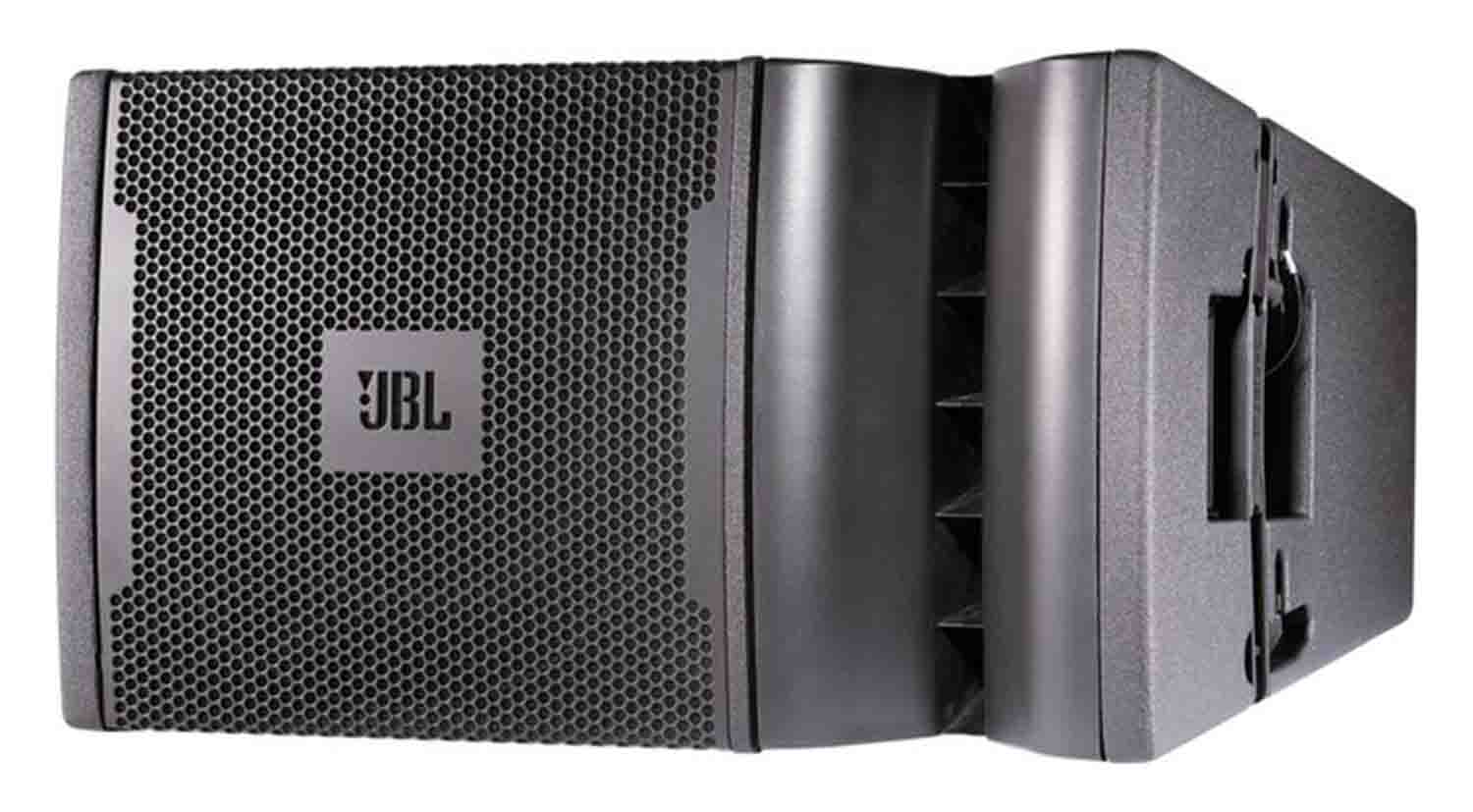

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
JBL VRX932LAP Active Line Arrays at a Glance:
Lightweight and built for smaller venues powered with great sound flexible mounting options lightweight and built for smaller venues. The VRX932LAP is a lightweight (52 lb.) compact 12" two-way powered line array speaker system designed for use in arrays of up to six units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays such as JBL's VerTec.. The Constant Curvature waveguide mounts two compression drivers on a continuous arc. When additional VRX932LAP speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide.
Great power handling and sound

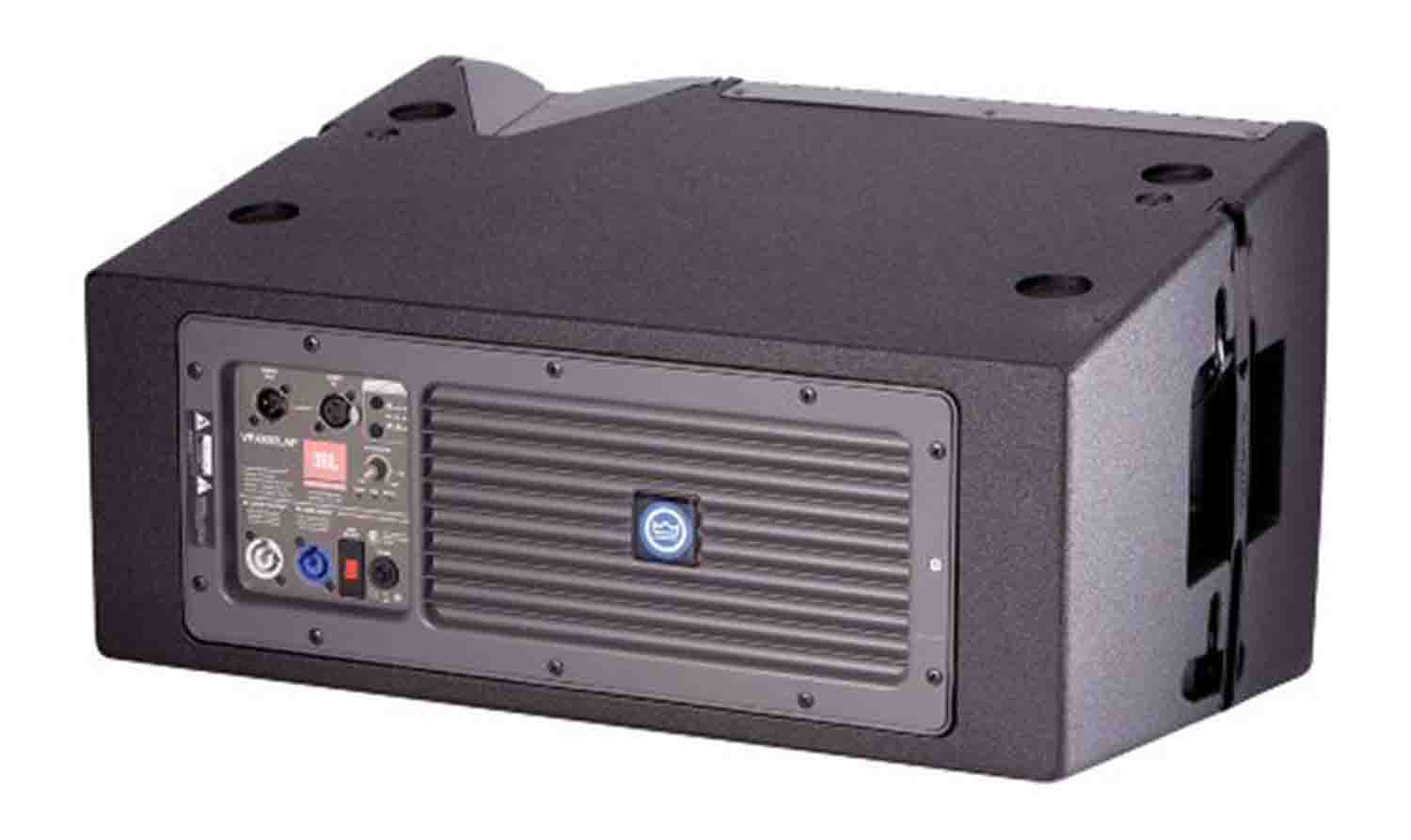

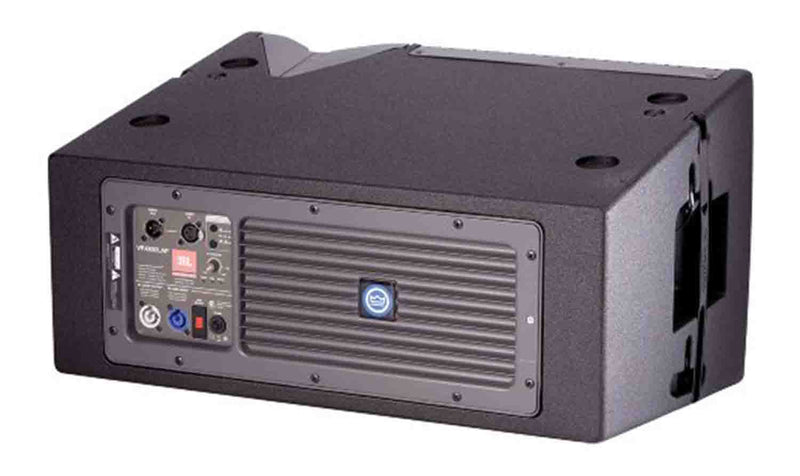

Since there are three HF drivers in each VRX932LA, the combined power handling and acoustic output of the system is far greater than a single driver could achieve. VRX932LAP uses "amplitude shading" to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach the distant rear of a room while the lower box is shaded back to reduce excessive level at the front of the listening area.
Flexible mounting options
One or two VRX932LAPs may also be used on a tripod or over the VRX915S subwoofer. The integral rigging hardware is used to securely lock the array together. As many as six VRX932LAP speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90. Suspended applications require the JBL VRX932LAP-SMAF array frame (available separately). For applications in which the array must be aimed sharply down, a second Array Frame may be installed to the bottom of the array serving as a pull-back.
Power Rating: 1750 Watts Peak875 Watts Continuous
Frequency Response (-10dB): 57 Hz - 20 kHz
Dimensions (H x W x D): 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
Frequency Response: 75 Hz - 20 kHz (+/-3db)
Maximum SPL (1m): 136 dB SPL
Coverage Pattern: 100 x 15 nominal
Finish: Black DuraFlex™ finish
Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each): 24 kg (52 lb)
