Description

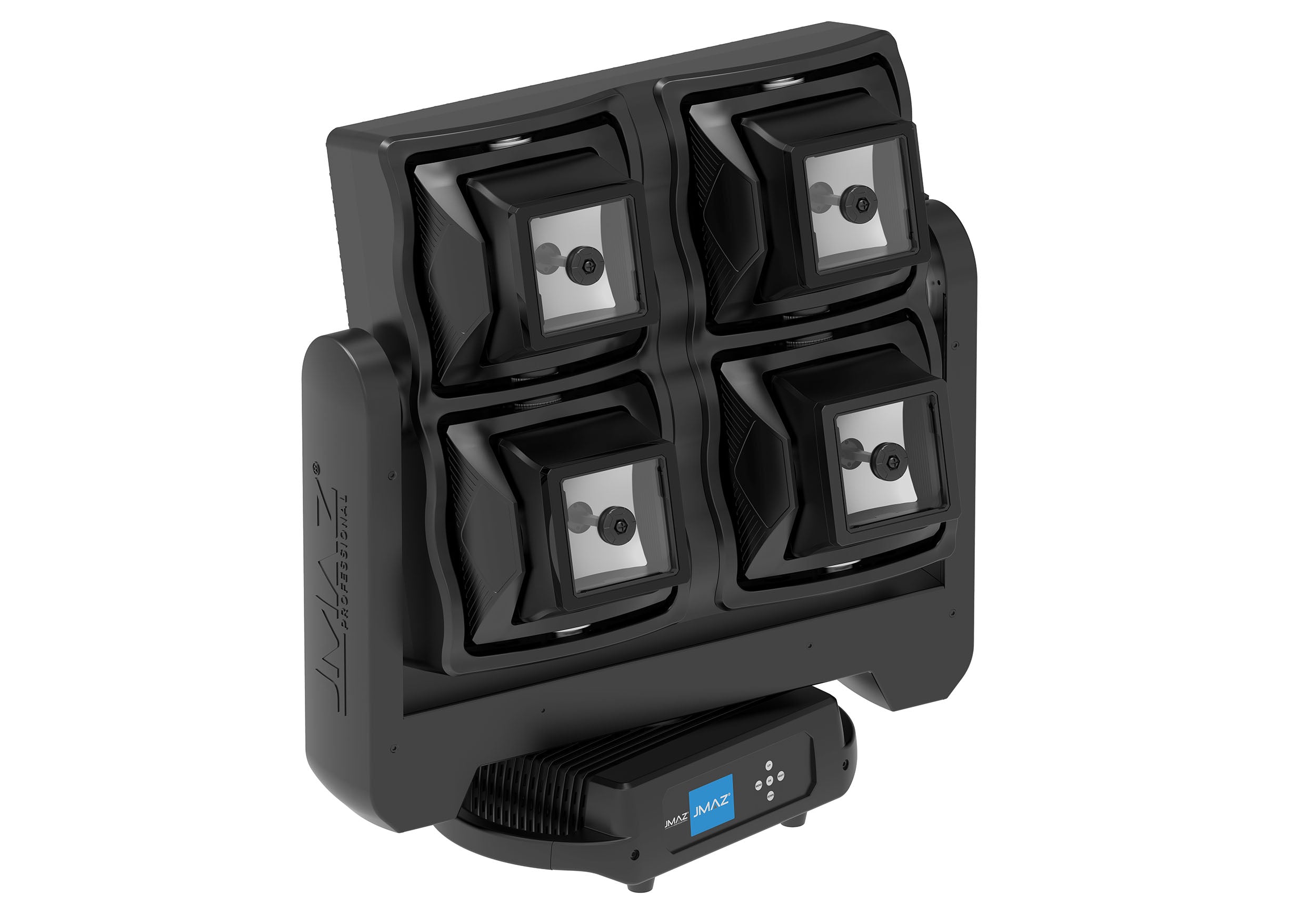

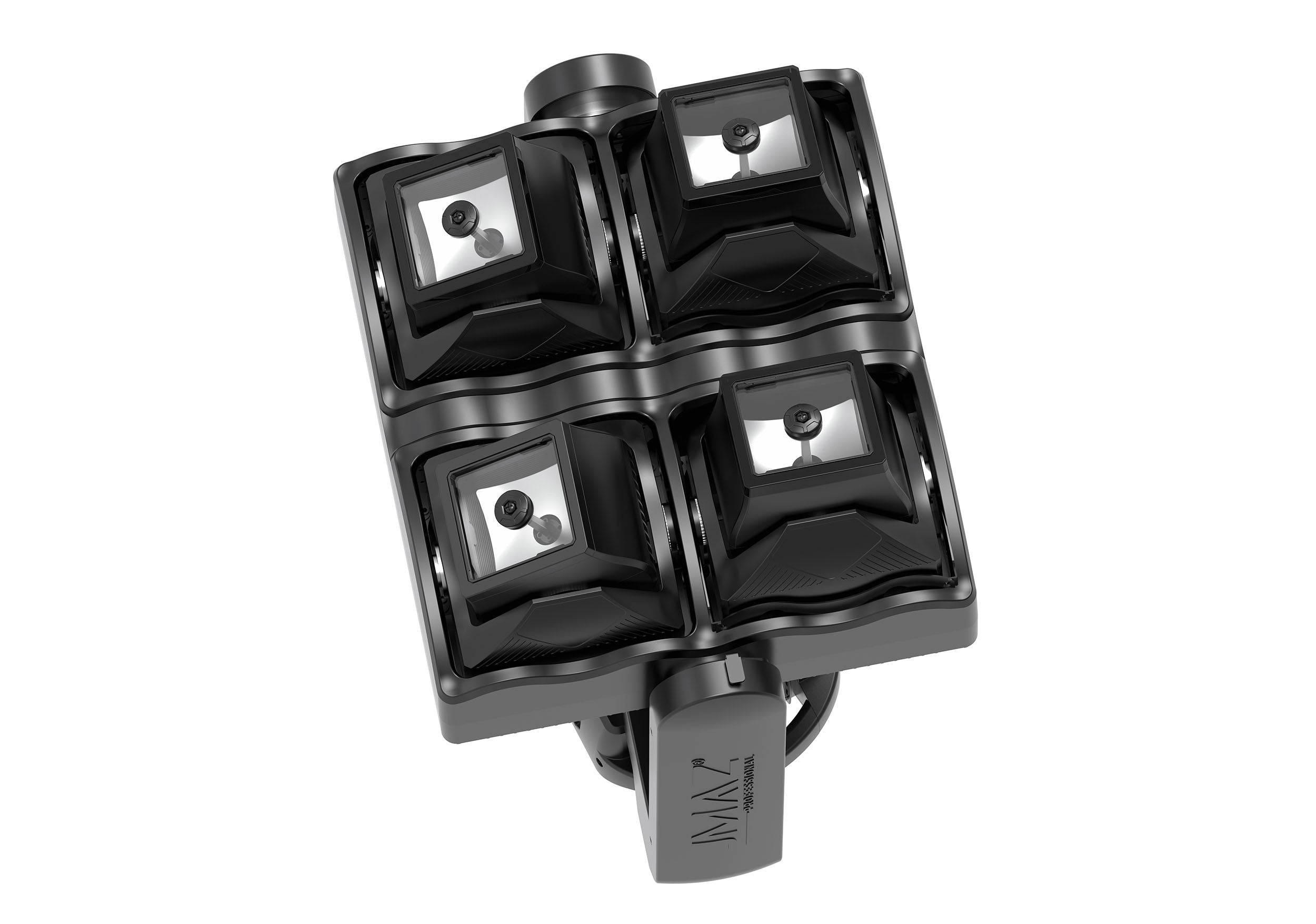

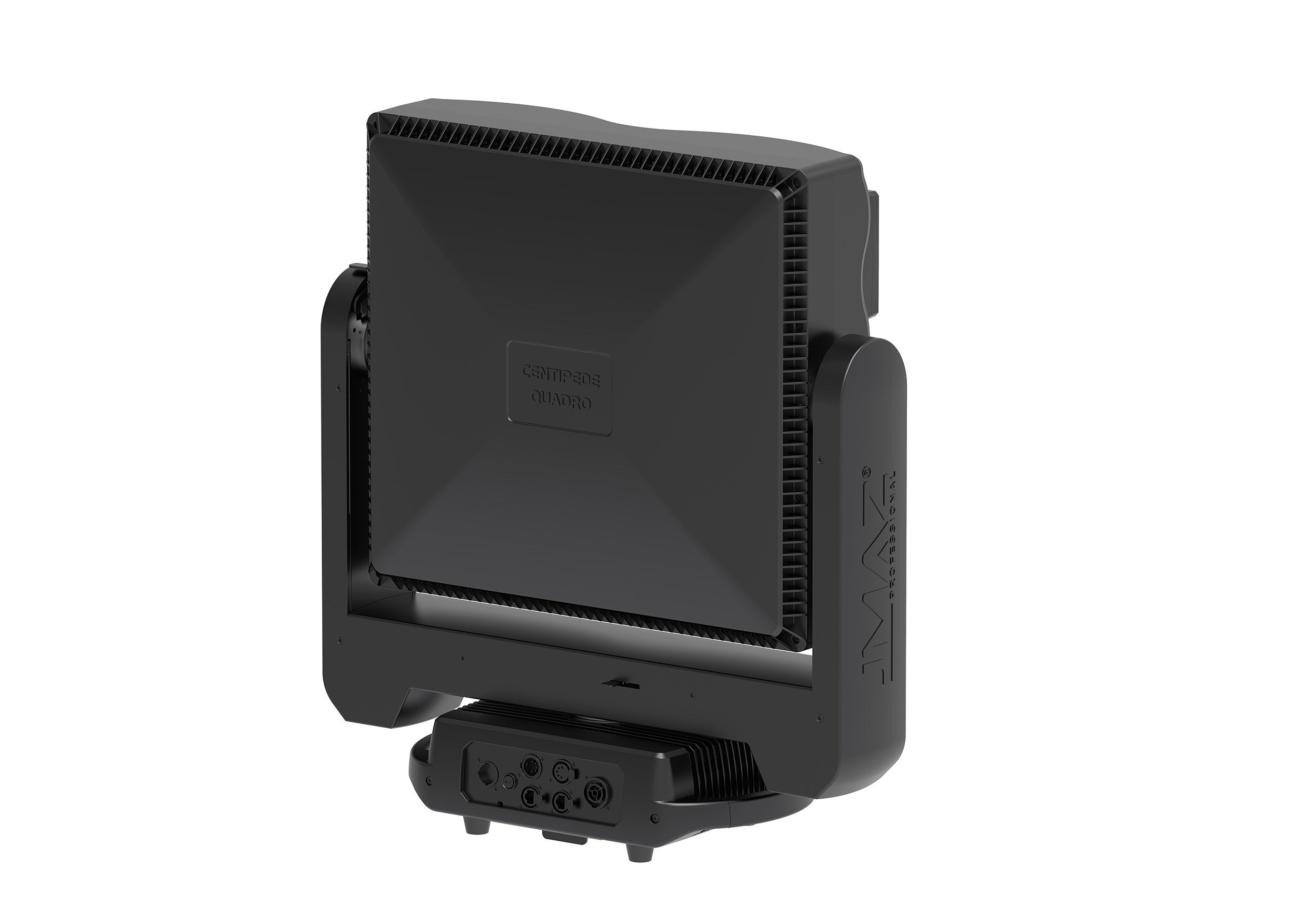

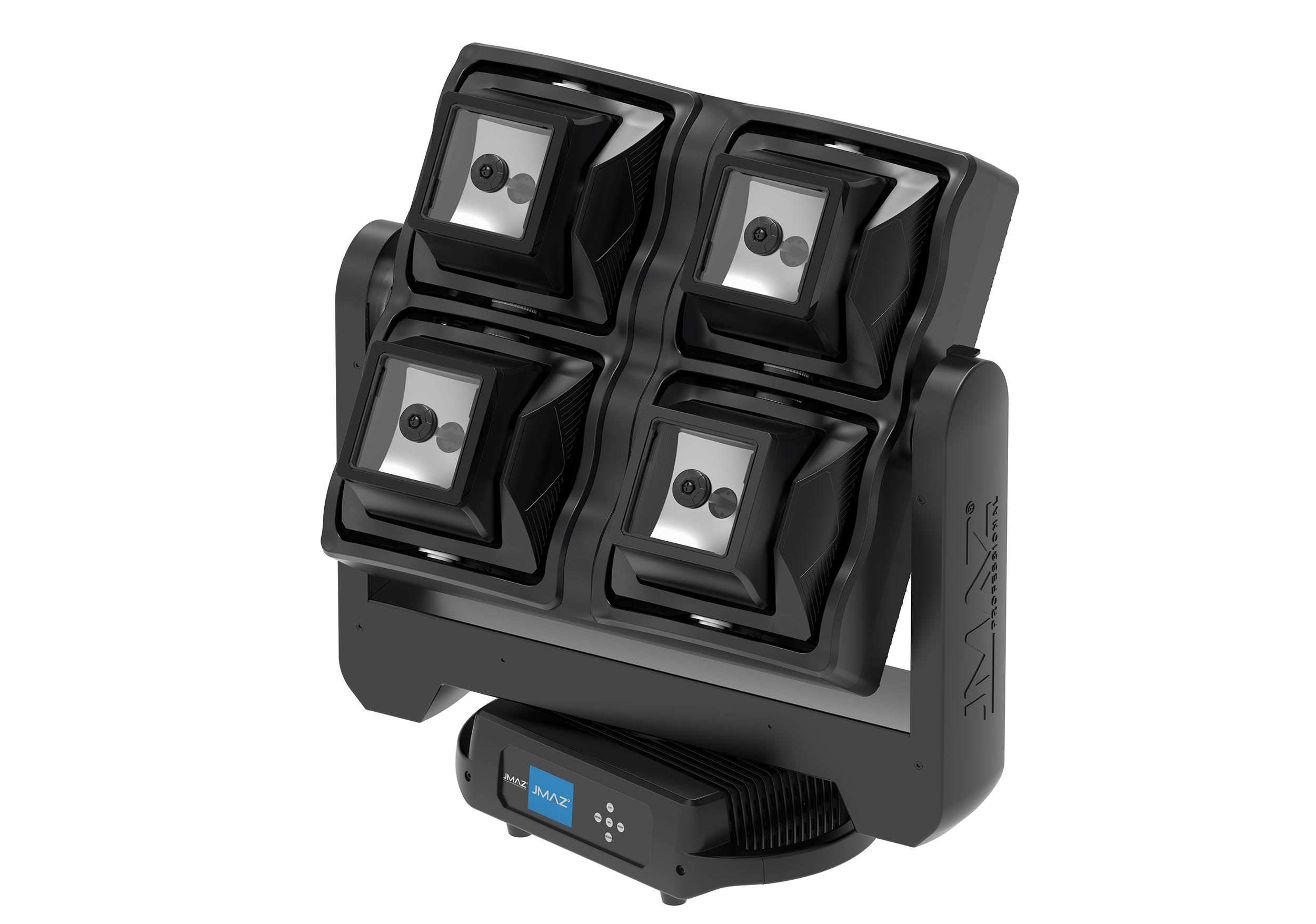

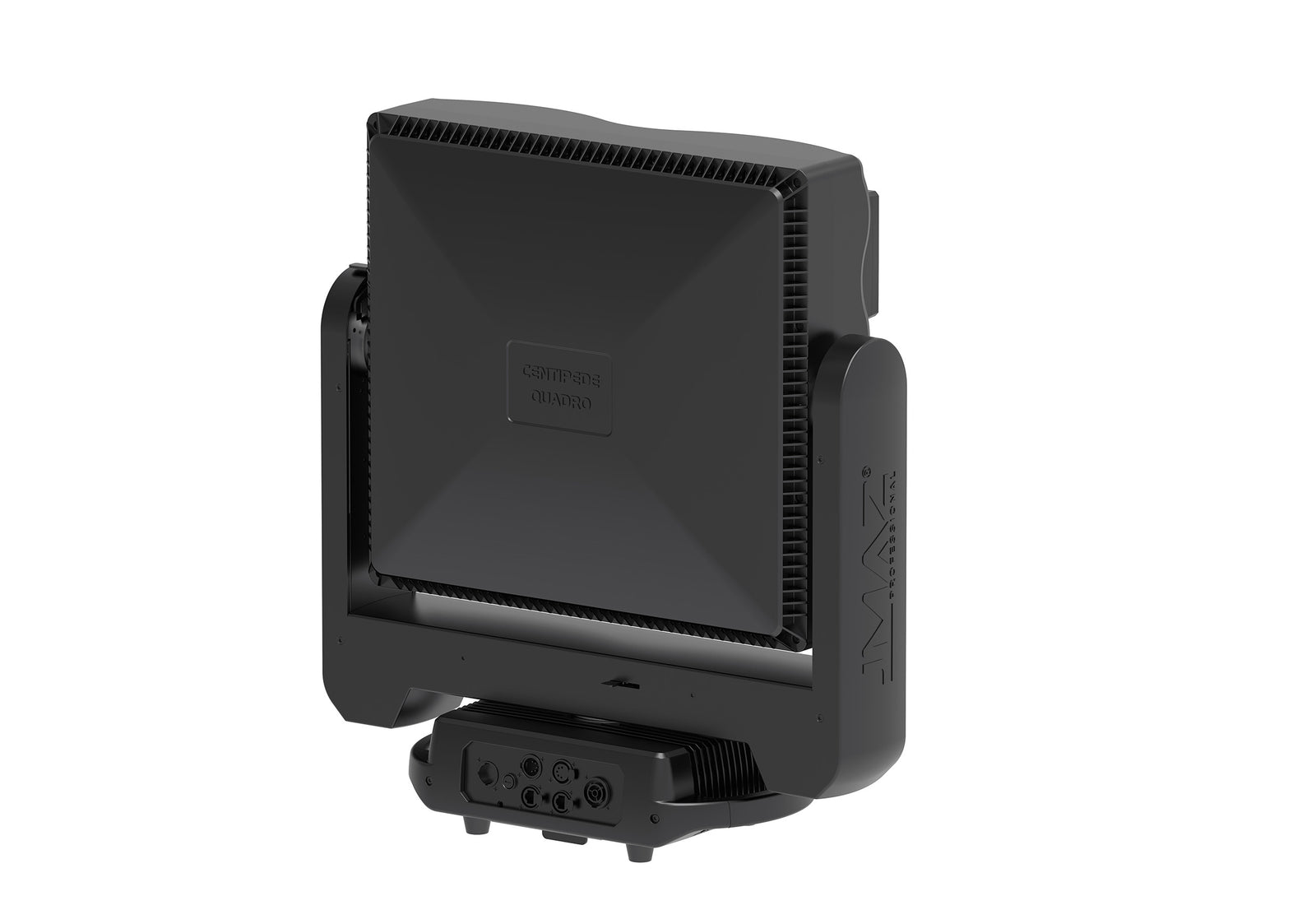

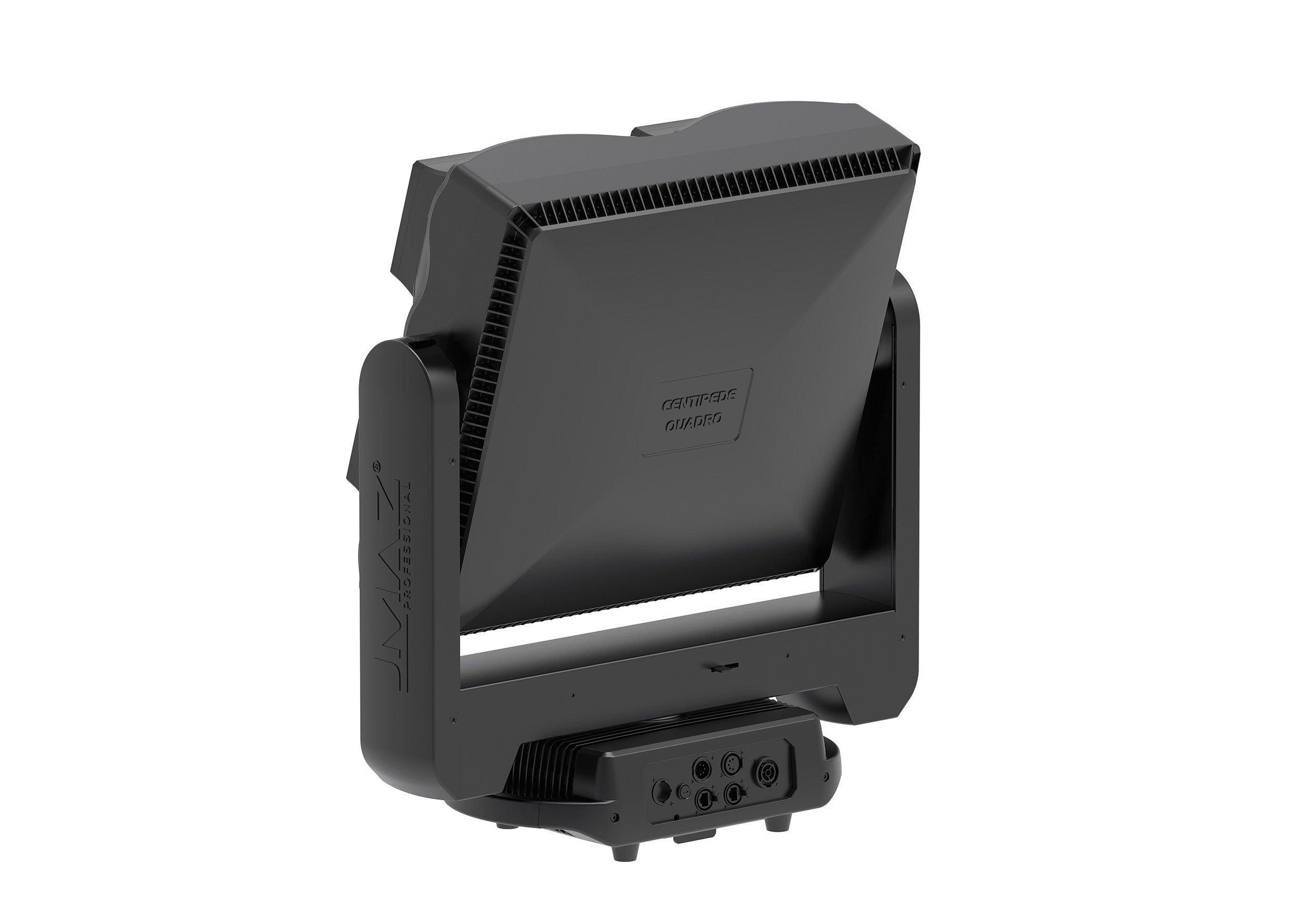

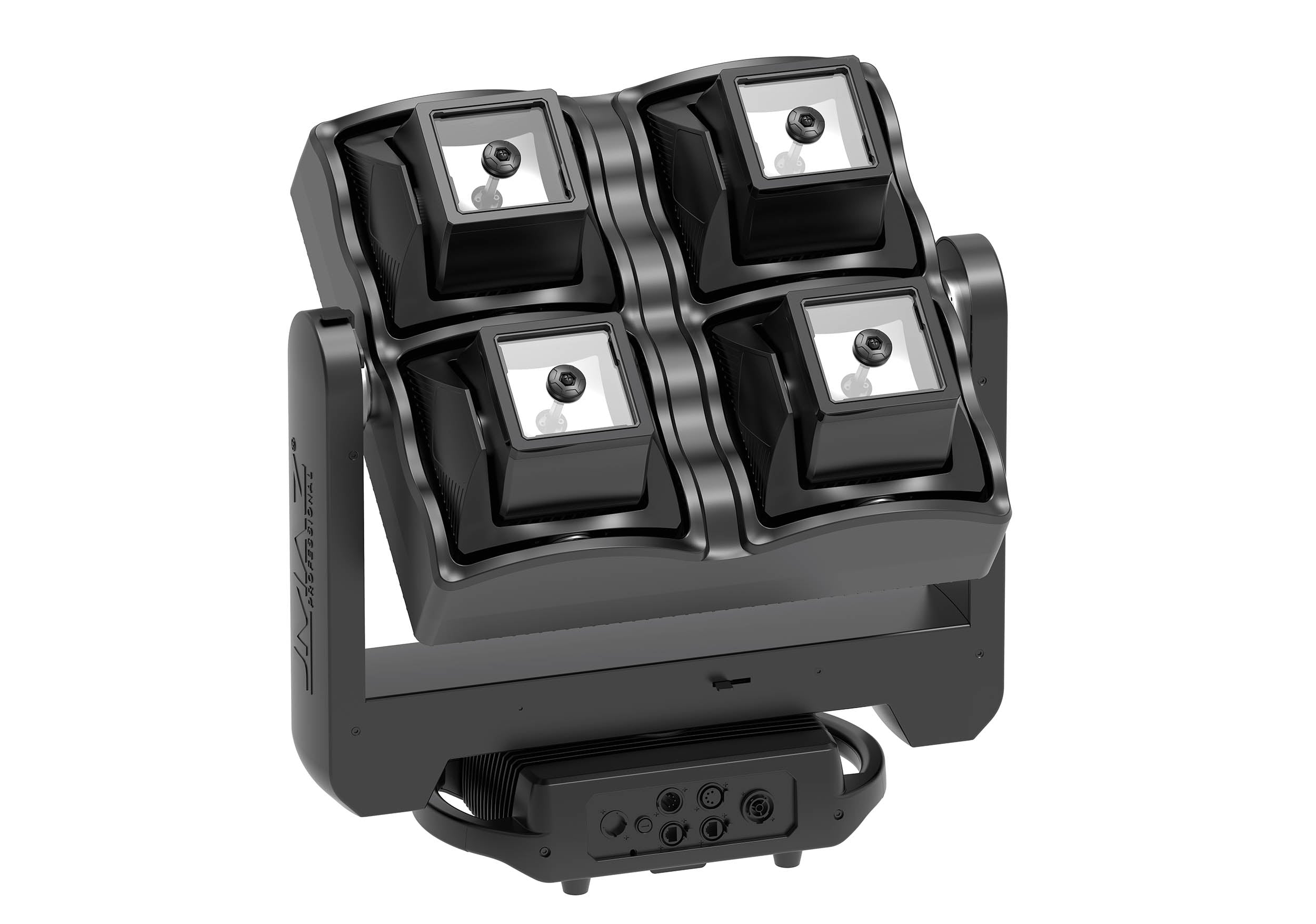

The JMAZ JP1004 Centipede QUADRO is a high-performance RGBW LED moving head fixture designed for immersive lighting and full-stage dynamics. Featuring four 60W RGBW LEDs alongside a 120-piece RGB SMD LED ring, it produces sharp 3.5° beams with vivid color accuracy and definition, making it ideal for concerts, theatrical productions, and live events.
Each head offers independent 76° pan and tilt movement with full pixel control, while the fixture itself provides 360° infinite pan and tilt for smooth, sweeping effects. Dynamic ring color macros, built-in virtual colors, and pre-programmed movement effects allow for complex lighting designs with minimal setup, giving lighting designers precise creative control.
With 16-bit RGBW color mixing and CTO adjustable from 2500K to 8000K, the Centipede QUADRO allows full control over mood and tone. It operates in three DMX personality modes (38/46/88 channels) and supports DMX512, Art-Net, RDM, sACN, and Kling-Net protocols. The fixture includes TRUE1 power in/out, 5-pin DMX connectivity, two omega brackets, two safety cables, and a user manual. CE, cETL, FCC, and RoHS certifications ensure compliance and reliability for professional use.
What’s Included:
1 x Centipede QUADRO
1 x 5-Pin DMX Cable
1 x User Manual
2 x Omega Brackets
2 x Safety Cable
Product Specifications:
Light Source: 240W (4 x 60W) RGBW LED
Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs
LED Life: 50,000 Hours
Color System: 16-bit RGBW Color Mixing
CTO: 2500K – 8000K
Linear 16bit Color Temperature
Individual Head Pixel Control
Individual Dynamic Ring Color and Effect Macro
Optics: Beam Angle: 3.5°
Dynamic Effect
Two Movement Modes:
360° Infinite Pan / Tilt Control / 540° Pan and 270° Tilt Control (8-bit and 16-bit)
76° Individual Head Pan / Tilt (8-bit and 16-bit)
Selectable Preset Home Position Macros by DMX Function channel for fast and easy programming
Selectable Fast and Precise Movement Speed by DMX Function channel
Scan Position Memory with Automatic Pan / Tilt Position Correction
Shutter / Strobe: High Speed Electronic Shutter and Strobe
0-25Hz Shutter/Strobe effect with Variable Speed
Preset Pulse Strobe Effect with Variable Speed
Random Strobe Effect with Variable Speed
Sharp Beam Effect
Dynamic Ring Effect with built-in Macros with variable speed
Control:
Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
Personalities: 3 Modes 38/46/88
Body: Die-cast Aluminum and Steel Structure with High Impact Flame Retardant PA6 GF 30 (Polyamide 6) with 30% Glass Fiber
Exterior Finish: Black
Cooling: Fan
Power Connection: TRUE1 (UL Listed)
Power IN/OUT: TRUE1
Protocol Connectors: 5-Pin DMX512 IN/OUT, Art-Net RJ45
Cable Length: Power 5ft. (1.5meter); DMX 5ft (1.5meter)
IP Rating: 20
Input Voltage: 100 – 240V AC, 50/60Hz (Auto Ranging with Active PFC)
Power Consumption: 320W
Power Linking for Connecting Fixture in Daisy-Chain:
Up to 5 Units @ 110V with a 20A Circuit
Up to 9 Units @ 208V with a 20A Circuit
Up to 10 Units @ 220V with a 20A Circuit
Fuse: F12A, 250V
Certification / Qualifications:
CE, cETL, FCC, RoHS
Operating Temperature: 40 ° C (104 °F)
Minimum Temperature: – 10 ° C (14 ° F)
Maximum Temperature: 60 ° C (140 ° F)
Product Weight: 73.7lbs
Product Dimensions: 22.9″ x 10.5″ x 25″
