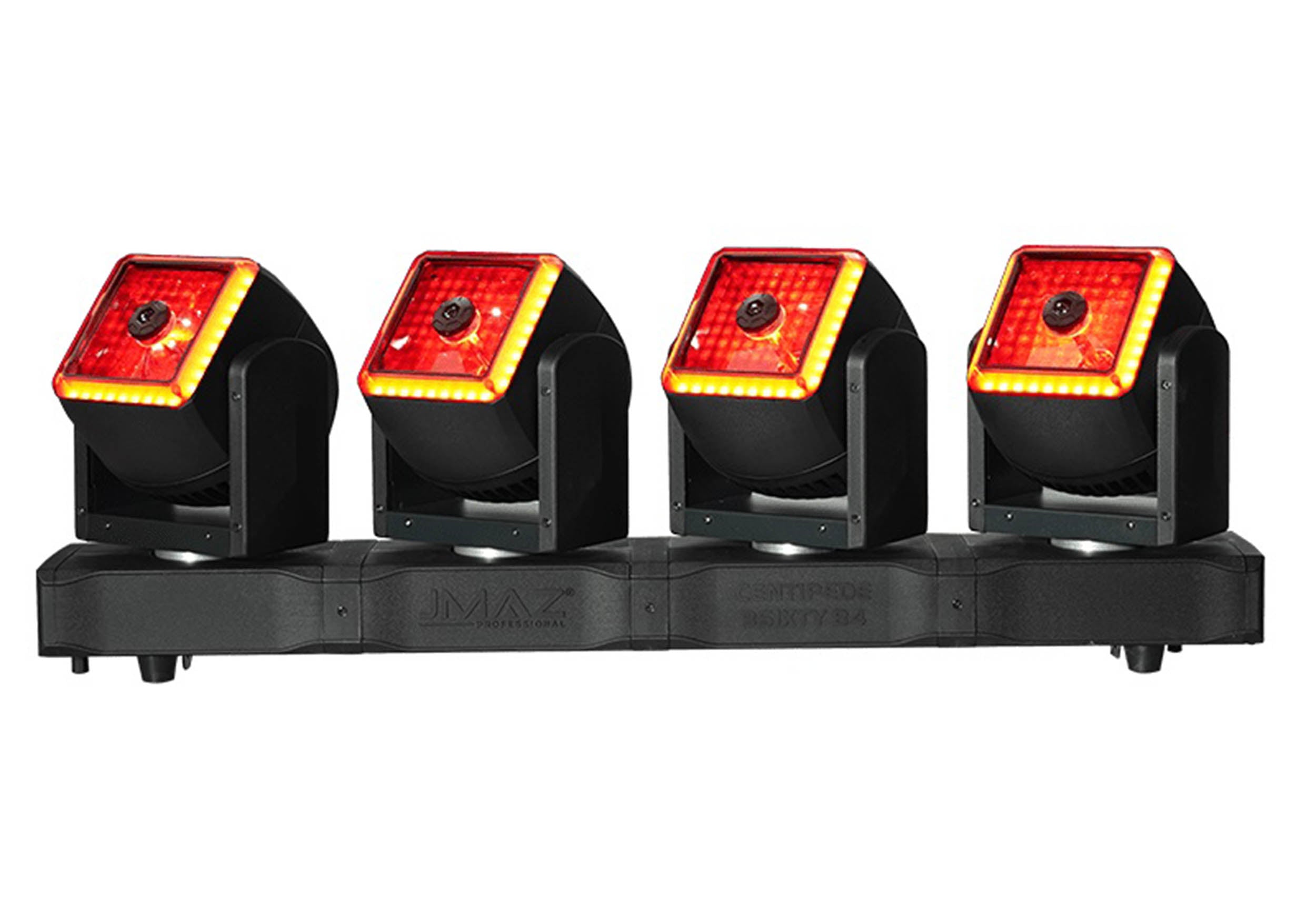

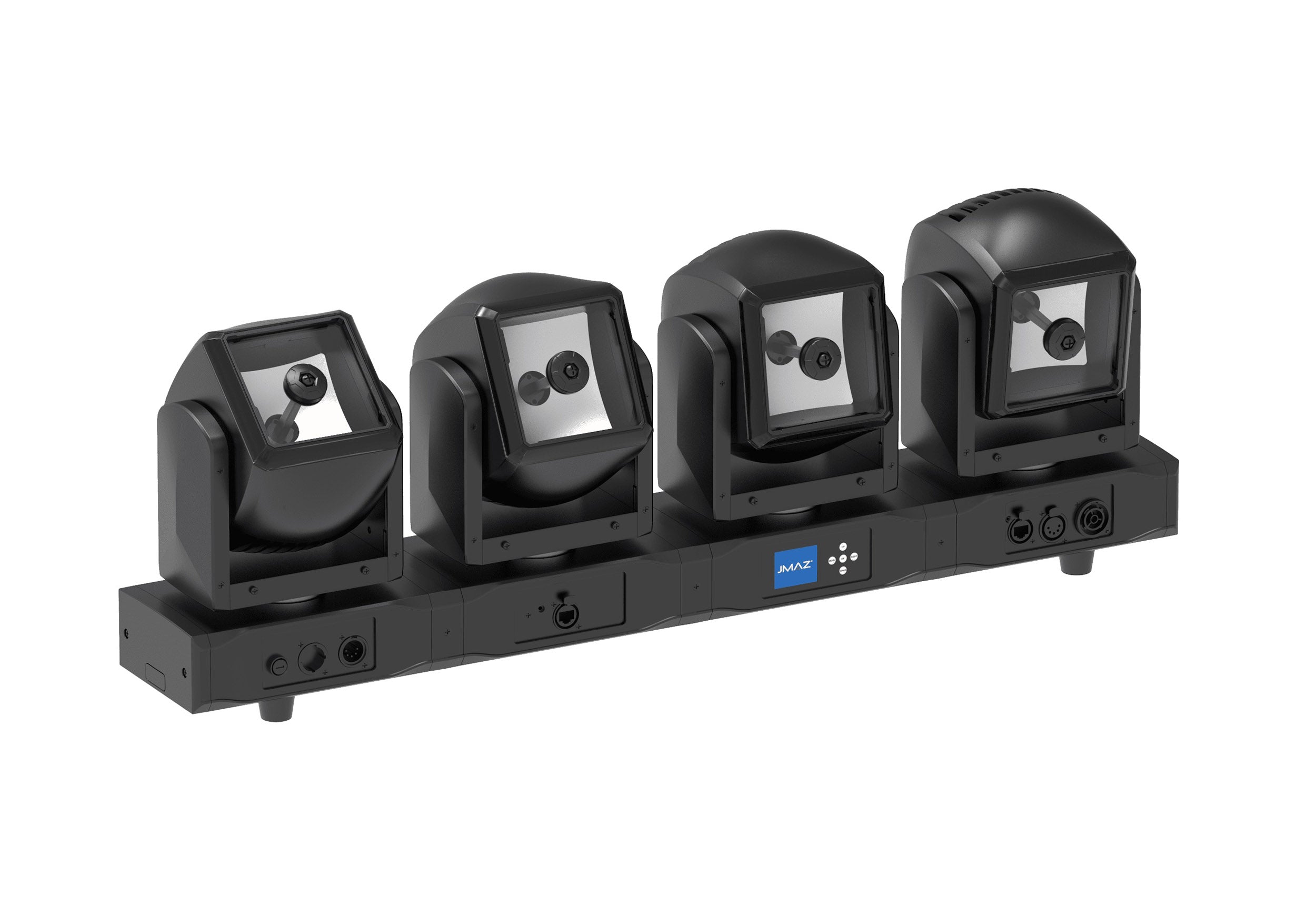

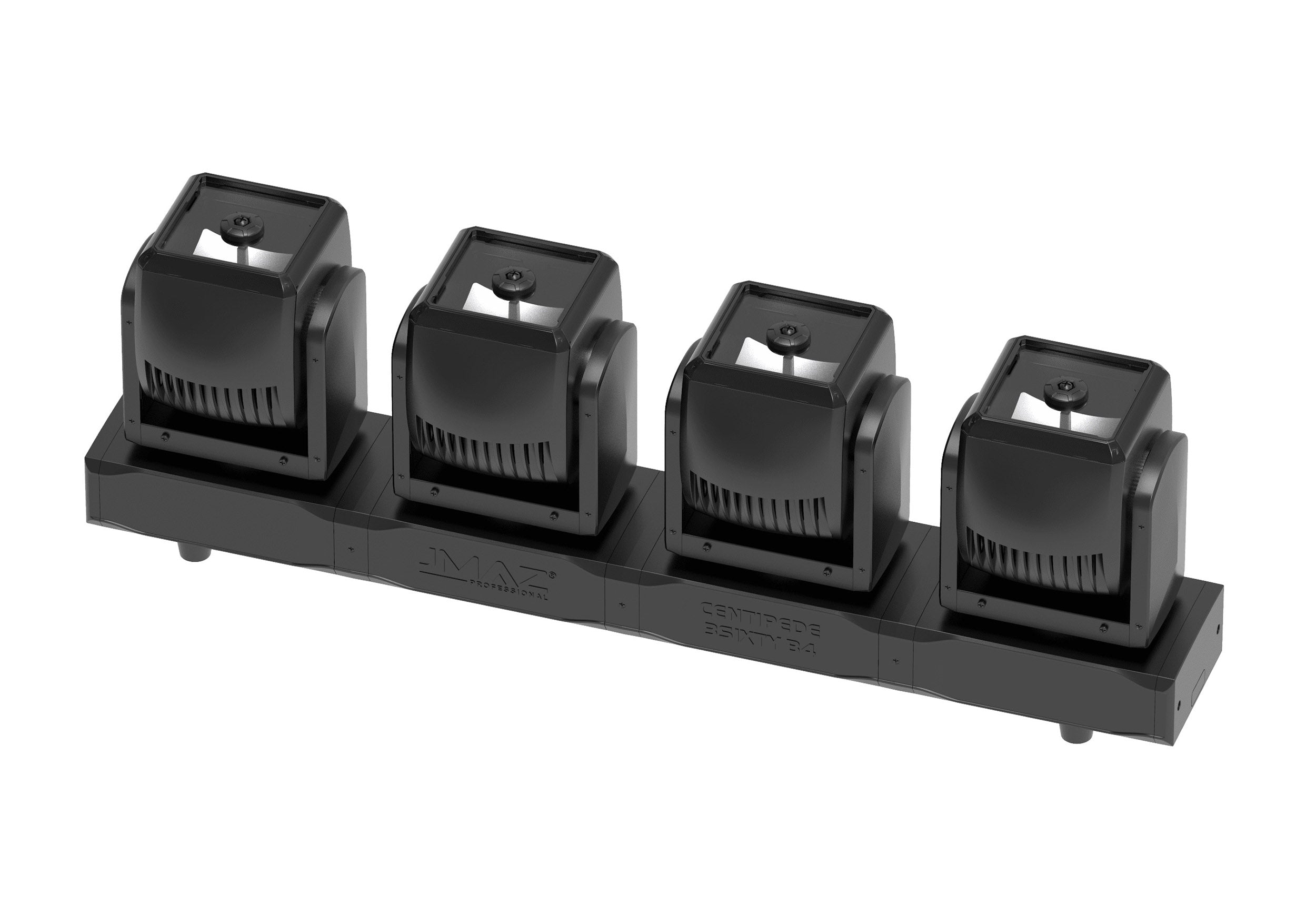

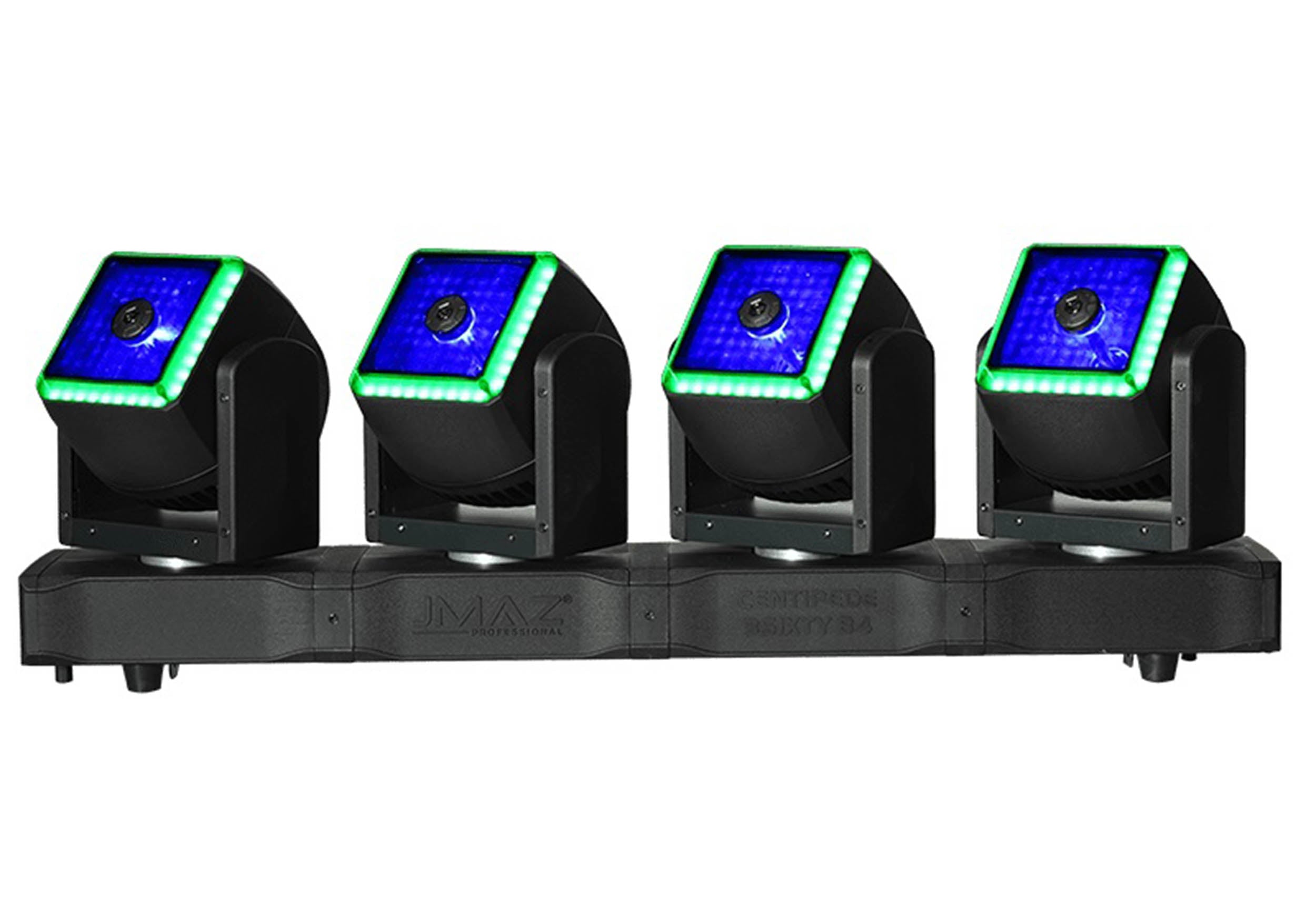

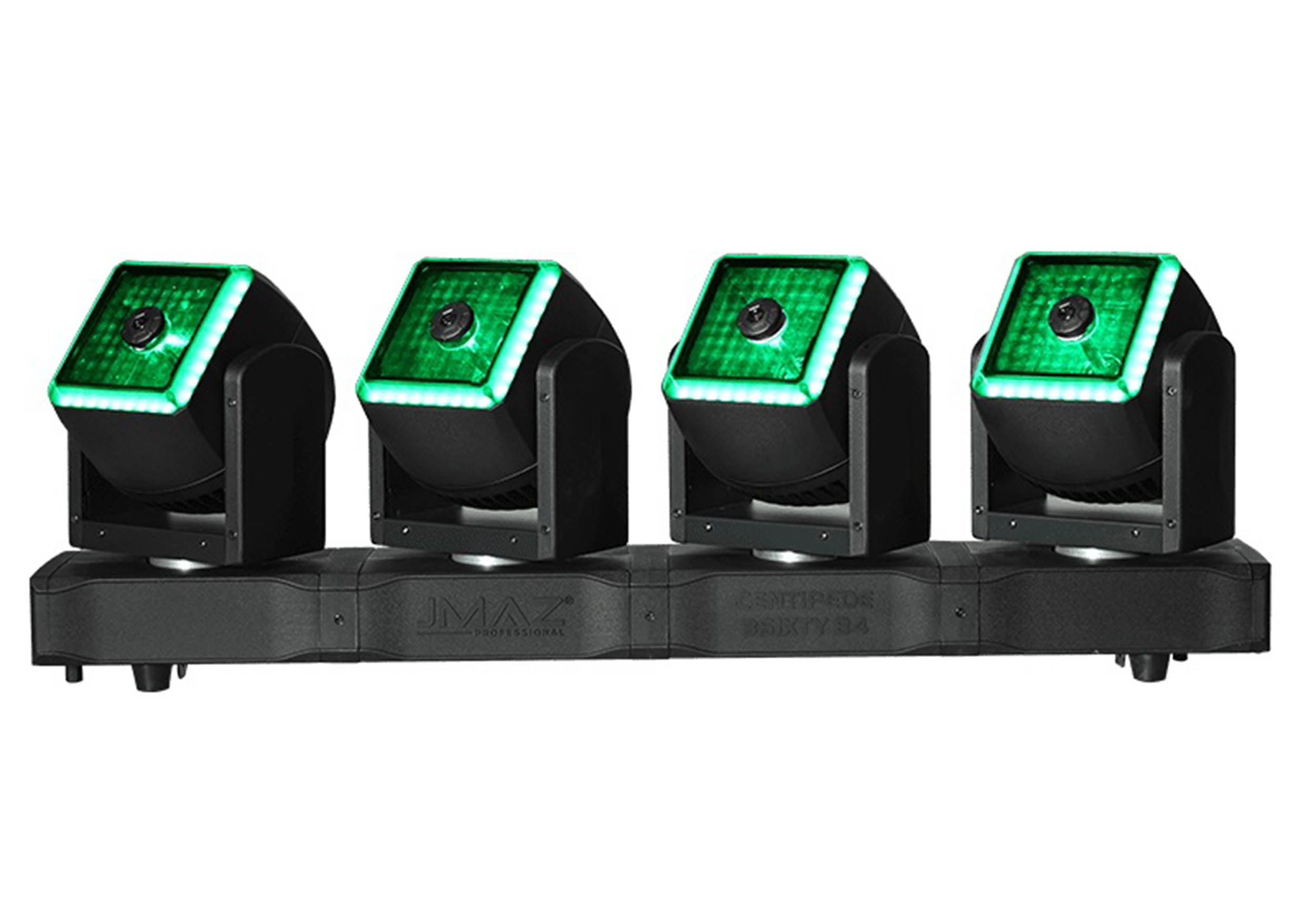

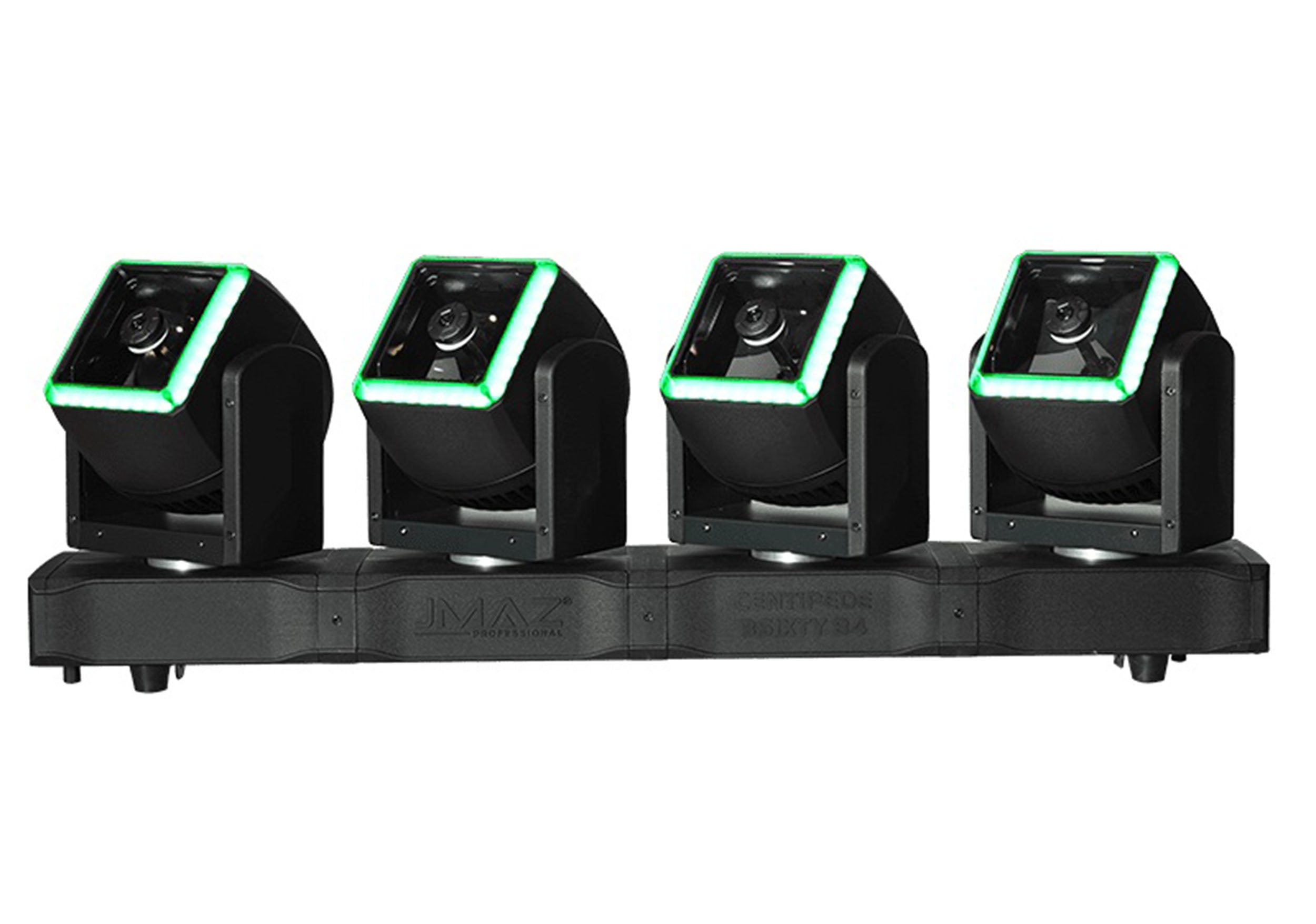

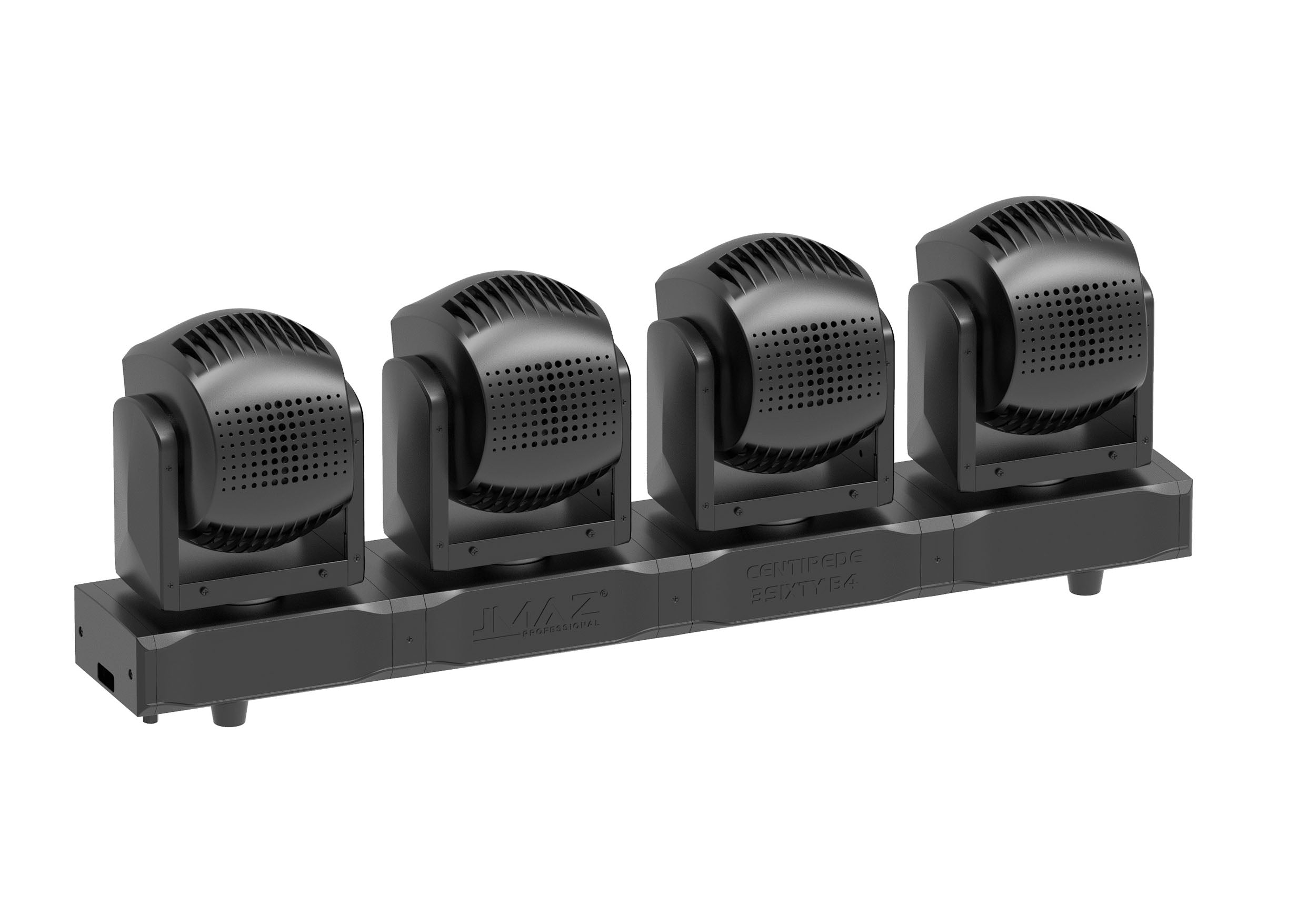

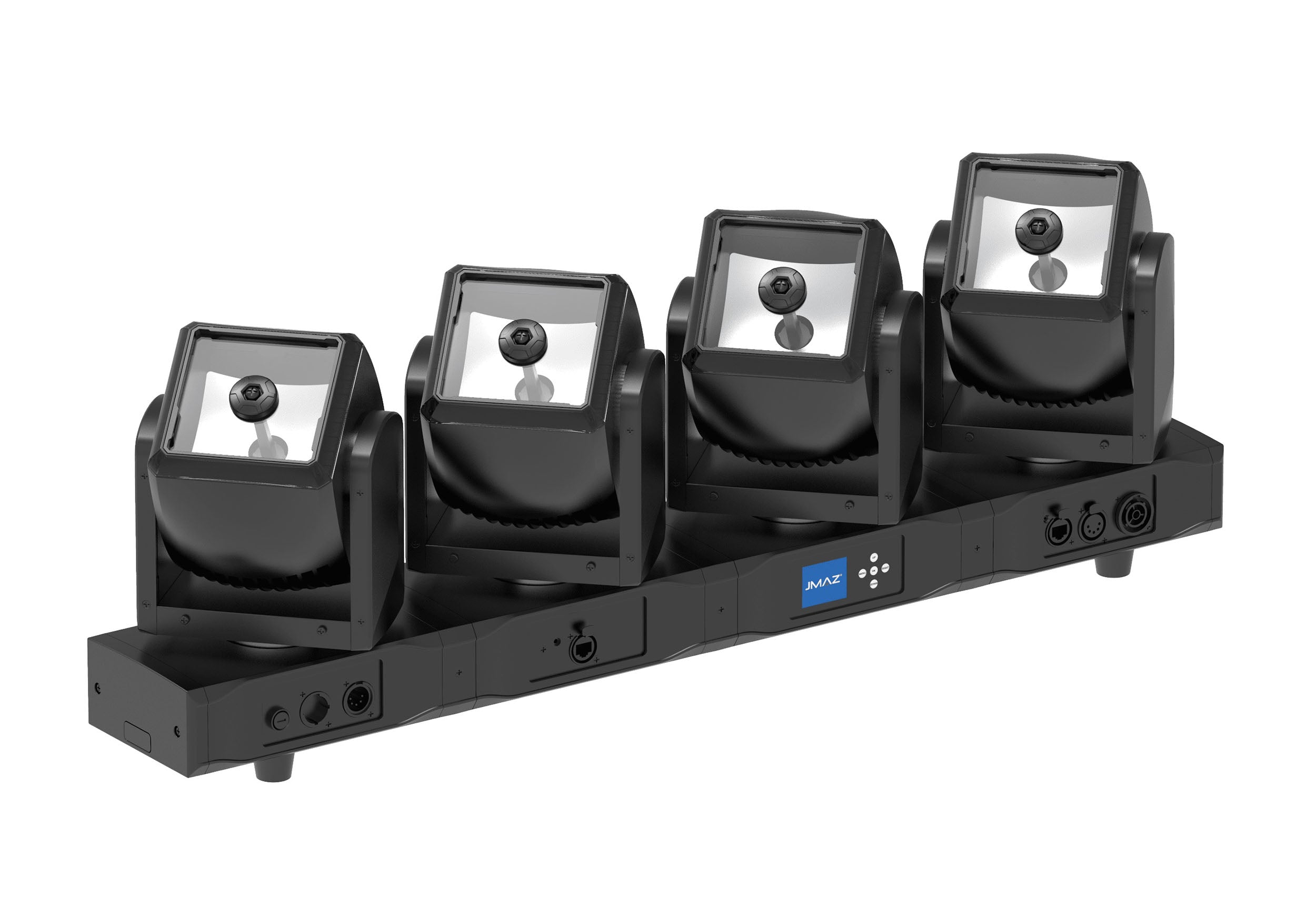

JMAZ Pro JP1005 Centipede 3SIXTY B4 RGBW LED Intelligent 4-Head Moving Head

The JMAZ JP1005 Centipede 3SIXTY B4 is a compact yet high-impact RGBW moving head bar designed to deliver professional-grade lighting in a sleek and streamlined format. Featuring four 60W RGBW LEDs paired with 120 RGB SMD ring LEDs, each head provides 360° infinite pan and tilt control, along with independent pixel-level management. This allows lighting designers and performers to create intricate and dynamic visual effects with complete flexibility, making the B4 a perfect choice for clubs, DJs, concerts, and live installations.

Programming and creative control are made simple with built-in color and movement macros, including both foreground and background color control. The fixture produces a tight 3.5° beam angle, 16-bit RGBW color mixing, and a tunable CTO range of 2500K–8000K, delivering precise color reproduction and intense beam output. These features ensure that every performance benefit from both striking visual impact and professional-level color accuracy, whether used for sharp beam effects, vibrant washes, or complex pixel-mapped sequences.

The B4 offers four versatile DMX personality modes (25/47/69/77/90 channels) and is compatible with a wide range of protocols, including 5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net. TRUE1 IN/OUT connections provide secure and reliable power delivery, while the included TRUE1 power cable, 5-pin DMX cable, two omega brackets, two safety cables, and a manual make installation fast and hassle-free. CE, cETL, FCC, and RoHS certified, the B4 meets global safety and performance standards, making it a dependable fixture for professional lighting setups of any scale.

What’s Included:

1 x 3SIXTY B4

1 x TRUE1 Power Cable

1 x 5-Pin DMX Cable

1 x User Manual

2 x Omega Brackets

2 x Safety Cable

Product Specifications:

Light Source: 240W (4 x 60W) RGBW LED

Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs

LED Life: 50,000 Hours

Color System: 16-bit RGBW Color Mixing

CTO: 2500K – 8000K

Linear 16bit Color Temperature

Individual Head Pixel Control

Individual Dynamic Ring Color and Effect Macro

Beam Angle: 3.5°

Dynamic Effect

Two Movement Modes: 360° Pan / Tilt Continuous Movement & 540° Pan / 270° Tilt Movement (8-bit and 16-bit)

Selectable fast and precise movement speed by DMX function channel

Scan position memory with automatic tilt position correction

Linear Dimmer: 0 – 100% Electronic Dimming

Shutter / Strobe: High Speed Electronic Shutter and Strobe

0-25Hz Shutter/Strobe effect with Variable Speed

Preset Pulse Strobe Effect with Variable Speed

Random Strobe Effect with Variable Speed

Sharp Beam Effect

Dynamic Ring Effect with built-in Macros with variable speed

Personalities: 5 Modes 25/47/69/77/90

Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net

Body: Die-cast Aluminum and Steel structure with high impact flame retardant PA6

GF 30 (Polyamide 6) with 30% glass fiber

Exterior finish: Black

Cooling: Fan

Connection: True1 (UL listed)

Power In/Out: True1

Protocol Connectors: 5-Pin DMX512 in/Out, Art-Net RJ45

Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)

IP Rating: 20

Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)

Power Consumption: 312W

Power Linking for connecting fixture in daisy-chain:

Up to 6 units @110V with a 20A circuit

Up to 12 units @208V with a 20A circuit

Up to 12 units @230V with a 20A circuit

Fuse: F12A, 250V

Certification / Qualifications: CE, cETL, FCC, RoHS

Operating Temperature: 40 ° C (104 °F)

Minimum Temperature: – 10 ° C (14 ° F)

Maximum Temperature: 60 ° C (140 ° F)

Product Weight: 34.02lbs

Product Dimensions: 31.5″ x 10.5″ x 6.6″
