Description

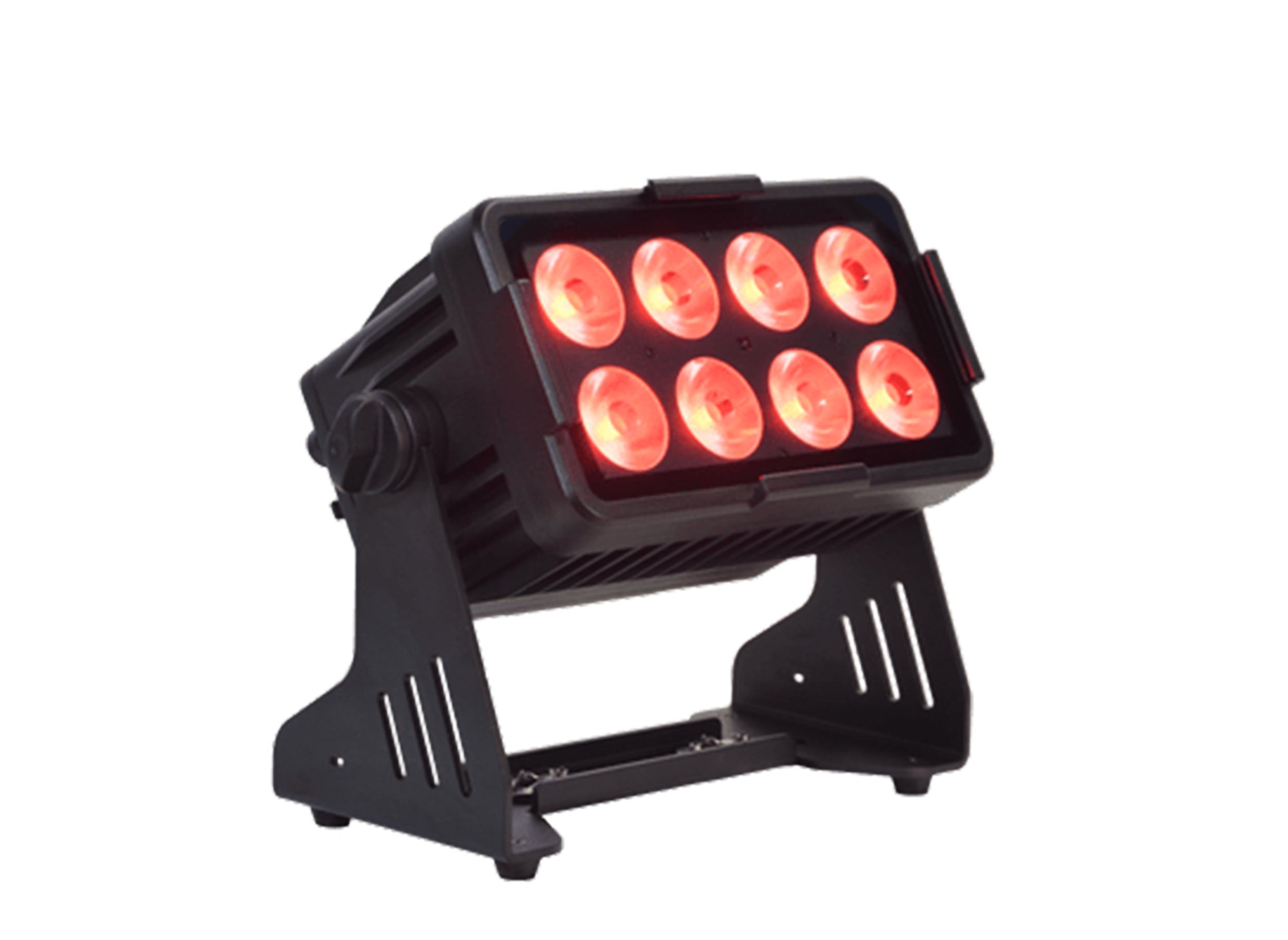

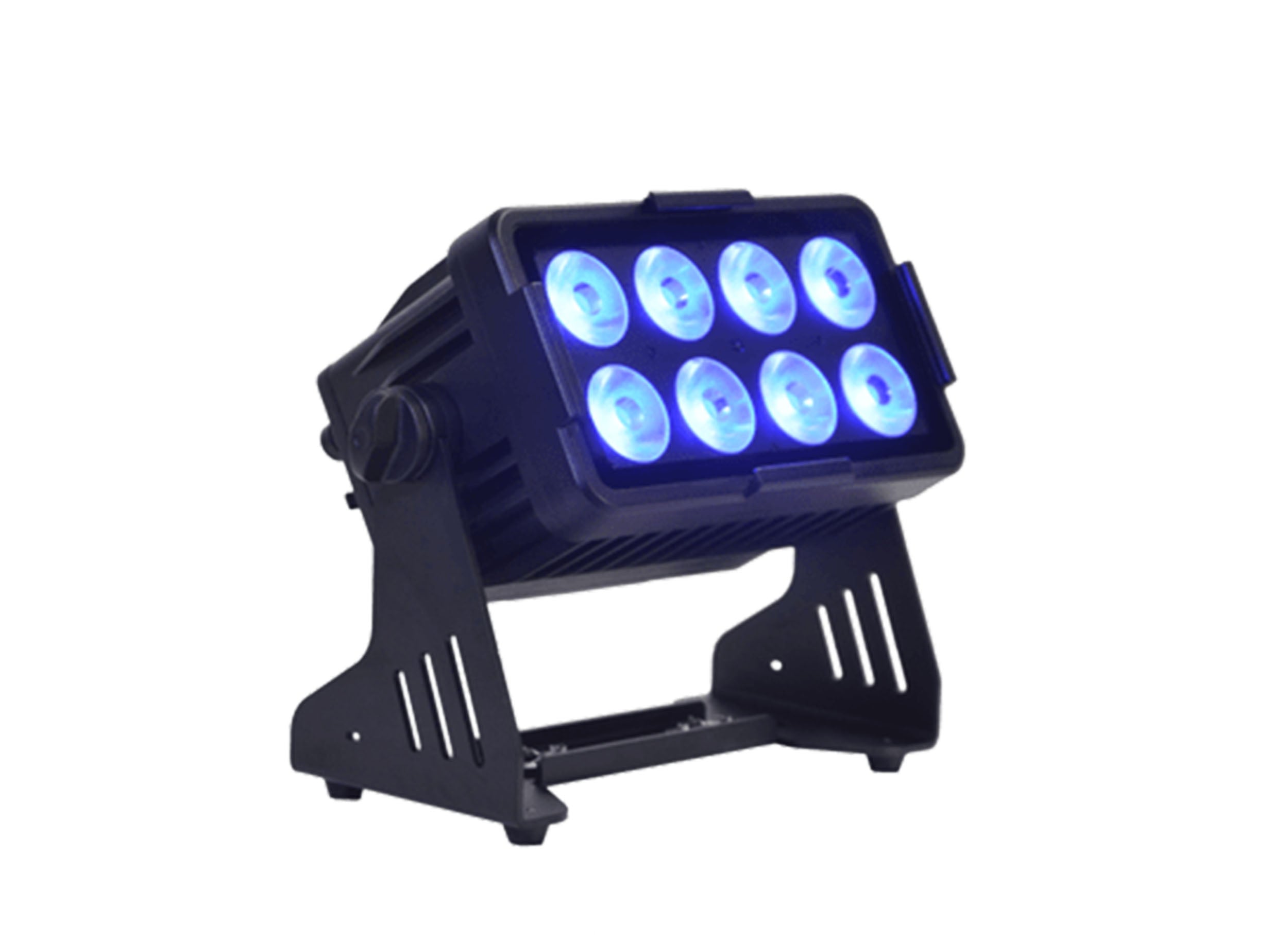

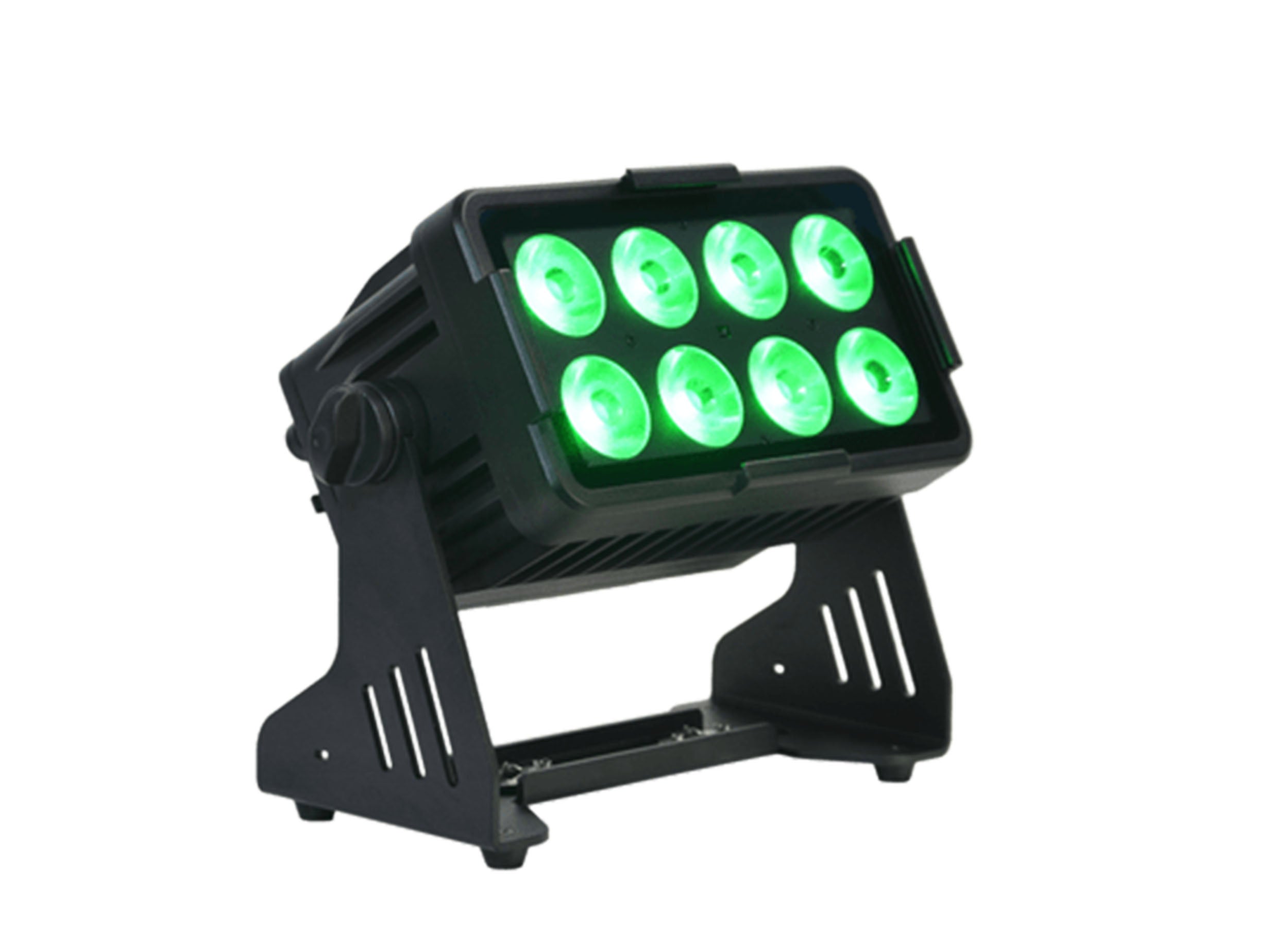

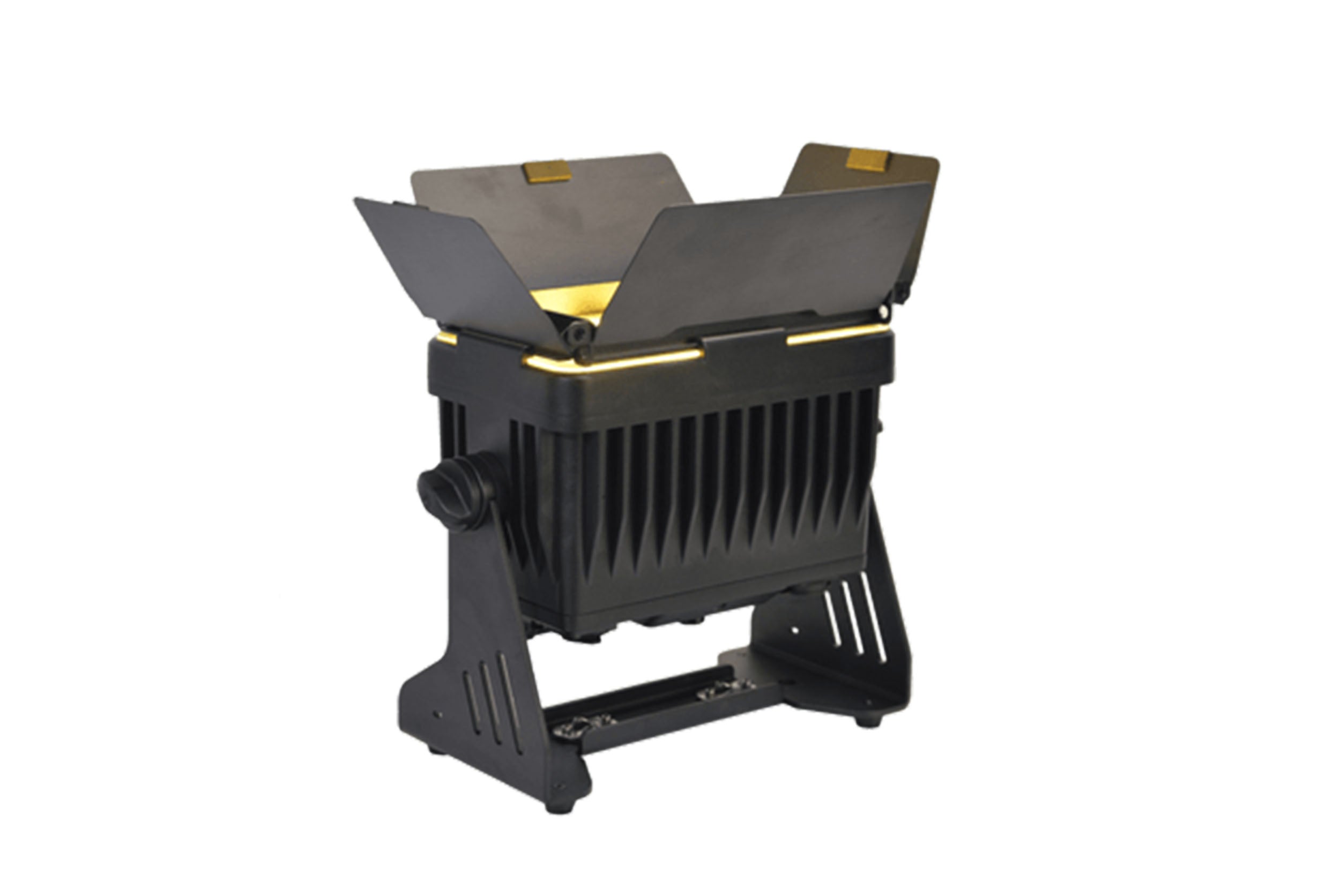

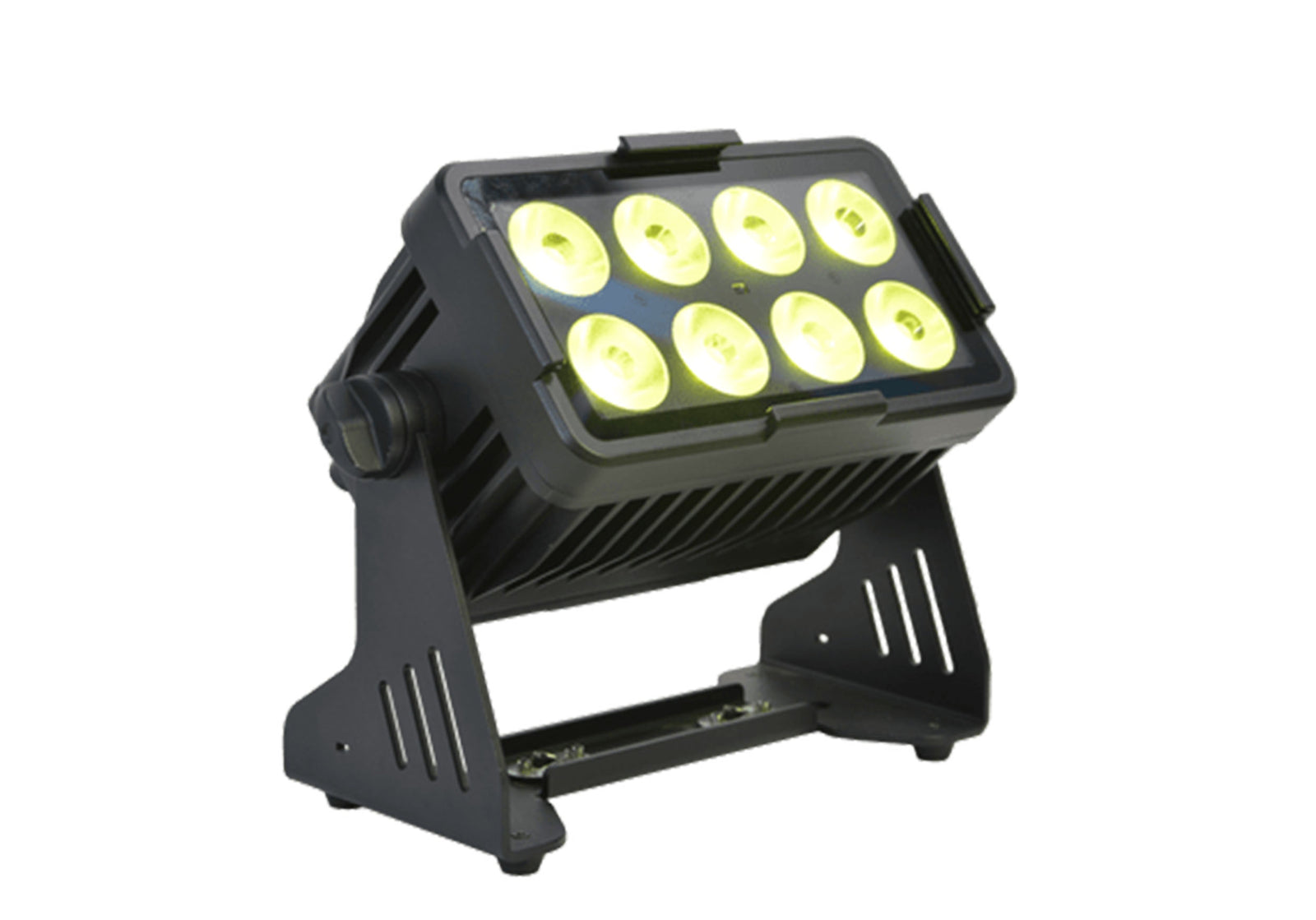

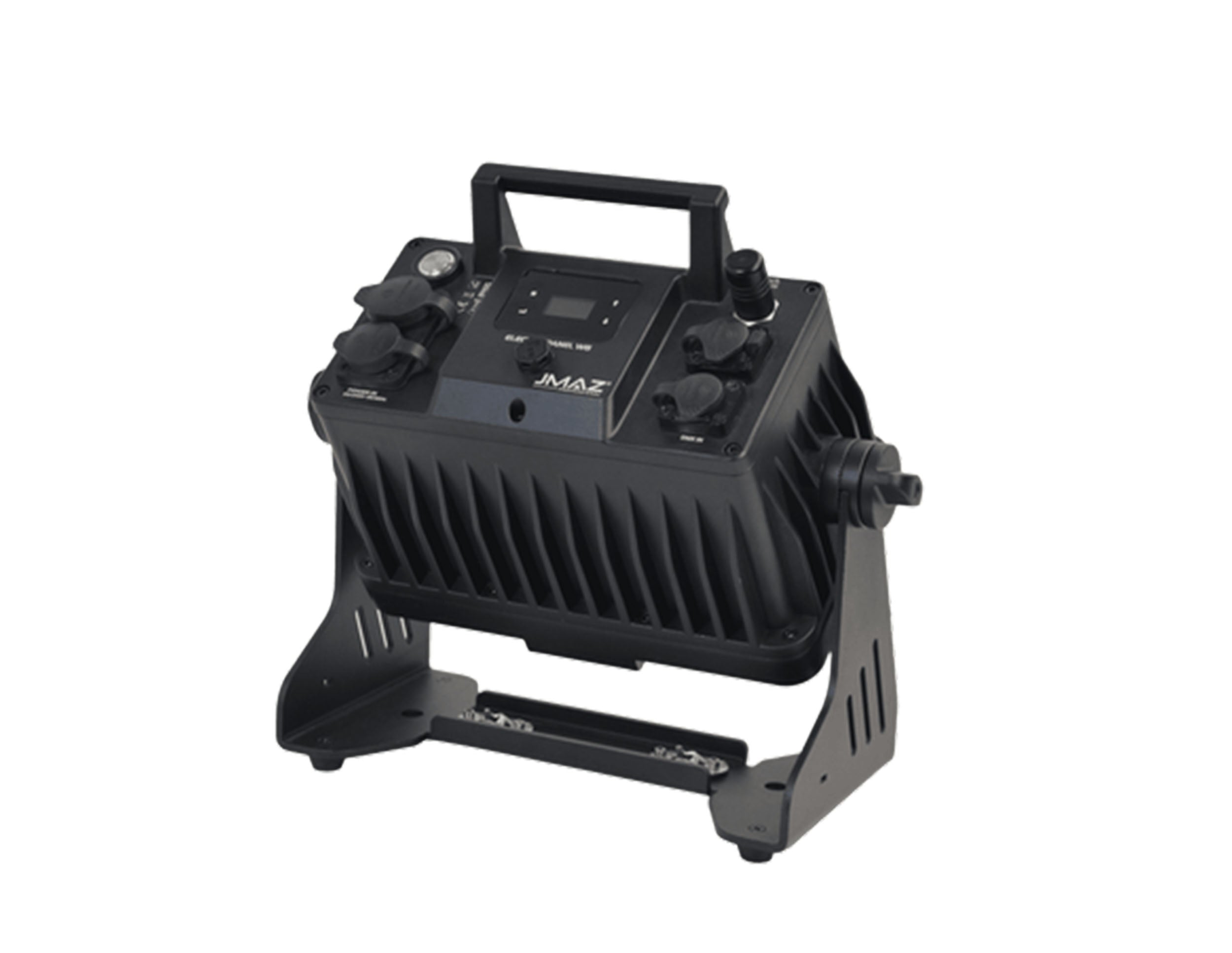

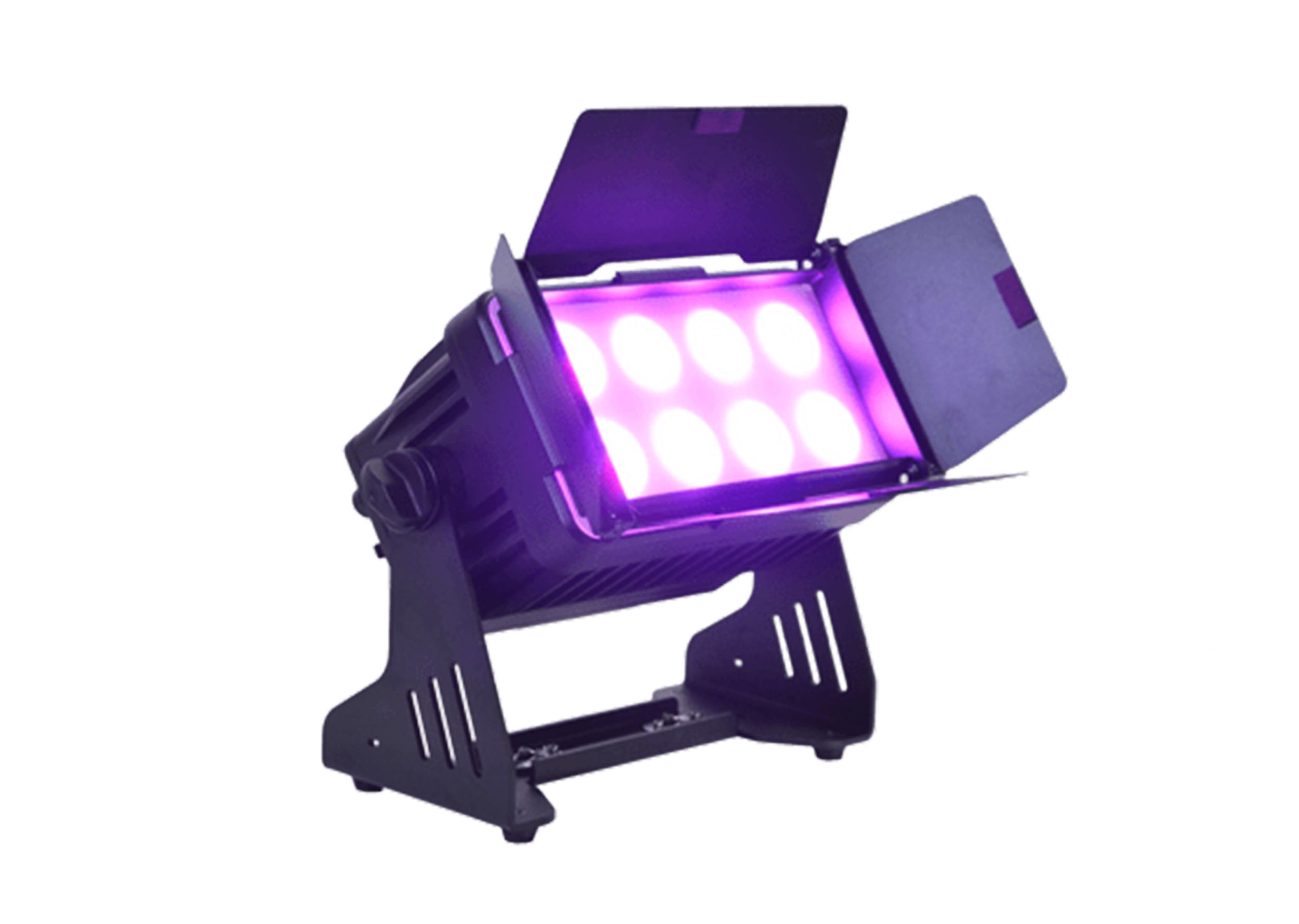

The JMAZ Professional JP2006 Electro W8 is a versatile 100W RGB+L LED outdoor battery-powered panel. It offers 11-hour runtime (single color), 5.5 hours (full output), with a 4-hour recharge time. Featuring adjustable CTO (2500K-5600K), 20° beam angle (40° with diffuser), and IP65 rating, it’s built for durability. With 5 DMX modes, built-in color presets, DMX512, Wireless DMX, and CRMX compatibility, it suits any setup.
NewLighting.com is proud to be an authorized dealer for the top manufacturers of theatrical lighting and event equipment. Factory sealed items are shipped direct to your doorstep and include all applicable manufacturer warranties. All items are subject to availability.
Product Specifications:
Light Source
8 x 12W RGBL LEDs
LED Life Expectancy: 50,000 hrs
Color System
RGBL Color Mixing 32 bit
Color Temperature Range:2500k – 5600k
Fading/Jumping Macros light change and jump
Body
Die-Cast Aluminum and Steel Structure
Exterior Finish:Black
Electronics
Linear LED Dimmer:0-100% Smooth
CCT: 2500k – 5600k
Strobe Shutter: 0-25Hz
Dimming Modes: 4
Electrical
Input Voltage:100 V – 260 V AC, 50 -60 Hz
Power Consumption:96W
Included 45ft Range, IR Remote
PWM:1.5KHz
Power Linking for connecting fixture in daisy-chain
Up to 18 units @110V with a 20A circuit
Up to 30 units @208V with a 20A circuit
Up to 40 units @230V with a 20A circuit
Battery Voltage:18.5V
Battery Capacity:15,000 mAH, 277.5 Wh/hour
Charger:21V, 3.5Ah
Battery ZType:Lithium Ion
Rechargeable:Yes
Run Time:Full On: 5.5 hrs, Single Color: 11 hrs
Charging Time: 4 hrs
Battery Life Selectable:50%, 60%, 70%, 80%, 90%, 100%
Optics
Install Optic:20 Degree

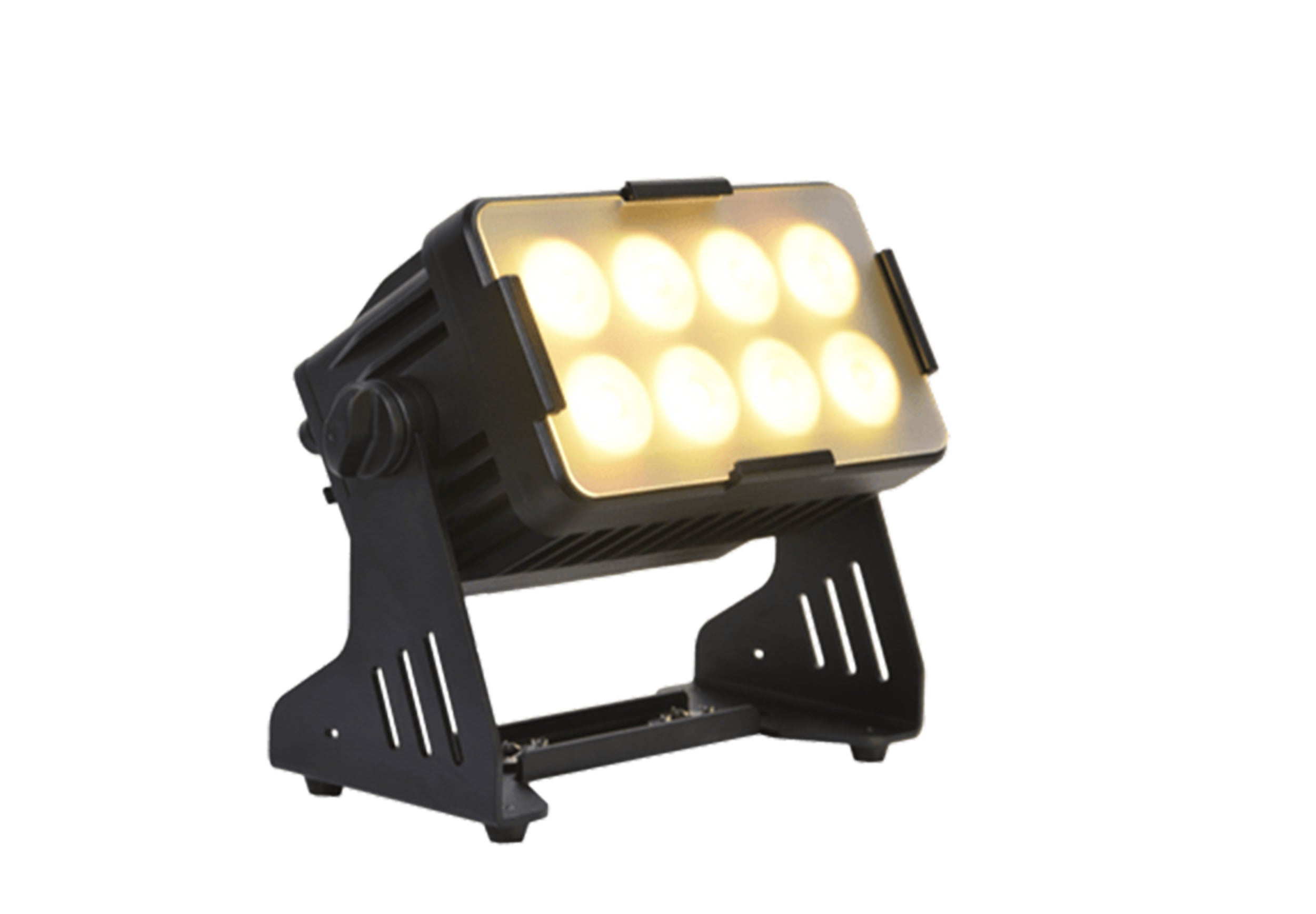

Filter 1 Beam Angle:40 Degree
Filter 2 Beam Angle:60 x 10 Degree
Filter 3 Beam Angle:80 Degree
Dynamic Effect
Tilt Range:0-360 Degree
64 Preset Color Macros
Stand Alone Color Mixing:Yes
Dimmer:Electronic
Shutter/Strobe:Electronic
Strobe Rate:0-25 Hz
Dim Mode:4
Built-In Automated Programs:Yes
Emergency Mode:Active / Non-Active
Emergency Select:Preset Color
Control
Control Protocol:DMX, RDM
Wireless DMX:Lumen Radio (CRMX) with RDM
Personalities:3/4/6/8/11 CH DMX Modes
Setting and addressing:OLED Graphical Display, RDM ANSI E2.20, Standalone Mode
Physical
IP Rating:65
Cooling:Fanless

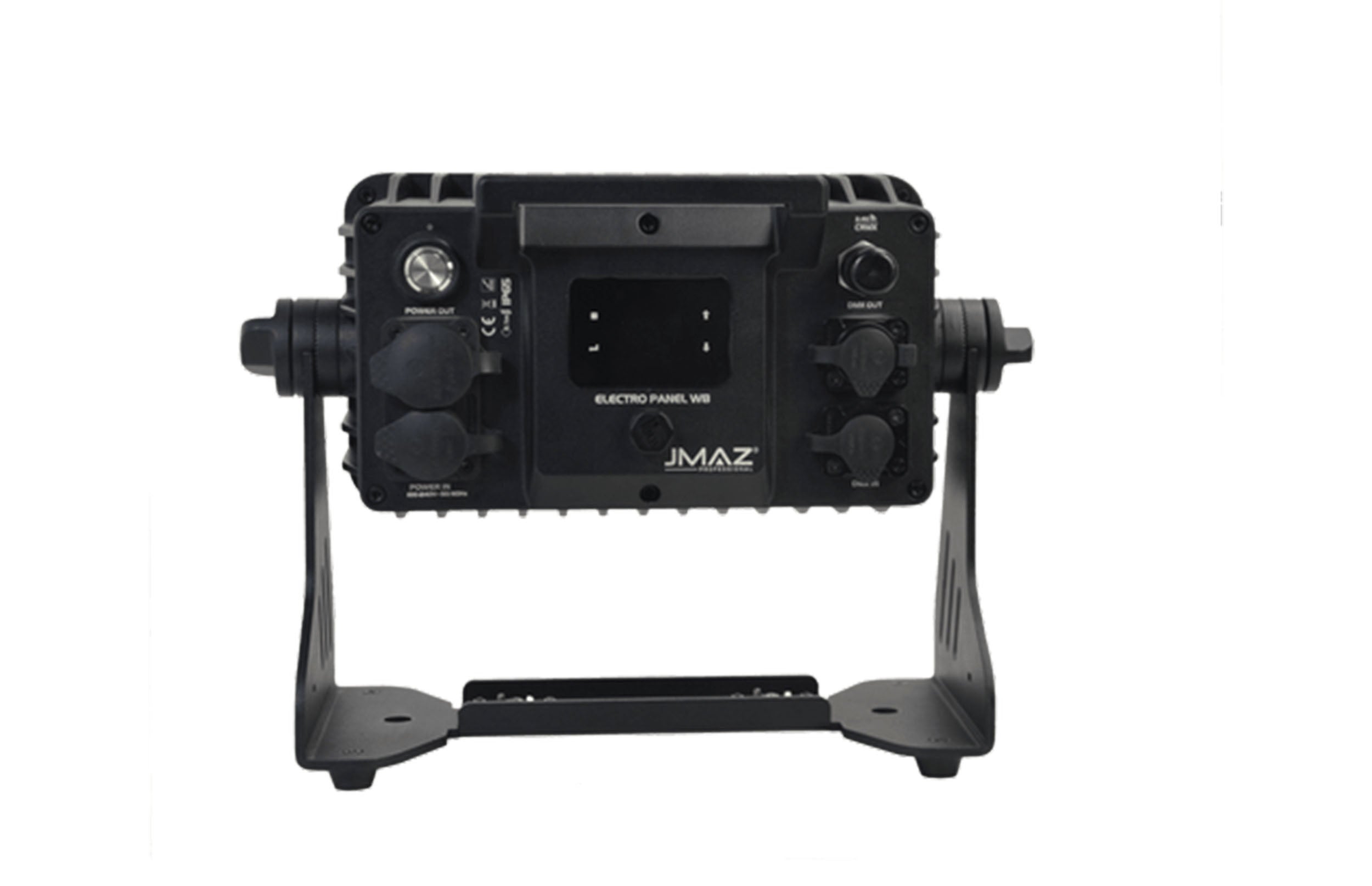

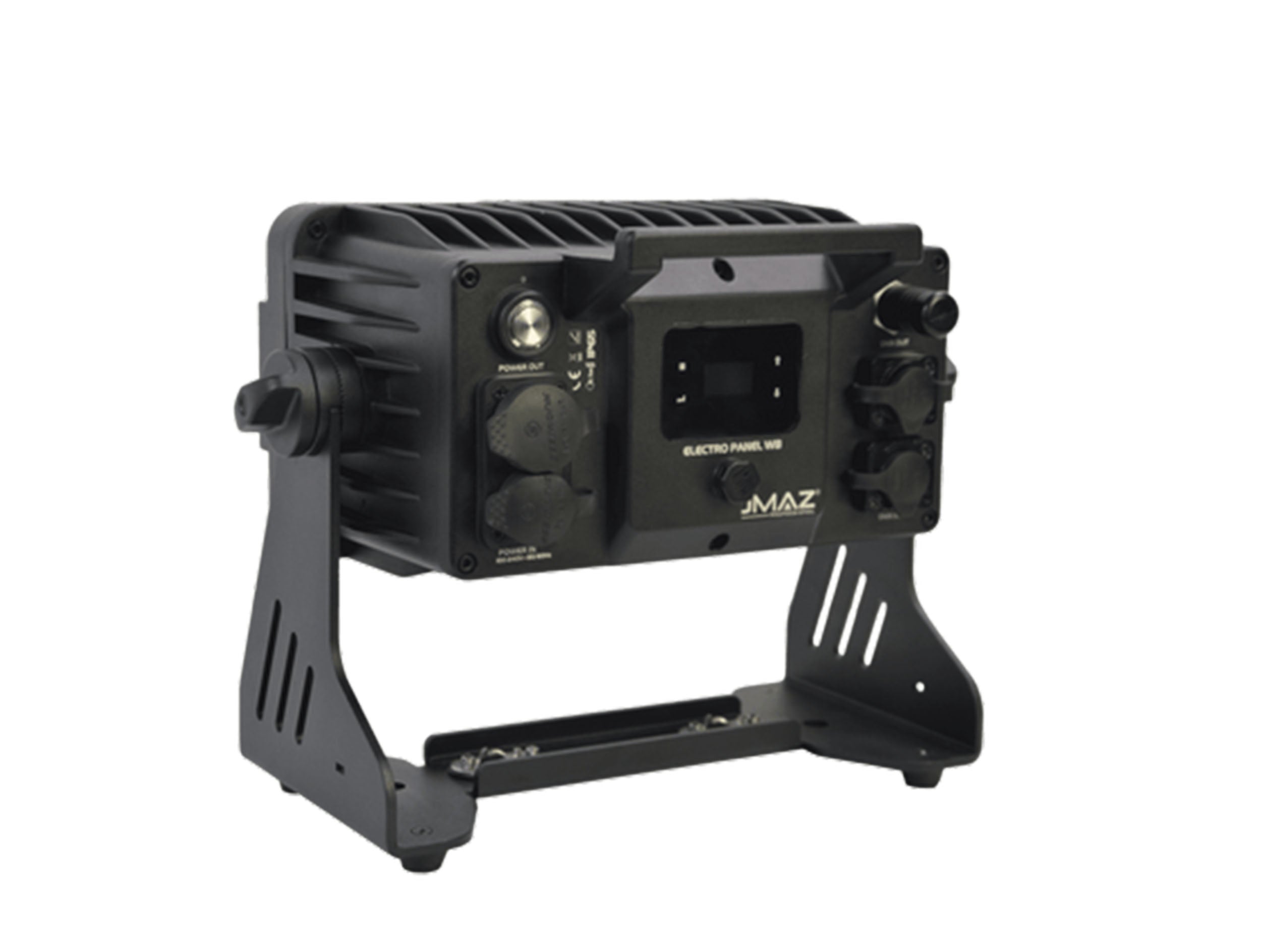

Power Connection:US Edison (UL Listed) plug to Seetronic Powercon IP65 True1
Power Input:Seetronic Powercon IP65 True1
Power Output:Seetronic Powercon IP65 True1
Data Connectors:Seetronic 5pin XLR
Cable Length:Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
Dimensions:12.6” x 5.6” x 9.8”
Weight:13.1 lbs
