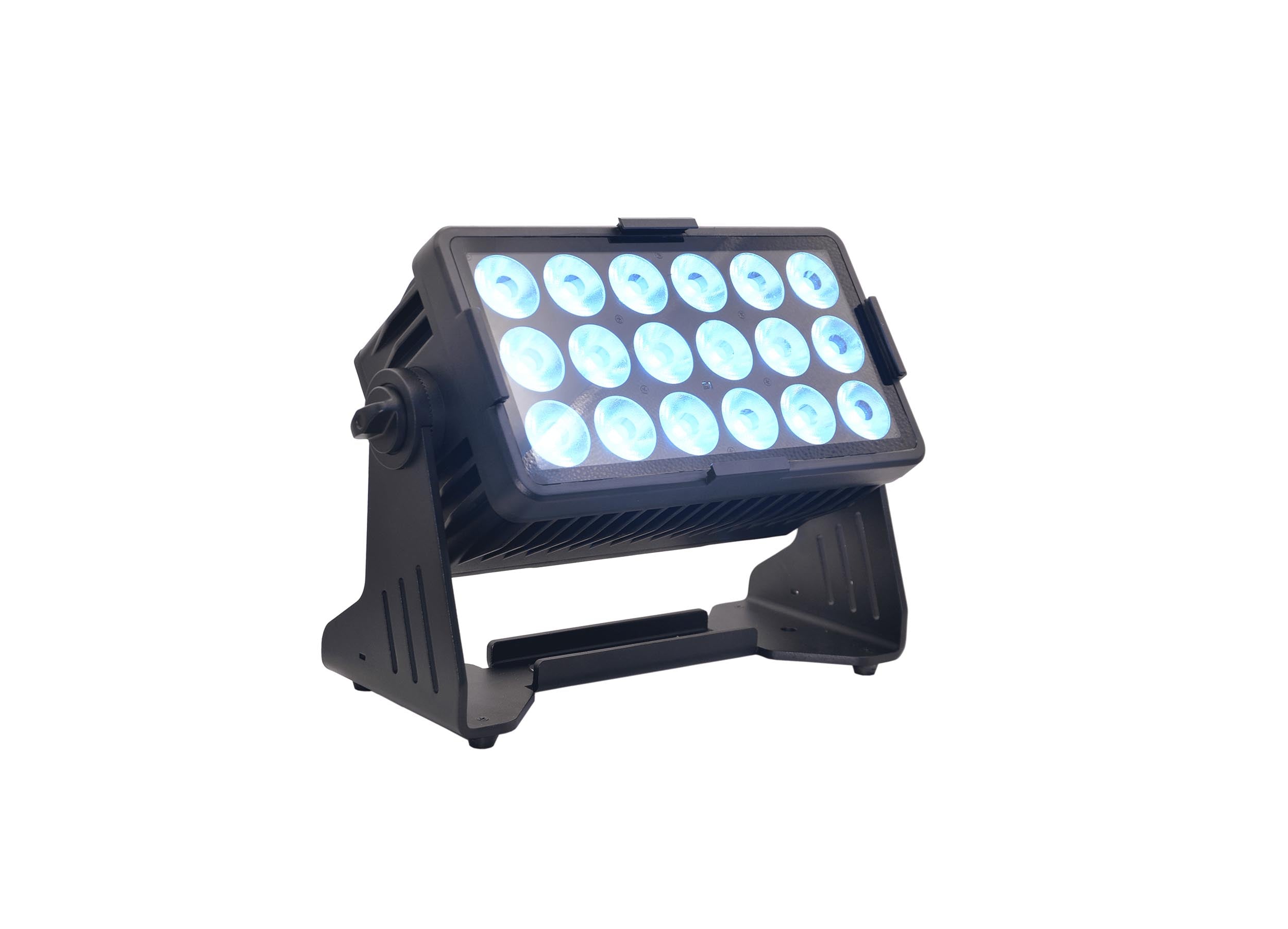

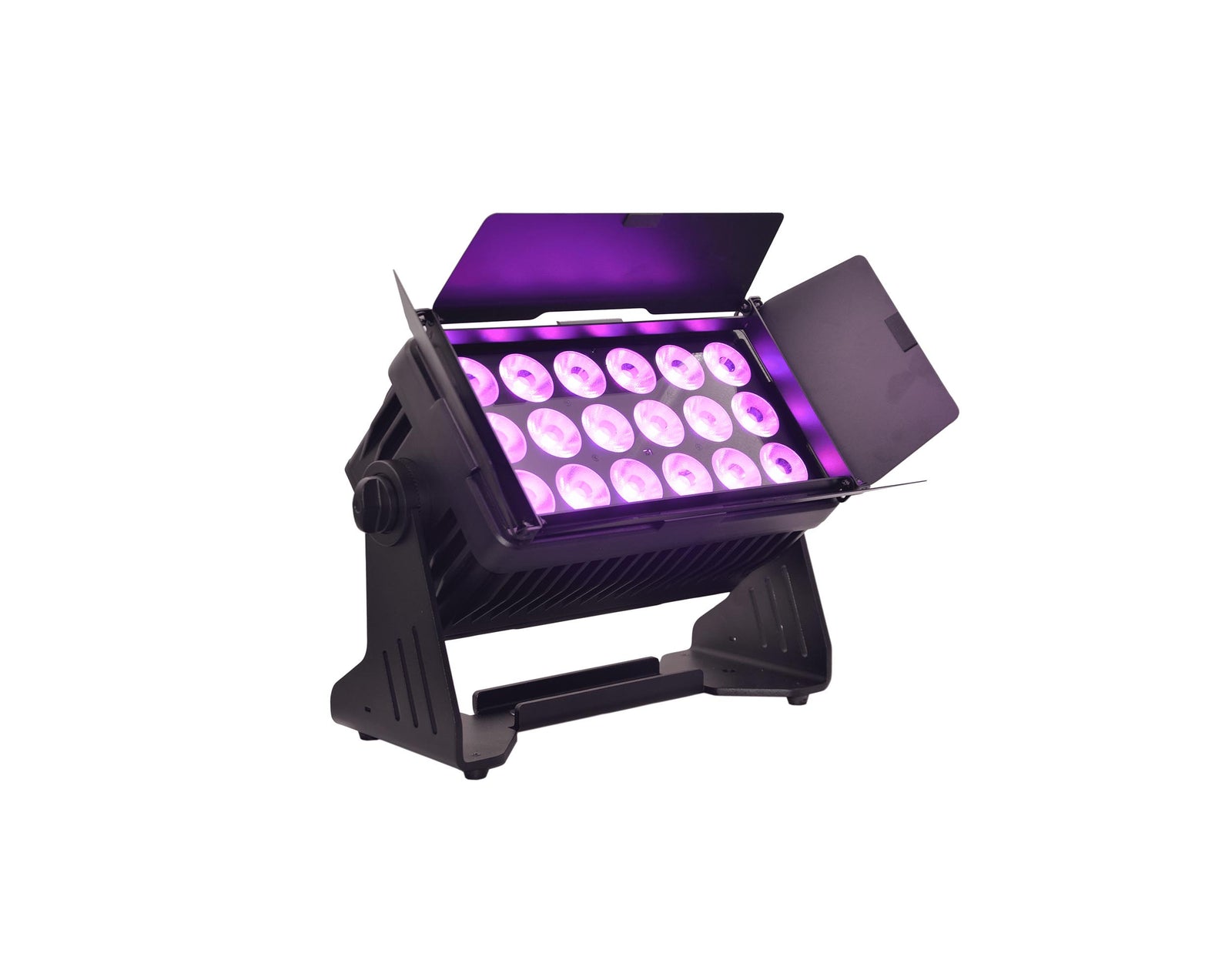

JMAZ Pro JP2007, Electro Panel W18 with 18 x 12-Watt RGBL LEDs

The JMAZ Professional Electro W18 is a high-performance 215W RGB+L LED outdoor panel with 11-hour runtime (single color) and 3.5-hour runtime at full brightness. It recharges in just 2.5 hours and features adjustable CTO (2500K-5600K), a 20° beam angle (40° with diffuser), and an IP65 rating for durability. With 5 DMX modes, built-in color presets, DMX512, CRMX, and Wireless DMX compatibility, it’s ideal for professional lighting setups.

Product Specifications:

Light Source:

18 x 12W RGBL LEDs

LED Life Expectancy:50,000 Hrs.

Color System:

RGBL Color Mixing 32 bit

Color Temperature Range:2,500K -5,600k

Fading/Jumping Macros

Body:

Die-Cast Aluminum and Steel Structure

Exterior Finish:Black

Electronics:

Linear LED Dimmer:0-100% Smooth

Linear CTO:We NEED

Strobe Shutter:0-25H

Dimming Modes:4 Different Ones

Electrical:

Input Voltage:100 V – 260 V AC, 50 -60 Hz

Power Consumption:216W

Included 45ft Range, IR Remote

PWM:1.5KHz

Power Linking for connecting fixture in daisy-chain

Up to 8 units @110V with a 20A circuit

Up to 14 units @208V with a 20A circuit

Up to 17 units @230V with a 20A circuit

Battery Voltage:25.9V,

Battery Capacity:12,5000 mAh, 323.8 Wh/hour

Charger:36V, 5.5A

Battery Type:Lithium Ion

Rechargeable:Yes

Run Time:Full On: 3 hr 40 min, Single: 11 hours

Charging Time:2.5 hrs

Battery Life Selectable:50%, 60%, 70%, 80%, 90%, 100%

Optics:

Install Optic:20 Degree

Filter 1 Beam Angle:40 Degree

Filter 2 Beam Angle:60 x 10 Degree

Filter 3 Beam Angle:80 Degree

Dynamic Effect:

Tilt Range:0-360 Degree

64 Preset Color Macros

Stand Alone Color Mixing:Yes

Dimmer:Electronic

Shutter/Strobe:Electronic

Strobe Rate:0-25 Hz

Dim Mode:4

Built-In Automated Programs:Yes

Emergency Mode:Same W8

Control:

Control Protocol:DMX, RDM

Wireless DMX:Lumen Radio (CRMX) with RDM

Personalities:3/4/6/8/11 CH DMX Modes

Setting and addressing:OLED Graphical Display, RDM ANSI E2.20, Standalone Mode

Physical:

IP Rating:65

Cooling:Fanless

Power Connection:US Edison (UL Listed) plug to Seetronic Powercon IP65 True1

Power Input:Seetronic Powercon IP65 True1

Power Output:Seetronic Powercon IP65 True1

Data Connectors:Seetronic 5pin XLR

Cable Length:Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)

Dimensions:16.2” x 7.3” x 10.6”

Weight:23.2 lbs.

Certification / Qualifications:

RoHS, CE, FCC

IP Rating:IP 65

Operating Temperature:40 ° C (104 °F)

Minimum Temperature:– 10 ° C (14 ° F)

Maximum Temperature:60 ° C (140 ° F)
