Description

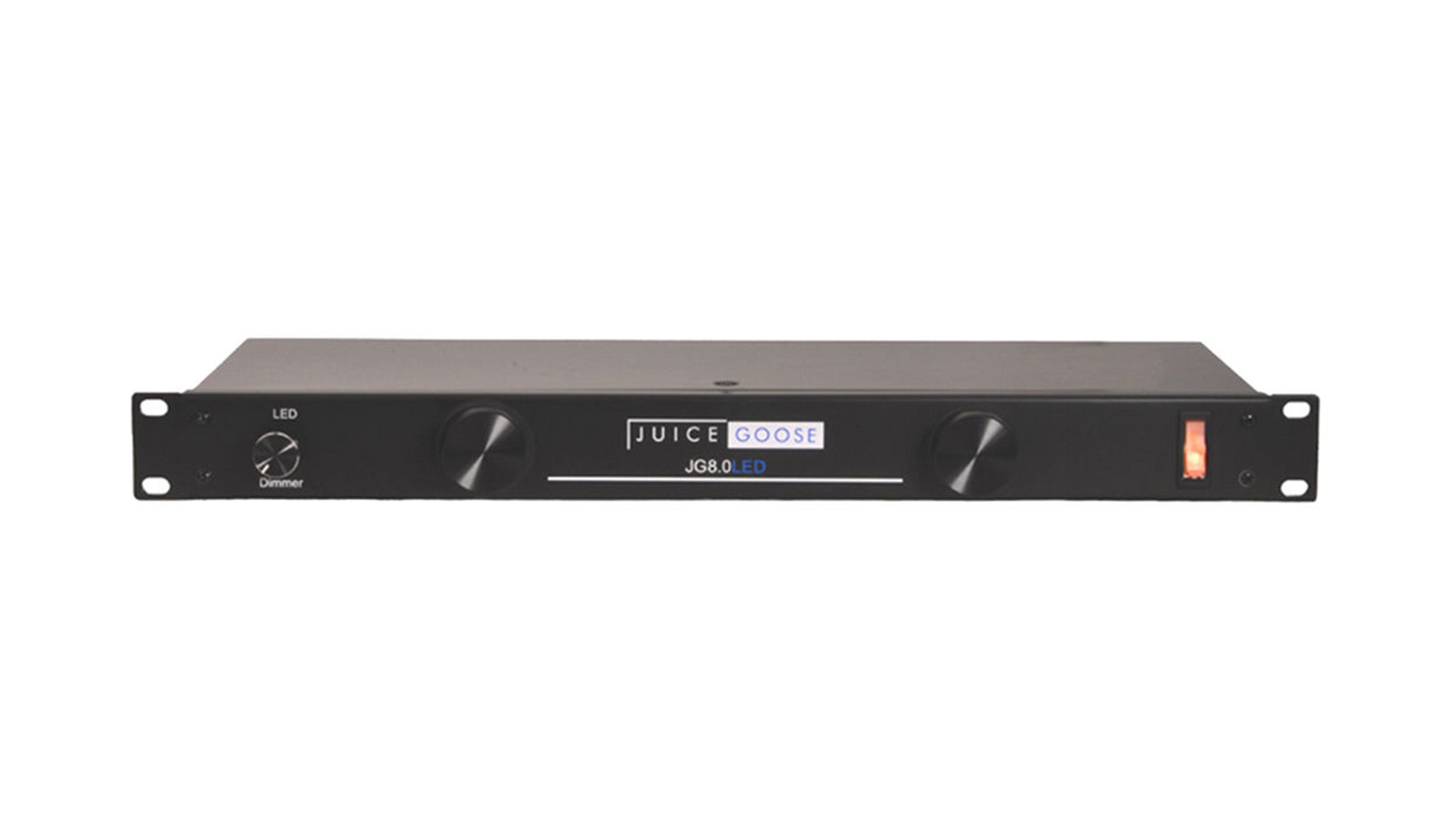

The Juice Goose JG 8LED Power Distribution Center with LEDs is intended for use in 19-inch rackmount environments. It features 8 NEMA 5-15R outlets on the back of the unit. All the outlets are rotated 90 degrees to better accommodate "wall wart" power supplies. The outlets draw power via the unit's 6-foot NEMA 5-15P power cord. To protect your installation from electrical damage, the JG 8LED features a back-mounted circuit breaker, line conditioning, and spike protection.
Connectivity

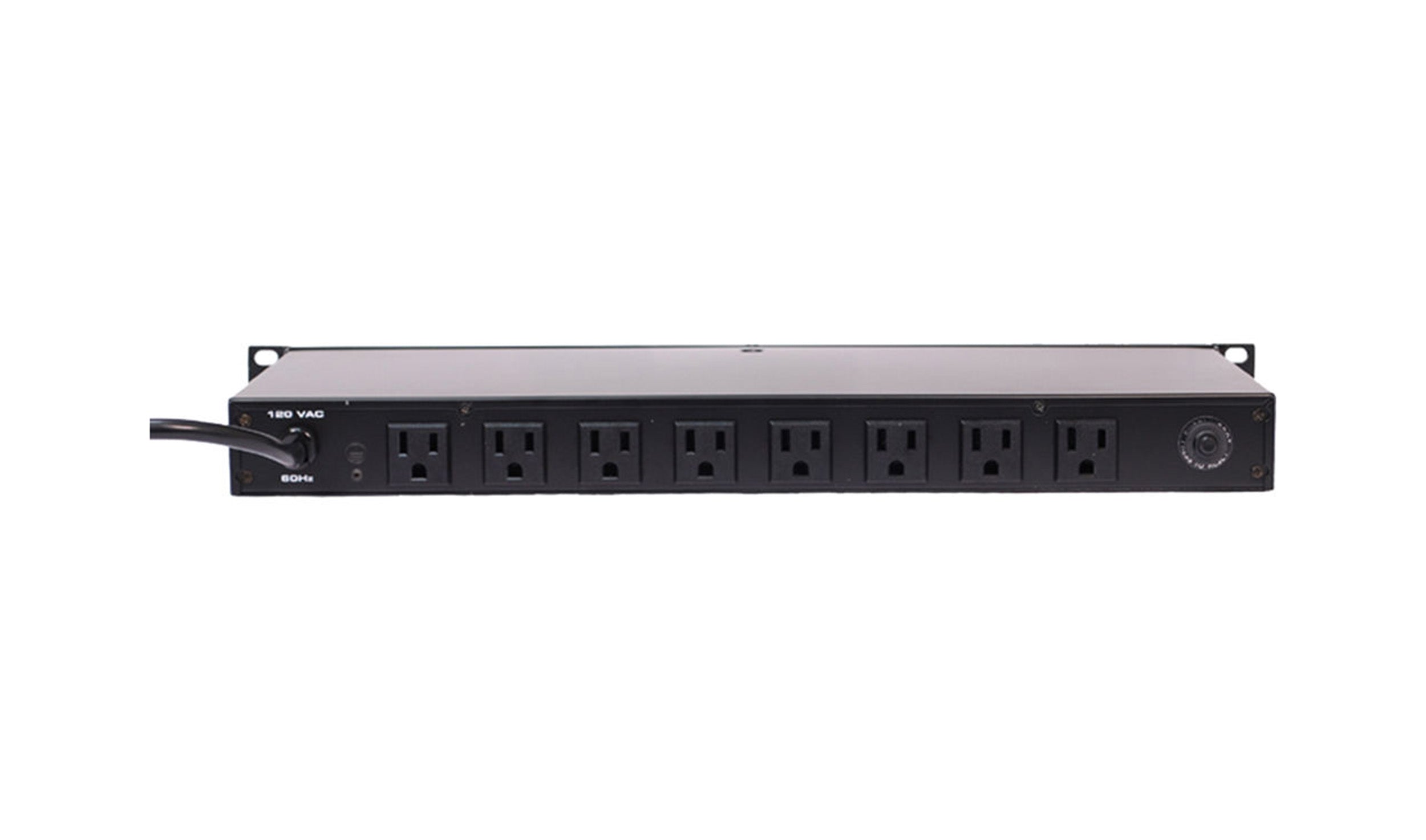

The JG 8LED provides 8 AC receptacles on the back of the unit. The receptacles are rotated to better accommodate "wall wart" power supplies. Each of the AC outlets is NEMA 5-15R, rated for 15A.
Capacity
The JG 8LED has a 15A circuit breaker and a 12A maximum current rating.
Power Protection
The unit features AC power protection that includes a fast-acting metal oxide varistor, which guards against high-energy surges between the line and neutral power leads. This protection also includes filtration capacitance, which enhances the surge protection and adds a primary level of line-noise elimination.
Power Cord
The power cord is rated for 15A and features a NEMA 5-15P plug. It's 6' long.
Circuit Breaker
The JG 8LED features a circuit breaker mounted on the rear of the chassis and is rated for 15A.
Rack Lights
The JG 8LED has two slide-out light tubes that provide dimmable LED rack lighting. LED lighting is designed to be long lasting and should never need replacing. It also can be left on for extended periods without creating significant heat.
Product Specifications:
Power Outputs: 8x NEMA 5-15
Input Voltage: 120 VAC, 60 Hz
Maximum Current Capacity: 12 A
Overload Protection: 15 A
Spike Protection: Metal oxide varistor (line & neutral)
Power Cable: 15 A, 16/3 SJT with NEMA 5-15P plug
Power Cable Length: 6' (4.6 m)
Dimensions: 1.75 x 19 x 7" (4.4 x 48.3 x 17.8 cm)
Weight: 5.5 lb ( kg)
Packaging Info
Package Weight: 6.8 lb
Box Dimensions (LxWxH): 21.2 x 9 x 2.3"
