Description
The Juice Goose JGJr Power Distribution Center is intended for use in 19-inch rackmount environments. It features 6 NEMA 5-15R outlets that are rotated to better accommodate "wall wart" power supplies. The outlets draw power via the unit's 6-foot NEMA 5-15P power cord. To protect your installation from electrical damage, the JGJr features a front-mounted circuit breaker, line conditioning, and spike protection.
Connectivity

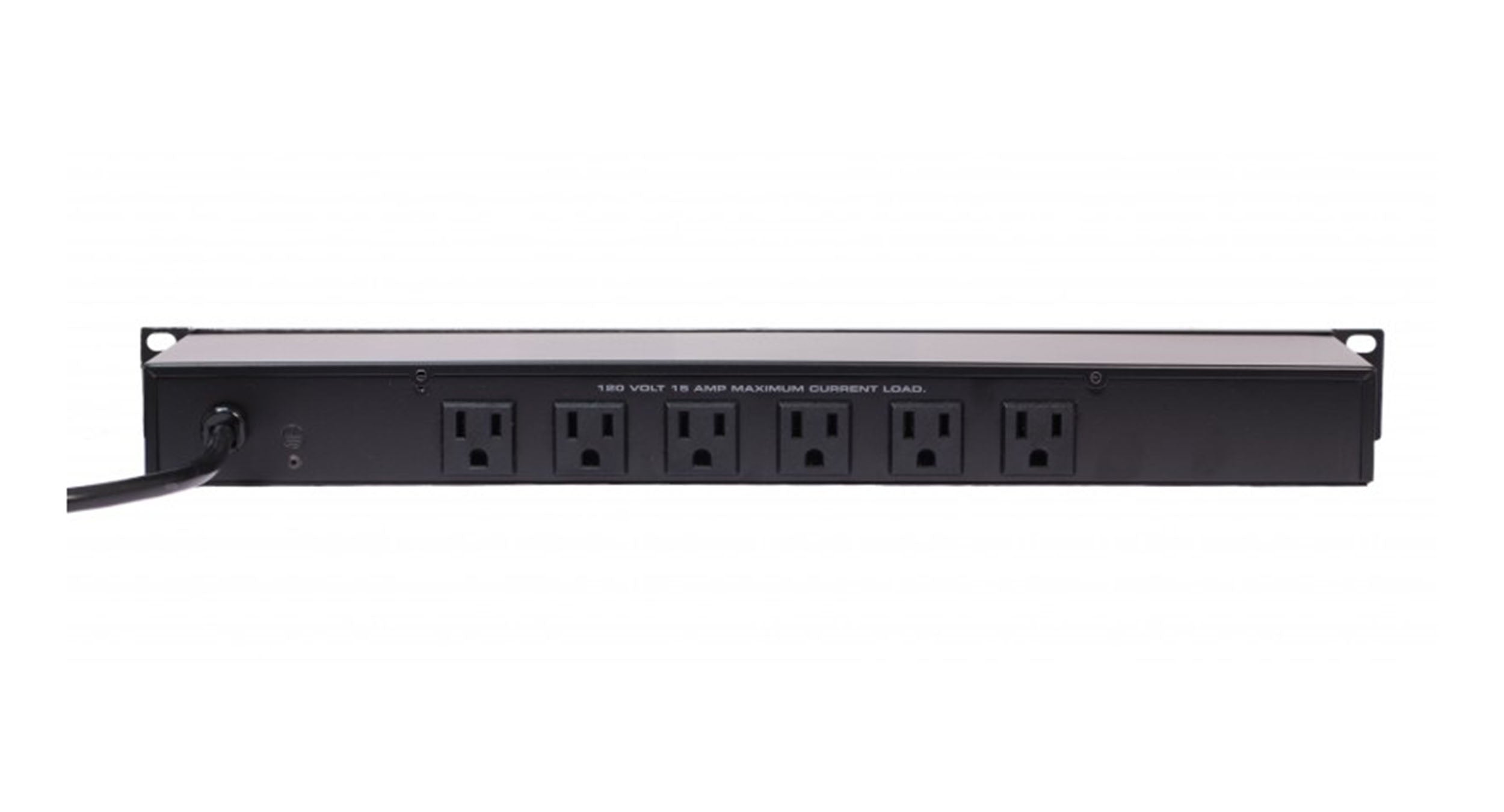

The JGJr provides 6 AC receptacles on the back that are rotated to better accommodate "wall wart" power supplies. Each of the AC outlets is NEMA 5-15R, rated for 15 amps.
Capacity
The JGJr has a 15A circuit breaker and a 12A maximum current rating.
Power Protection
The unit features AC power protection that includes a fast-acting metal oxide varistor, which guards against high energy surges between the line and neutral power leads. This protection also includes filtration capacitance, which enhances the surge protection and adds a primary level of line noise elimination.
Power Cord
The power cord is rated for 15A and features a NEMA 5-15P plug. It's 6' long.
Circuit Breaker

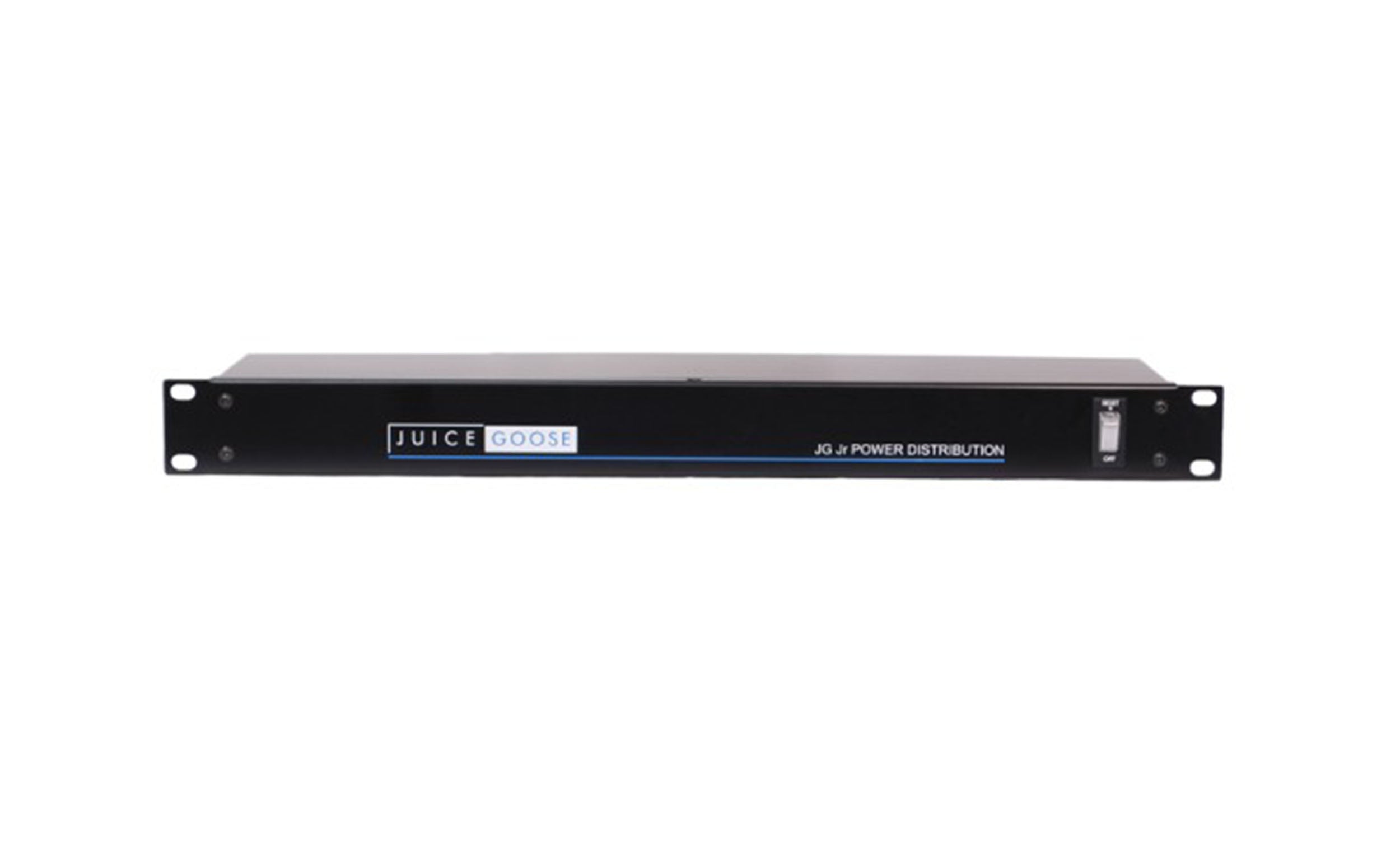

The JGJr features a circuit breaker mounted on the front of the chassis and is rated for 15A.
Product Specifications:
Power Outputs: 6x NEMA 5-15
Input Voltage: 120 VAC, 60 Hz
Maximum Current Capacity: 12 A
Overload Protection: 15 A
Spike Protection: Metal oxide varistor (line & neutral)
Power Cable: 15 A, 16/3 SJT with NEMA 5-15P plug
Power Cable Length: 6' (1.8 m)
Dimensions: 1.75 x 19 x 4.5" (4.4 x 48.3 x 11.4 cm)
Weight: 4.5 lb (2.0 kg)
Packaging Info
Package Weight: 4.05 lb
Box Dimensions (LxWxH): 21.2 x 6.3 x 2.3"
