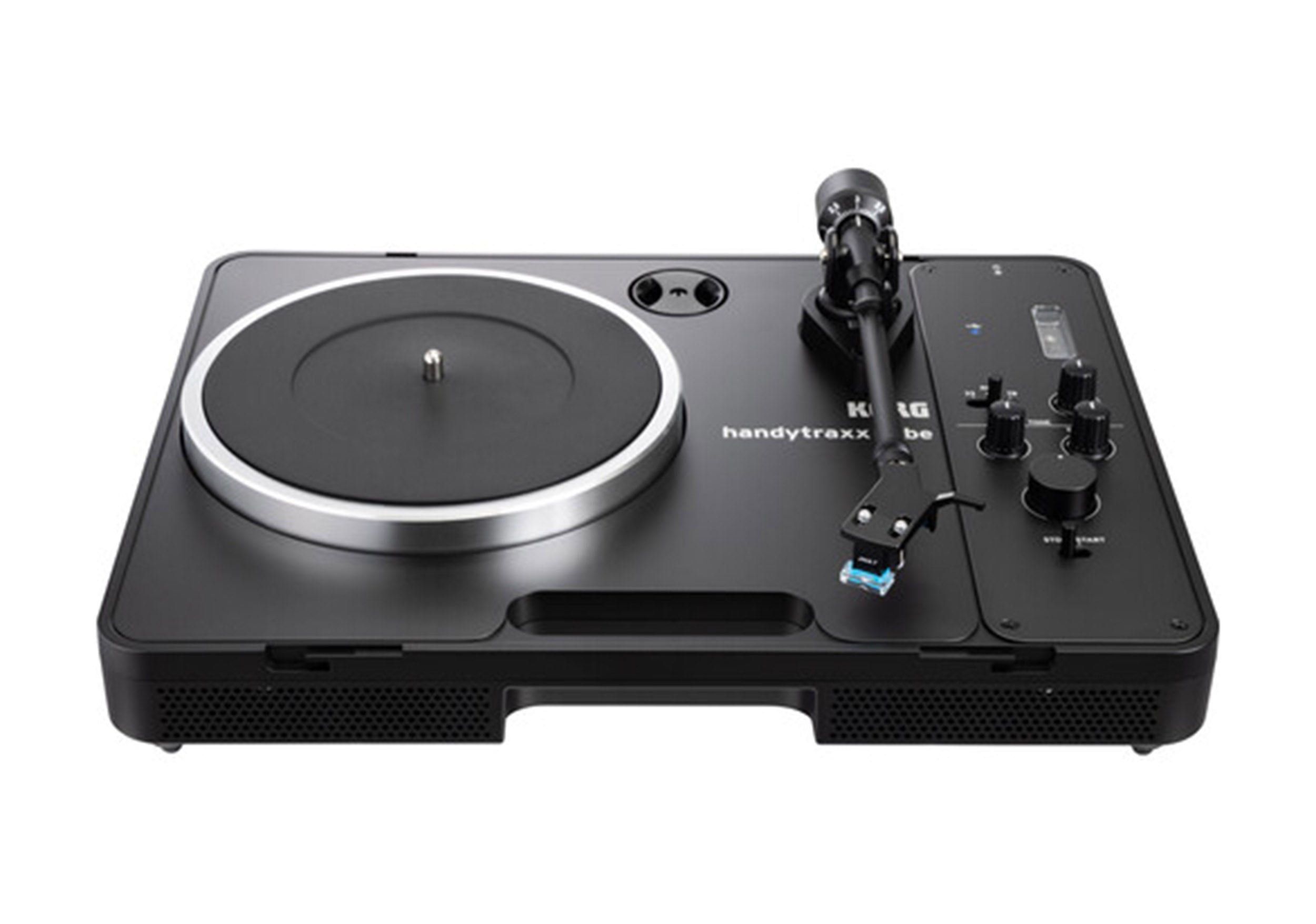

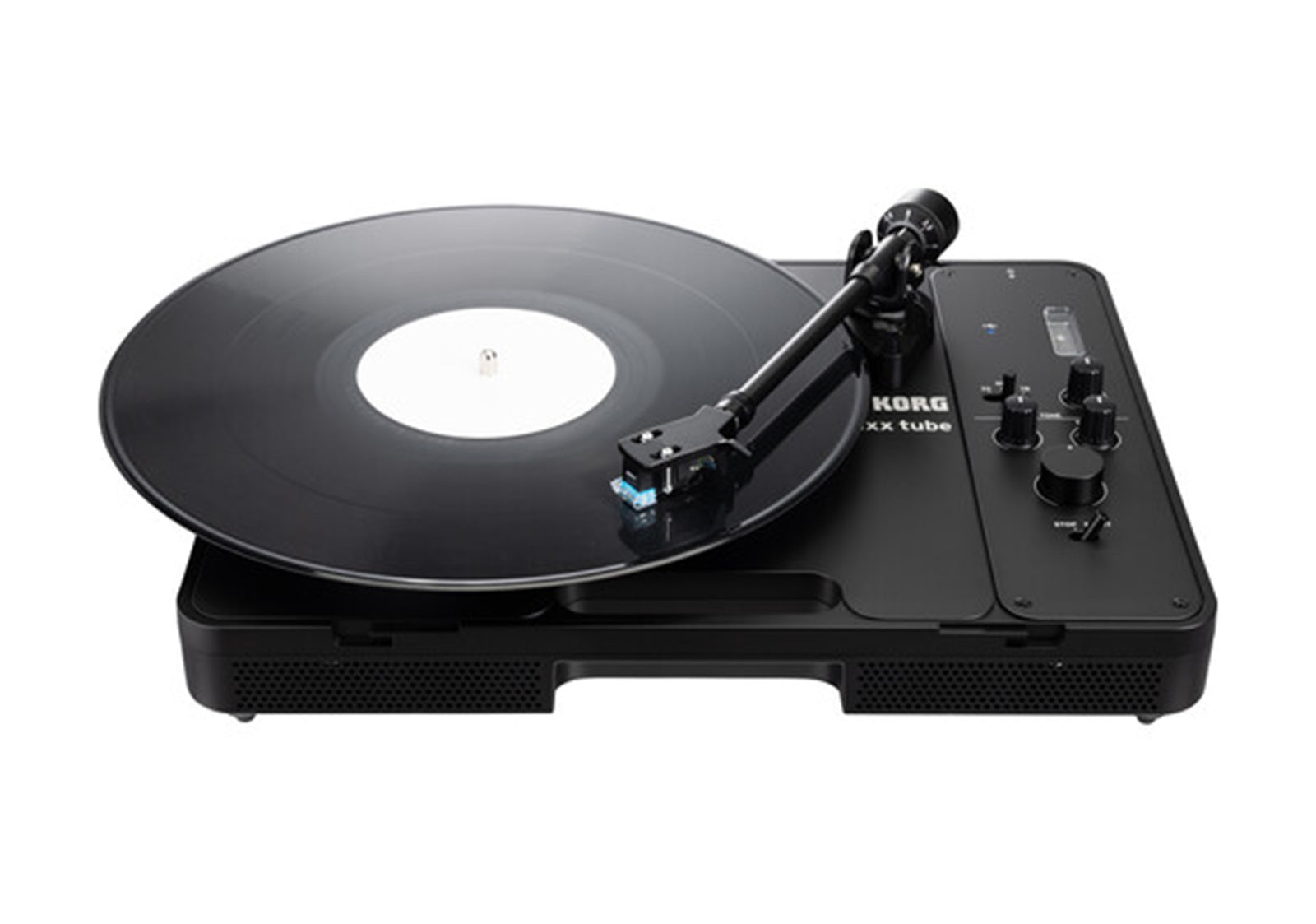

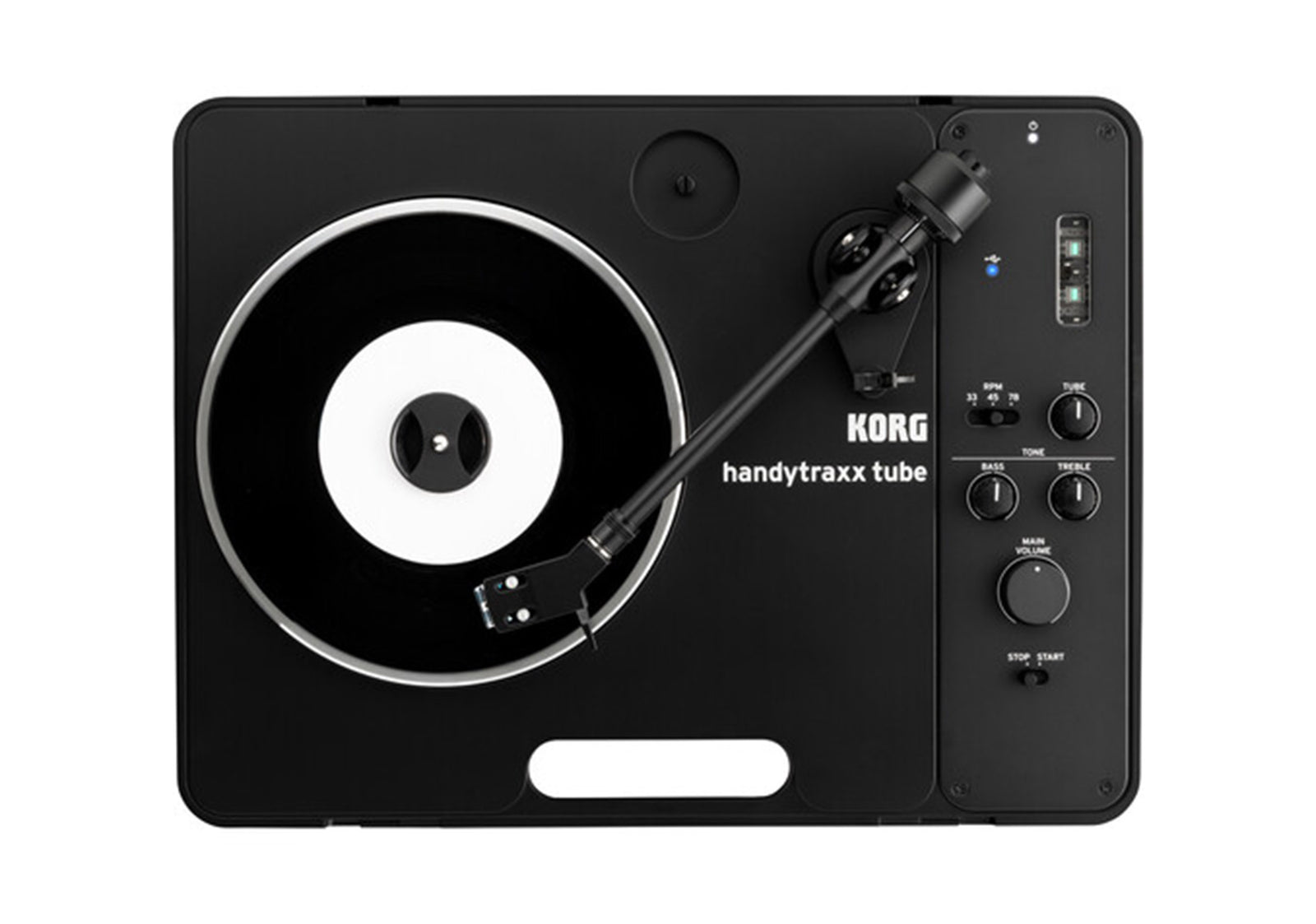

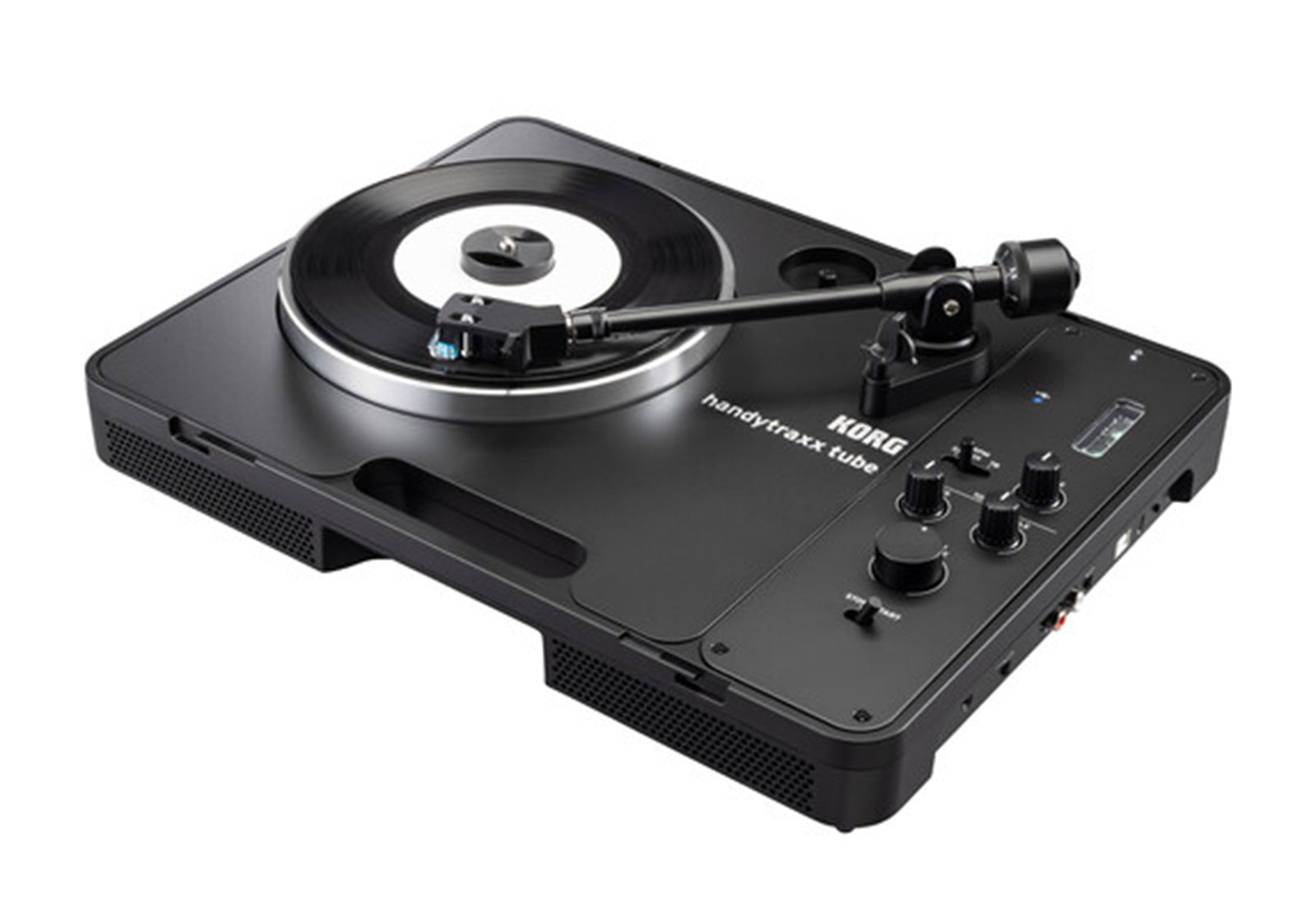

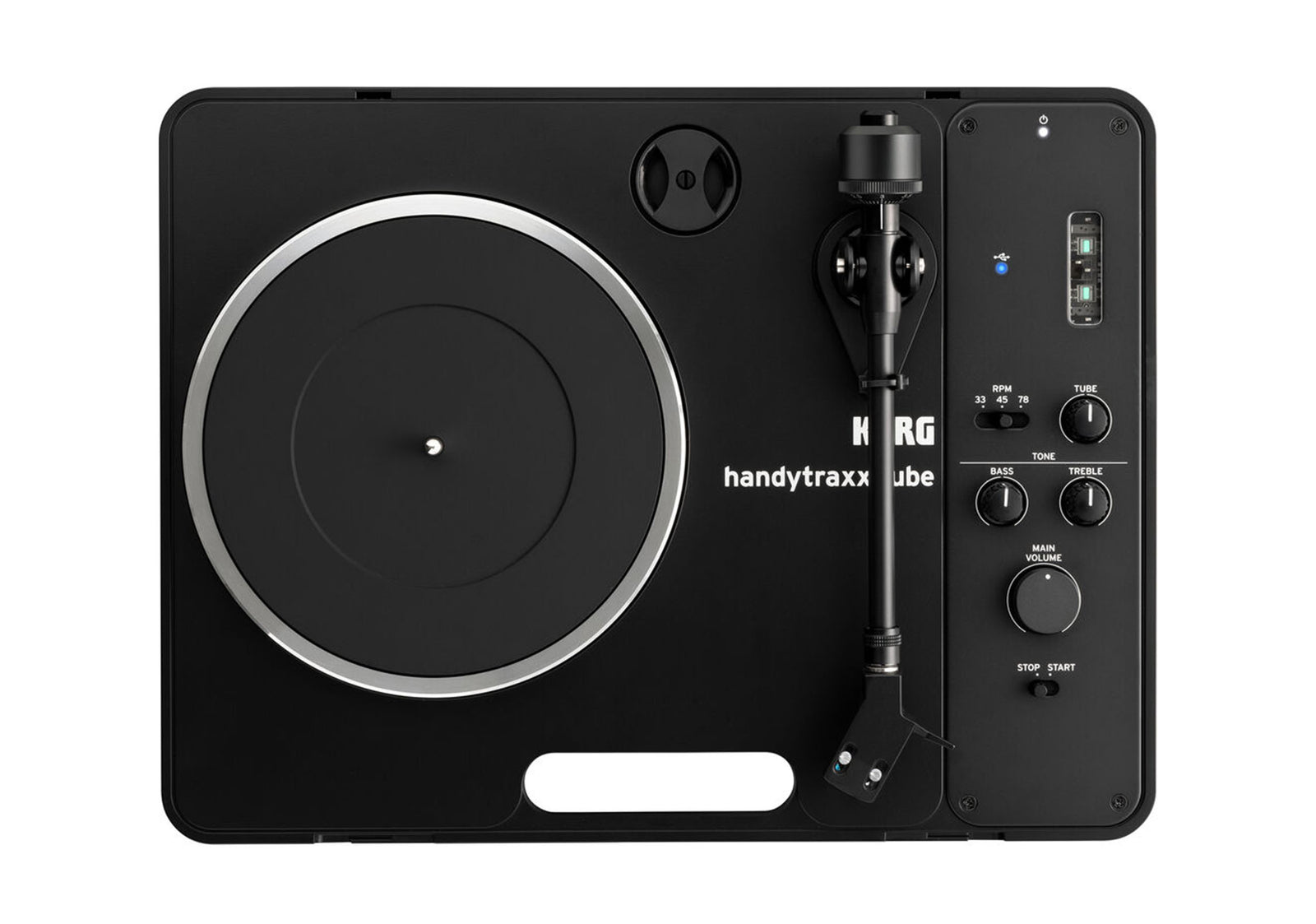

Korg Handytraxx TUBE Portable Record Player

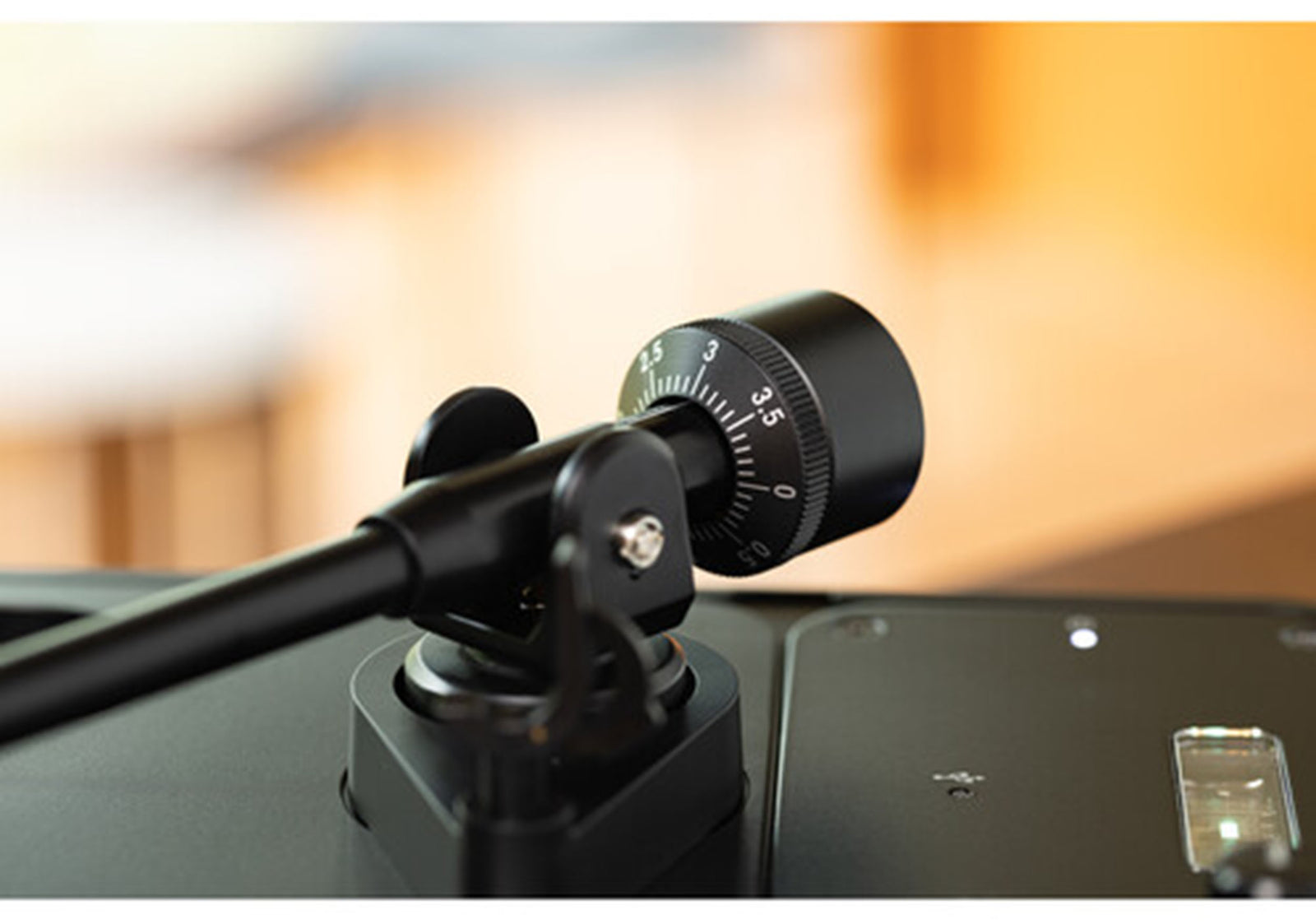

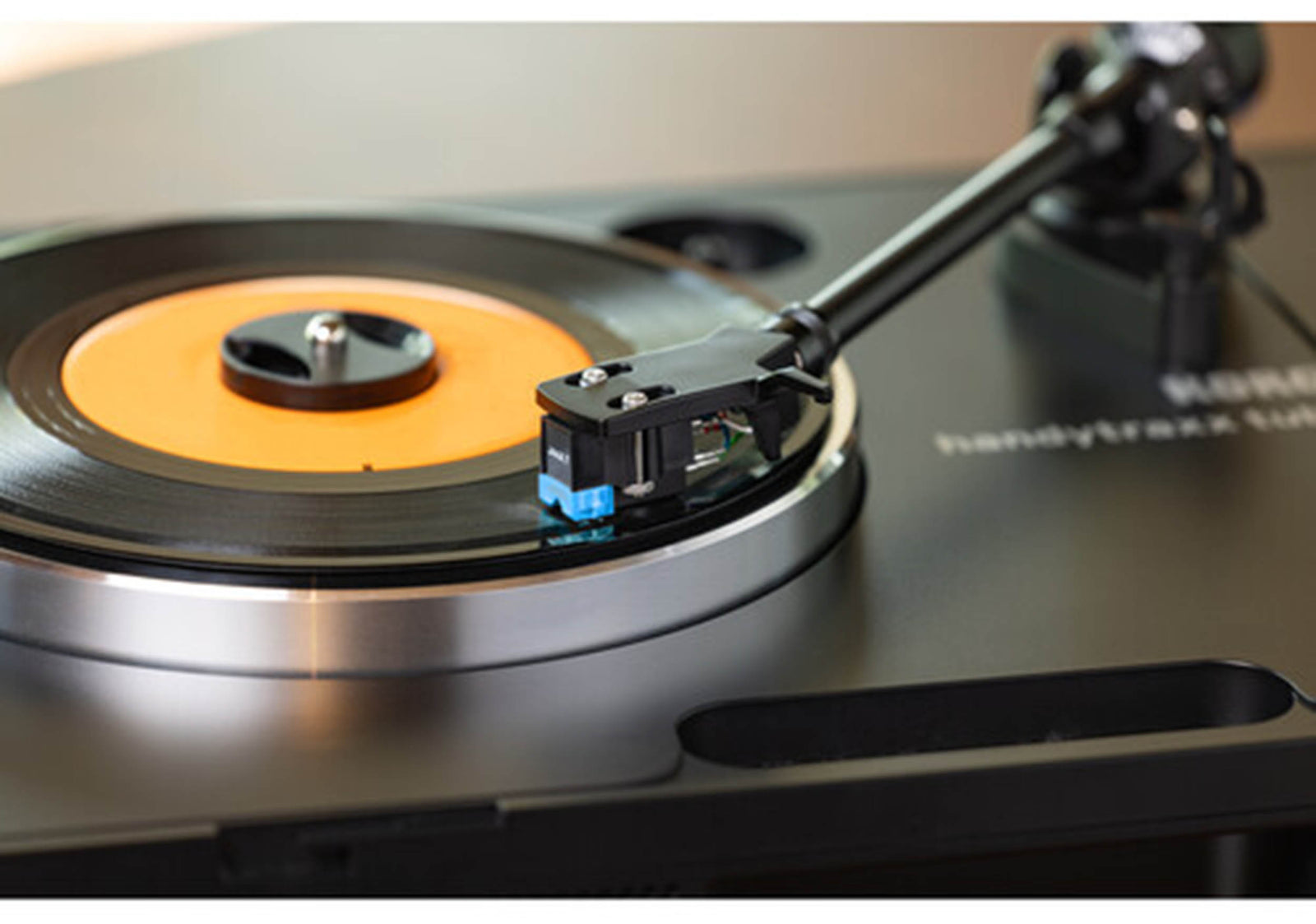

The KORG handytraxx tube is a premium portable record player designed for audiophiles and DJs who demand high-quality sound on the go. Featuring a built-in Nutube vacuum tube phono amplifier, it delivers warm, harmonically rich audio with exceptional clarity. The die-cast aluminum platter ensures stable rotation, while the universal tonearm with an MM cartridge provides precise tracking. Integrated stereo speakers, a headphone output, and USB connectivity make it a versatile solution for vinyl playback, monitoring, and digitization. Power it via USB-C or six AA batteries for ultimate portability.

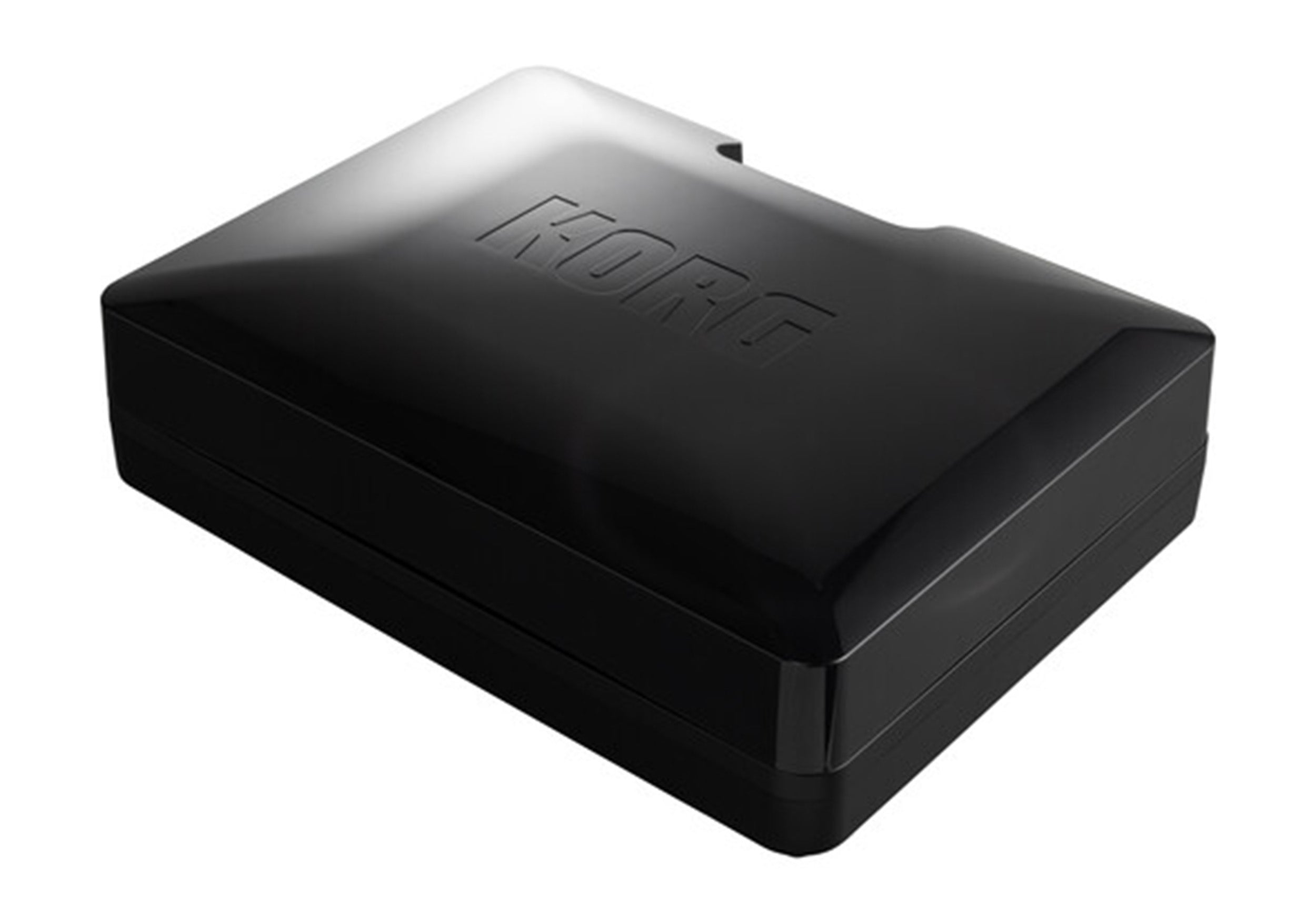

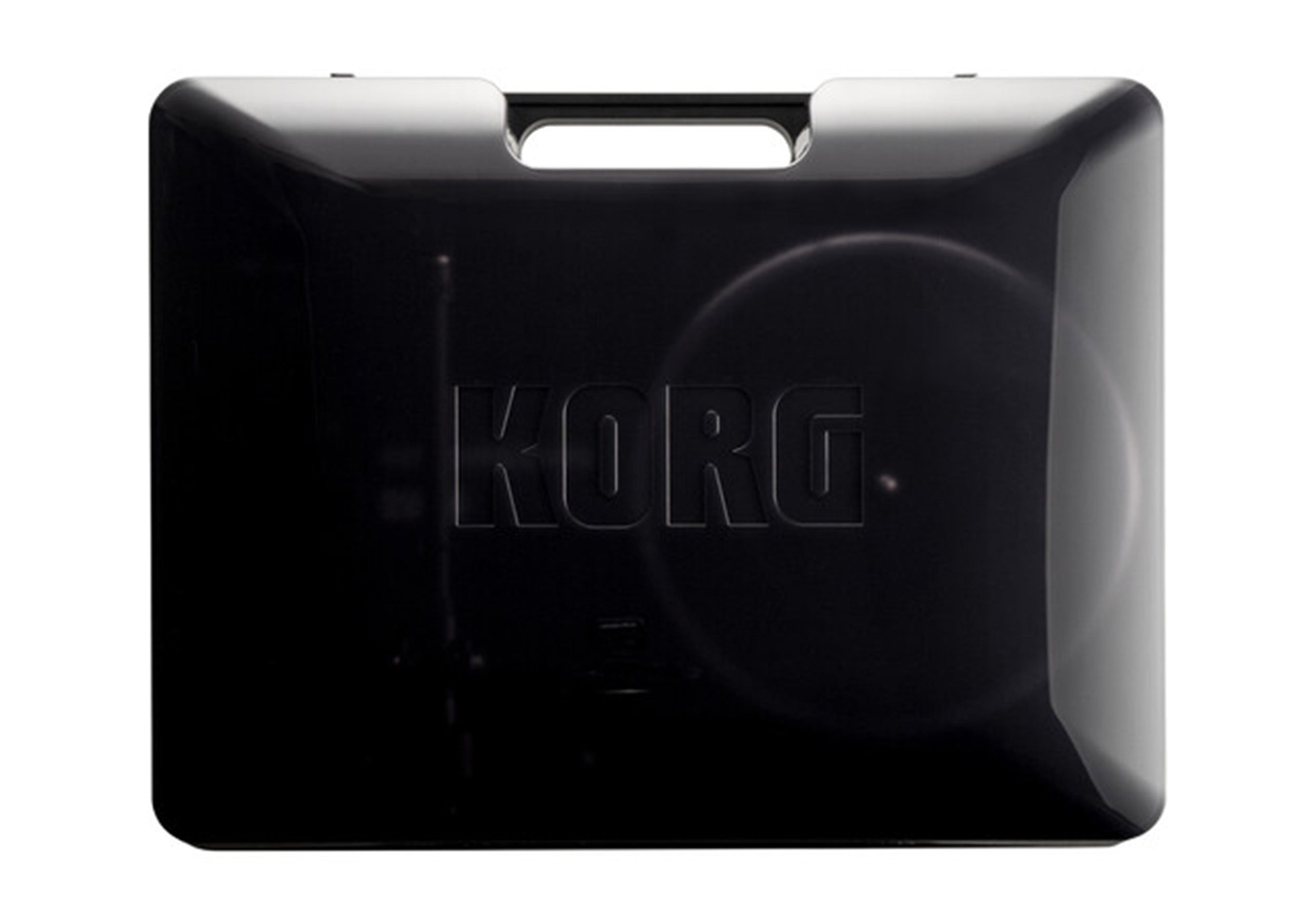

Designed for convenience and high performance, the handytraxx tube offers adjustable bass and treble controls, allowing users to customize their listening experience. The phono equalizer enhances the warmth of analog sound, while the belt-drive system, supported by CPU-controlled rotation, maintains pitch accuracy. The sleek design includes metallic silver accents and a translucent smoked cover, protecting the unit while adding a modern touch. Whether at home, in the studio, or on the move, the handytraxx tube delivers a superior vinyl experience in a compact, travel-ready form.

Product Specifications:

Drive System: Belt-drive with CPU-controlled rotation compensation

Motor: DC Servo Motor

Speeds: 33-1/3, 45, 78 RPM

Platter: Aluminum die-cast

Wow & Flutter: < 0.15% (WTD) at 3 kHz

Signal-to-Noise Ratio: > 70 dB (DIN-B)

Cartridge Type: MM-type stereo cartridge (JICO J44A 7)

Phono Output: 230 mV (1 kHz, 5 cm/sec)

Line Output: Max 2.3 Vp-p (THD 1%)

Headphone Output: Max 80 mW (32 Ohms, THD 1%)

Speaker Output: 2 x Max 2.5 W (THD 1%, 4 Ohms)

Phono Preamp & Tone Control

Phono Preamp Gain: 38 dB (Standard)

Equalizer Characteristics: RIAA

Bass Control: 130 Hz, ±8 dB

Treble Control: 5.5 kHz, ±8 dB

Tube Control Gain: 0 to 6 dB

Connectivity:

USB Audio Output: 2-channel PCM 44.1 kHz/48 kHz, 16-bit, USB 2.0 (Full Speed)

USB Ports:

1 x USB-B 2.0 (Audio Output)

1 x USB-C (Power Only)

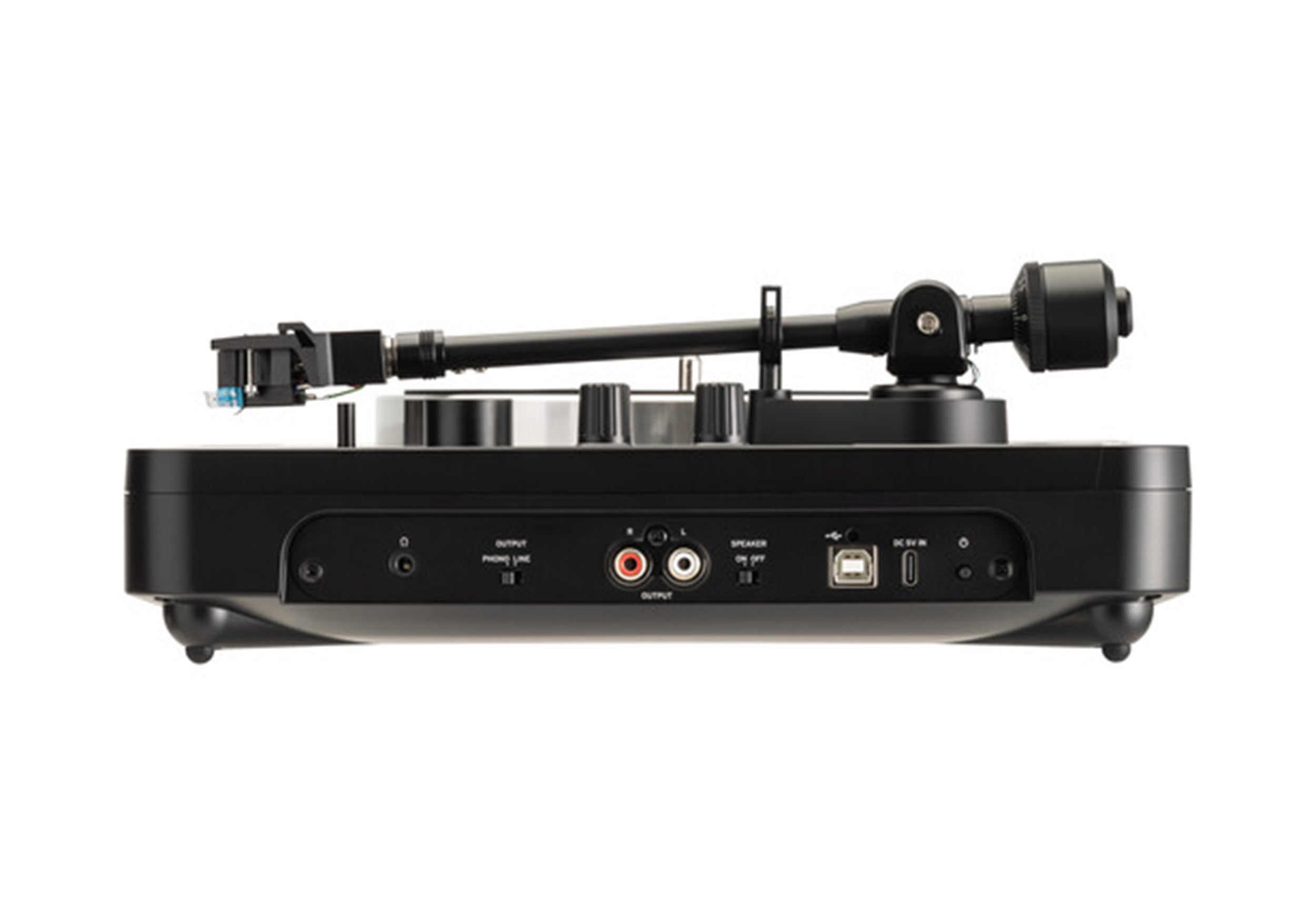

Audio I/O:

1 x RCA Stereo Line Output

1 x 3.5mm (1/8") TRS Headphone Output

Power Source: AC adapter (included) or 6x AA batteries

DC Input: 5V DC

Power Consumption: 2.35 W

Color: Black

Dimensions: 13.9 x 18.43 x 9.09 inches

Weight: 8.98 lbs
