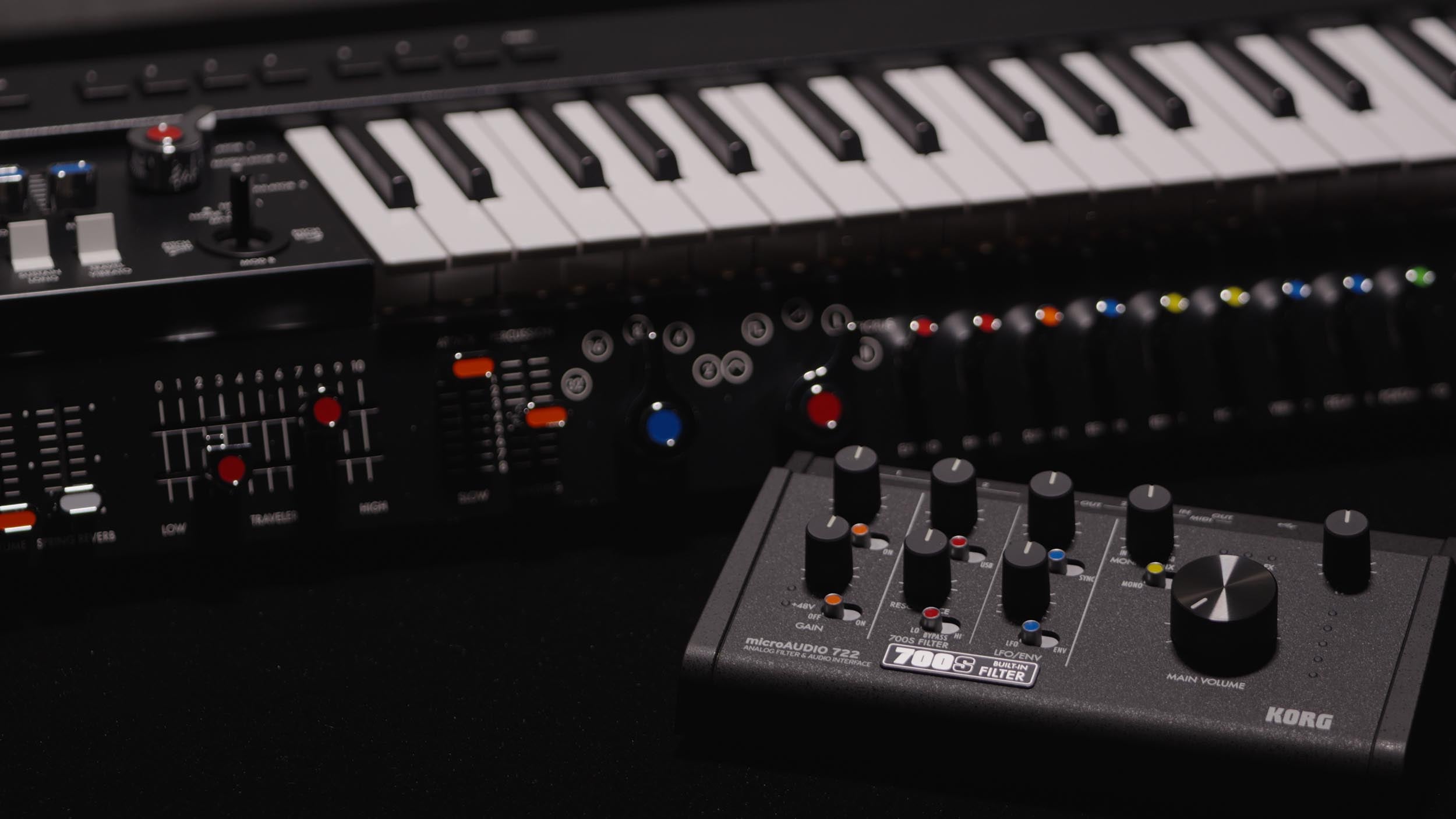

Korg microAUDIO 22, 2x2 USB-C Audio Interface with Analogue Filter

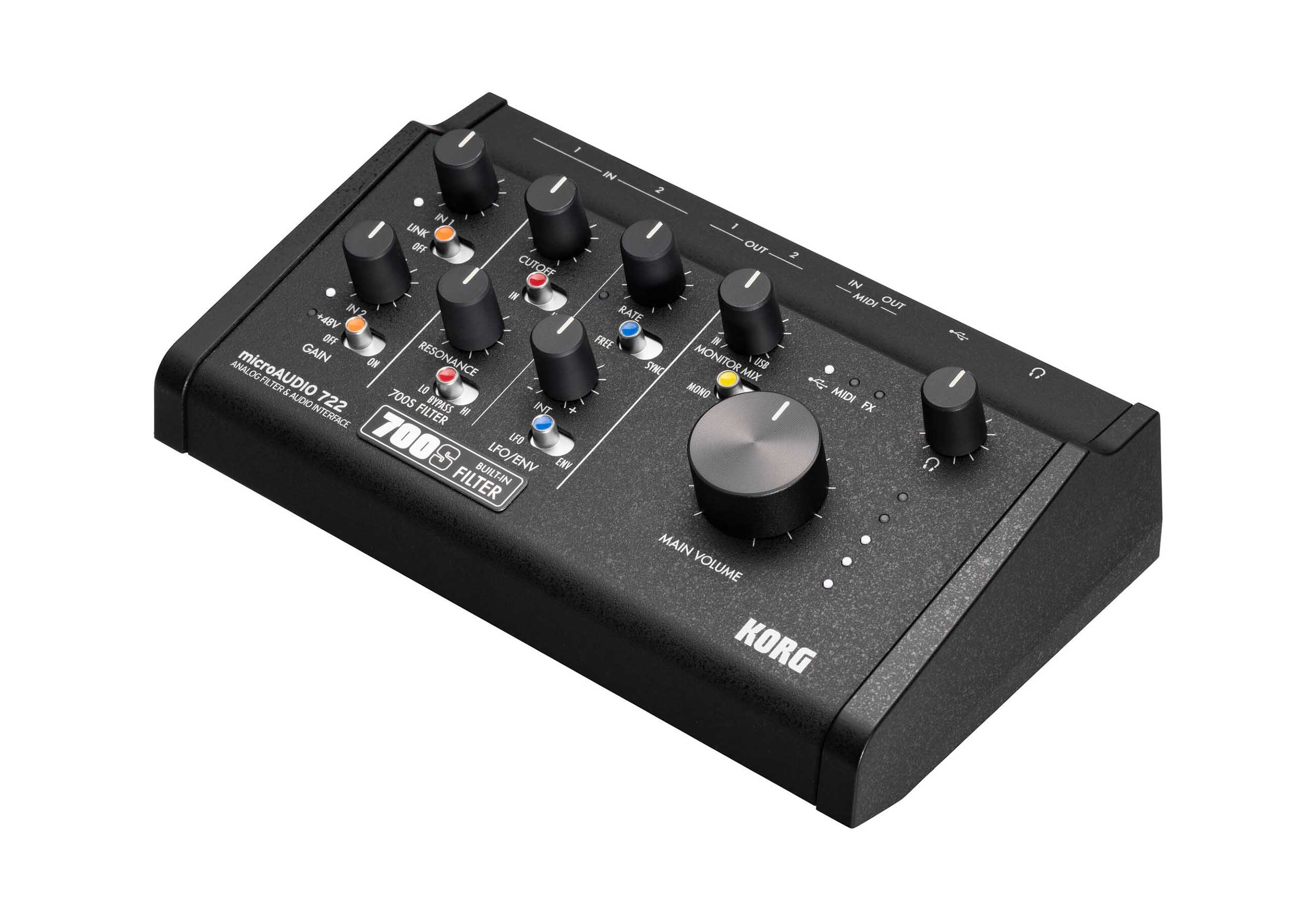

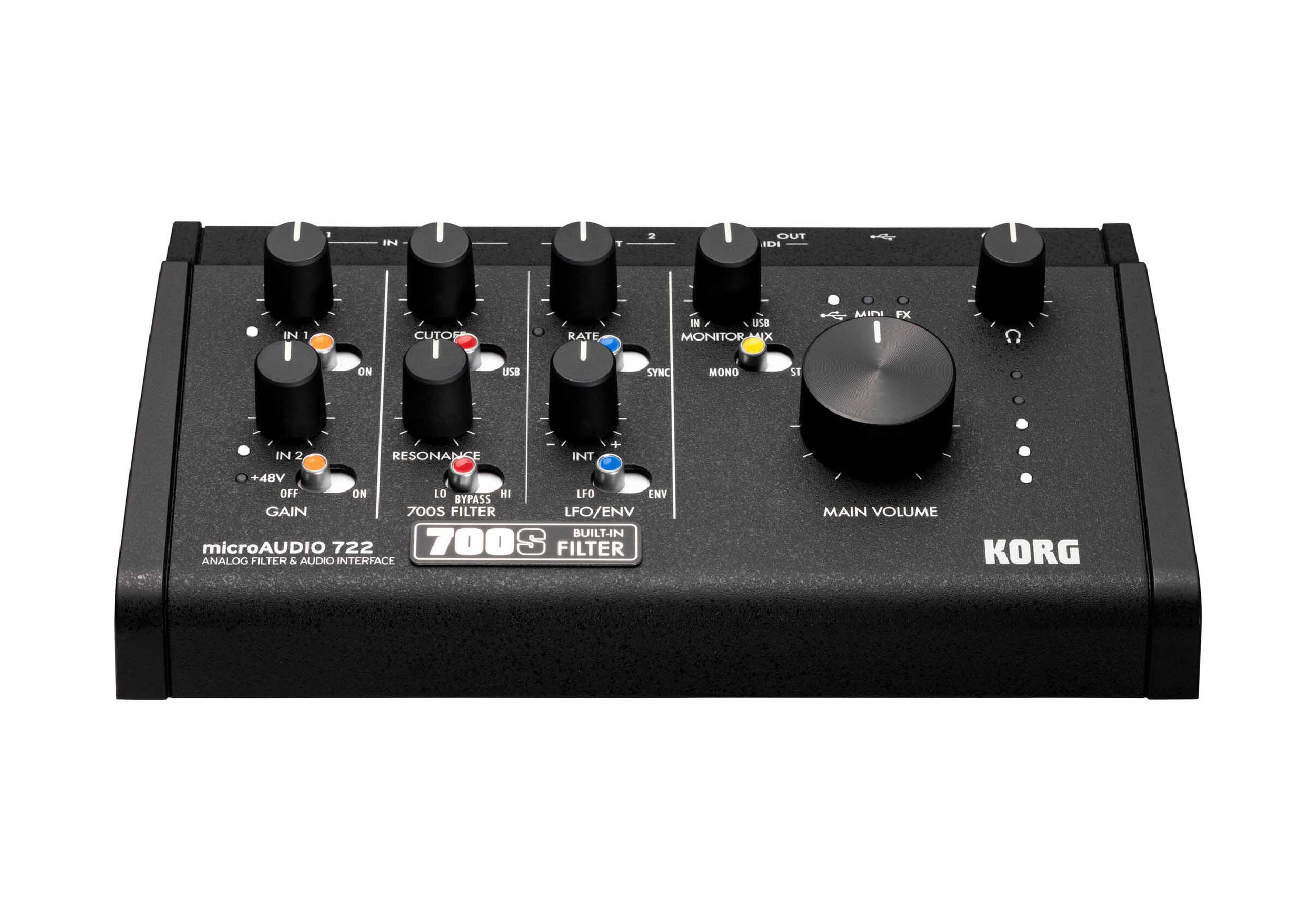

The Korg microAUDIO 722 is a compact 2x2 USB-C audio interface with up to 24-bit / 192 kHz sampling. Sporting an integrated analog low-pass / high-pass filter derived from the miniKORG 700S, this interface offers unique tonal shaping potential.

Compact Design Meets Studio Clarity

The microAUDIO 722 brings KORG’s studio-grade engineering straight to your desktop, taking creativity further by integrating KORG’s legendary miniKORG 700S analogue filter. It creates a rich, expressive tone that blurs the line between interface and instrument, giving artists a way to shape sound that digital processing alone cannot replicate.

Compact Form. Premium Sound

microAUDIO 722 offers a pristine, open sound with a strong sense of depth and generous headroom in a compact, desktop-ready design. Studio-grade preamps are tuned for musical gain with minimal noise, prioritizing clarity while avoiding excess circuitry.

It supports 24-bit/192kHz audio and includes balanced inputs and outputs for high-quality recording and playback.

Intuitive, Hands-On Control for Creative Flow

From detailed vocal work to layering synthesizers or performing live, every nuance is faithfully captured.

Intuitive, Hands-On Control for Creative Flow Each channel of microAUDIO 722 features versatile Mic, Line, and Hi-Z inputs with 48V phantom power, plus assignable Noise Gate and Compressor/Limiter for smooth, musical gain with minimal noise. These processors can be applied not only to input signals, but also to any audio played back from a connected computer.

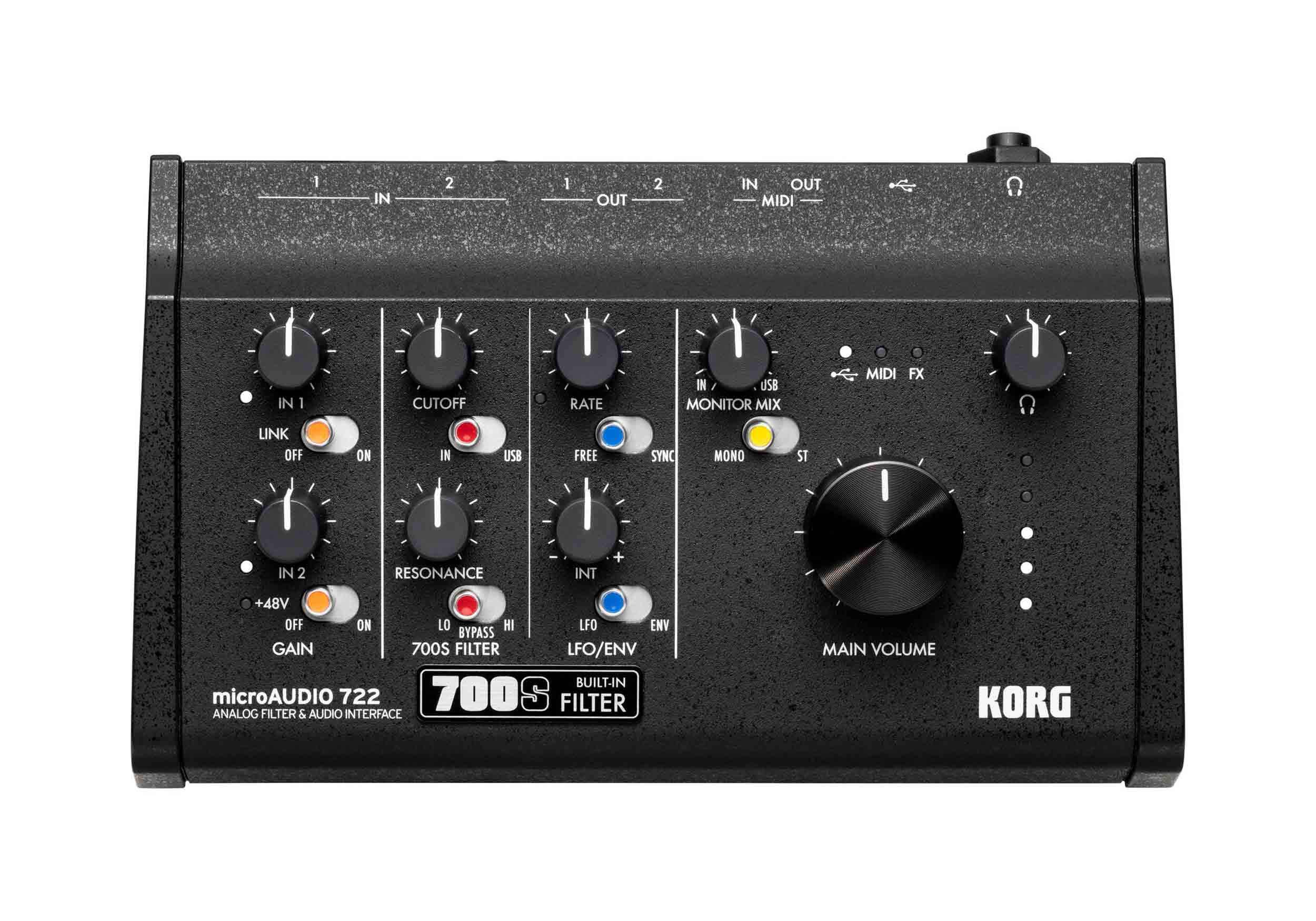

Front-panel knobs provide direct access to essential functions, and zero-latency direct monitoring ensures immediate feedback during recording or live performance.

Ready for Streaming and Mobile Creation

The headphone output can be assigned independently of the main outputs, allowing you to route a click track exclusively to the headphones or monitor cue signals for DJ applications.

The Stereo Link function allows both channels to be controlled simultaneously with a single knob, making it ideal for stereo synthesizers and other paired sources.

These features will be added in version 1.01, scheduled for release in February 2026.

microAUDIO 722

Where Analog Defines the Edge

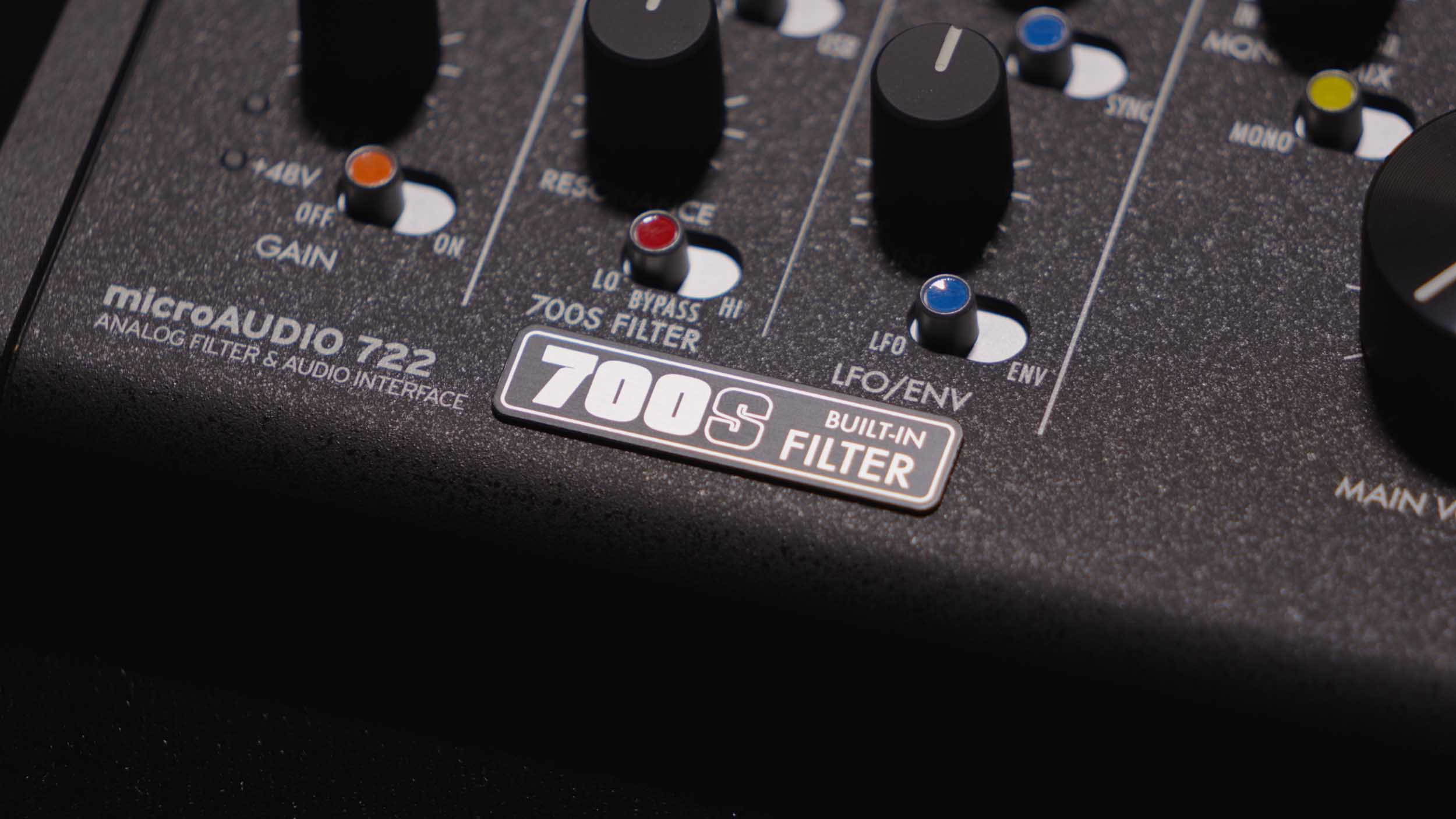

The microAUDIO 722 incorporates the iconic analogue filter from the miniKORG 700S, known for its warm, musical response. It can be used as a standalone analogue filter or integrated directly into your DAW setup, adding unique tonal shaping possibilities.

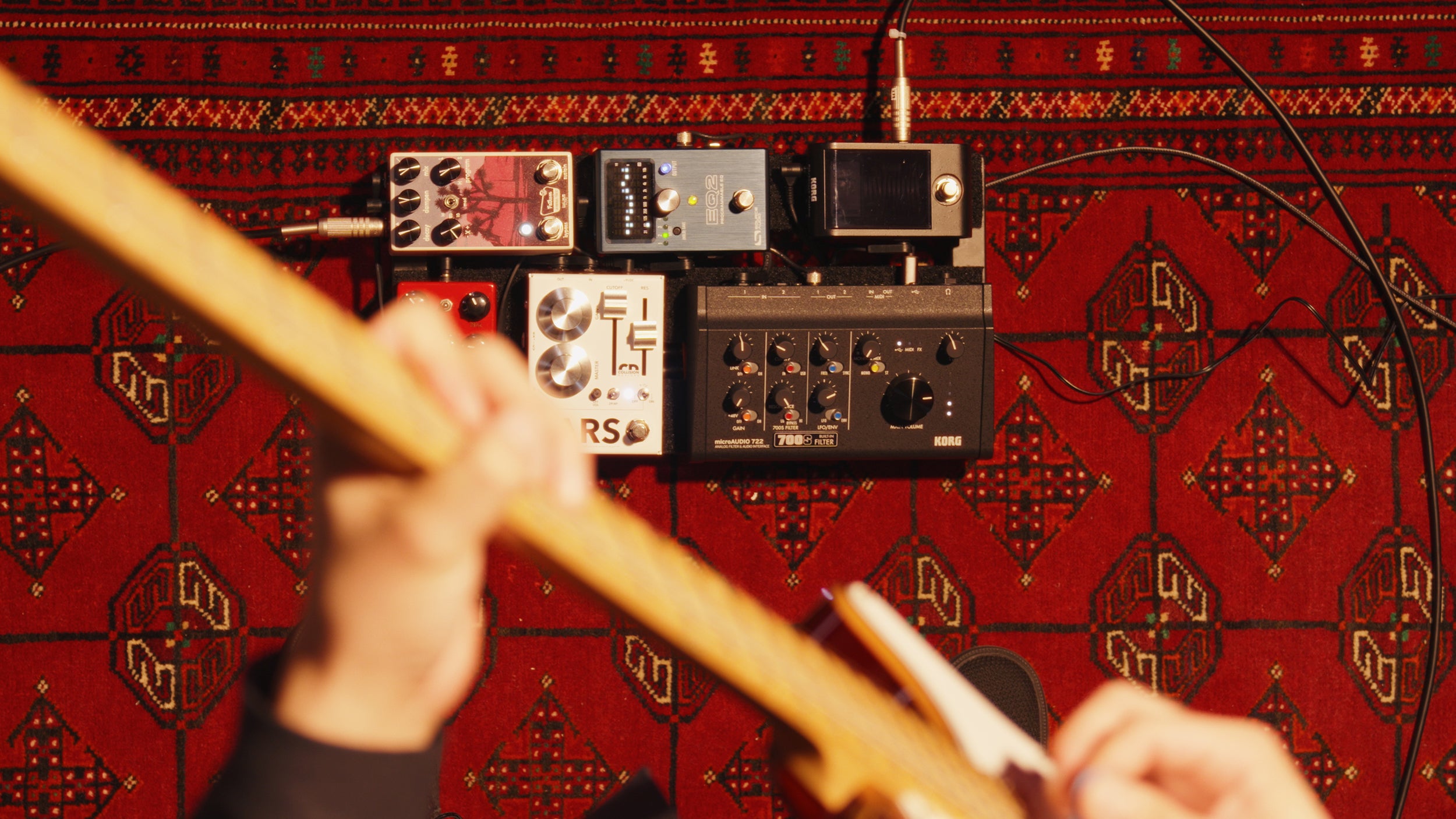

Connect a guitar or bass to use it as an auto-wah effect, or route digital synthesizers through it to introduce classic analogue motion and character.

The filter includes Low-Pass, High-Pass, and Bypass modes and can process inputs as well as any audio played back from a connected computer.

With MIDI In/Out connectivity, you can automate the filter, synchronize with external hardware, and explore creative hybrid workflows that blend digital precision with the miniKORG 700S’s distinctive analog behavior.

Filter Ark

The Heart of Creative Sound Design

Bundled exclusively with microAUDIO, Filter Ark is KORG’s next-generation filter plugin for DAW-based production.

Faithfully reproduces legendary analog filters from MS-20, Polysix, miniKORG 700S, and ARP Odyssey

Introduces new models, including physically modeled resonators and vowel-based filters

Up to four filters routable in series, parallel, or feedback

Morphable LFOs, sequencers, and macros for advanced modulation

Scale quantization and performance-ready presets ensure every movement is musical

Filter Ark turns filtering into a creative instrument, unlocking expressive sound design far beyond traditional filtering.

Ready for Streaming and Mobile Creation

Built-in loopback mode sends computer audio directly into your livestream or DAW without complicated routing. With USB-C connectivity, microAUDIO 722 works seamlessly with smartphones and tablets, making it easy to create or stream from anywhere. Whether recording at home, performing on stage, or streaming online, microAUDIO 722 adapts to your workflow and delivers consistent, professional sound.

Product Specifications:

Audio Format:

Sampling Rate: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz

Bit Depth: 24-bit

Mic Input:

Dynamic Range: 109.5 dB (A-weighted)

THD+N: < 0.015% (minimum gain, -1 dBFS input)

Maximum Input Level: -2 dBu (minimum gain)

Gain Range: 56 dB

Impedance: 1.5 kΩ

Line Input:

Dynamic Range: 109.5 dB (A-weighted)

THD+N: < 0.004% (minimum gain, -1 dBFS input, 22 Hz–22 kHz bandpass)

Maximum Input Level: 13 dBu (SE) / 18 dBu (DIF)

Gain Range: 56 dB

Impedance: 1 MΩ (SE) / 2 MΩ (DIF)

Line Output:

Dynamic Range: 109.5 dB (A-weighted)

THD+N: < 0.0015% (minimum gain, -1 dBFS input)

Maximum Output Level: 10 dBu (SE) / 16 dBu (DIF)

Impedance: 330 Ω (SE) / 660 Ω (DIF)

Headphone Output:

Dynamic Range: 107 dB (A-weighted)

THD+N: < 0.0015% (minimum gain, -1 dBFS input, 22 Hz–22 kHz bandpass)

Maximum Output Level: 10 dBu

Impedance: 20 Ω

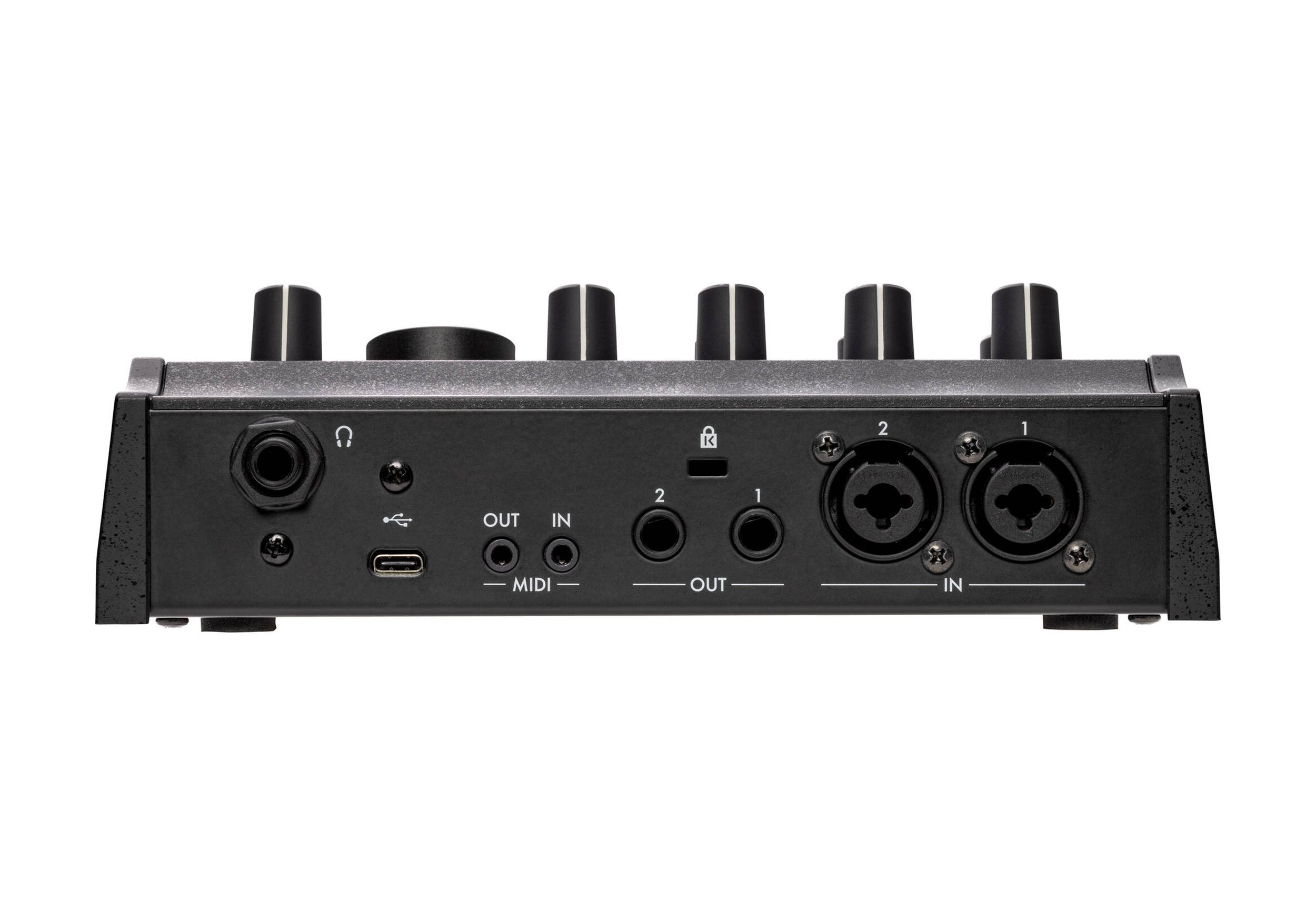

Jacks and Ports:

Inputs: 2 × combo jacks (XLR / 6.3 mm TRS monaural)

Outputs: 2 × 6.3 mm TRS monaural

Headphones: 1 × 6.3 mm stereo jack

USB Port: Type-C

MIDI: 1 × MIDI IN, 1 × MIDI OUT (3.5 mm TRS phone jack)

Analogue Filter:

Incorporates miniKORG 700S analogue filter

Modes: Low-Pass, High-Pass, Bypass

Can process inputs and audio playback from a connected computer

MIDI controllable for automation and hybrid digital-analog workflows

Power Supply:

USB bus powered

Included Items:

USB cable

Quick Start Guide

Other Features:

Simultaneous I/O: 2 × 2

Number of Preamps: 2

A/D Resolution: 24-bit / 192 kHz

Phantom Power: Yes

Analog Inputs: 2 × combo (MIC/LINE [Hi-Z])

Analog Outputs: 2 × 6.3 mm TRS (DC coupled)

Headphones: 1 × 6.3 mm

Software: KORG Software Bundle

Power Options: USB-C bus powered, USB-C DC power adapter, 48V switch

Dimensions: 207 mm (W) × 128 mm (D) × 68 mm (H) / 8.15˝ × 5.04˝ × 2.68˝

Weight: 553 g / 1.22 lbs.
