Description

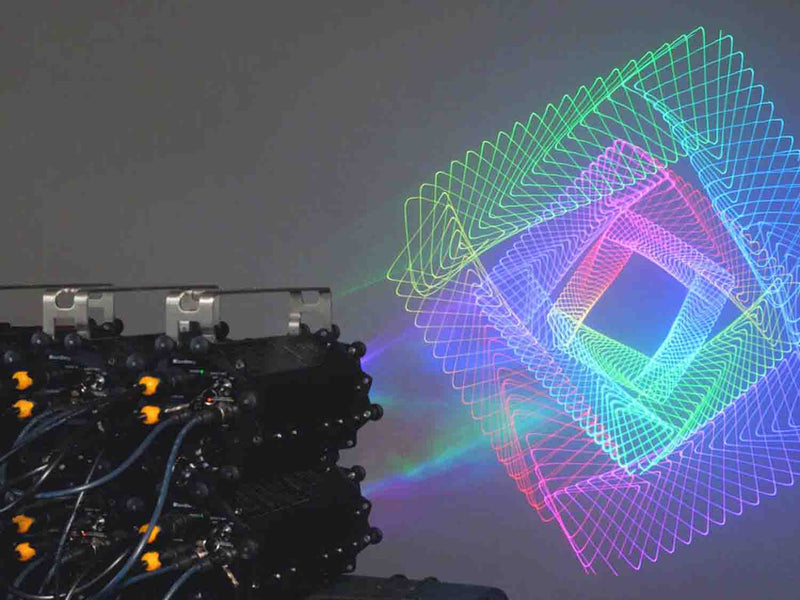

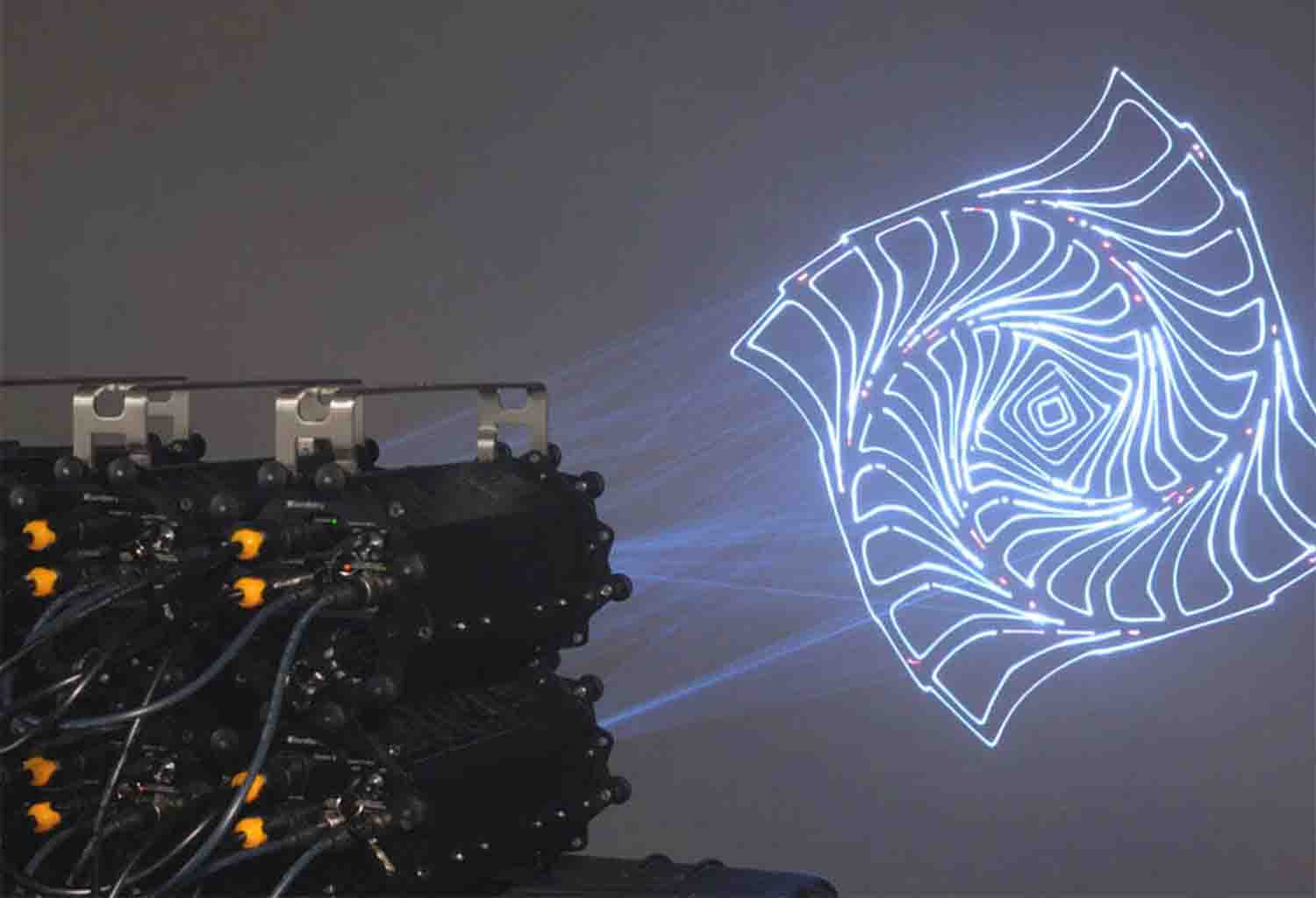

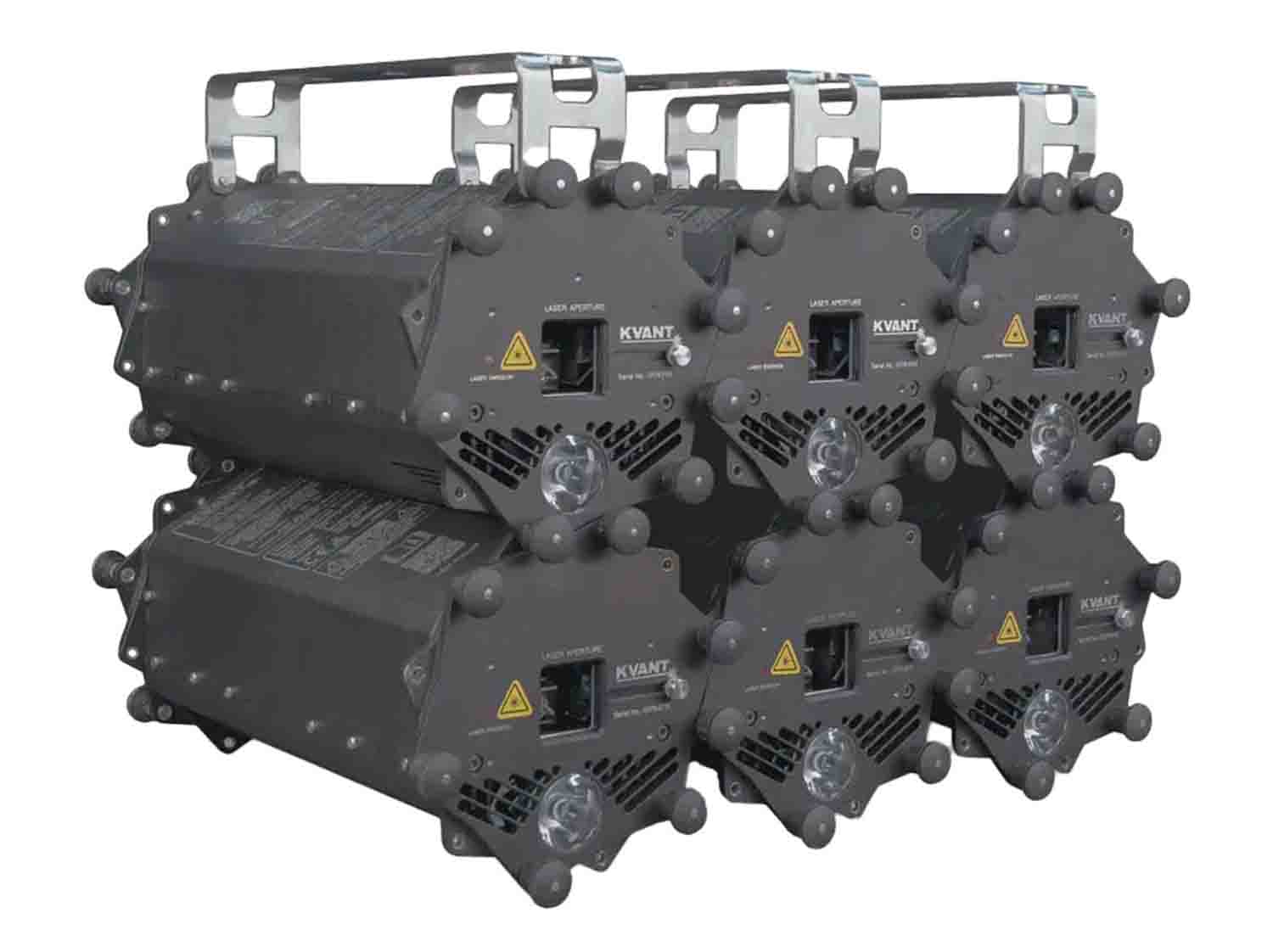

The Kvant Lasers BurstBerry cluster (6-units) Laser Show Projector offers more than 150.000 points-per-second drawing capability - that's at 8 degrees projection angle and 20 frames per second performed. And being virtually a single unit makes the handling extremely easy and practical because you don't have to worry about the misalignment between the projectors once they are set up - even if moved afterwards.
Just imagine what you could do with over 150.000 points per second; how complex the content could be with absolutely no flicker when projected. The BurstBerry offers endless creative possibilities and easy control when designing challenging laser effects. Because it is intended to be operated mainly via Art net or DMX, we see it ultimately as the product of choice for every lighting designer.
Unmatched!
One of the key features that a cluster of burst berries will give its user is phenomenal graphical performance.

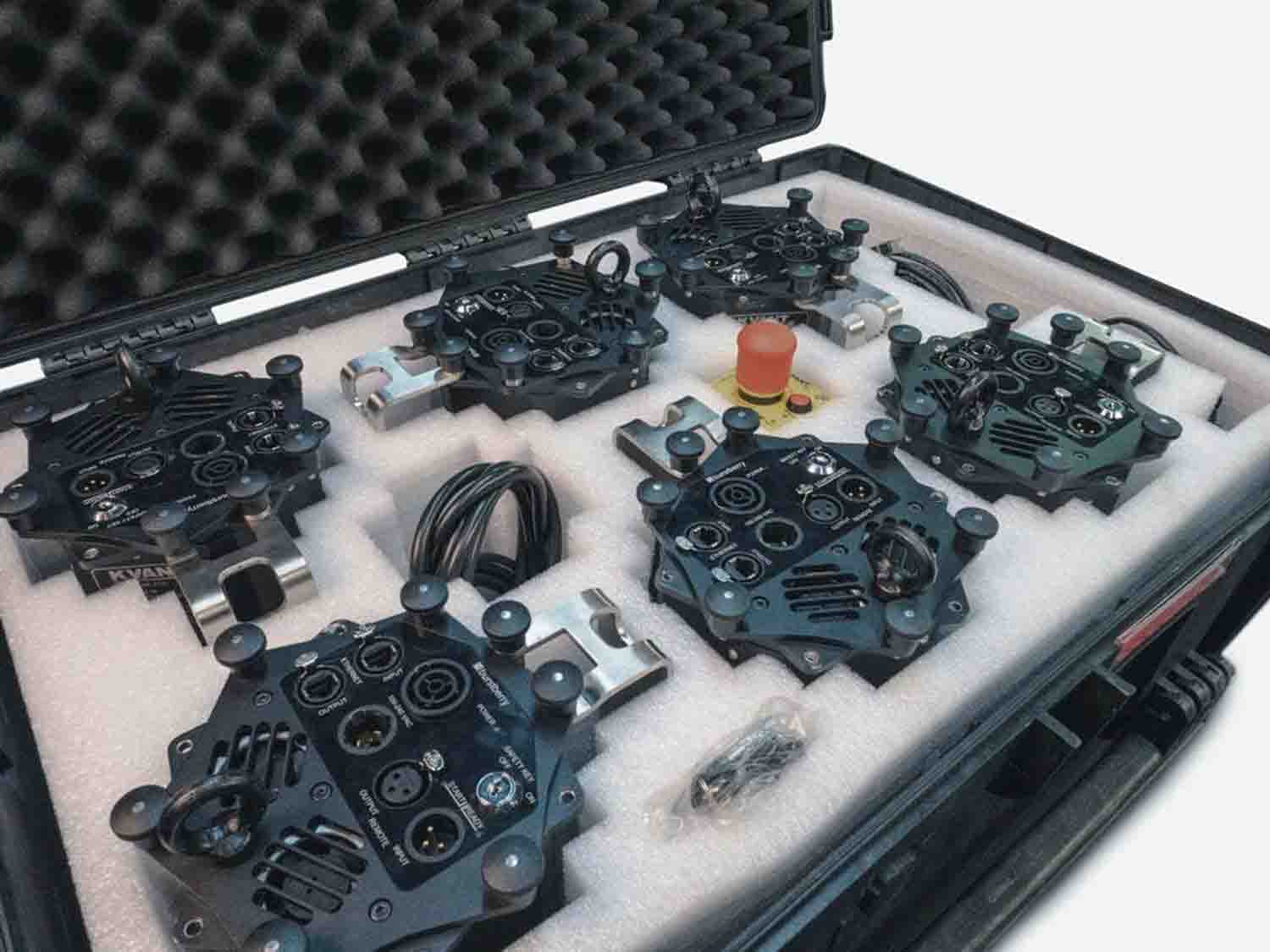

What's in the package
Kvant BurstBerry laser show projector
Six BurstBerry projectors
Kvant BurstBerry laser hanging bracket
Hanging brackets
Heavy duty laser flight case
Heavy-duty flight case
mains power cable for laser
Mains cable
Ethernet cable included with laser projector
Ethernet cable
Yellow safety estops
E-stop with XLR cable
Safety interlock for laser projector
Interlock [US only]
Safety keys for Kvant laser projector
Safety keys
Kvant USB flash drive
USB drive with manual
Laser QC certificate for authentication
QC certificate
Product Specifications:
Source | Type: Semiconductor laser diode | Full-color RGB laser projector/Lighting fixture
Suitability: Indoor/outdoor laser displays [atmospheric, abstract, text, animations]
System Control: FB4-STD [Ethernet, Art Net | PC, Lighting Console or Auto play]
Compliant With: EN 60825-1 [tested by TÜV SÜD], FDA
Guaranteed Opt. Output [W]: 12 [per 6-unit cluster]
R | G | B [Mw]: 340 | 700 | 1200 [each sub-unit | see note A below]
Wavelengths [Nm, ±5nm]: 637 | 520 | 445
Beam Size [Mm]: 5.2 x 4.5
Beam Divergence [Mrad]: 0.58 [full angle, averaged value, see note B below]
Modulation [Khz] | Type: 100 | analogue
X-Y Scanners: ScannerMAX 506 Compact | 168 Kpps @ 8°, max. 60° [per 6-unit cluster]
Power Requirements [V] | Input: 100-230/50-60Hz | Neutrik powerCON TRUE1
Max. Power Consumption [VA]: 340 [each sub-unit]
Operation Temperature [°C]: 10-40
Exterior Dimensions (L X W X H): 20.47 X 13.77 X 14.13"
Weight: 50.70 Lb
