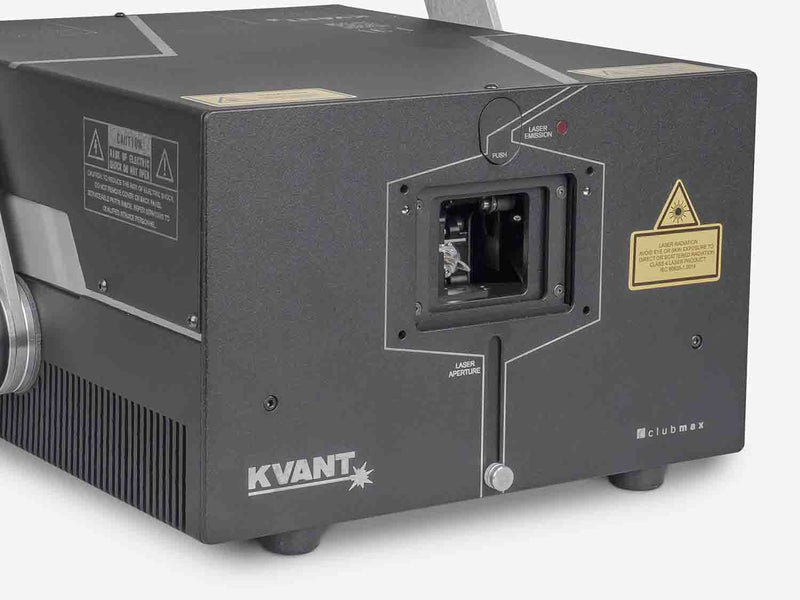

Kvant Lasers Clubmax 10 FB4 RGB Laser Projector

The Kvant Lasers Clubmax 10 FB4 RGB Laser Projector is the 3rd generation of our all-time bestseller that we crafted to perfection. Clubmax FB4 lasers are available in the range from 2 to 15W. The new, solid, ergonomic hanging bracket offers a comfortable grip and flex-free firmness. It is supplied with all Clubmax 10 and 15 FB4 laser projectors ordered from 1st September 2022 onwards.

Battlefield Tested Design

Housing and all internal parts are robust and sturdy, making Clubmax an ideal laser system for permanent installations, touring, and hire.

What is in the Package

Heavy-duty flight case

Laser projector

Mains cable

Ethernet cable

E-STOP with XLR cable

Interlock [US only]

Safety keys

USB drive with Manual

QC Certificate

Product Specifications:

Source | Type: Semiconductor laser diode | Full-color RGB laser projector

Suitability: Indoor/outdoor laser displays [atmospheric, abstract, text, animations]

System Control: FB4-SK [Ethernet, Art Net, DMX, ILDA | PC, Lighting Console or Auto play]

Compliant With: EN 60825-1 [tested by TÜV SÜD], FDA

Guaranteed Opt. output [mW]: 9700

R | G | B [Mw]: 2500 | 2800 | 4500 [ see note A below]

Wavelengths [Nm, ±5nm]: 637 | 520 | 445

Beam Size [Mm]: 5 x 4.5

Beam Divergence [Mrad]: 0.9 [full angle, averaged value, see note B below]

Modulation [Khz] | Type: 100 | analogue

X-Y Scanners: ScannerMAX 506 Compact | 40 Kpps @ 8° [more options in UPGRADES section of this page]

Power Requirements [V] | Input: 100-230/50-60Hz | Neutrik powerCON TRUE1

Max. Power Consumption [VA]: 340

Operation Temperature [°C]: 10-40

Exterior Dimensions (L X W X H): 13.34 X 6.61 X 13.89"

Weight: 28.66 Lb
