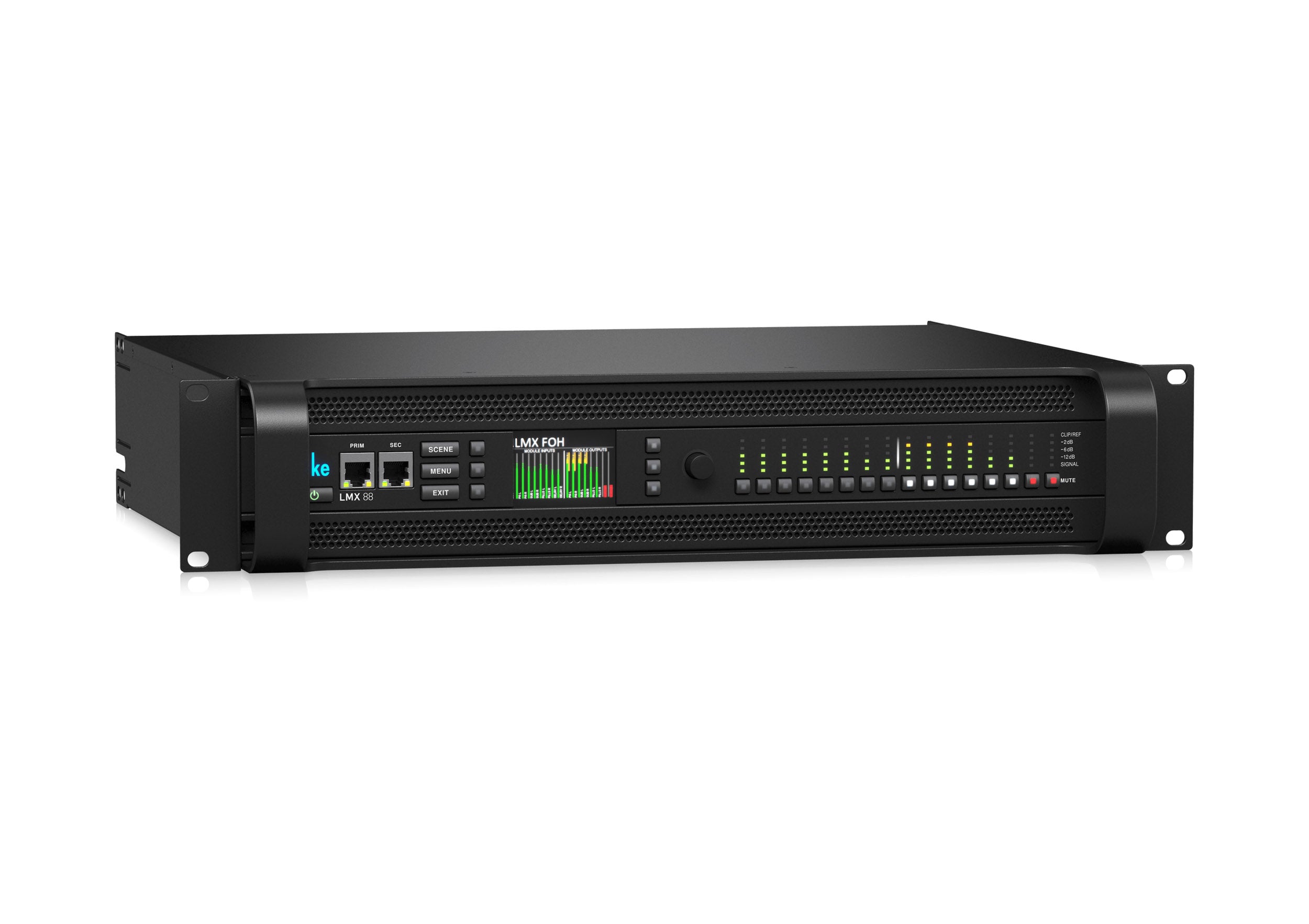

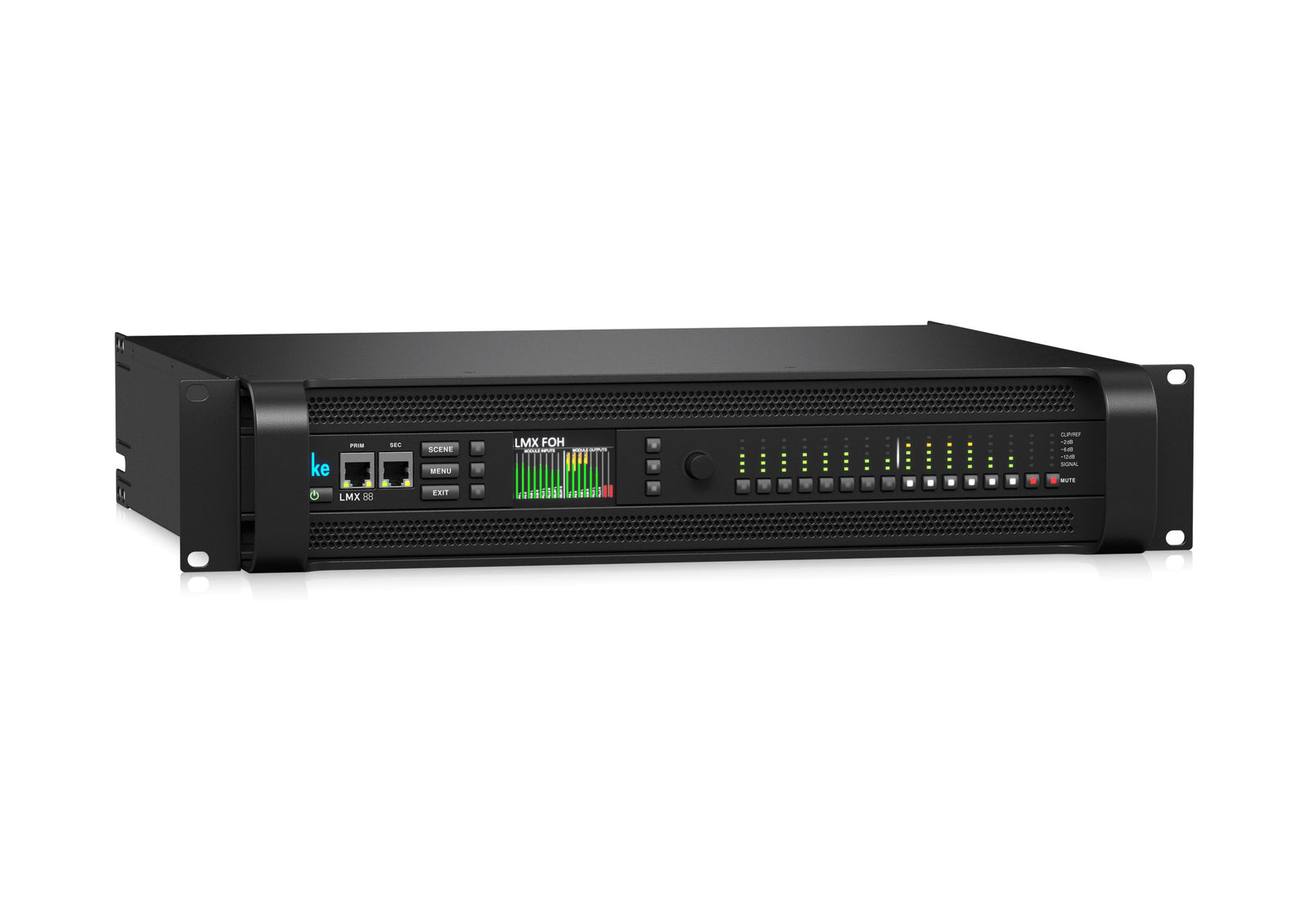

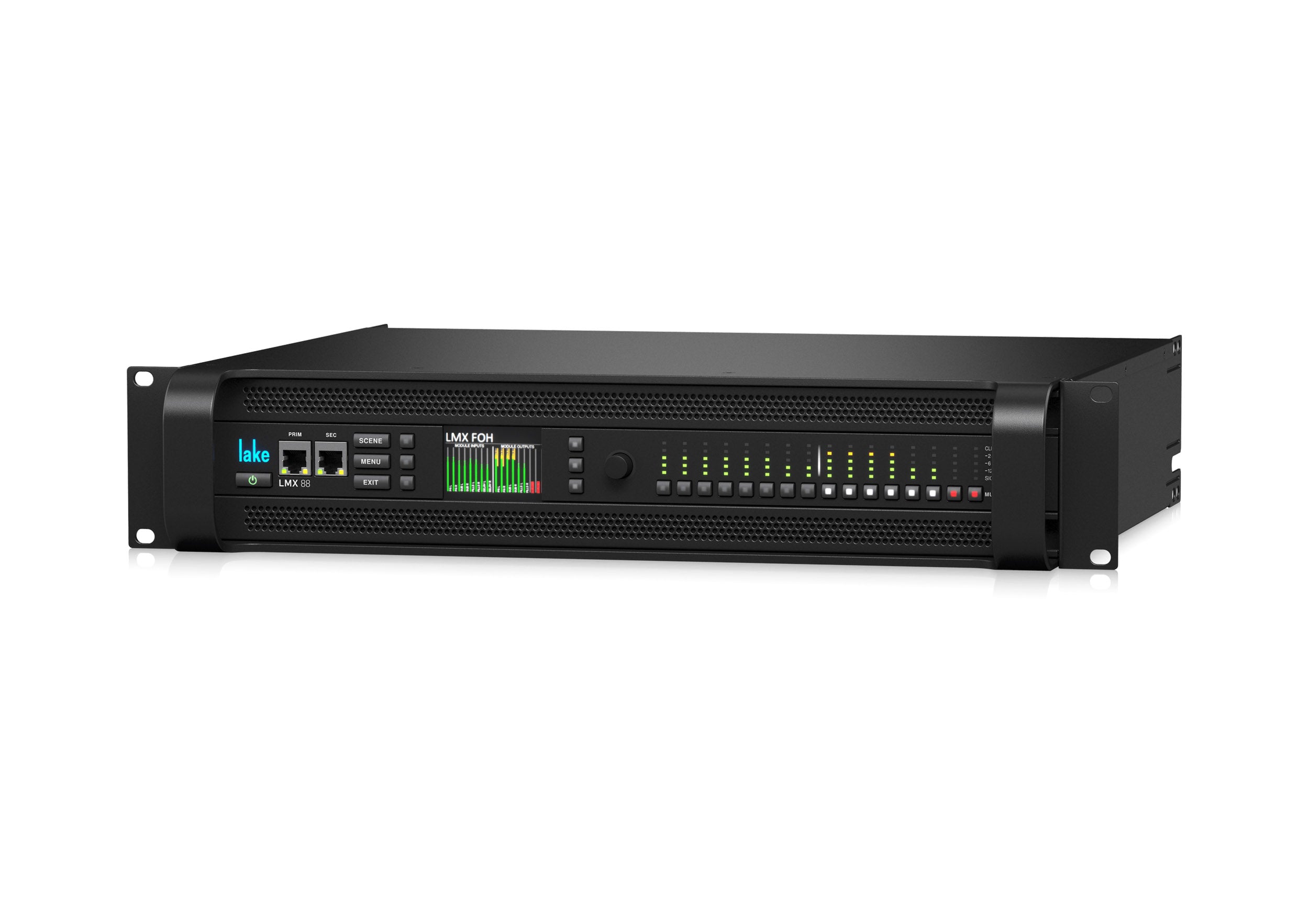

Lab Gruppen LMX 88 Lake Audio System Processor

The Lab Gruppen LMX 88 provides an 8 x 8 analog I/O, 8 × 8 AES3 digital I/O, 8 × 8 Dante networked I/O and two interfaces of AES50 where up to 24 channels from the up to 96 AES50 channels can be selected and used as inputs or outputs – this makes the signal routing very flexible. The 16 input routers have four fully user-programmable priorities for redundant input operation and provide seamless failover between the inputs.

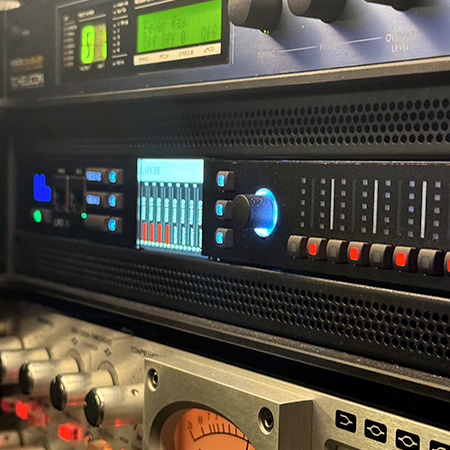

Going LMX at FOH with Seamless Console Switch Through Scenes

The LMX 88 is a versatile centerpiece that allows you to easily manage the signal flow. It can receive signals from multiple consoles and allows for easy switching or mixing of those signals for distribution to your sound system. With the introduction of Scenes, you can pre-program any combination of signal flow and easily recall them using the front panel or the Lake Controller Software. Additionally, you can configure the GPI on the rear panel to activate a Scene using a custom switch for seamless console switching.

Signal Flexibility

LMX 88 provides the ultimate combination of input/output signal flexibility and fail-safe operation. Audio inputs are accepted via the Dante network and AES50 as well as on connectors for AES3 digital and analog. Simple programming in Lake Controller allows multiple, user-configured “Scene” presets to be stored (input scenarios). In addition, as with all Lake Dual Redundant products Dante Audio switch seamless between Primary and Secondary, and Control can also be used on either Primary or Secondary interface.

LMX 88 provides a total of sixteen input routers which can be independently configured with up to four input fail-over priority settings. And the output of any of these input routers can go to any of the Modules via the Module Input Mixer, also be patched directly to any analog, AES3, Dante/AES67 or AES50 output – without using any of the valuable Module processing channels.

Dedicated High-Performance Sample Rate Converters per Input

It can be difficult to combine multiple digital sources using conventional solutions. However, the LMX 88 has solved this issue by including dedicated high-performance, low-latency sample rate converters per input enabling the connection of multiple non-synchronized digital sources to the LMX 88 with the simplicity of analog. If required the LMX 88 does also allow these converters to bypassed per input for synchronous operation.

Peace of Mind on Unstable Power Grids

Being designed to function as a central point for critical audio signals in high profile contexts, the LMX 88 leaves nothing to chance. Dual redundant internal power supplies with separate locking AC inlets are provided to let you configure a backup solution with redundant power sources and optionally have a warning when not both mains are powered.

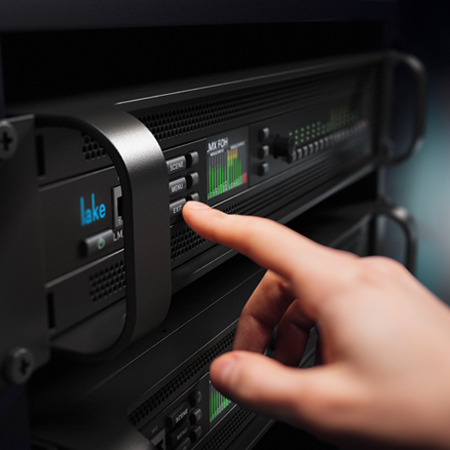

Shared Inputs by Linking

Two LMX 88 units may be linked to share each other’s inputs through the dual 24x24 AES50 ports (8 channels of Analog, 8 channels of AES3 and 8 channels of Dante), providing extremely low latency digital audio transfer.

Master your Sound and Gain Control with Lake Controller

Gain Control of your sound with the improved Lake Controller v8 software, featuring significant enhancements to the user interface with improved workflow and overview. Seamlessly control and optimize audio performance like never before. From fine-tuning to comprehensive system management, Lake Controller puts the power in your hands. Elevate the audio experience with precision, flexibility, and ease. Unlock the full potential of the sound system with Lake Processing and Lake Controller.

Product Specifications:

Audio Channels: 48 input / 48 output.

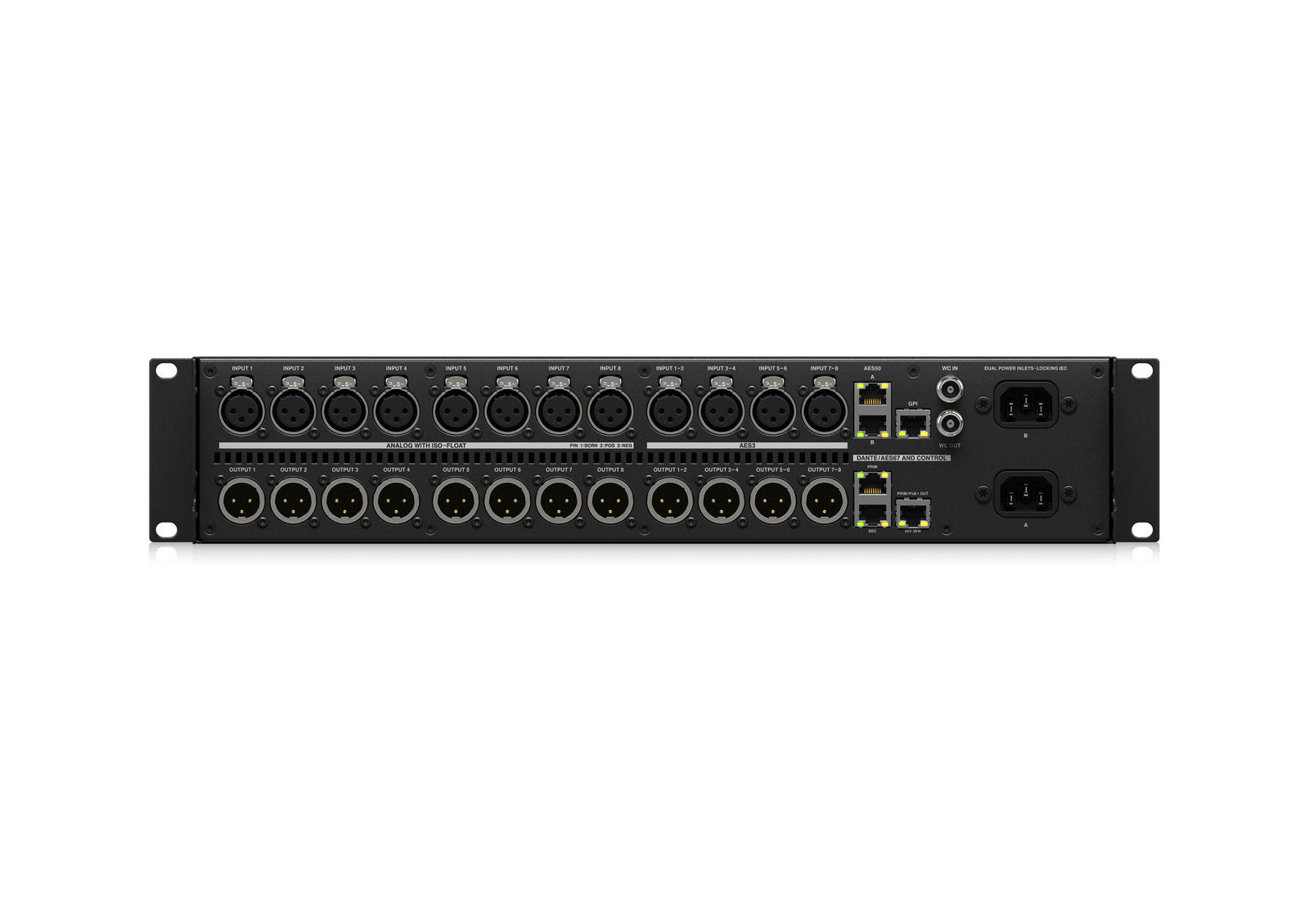

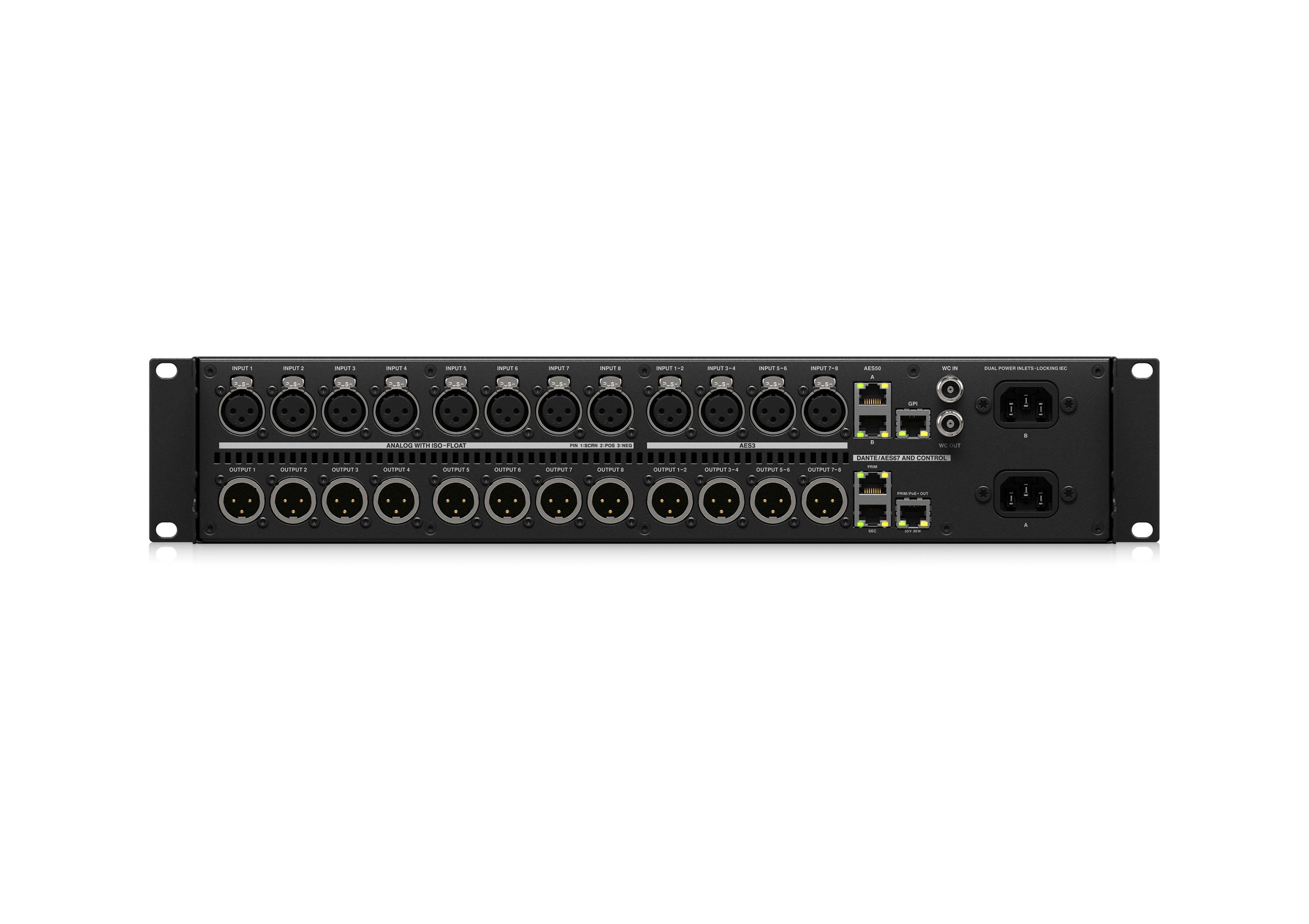

Inputs: 8 XLR analog, 4 XLR AES3 (up to 192 kHz).

Outputs: 8 XLR analog, 4 XLR AES3 (up to 192 kHz).

Connectivity: 5 x RJ45 (Dante/AES67), 2 x RJ45 (AES50), 1 x RJ45 (GPI), 2 x BNC (Wordclock).

Clocking: 10 clock sources, 96 kHz internal sampling.

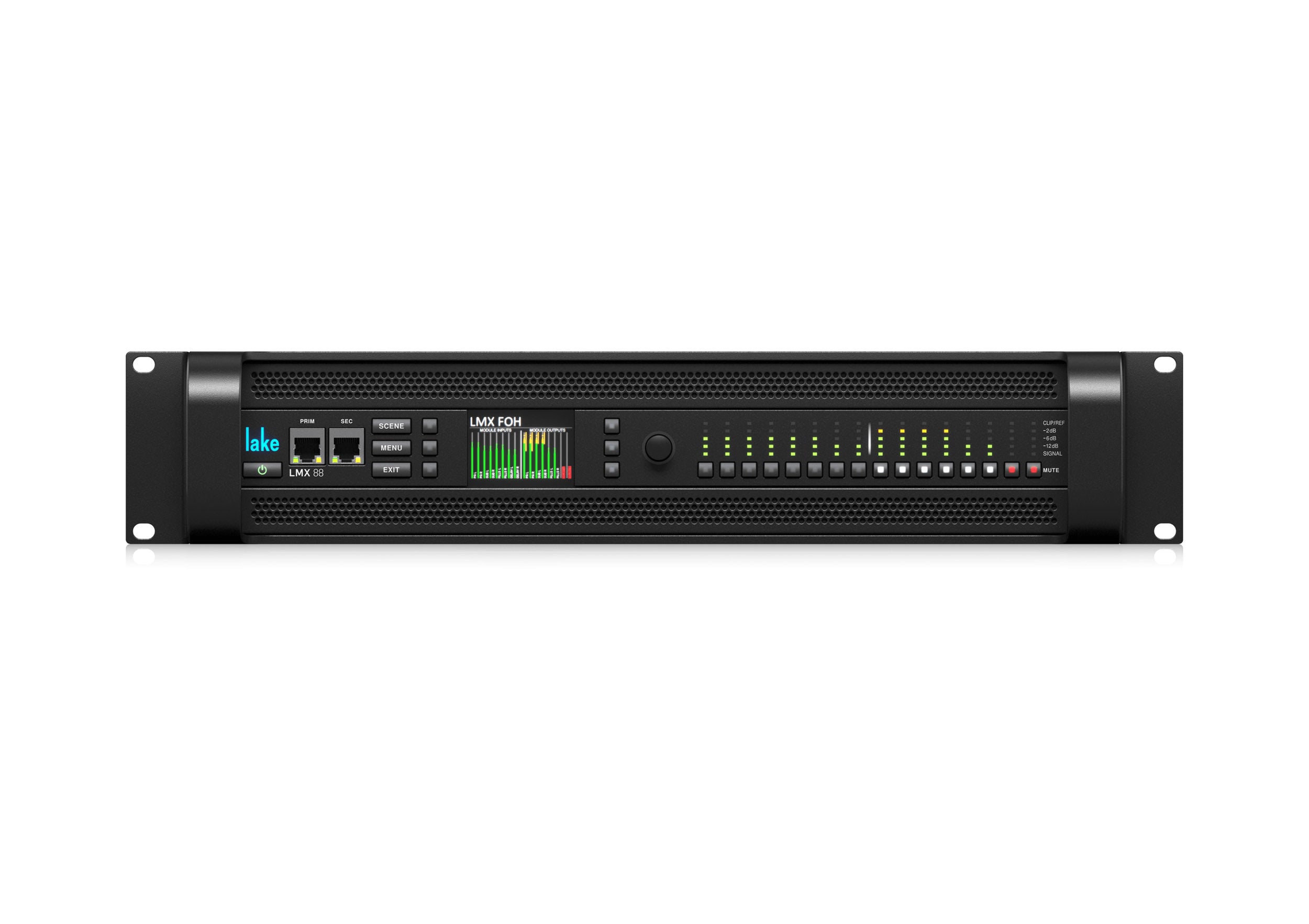

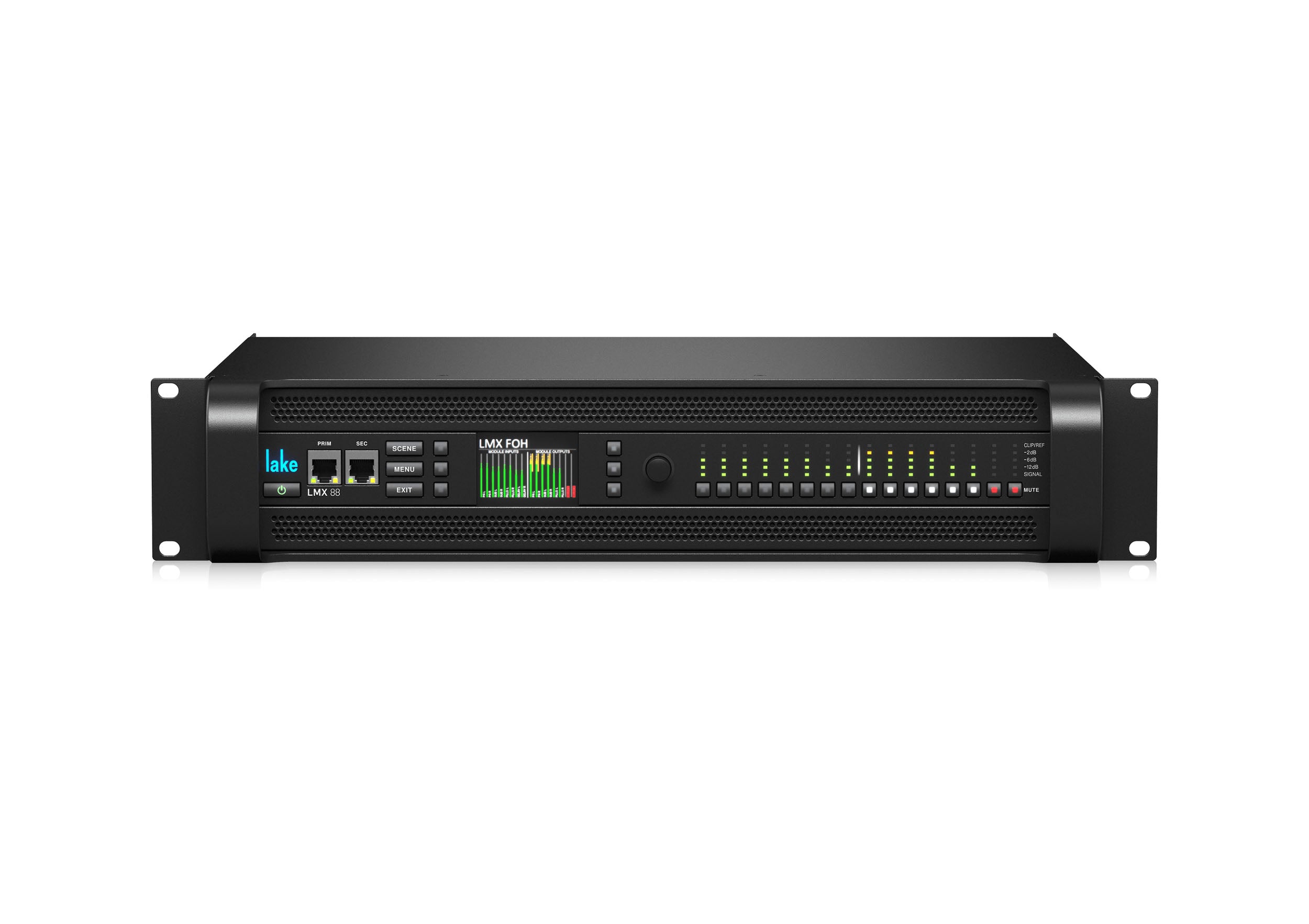

Control: High-contrast IPS display, 6 dynamic buttons, rotary encoder.

Frame Presets: 100 user-configurable presets.

Power Supply: Universal 85-264V, redundant, locking IEC connectors.

Chassis: 2U rackmount, designed for touring applications
